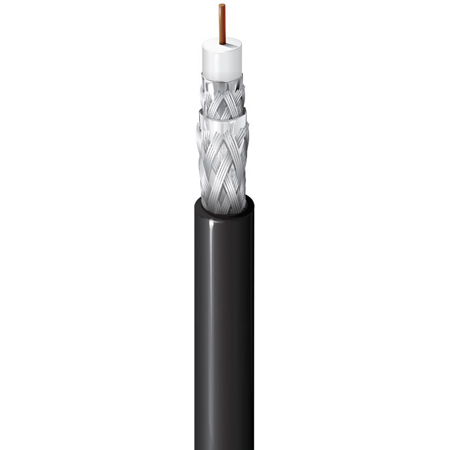

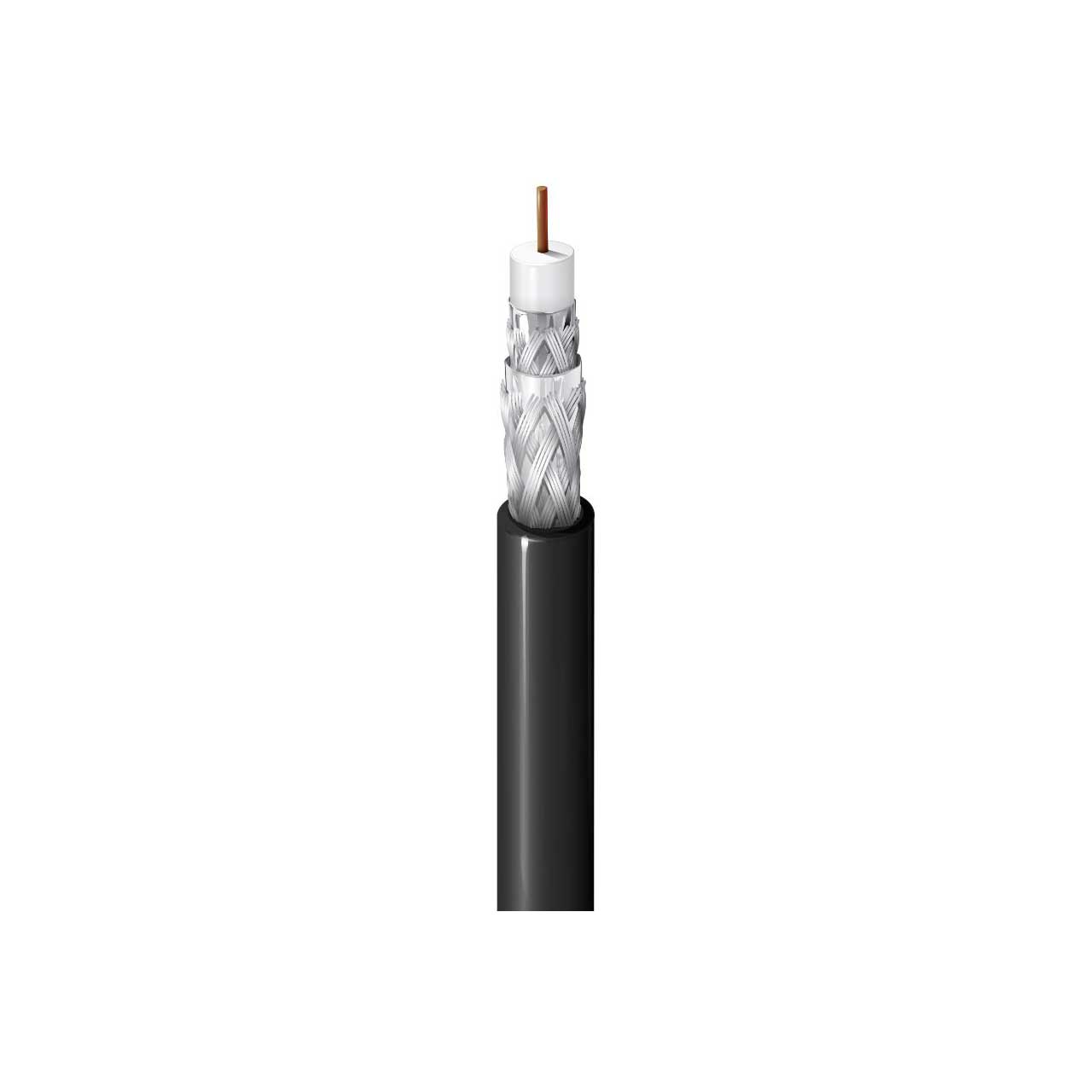

Belden 5339Q5 CM Surveillance CATV/MATV Quad Shield Indoor/Outdoor Coax Cable RG6 BC/18AWG - Black - 1000 Foot

5339Q5 0101000 - Overview

• Specifications:

  • Conductor AWG: 18
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor Nominal Diameter: 0.040in
  • Conductor Count: 1
  • Insulation Layer 1 Material: PE - Polyethylene (Foam)
  • Insulation Layer 1 Nominal Diameter: 0.180 in
  • Outer Shield Layer 1: Tri-Laminate (Alum+Poly+Alum) 100%
  • Outer Shield Layer 2: Aluminum 60%
  • Outer Shield Layer 3: Tri-Laminate (Alum+Poly+Alum) 100%
  • Outer Shield Layer 4: Aluminum 40%
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nominal Diameter: 0.298 in
  • Nom. Capacitance Conductor to Shield: 16.2 pF/ft
  • Nominal Inductance: 0.097 uH/ft
  • Nominal Characteristic Impedance: 75 Ohm
  • Non-UL Voltage Rating: 300 V RMS
  • UL Temp Rating: 75°C
  • Operating Temp Range: -40°C To +80°C
  • Bulk Cable Weight: 35 lbs/1000ft
  • Max. Pull Tension: 76 lbs
  • Min Bend Radius/Minor Axis: 3 in
  • Suitability - Aerial: Yes - When supported by messenger wire
  • Suitability - Burial: No
  • Suitability - Hazardous Locations: No
  • Suitability - Indoor: Yes
  • Suitability - Outdoor: Yes
  • CSA/C(UL) Flammability: FT1
  • UL Flammability: UL1685 UL Loading
  • IEC Flammability: IEC 60332-1-2


• Item Includes:

  • 5339Q5 CM Indoor/Outdoor Coax Cable RG6 BC/18AWG - Black - 1000 Foot


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825160977
