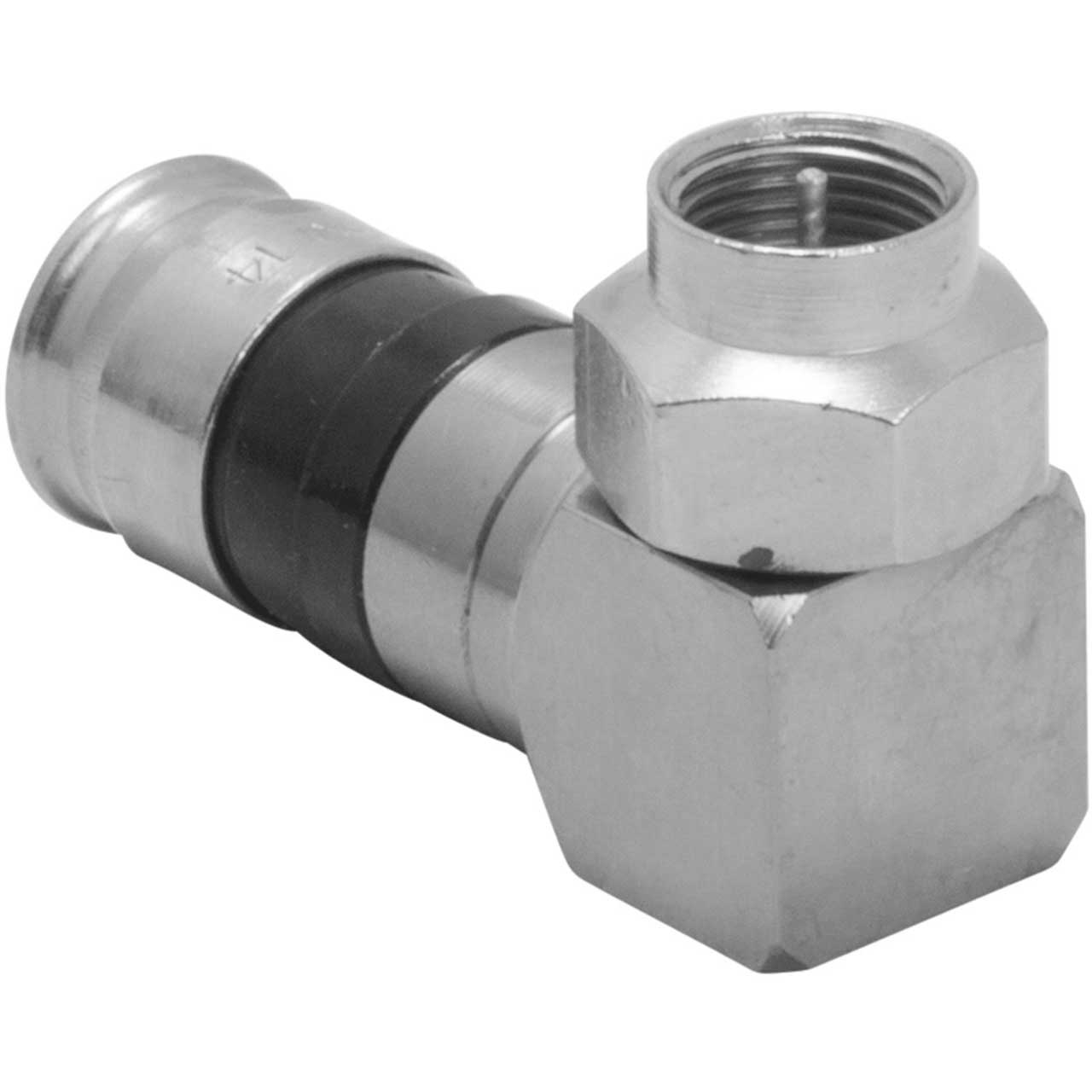

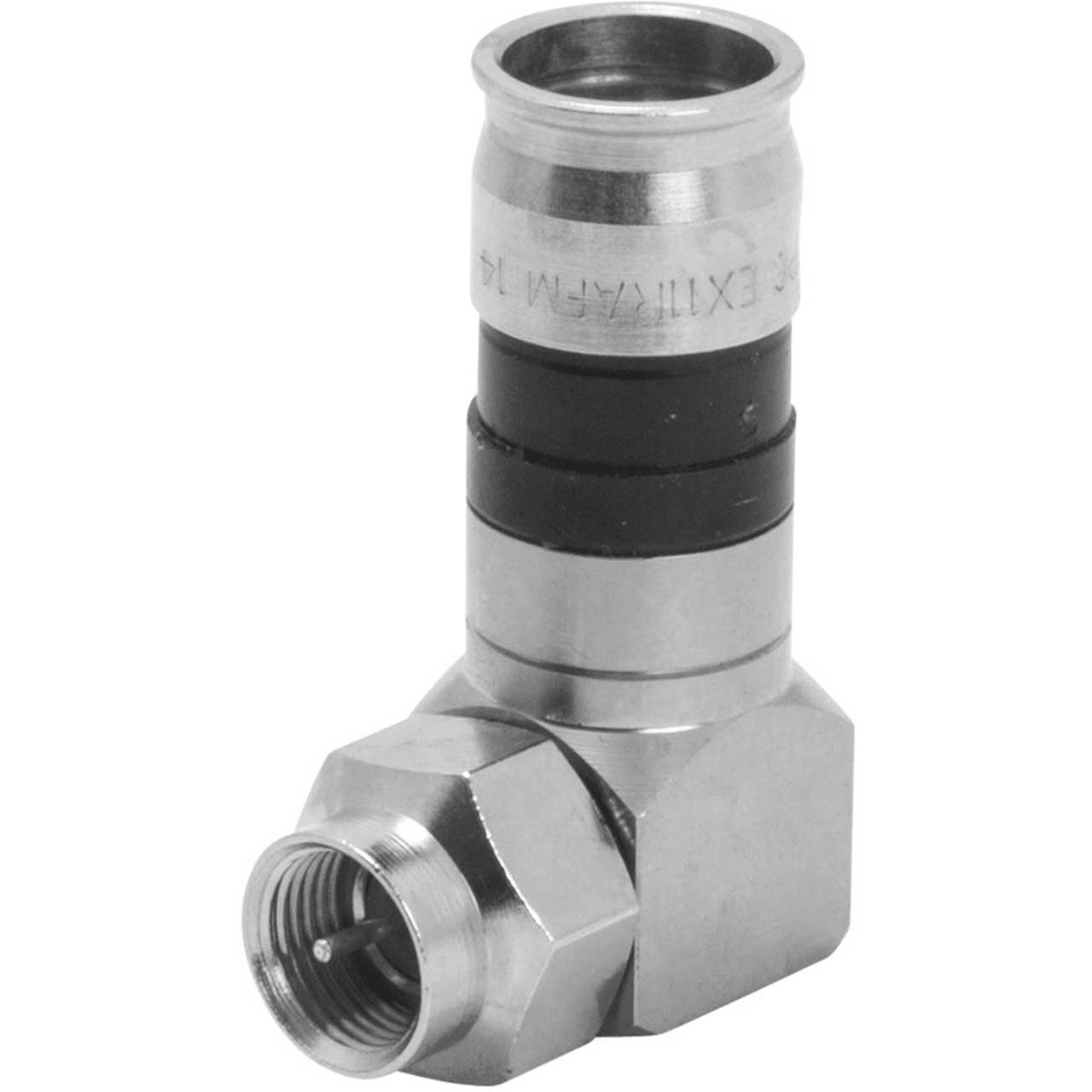

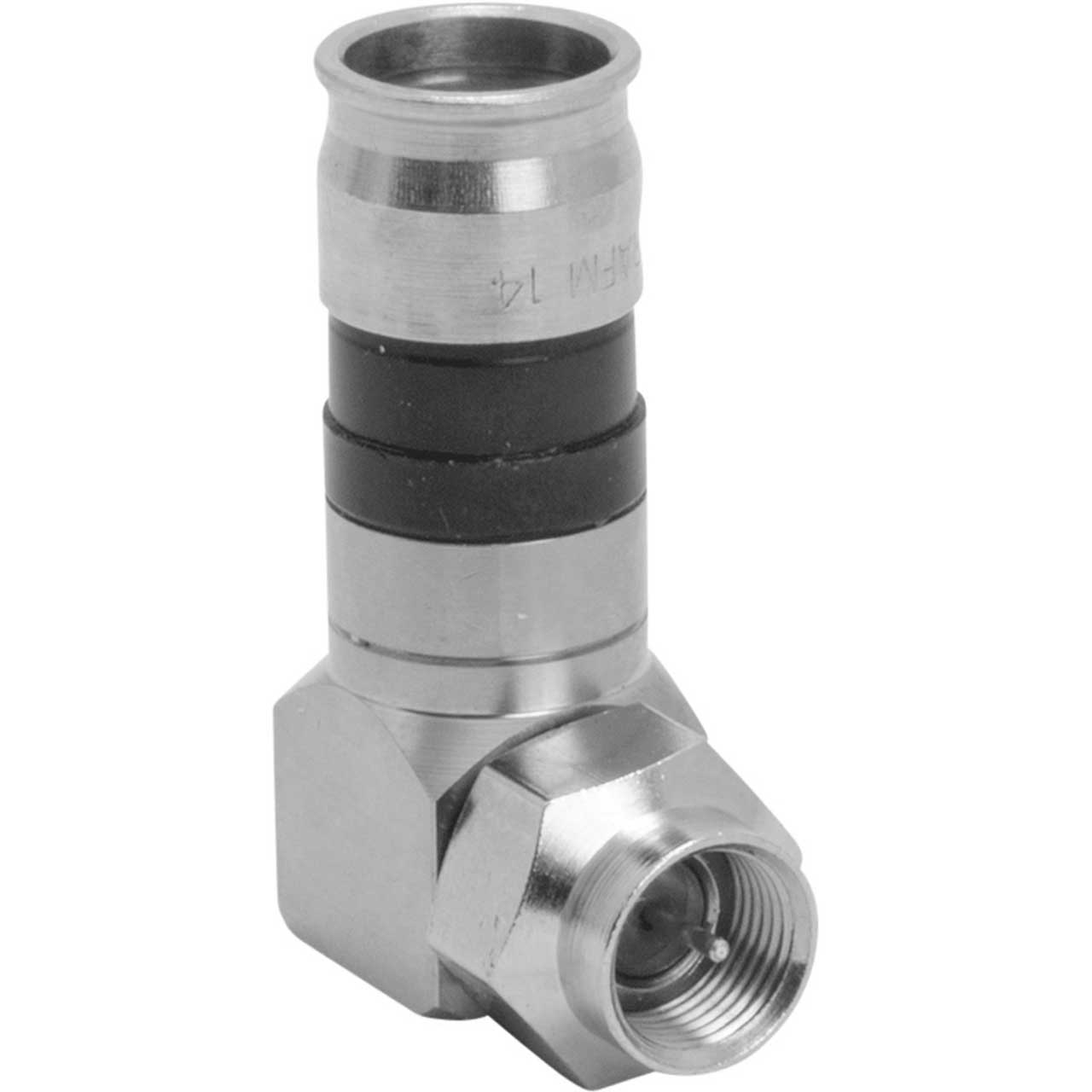

PPC by Belden EX11RAFM Drop Cable Series 11 Right Angle Universal Compression Connector - Black/Silver - Each

EX11RAFM - Overview

• Features:

  • A unique patented design to provide a universal compression fit for all drop coaxial cable types (standard, tri and quad).

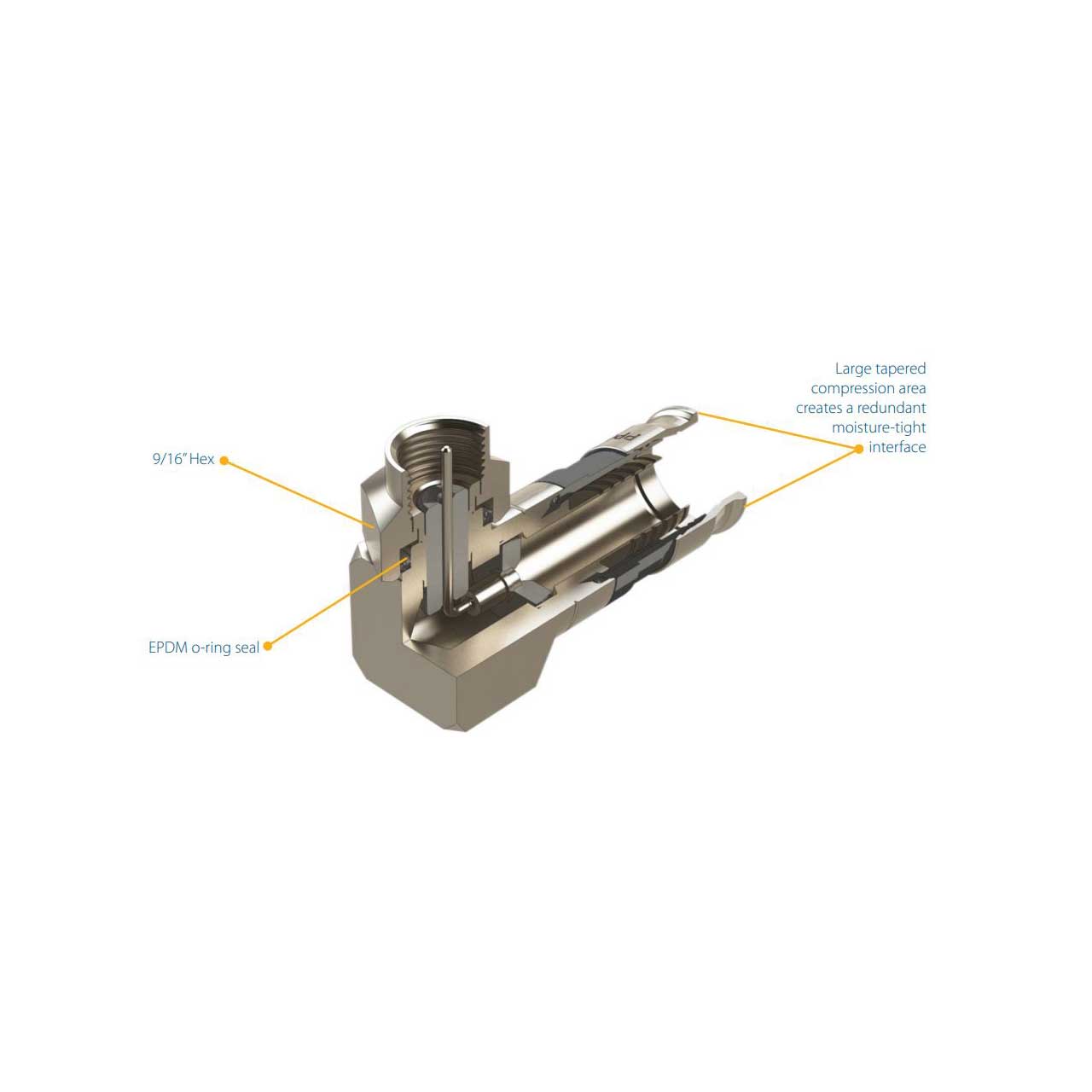

  • Easily Tightened 9/16'' hex nut with a large tapered compression area to create a redundant moisture-tight interface
  • Designed to prevent improper cable bending and tap ports from breaking in smaller pedestals and On Q-Panels
  • EX Universal compression, SignalTight Technology Continuity member maintains electrical continuity between nut and post, Maintains ground continuity even when very loose
  • Nickel-plated Brass construction with a Gas-tight sealed connection between nut and post


• Specifications:

  • Bandwidth: 0 MHz to 3 GHz
  • Impedance: 75 Ohms (nominal)
  • Return Loss: Minimum -30 dB to 3 GHz
  • Insertion Loss: Less than .10 dB to 3 GHz
  • Operating Voltage: 90 V (at 60 Hz continous AC)
  • Operating Temperature: -40F to + 140F (-40C to 60C)
  • Cable Retention: 45 lbs (20.41 kg) minimum


• Item Includes:

  • EX11RAFM Drop Right Angle Connector - Sold Each
