Belden 649948 20AWG Plenum PTZ CCTV Plus Audio/Control Composite Cable - 1000 Foot

Name: Belden 649948 20AWG Plenum PTZ CCTV Plus Audio/Control Composite Cable - 1000 Foot
Brand: Belden
SKU: BL-649948-1000
Price: 769.75 USD
Availability: PreSale

ITEM #: BL-649948-1000 MFG #: BL-649948-1000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$950.40

Our Price:

$769.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BL-649948-1000 - Overview

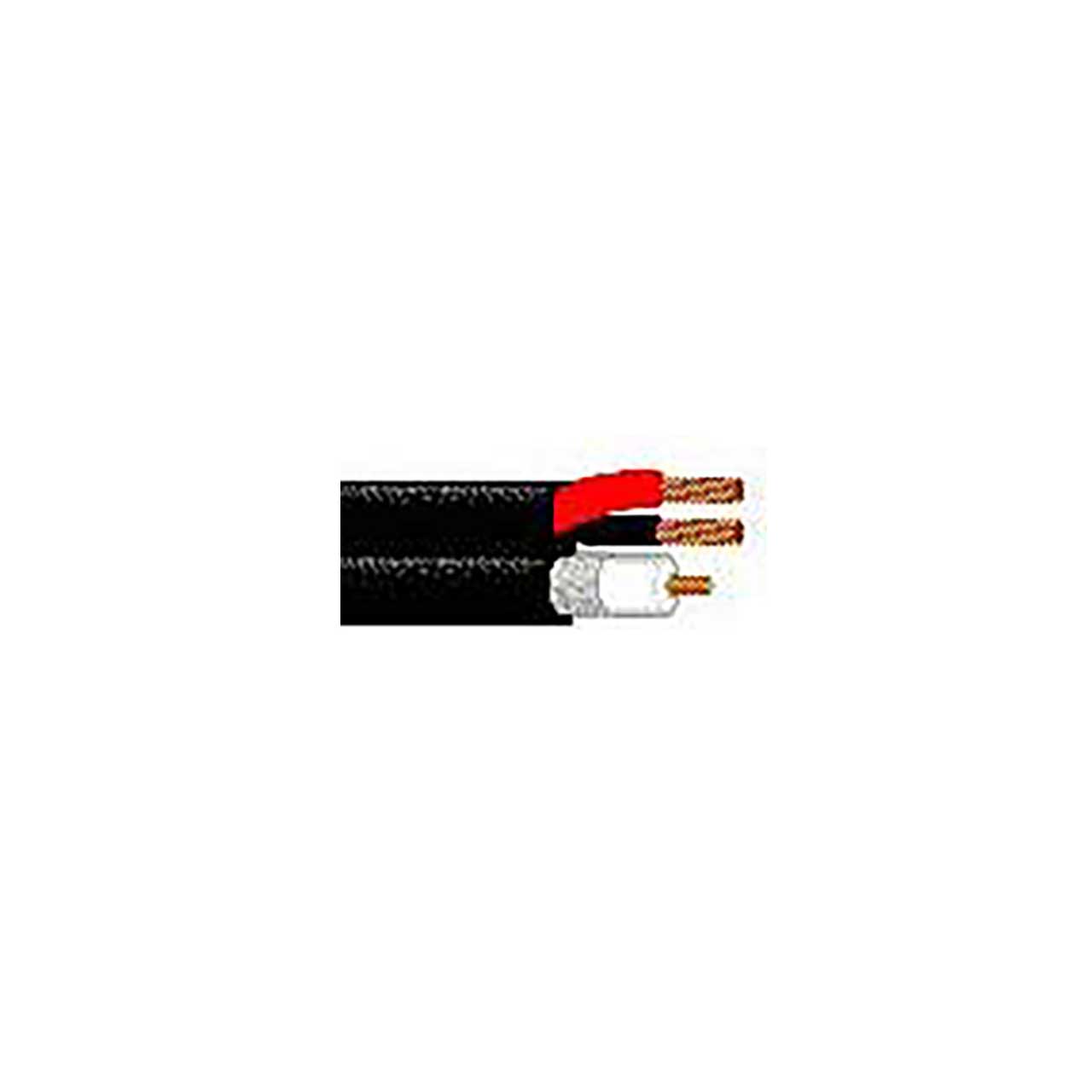

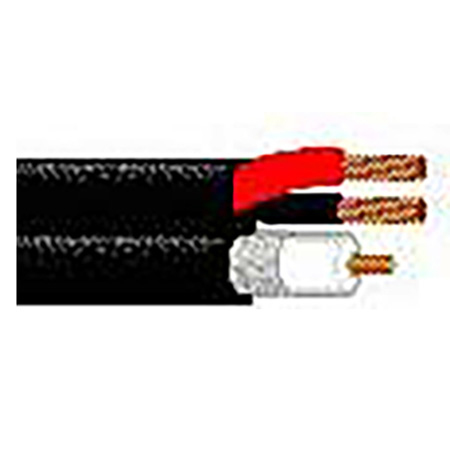

Belden 649948 PTZ (CCTV + Power/Audio) Cable, Plenum-CMP, 1-RG59 20 AWG solid bare copper with foam FEP, 95% bare copper braid, 1-18 AWG stranded bare copper pair with Flamarrest® insulation, Siamese with Flamarrest® jacket. Suitable for Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom) applications.

Specifications:
- AWG: 20
- Stranding: Solid
- Conductor Count: 3
- No. of Coax: 1
- Material: BC - Bare Copper
- Nominal Diameter: 0.192 in
- Nominal Conductor DCR: 10 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 10 Ohm/1000ft
- Nominal Inner Shield DCR: 2.5 Ohm/1000ft
- Outer Conductor DCR: 2.5 Ohm/1000ft
- Installation Temp Range: 0°C To +75°C
- UL Temp Rating: 75°C
- Operating Temp Range: 0°C To +75°C
- Separation Temp Range: 0°C To +75°C
- Bulk Cable Weight: 45 lbs/1000ft
- Max. Pull Tension: 75 lbs
- NEC Articles: Article 800
- NEC/(UL) Compliance: CMP
- CEC/C(UL) Compliance: CMP
- RG Type: 59/U Type
- Environmental Space: Indoor - Plenum
GTIN:
0612825177067

BL-649948-1000 - Recommended Accessories

ICM CPLCRBC-BR Cable Pro Radial Double Bubble Compression Tool - Blue
ICM-CPLCRBC-B
Our Price: $157.95
ICM Cable Pro PSA59/6 RG59/6 Adjustable Cable Stripper with RG6 Flaring Tool
ICM-PSA596
Our Price: $45.58
Rolls MA1705 70v Mixer Amplifier 70w
MA1705
Our Price: $379.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
AViPAS AV-1280G 10x Full-HD 3G-SDI PTZ Camera with IP Live Streaming and PoE Supported - Dark Gray
AV-1280G
Our Price: $677.77

BL-649948-1000 - Reviews

BL-649948-1000 - Attachments

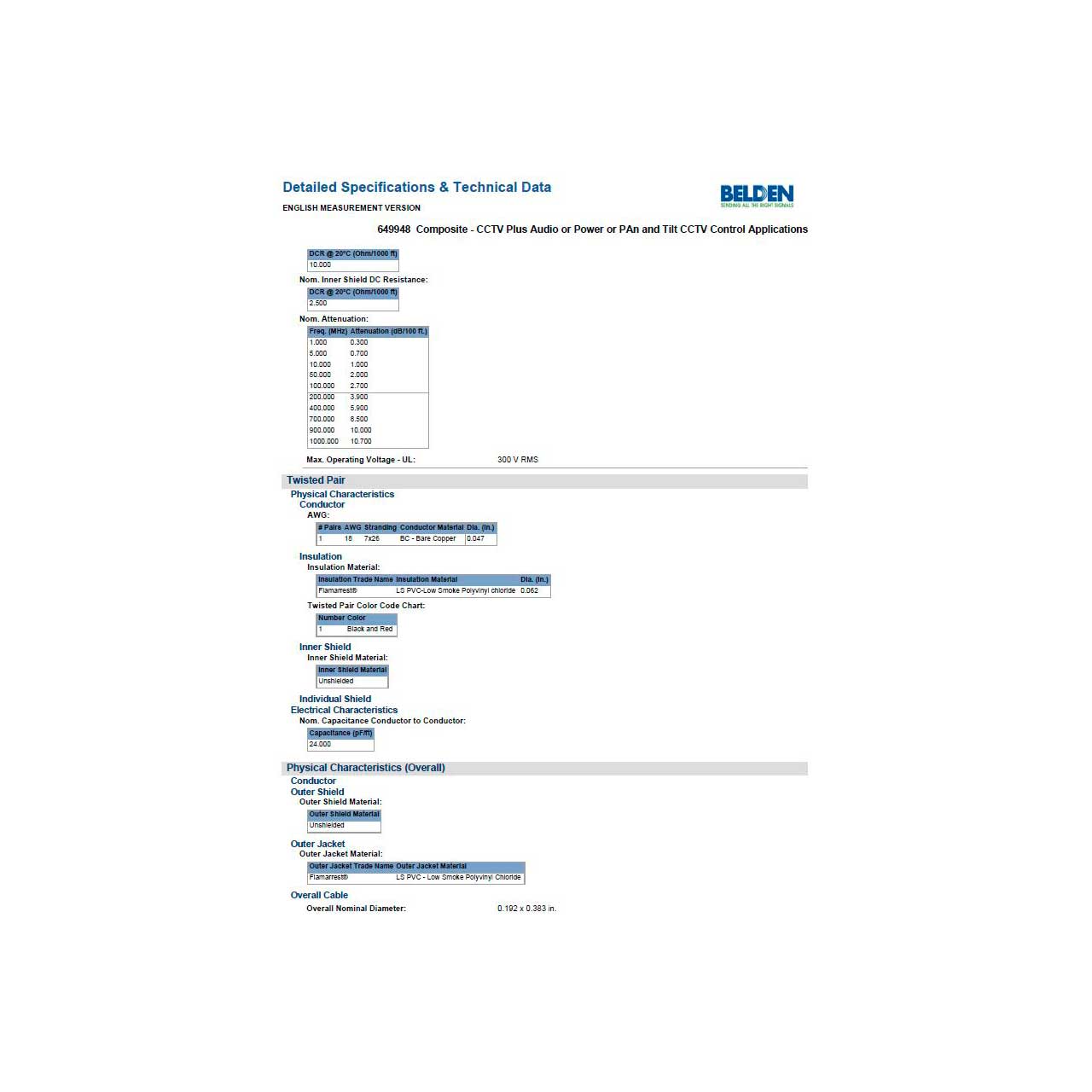

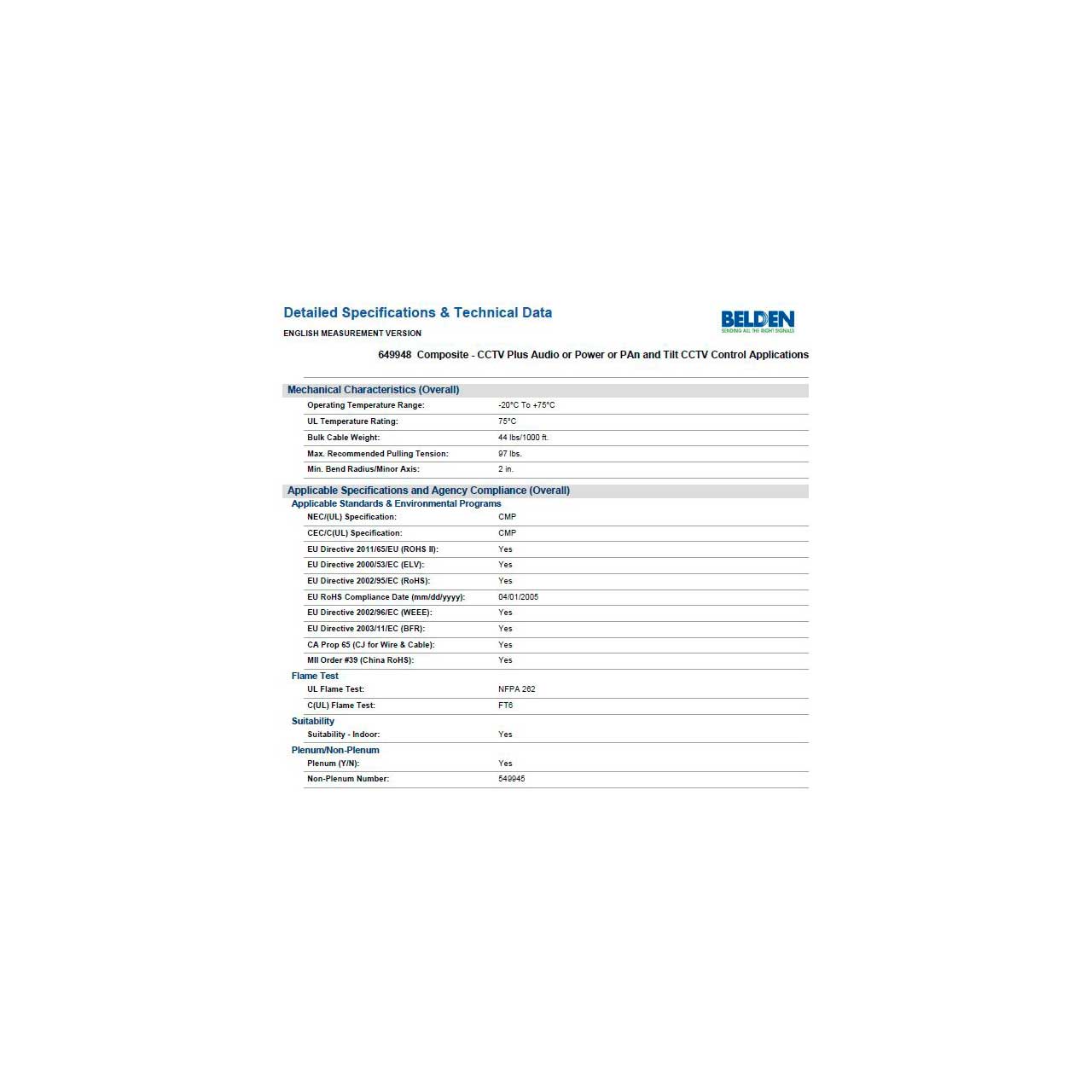

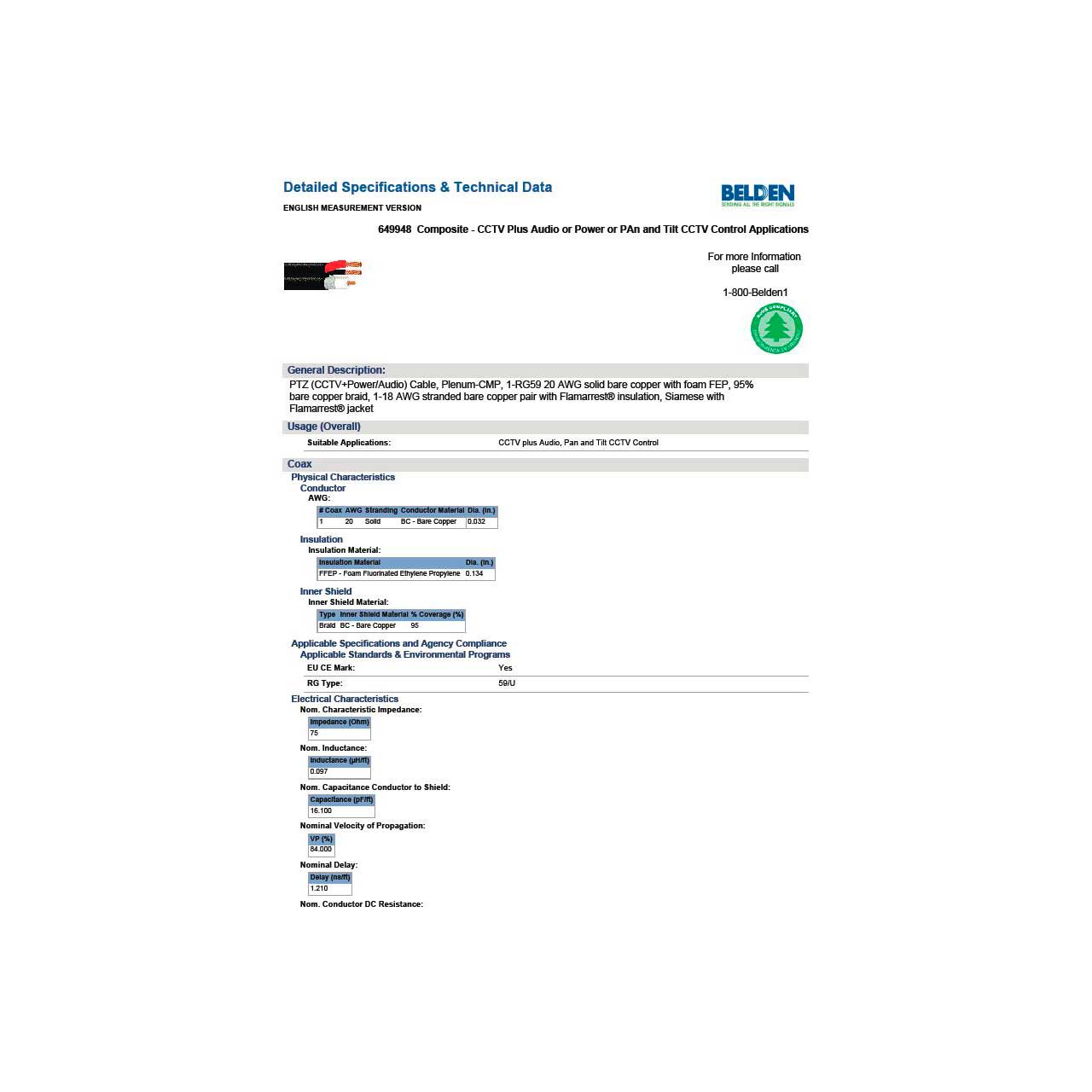

See Belden BL-649948-1000 Specifications (PDF)

Overview

BL-649948-1000 - Overview

Specifications:
- AWG: 20
- Stranding: Solid
- Conductor Count: 3
- No. of Coax: 1
- Material: BC - Bare Copper
- Nominal Diameter: 0.192 in
- Nominal Conductor DCR: 10 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 10 Ohm/1000ft
- Nominal Inner Shield DCR: 2.5 Ohm/1000ft
- Outer Conductor DCR: 2.5 Ohm/1000ft
- Installation Temp Range: 0°C To +75°C
- UL Temp Rating: 75°C
- Operating Temp Range: 0°C To +75°C
- Separation Temp Range: 0°C To +75°C
- Bulk Cable Weight: 45 lbs/1000ft
- Max. Pull Tension: 75 lbs
- NEC Articles: Article 800
- NEC/(UL) Compliance: CMP
- CEC/C(UL) Compliance: CMP
- RG Type: 59/U Type
- Environmental Space: Indoor - Plenum
GTIN:
0612825177067
