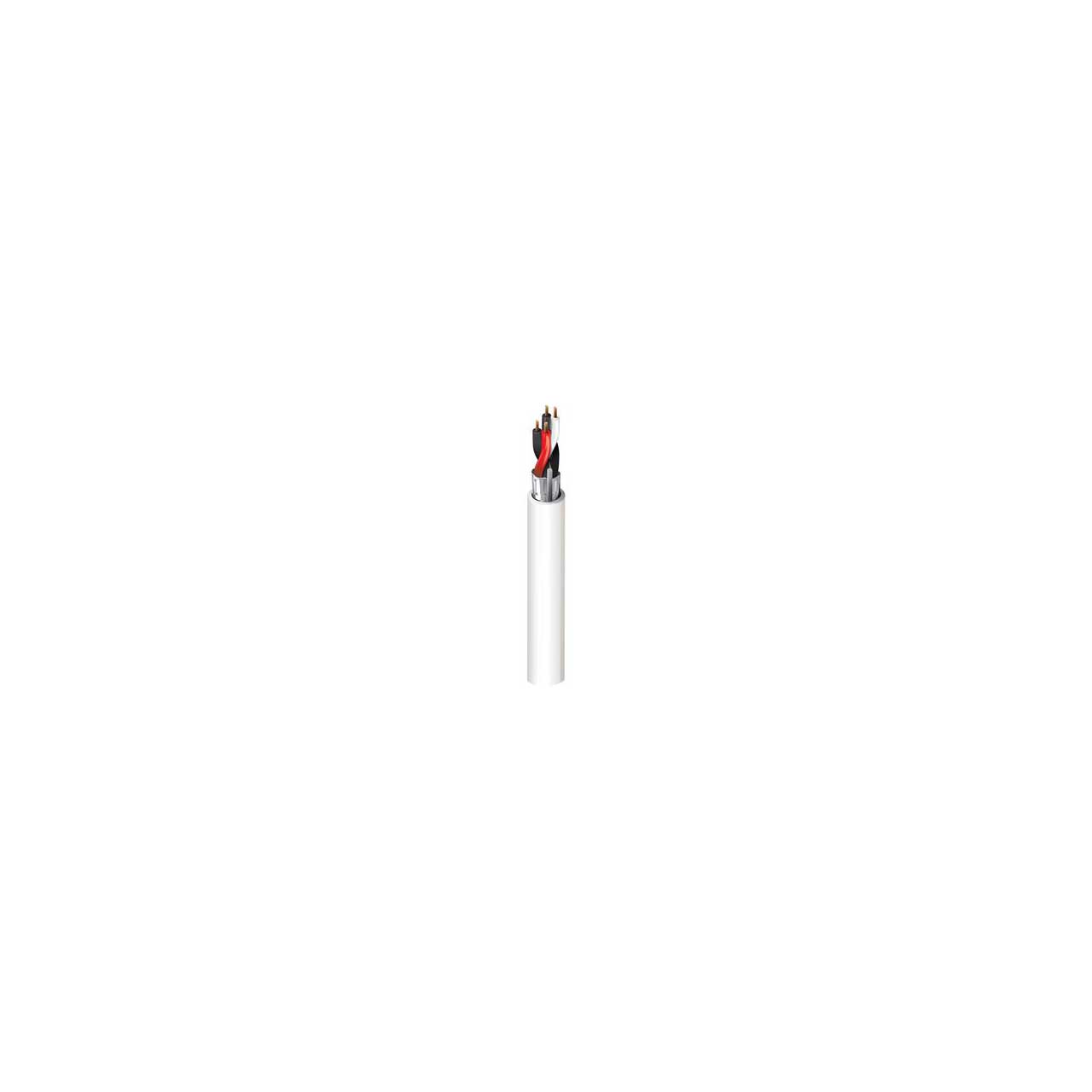

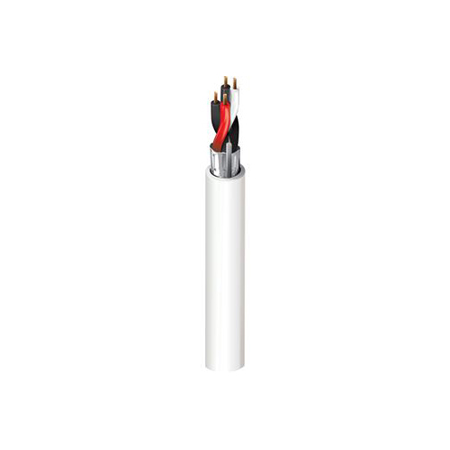

Belden 6541FE Plenum 2-22 AWG Stranded BC Security & Sound Cable - Natural - 1000 Foot/Unreeled

ITEM #: BL-6541FEU1000NL MFG #: 6541FE 877U1000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$300.50

Our Price:

$258.74

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


6541FE 877U1000 - Overview

Belden 6541FE is a security & sound cable with Plenum-CMP. It consists of 2-22 AWG stranded bare copper pairs with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord. This cable is suitable for a varity of applications, including security system, intercom/pa, audio/speaker, power-limited controls and noisy environment.

  • Features:

    • 2 Pair
    • 22 AWG
    • Comes with Ripcord
    • Natural Jacket Color

  • Specifications:

    • Physical Characteristics
    • # of Pairs: 2
    • Conductor AWG: 22
    • Conductor Stranding: 7 x 30
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride
    • Insulation Wall Thickness: 0.009 in (0.22mm)
    • Overall Nominal Diameter: 0.202 in (5.156 mm)

      Outer Shield
    • Material: Beldfoil®
    • Type: Tape
    • Outer Shield Material: Aluminum Foil - Polyester Tape
    • Coverage: 100%

      Outer Shield Drain Wire AWG
    • AWG: 24
    • Stranding: 7 x 32
    • Drain Wire Conductor Material: TC - Tinned Copper

      Outer Jacket
    • Material: Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride
    • Nominal Wall Thickness: 0.015 in (0.381 mm)
    • Outer Jacket Ripcord: Yes

  • Item Includes:

    • 1x Multi-Conductor Security & Sound Cable with Ripcord
