Belden 7731A CMR RG11 Outdoor/UV Resistant 6G-HD-SDI Coaxial Cable Solid BC 14AWG - Black - 1000 Foot

ITEM #: BL-7731A-1000 MFG #: 7731A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,313.30

Our Price:

$2,219.53

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

7731A 0101000 - Overview

Outdoor/UV Resistant 6G-HD-SDI

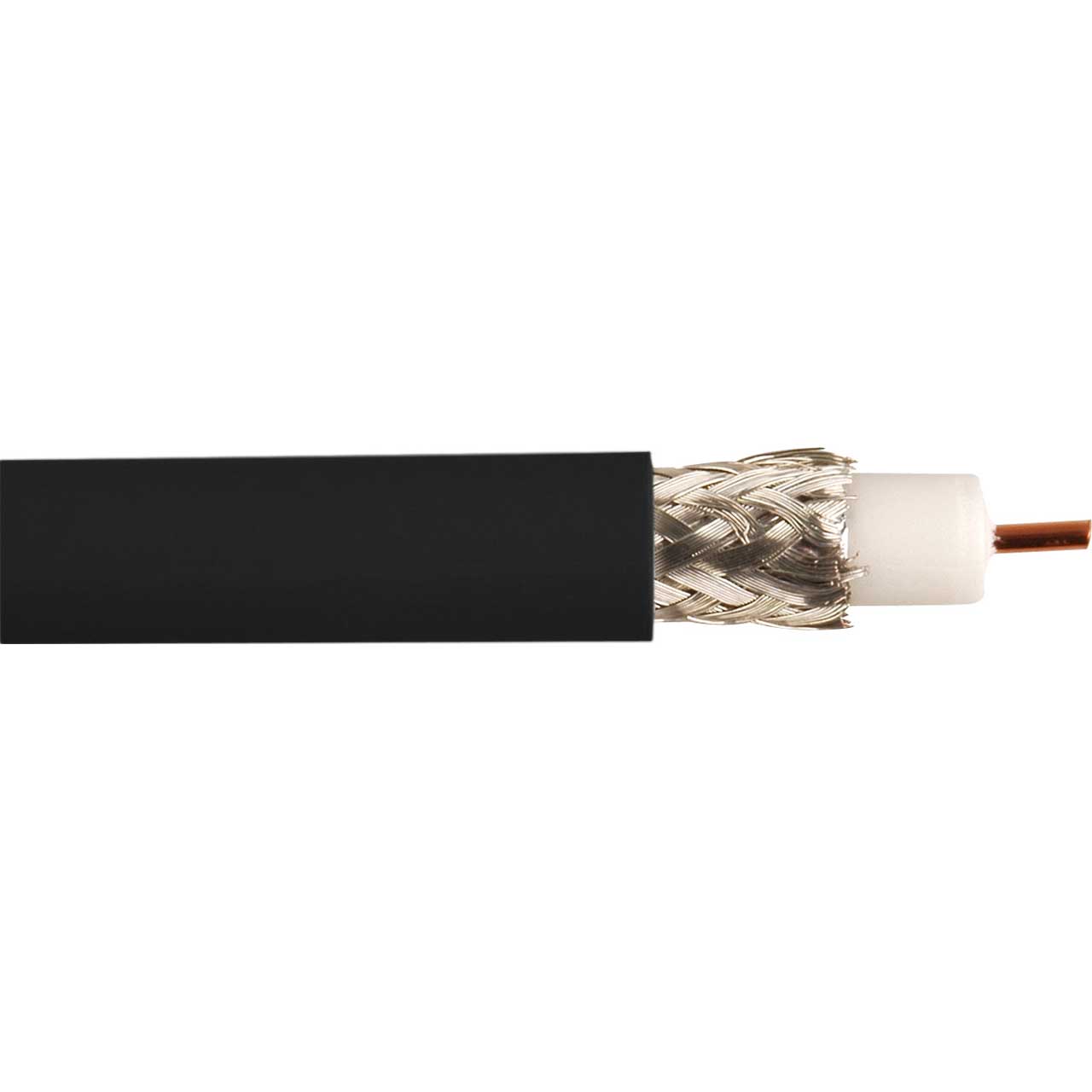

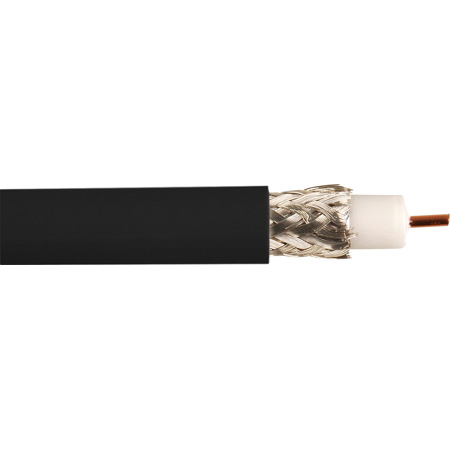

Belden 7731A is a 75 Ohm 6G-SDI RG-11 Coax. It's 14 AWG with a Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield in a CMR rated PVC Jacket.

Offering less attenuation and signal loss than other coax cables, Belden’s RG11 Cable is designed to work with high-frequency ranges and maintain signal integrity across distances. With an impedance of 75 Ohms, it’s often used for projects that call for long, straight runs, as well as burial applications.

Belden’s premium multi-channel 6G-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

Applications
Long Straight Runs
Digital Video
6 Gb/s UHDTV
HD-SDI 1080p

  • Features:

    • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
    • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
    • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

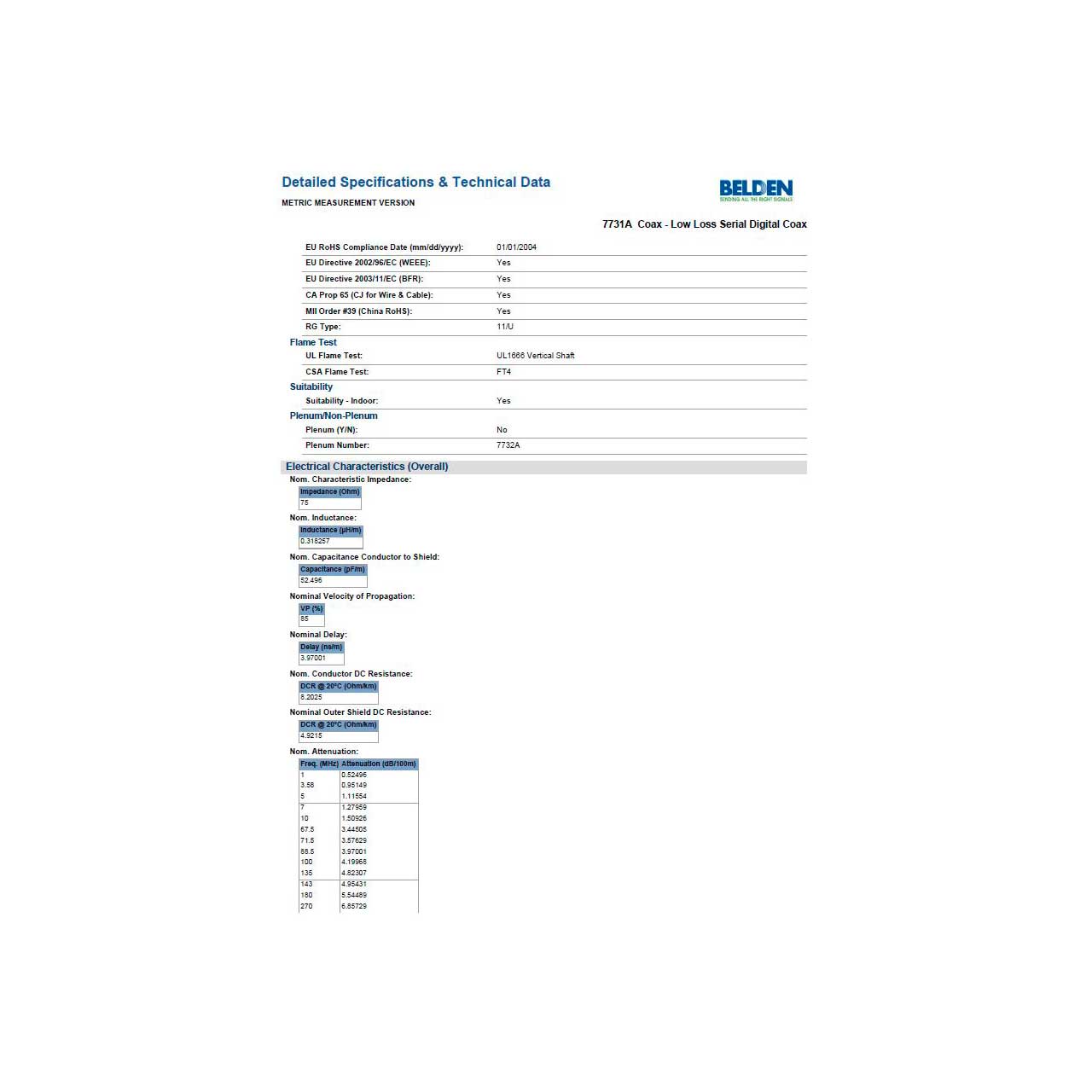

  • Specifications:

    • Nom. Characteristic Impedance: 75 Ohms
    • Number of Coax: 1
    • RG Type: 11/U
    • AWG: 14
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Nom. Diameter: 0.064 in
    • Insulation Material: FPE - Foam Polyethylene
    • Nom. Insulation Diameter: 0.280 in (7.11 mm)
    • Outer Shield Material Trade Name: Duofoil
    • Outer Shield Material/Tape: Tri-Laminate (Alum+Poly+Alum) 100%
    • Outer Shield Material/Braid: Tinned Copper (TC) 95%
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.400 in (10.2 mm)
    • Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

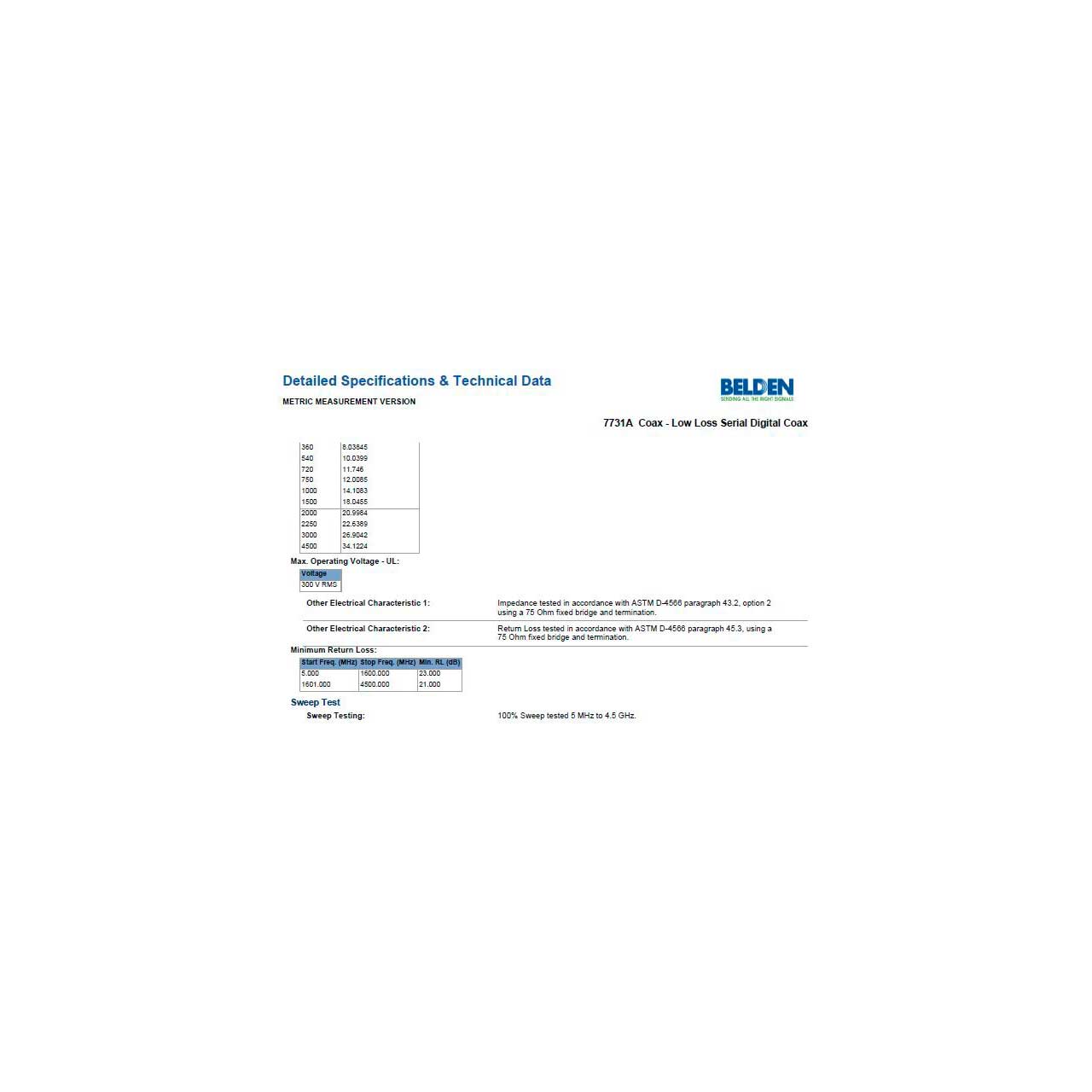

    • Frequency: 5 - 1600 MHz - Min. Return Loss: 23 dB
    • Frequency: 1600 - 4500 MHz - Min. Return Loss: 21 dB
    • Frequency: 4500 - 6000 MHz - Min. Return Loss: 15 dB
    • UL Voltage Rating: 300 V (CMR, CMG)
    • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance, Aerial - Black only, When supported by messenger wire
    • Flammability / Reaction to Fire: UL1666 Vertical Shaft, FT4
    • NEC / UL Compliance: CMR
    • CEC / C(UL) Compliance: CMG
    • Plenum (Y/N): N
    • Plenum Number: BL-7732A


  • Item Includes:

    • 7731A CMR RG11 Cable 14AWG - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825358565
