Belden 82760 Single Pair Audio Cable - 1000 Foot

ITEM #: BL-82760-1000 MFG #: 82760 8771000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$2,851.40

Our Price:

$2,389.20

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

82760 8771000 - Overview

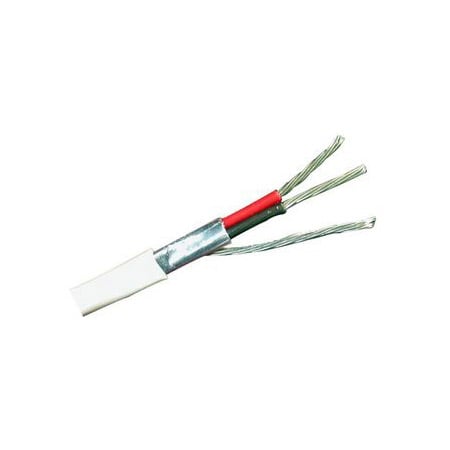

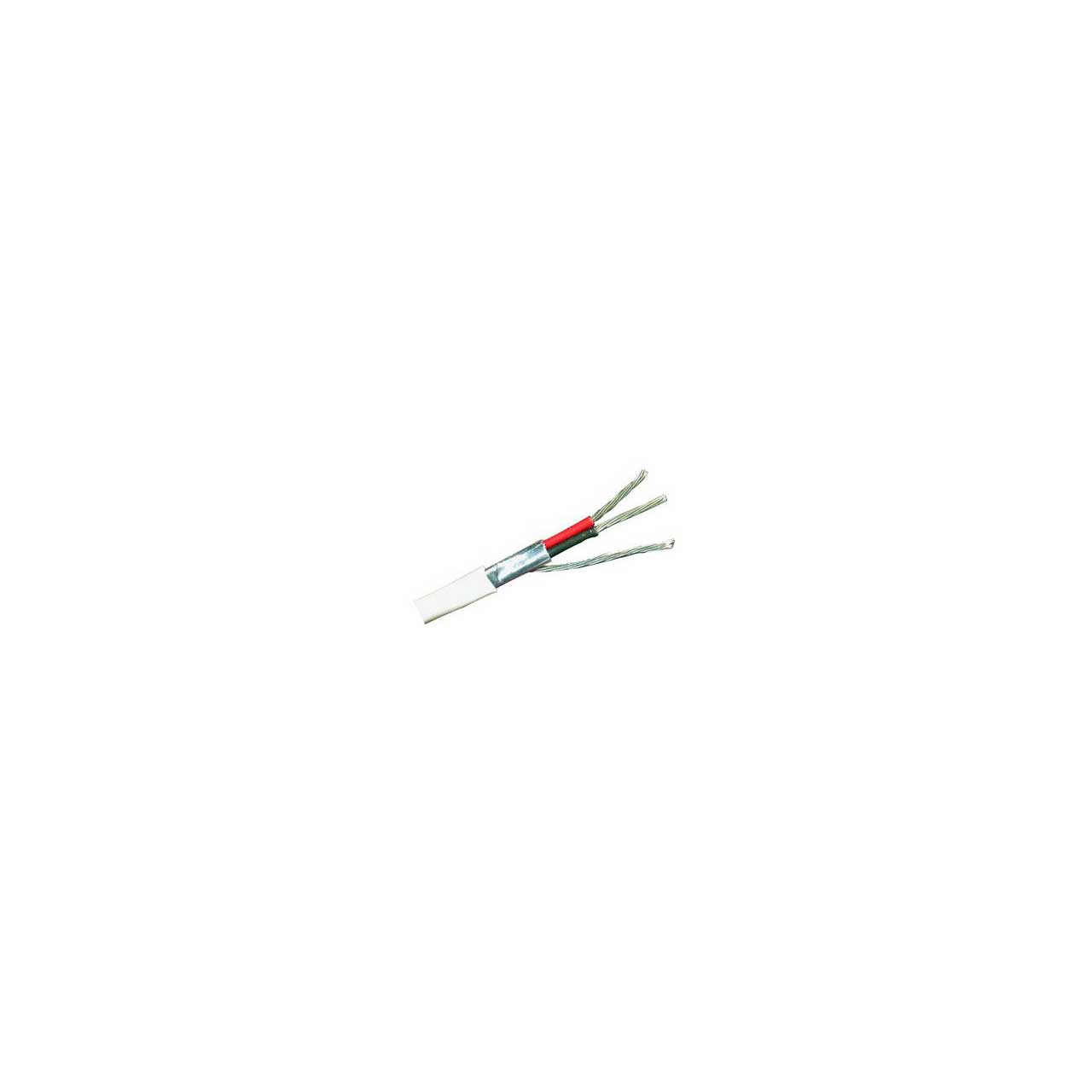

Electronic Cable, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMP

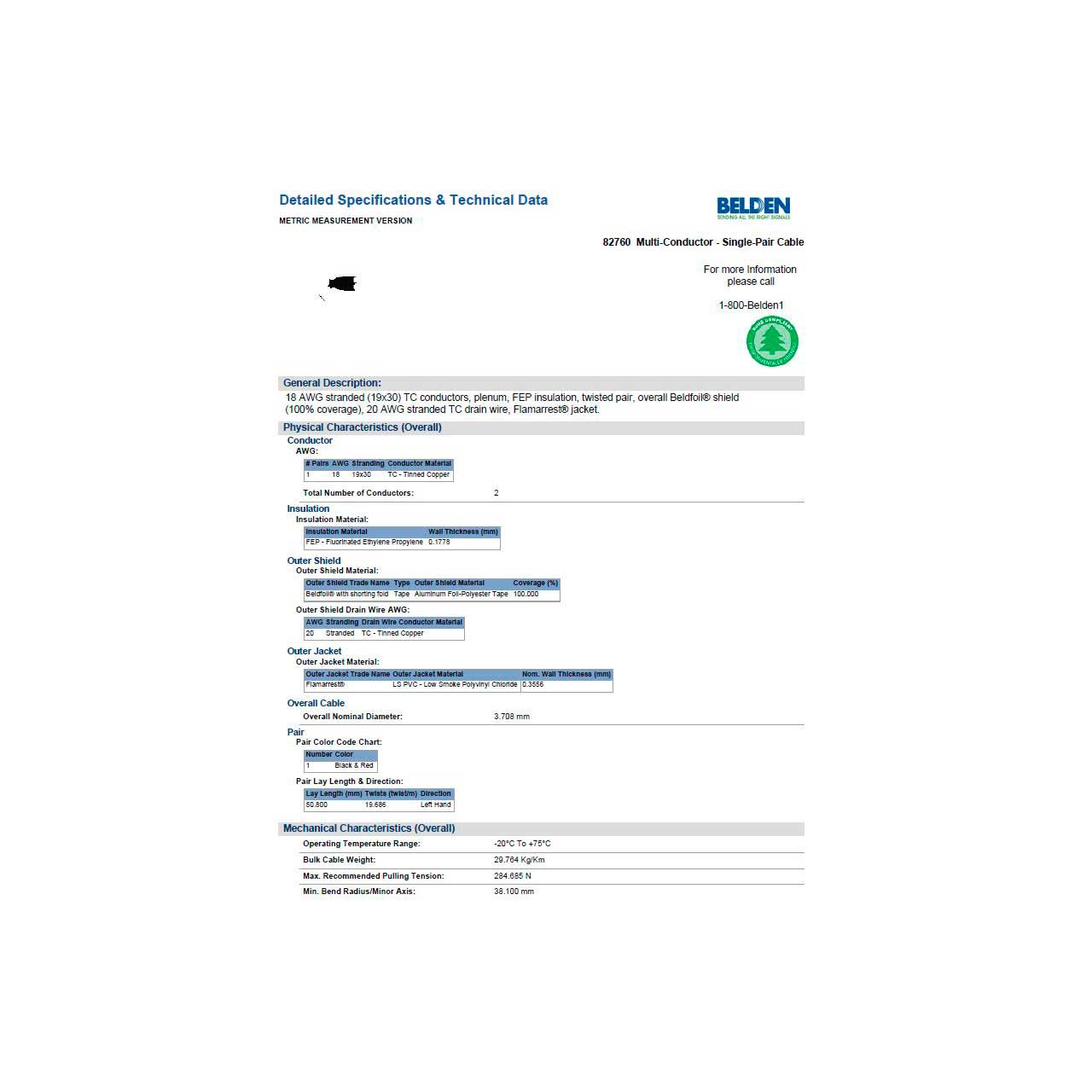

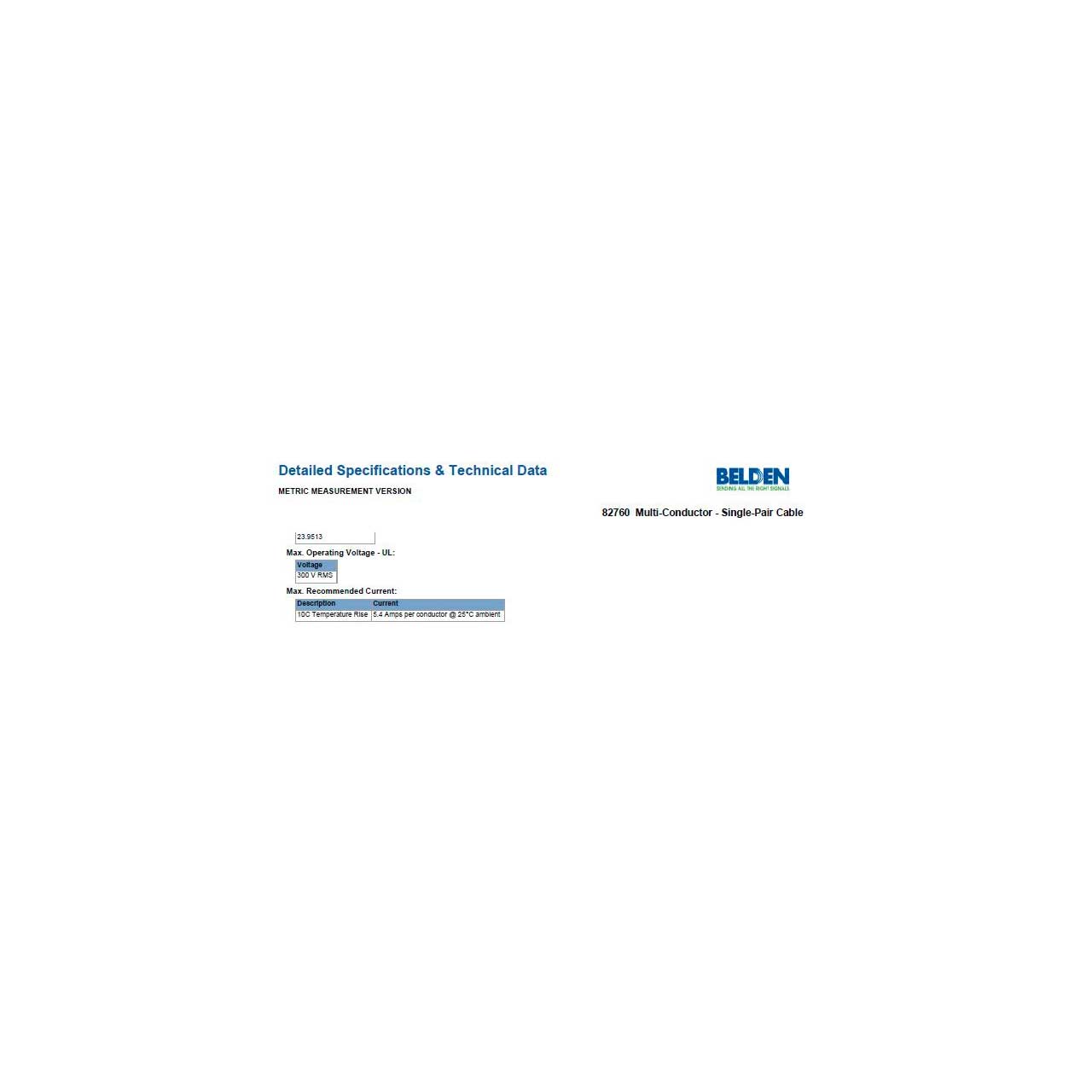

  • Specifications:

    • Number of Pairs: 1
    • Total Number of Conductors: 2
    • AWG: 18
    • Stranding: 19x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: FEP - Fluorinated Ethylene
    • Propylene
    • Outer Shield Material Trade Name: Beldfoil (Z-Fold)
    • Outer Shield Material: Aluminum Foil-Polyester Tape
    • Outer Jacket Material Trade Name: Flamarrest
    • Outer Jacket Material: LS PVC - Low Smoke
    • Polyvinyl Chloride Plenum (Y/N): Y
    • Non-Plenum Number: 8760
    • Applications: Line Level Analog Audio Cable, Single-Pair Cables, Audio, Control and Instrumentation Cables


  • GTIN:

    0612825197744
