12 Channel Audio Snake Cable per foot

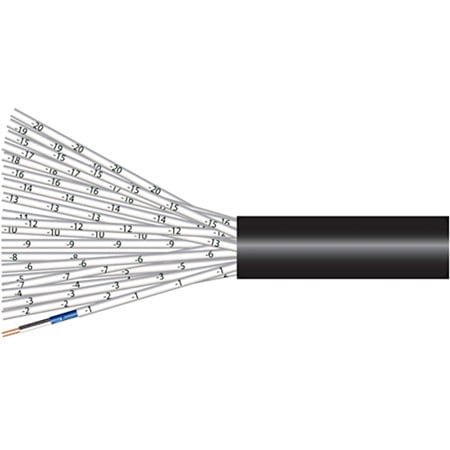

Rapco SN12-IJIS is a 12-channel 24AWG snake cable with an alum/polyester tape and tinned cooper drain shield. Has a capacitance of 25pF/ft @ 1kHz.
-
- Conductor Gauge: 24AWG
- Shield: Alum/polyester tape and tinned copper drain
- Shield Coverage: 100%
- Jacket: Matte PVC
- O.D. 0.595"
- Capacitance: 25 pF/ft. @ 1 kHz
- Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
- Characteristic Impedance: 60Ω NOMINAL
- D.C. Resistance @ 20°C: 24.5Ω/1000'
-
