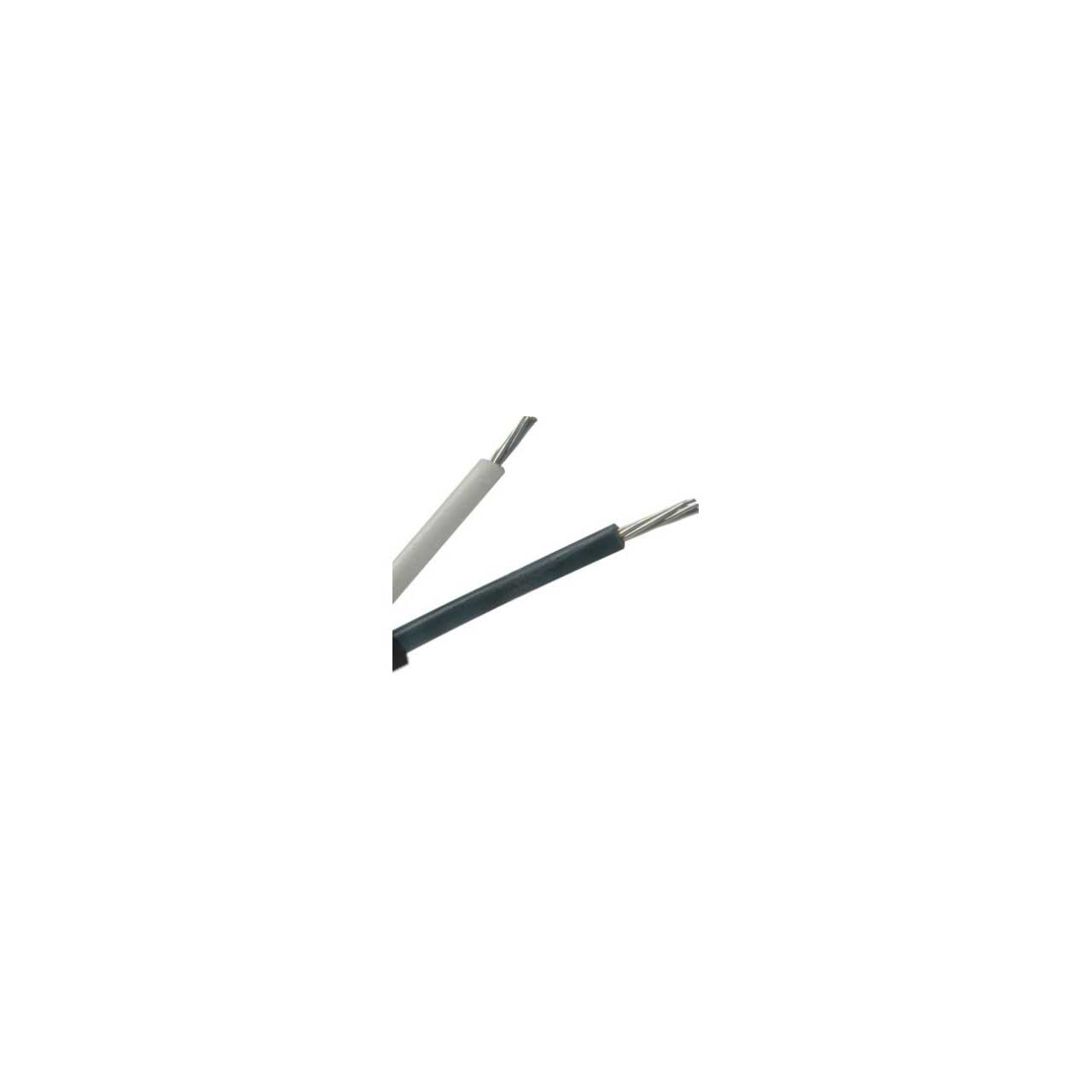

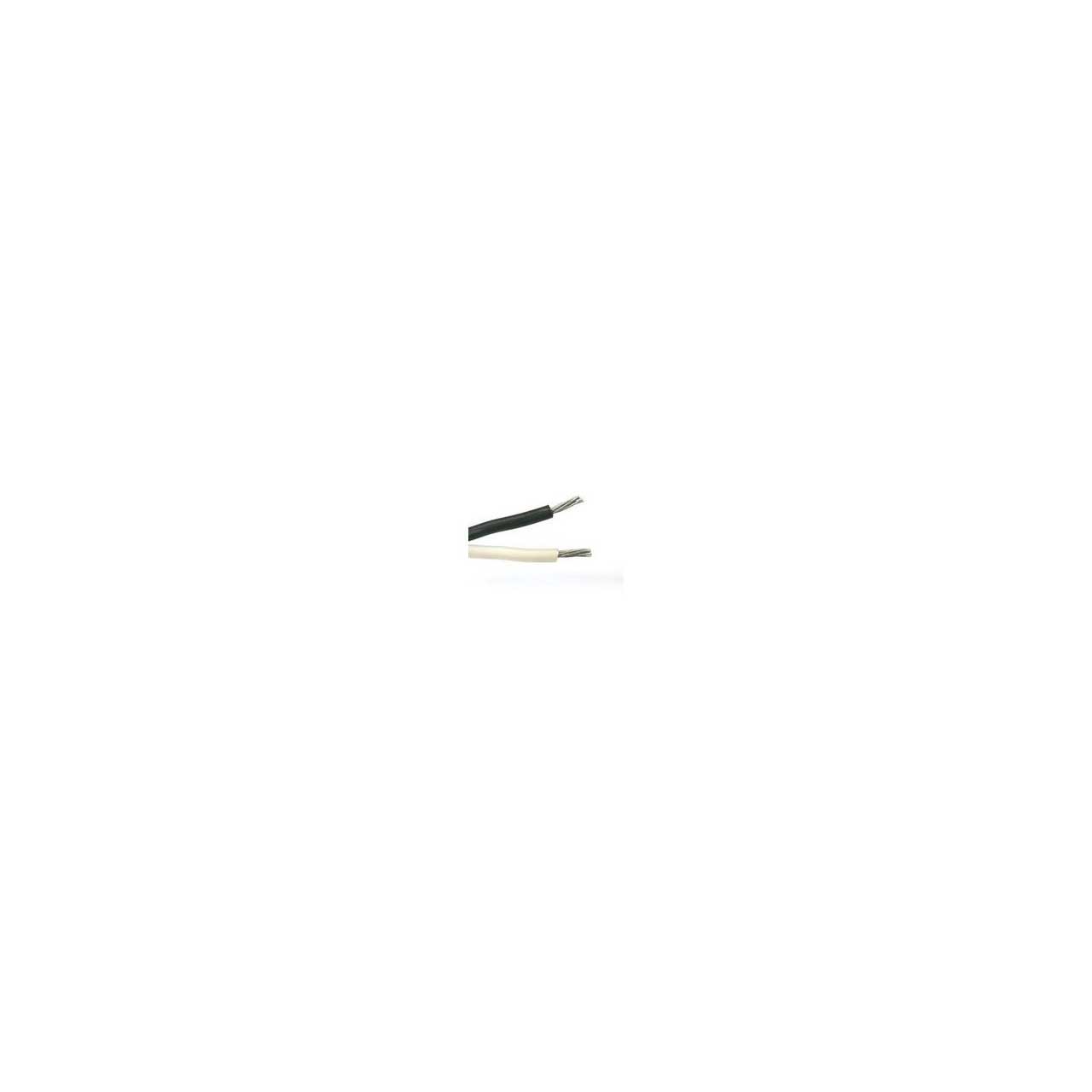

Belden 8461 CMG 2-Conductor Paired Audio/Electronic Cable Str TC 18AWG - Chrome - 500 Foot

ITEM #: BL-8461-500 MFG #: 8461 060500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$759.60

Our Price:

$677.36

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


8461 060500 - Overview

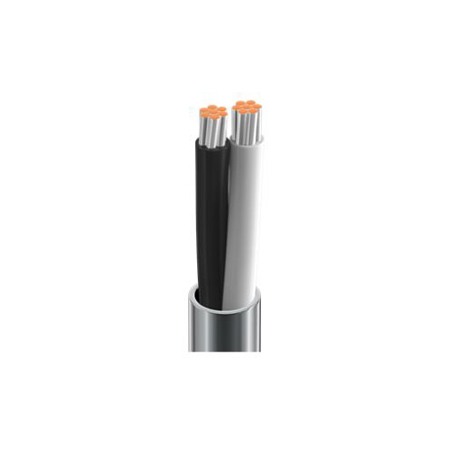

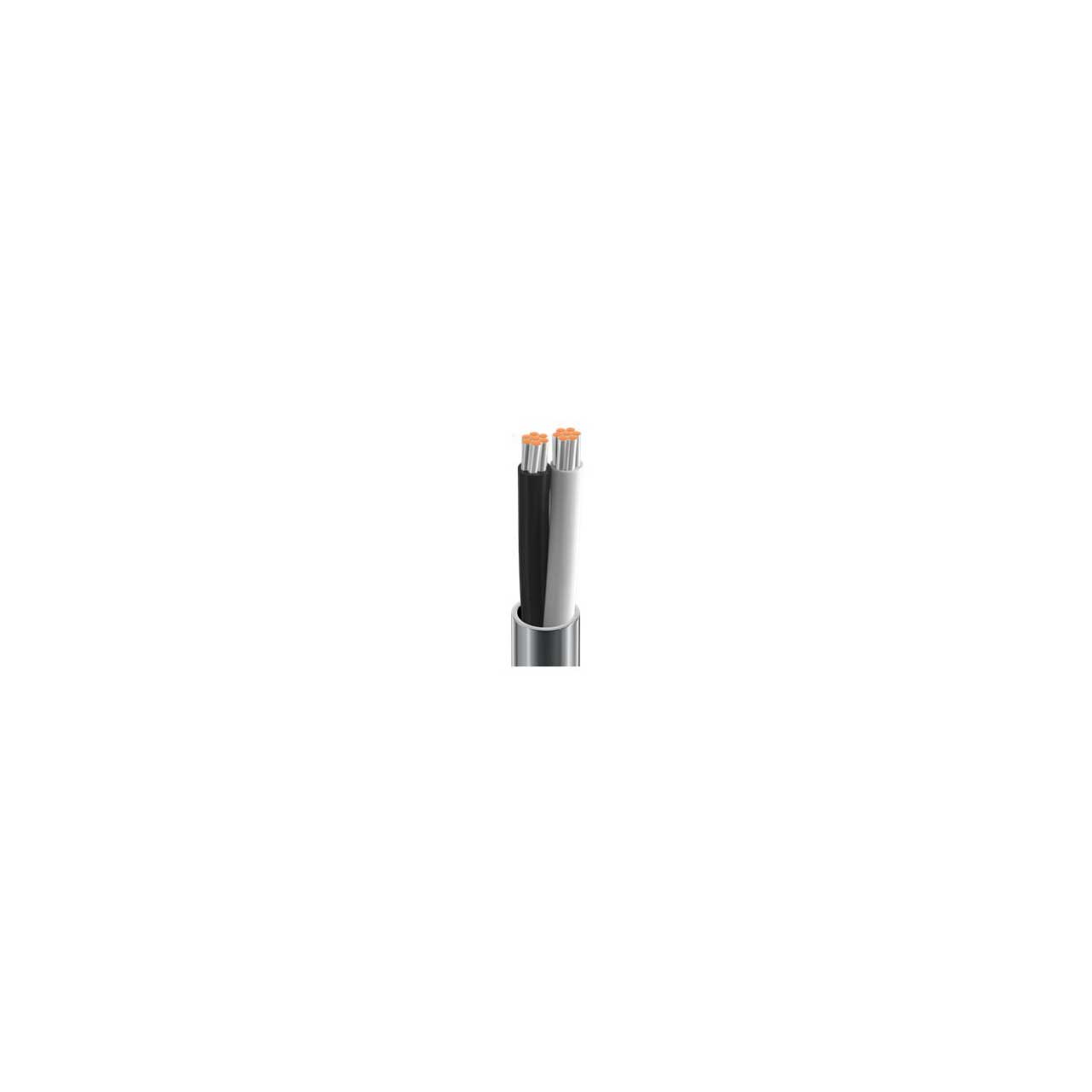

Belden 8461 is a 2 Conductor 18AWG (7x26) Tinned Copper, Electronic and Audio Cable. It features PVC Insulation in a CMG rated PVC Jacket.

High performance cabling solutions have changed the face of modern production facilities, manufacturing processes and the industrial infrastructure. Belden cables are designed to provide reliable communication between corporate headquarters and the plant, management and staff, and everywhere in between.

Applications
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio
Computer communication
Panel wiring

  • Features:

    • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
    • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
    • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

  • Specifications:

    • Number of Pairs: 1
    • Total Number of Conductors: 2
    • Conductor AWG: 18
    • Conductor Stranding: 7x26
    • Conductor Material: TC - Tinned Copper
    • Insulation Element: Pair(s)
    • Insulation Nom. Thickness: 0.022 in (0.56 mm)
    • Insulation Nom. Insulation Diameter: 0.090 in (2.3 mm)
    • Insulation Color Code: Black and White
    • Insulation Material: PVC - Polyvinyl Chloride
    • Outer Shield Material: Unshielded
    • Outer Jacket Nom. Thickness: 0.027 in (0.69 mm)
    • Outer Jacket Nom. Diameter: 0.234 in (5.94 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Cable Diameter (Nominal): 0.234 in (5.94 mm)
    • Plenum (Y/N): N
    • UL Voltage Rating: 300 V (CMG), 300 V (CL3)
    • UL Temperature: 80°C
    • Operating: -20°C to +80°C
    • Stationary Min/Installation Min: 2.3 in (58 mm)
    • Environmental Suitability: Indoor
    • Sustainability: CA Prop 65
    • Flammability / Reaction to Fire: UL 1685 UL loading , FT4, IEC 60332-1-2

  • Item Includes:

    • Belden 8461 Cable Str TC 18AWG - Chrome - 500 Foot

  • Warranty:

    • Limited 10 Year Warranty

  • GTIN:

    0612825208181
