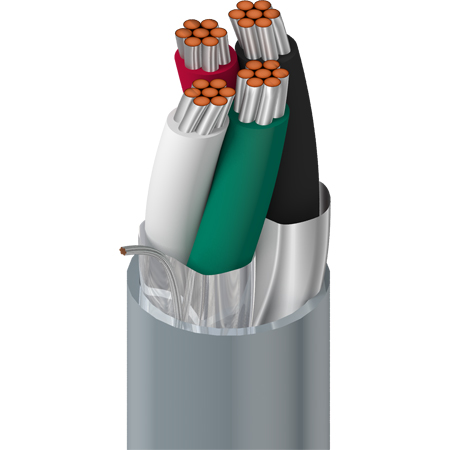

Belden 8723 CM Rated 2-Pair Audio - Control & Instrument Cable - SFTP (7x30) TC 22AWG - Chrome - 500 Foot

8723 060500 - Overview

• Features:

  • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
  • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation.
  • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference.

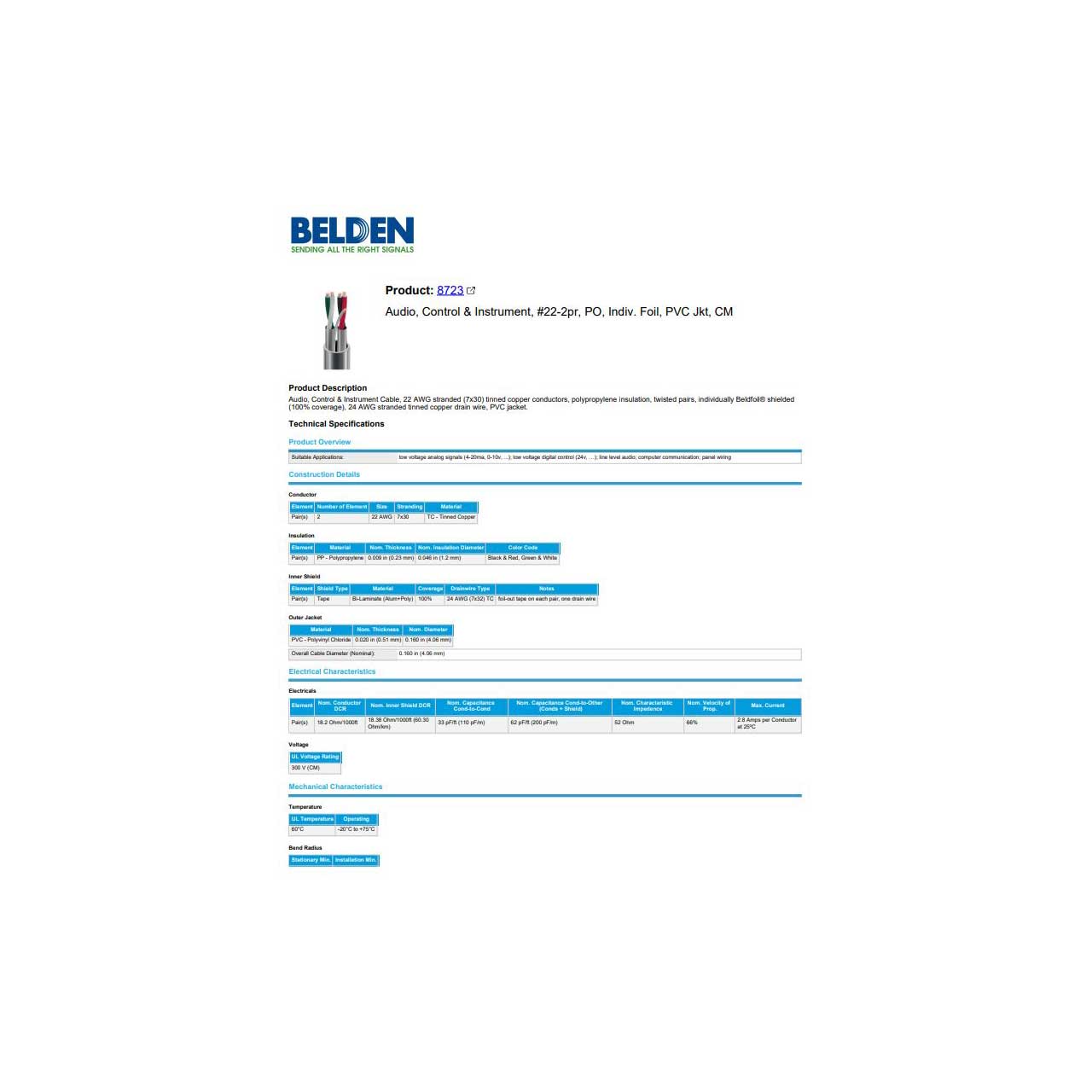

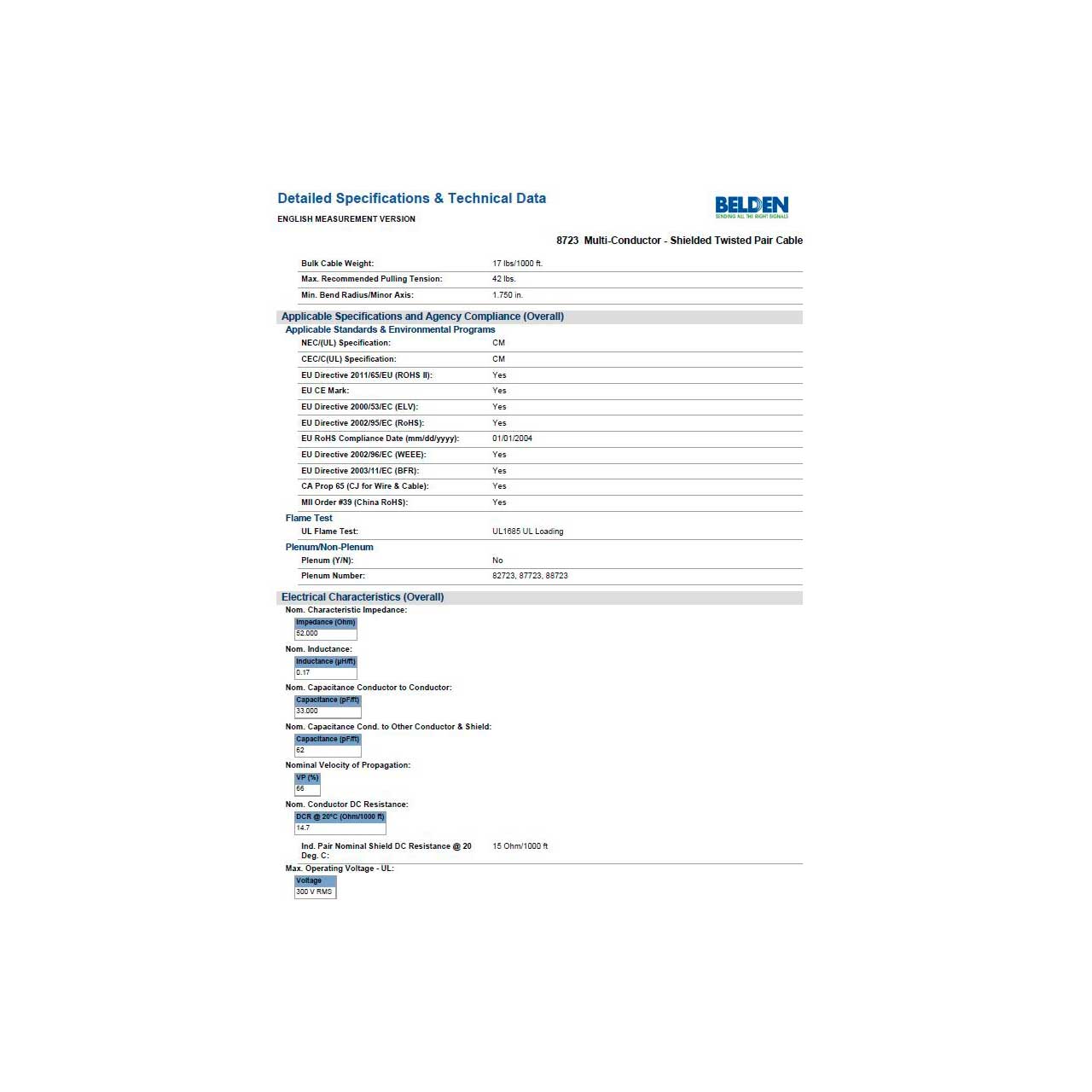

• Specifications:

  • Conductor Number of Element: 2
  • Total Number of Conductors: 4
  • Conductor Size AWG: 22
  • Conductor Stranding: 7x30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PP - Polypropylene Pair
  • Insulation Nom. Thickness: 0.009 in (0.23 mm)
  • Insulation Nom. Insulation Diameter: 0.046 in (1.2 mm)
  • Insulation Color Code: Black & Red, Green & White
  • Inner Shield Type: Tape
  • Inner Shield Material: Bi-Laminate (Alum+Poly)
  • Inner Shield Coverage: 100%
  • Inner Shield Drainwire Type: 24 AWG (7x32) TC
  • Inner Shield Notes: Foil-out tape on each pair, one drain wire
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
  • Outer Jacket Nom. Diameter: 0.160 in (4.06 mm)
  • Overall Cable Diameter (Nominal): 0.160 in (4.06 mm)
  • UL Voltage Rating: 300 V (CM)
  • UL Temperature: 60°C
  • Operating Temperature: -20°C to +75°C
  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
  • CEC/NEC/UL Compliance: Article 800, CM
  • Plenum (Y/N): N
  • Plenum Numbers: BL-82723, BL-87723, BL-88723


• Item Includes:

  • 8723 2-Pair Audio,Control & Instrument Cable - Chrome - 500 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825214526
