Belden 89913 Plenum Antenna Low Loss 50 Ohm RG8 Cable - Black - 500 Foot

Name: Belden 89913 Plenum Antenna Low Loss 50 Ohm RG8 Cable - Black - 500 Foot
Brand: Belden
SKU: BL-89913-500
Price: 7389.80 USD
Availability: PreSale

ITEM #: BL-89913-500 MFG #: 89913 0100500

Belden

List Price:

$8,957.25

Our Price:

$7,389.80

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

89913 0100500 - Overview

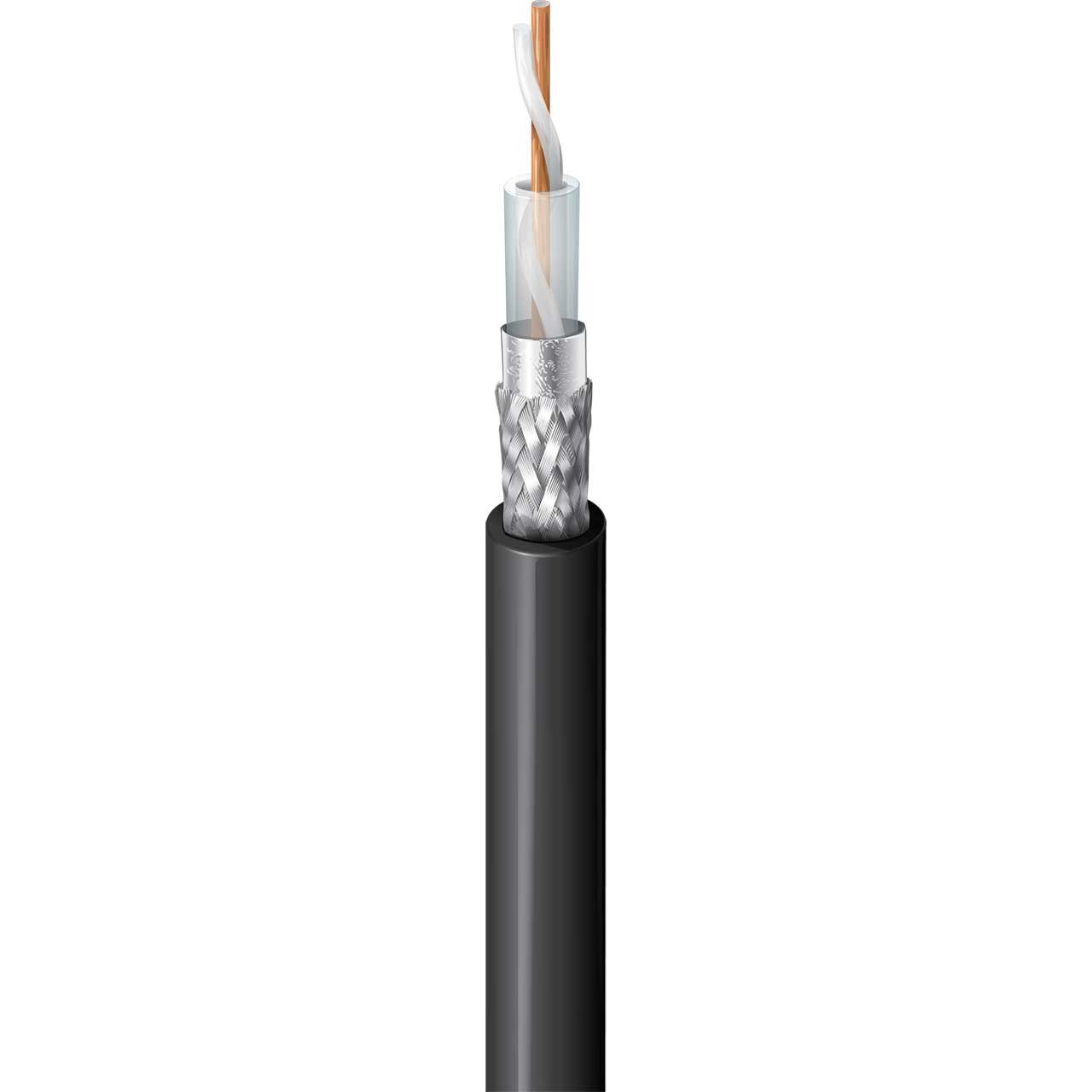

The Belden 89913 is a 10 AWG solid .108 inch bare copper conductor, plenum, with semi-solid FEP insulation, Duobond® II, tinned copper braid shield (90% coverage), fluorocopolymer jacket.

Specifications:
- Coax Construction: Coaxial
- Coax Type: RG 8
- Conductor Material: Bare Copper
- Conductor Type: Solid Conductor
- Dielectric Material: SSFEP-SEMI SOLID FEP
- Fire Rating: Plenum
- Flooded: Not Flooded
- Impedance: 50 OHM Nominal Impedance
- Jacket Material: PVDF-Polyvinylidene Fluoride, Solef, Kynar
- Outdoor: Yes
- Screen/Shield Type: Both, braid over foil
