Belden 9232 RG11 Triaxial Cable - 500 Foot

ITEM #: BL-9232-500 MFG #: 9232 010500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-9232-500

9232 010500 - Overview

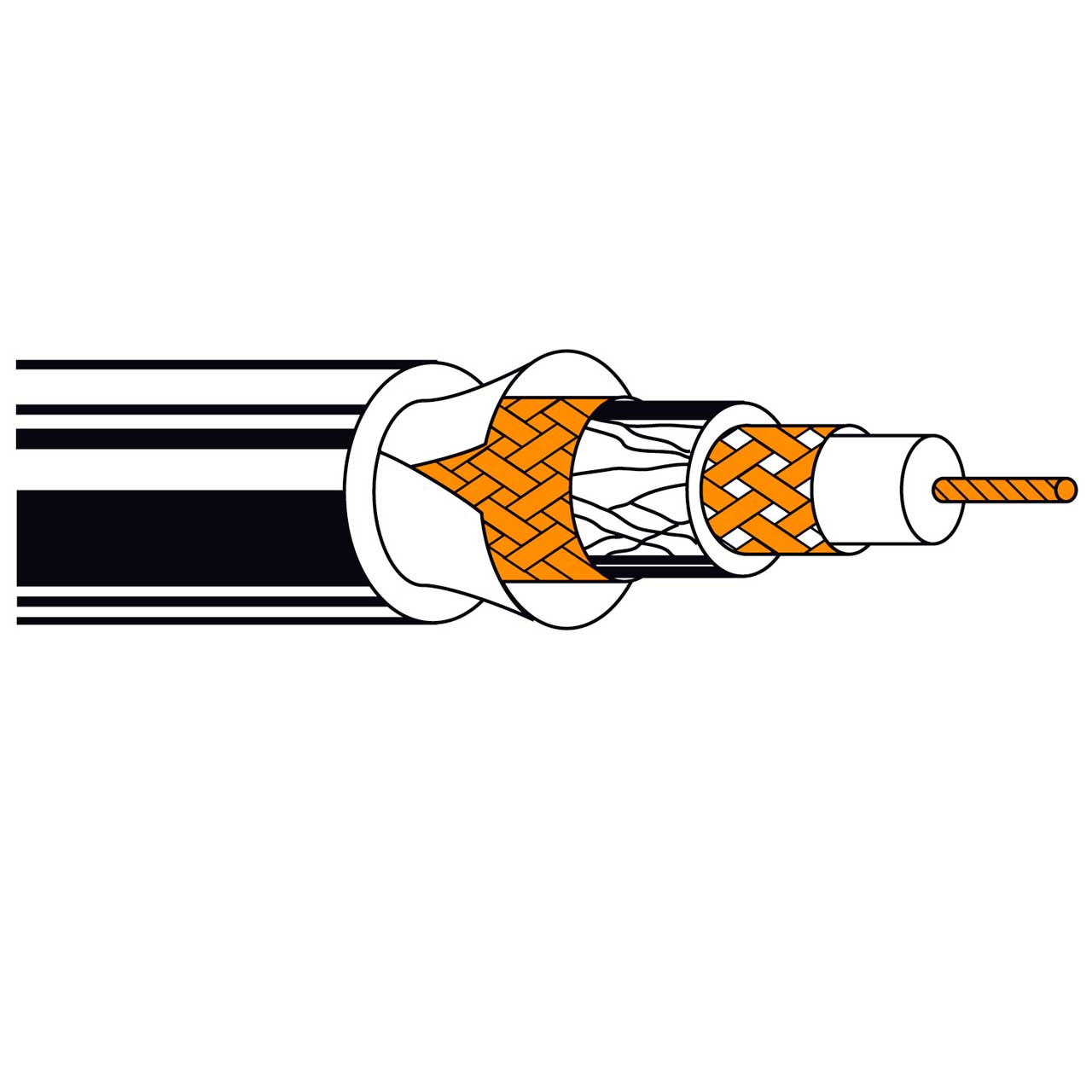

15 AWG stranded (19x27) .064" bare copper conductor, foam HDPE insulation, paper tape separator, bare copper braid shields (90% and 80% coverage), CSPE - Chlorosulphonated Polyethylene jacket.

  • Specifications:

    • Number of Coax: 1
    • RG Type: 11/U
    • AWG: 15
    • Stranding: 19x27
    • Conductor Material: BC - Bare Copper
    • Insulation Material: FPE - Foam Polyethylene
    • Inner Shield Material: BC - Bare Copper
    • Inner Jacket Material: PE - Polyethylene
    • Outer Shield Material: BC - Bare Copper
    • Outer Jacket Material Trade Name: Hypalonr
    • Outer Jacket Material: Chlorosulfinated Polyethylene
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 Ohm
    • Applications: Triaxial Video/Camera Cable, Video Triax Cable


  • GTIN:

    0612825356042
