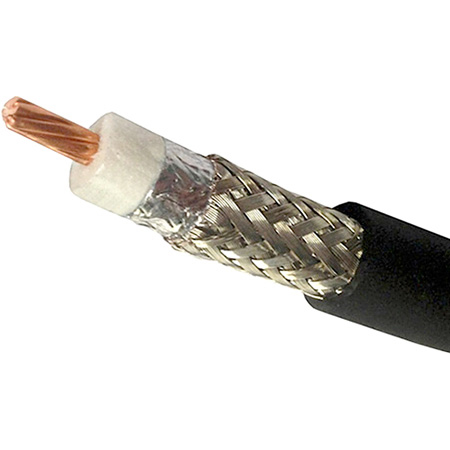

Belden 9913F7 RG 8U Type 10 AWG Stranded Coax Cable - 100 Foot

9913F7 B59100 - Overview

• Specifications:

  • Physical Characteristics
  • AWG: 1 Coax, 10 AWG, 7x19 Stranding, BC - Bare Copper .108" Diameter
  • Total Number of Conductors: 1
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Insulation Diameter: .285"
  • Outer Shield Material: Layer 1 - Bonded Duofoil, Bonded Aluminum Foil-Polyester Tape-Aluminum Foil 100% Coverage; Layer 2 - Braid TC - Tinned Copper 95% Coverage
  • Outer Jacket Material: Belflex PVC Blend - Polyvinyl Chloride Blend
  • Overall Nominal Diameter: 0.405 in.
    Mechanical Characteristics
  • Operating Temperature Range: -40°C To +80°C
  • Non-UL Temperature Rating: 80°C
  • Bulk Cable Weight: 94 lbs/1000 ft.
  • Maximum Recommended Pulling Tension: 210 lbs.
  • Minimum Bend Radius/Minor Axis: 3 in.
    Applicable Standards and Environmental Programs
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: No
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • RG Type: 8/U
  • Plenum: No
    Electrical Characteristics
  • Impedance (Ohm): 52
  • Inductance (µH/ft): .059
  • Capacitance (pF/ft): 22.5
  • VP (%): 85
  • Delay (ns/ft): 1.2
  • DCR at 20°C (Ohm/1000 ft): 1.1
  • DCR at 20°C (Ohm/1000 ft): 1.8
  • Start Freq. (MHz): 5
  • Stop Freq. (MHz): 2250
  • Maximum VSWR: 1.43:1
  • Voltage: 300 V RMS


• GTIN:

  0612825261711
