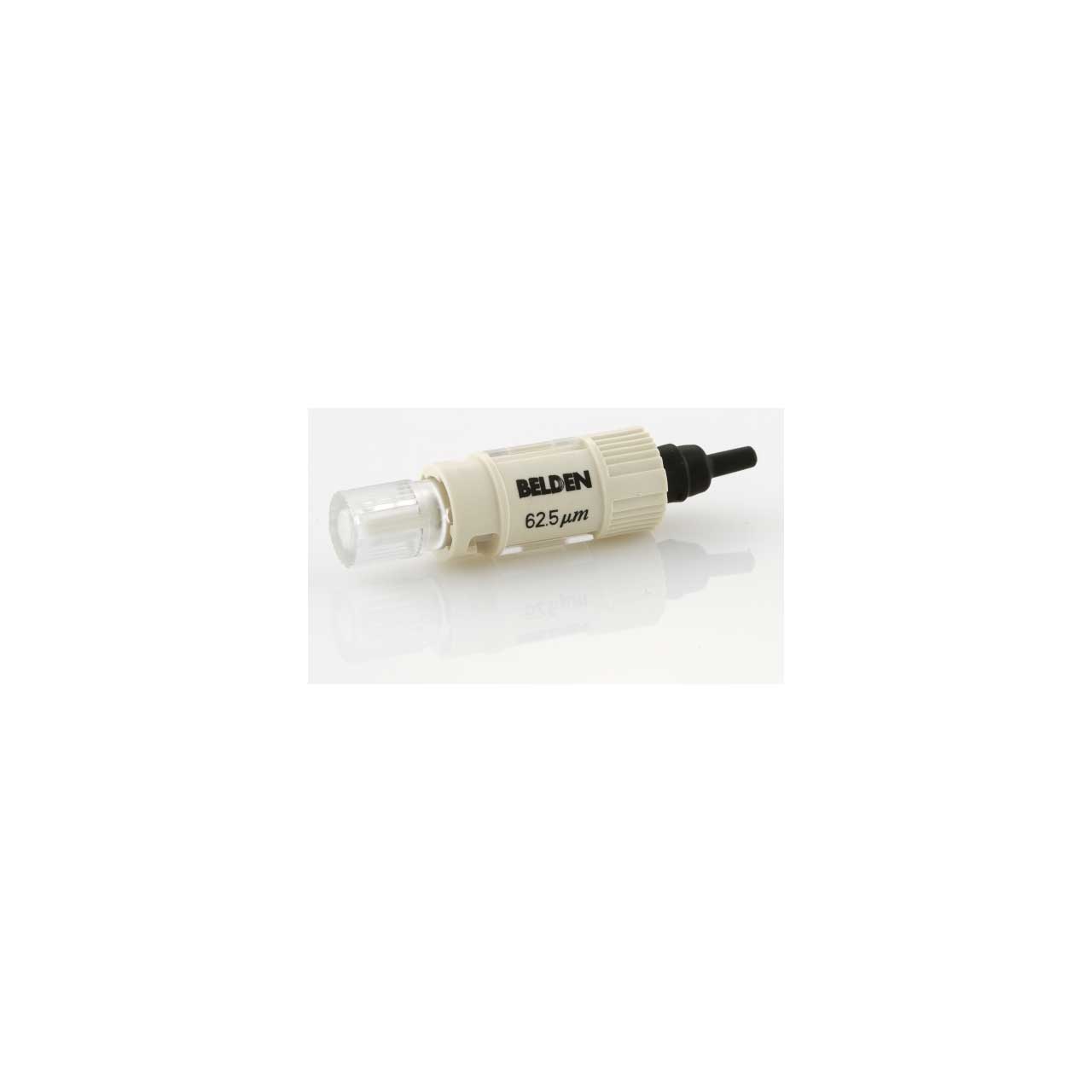

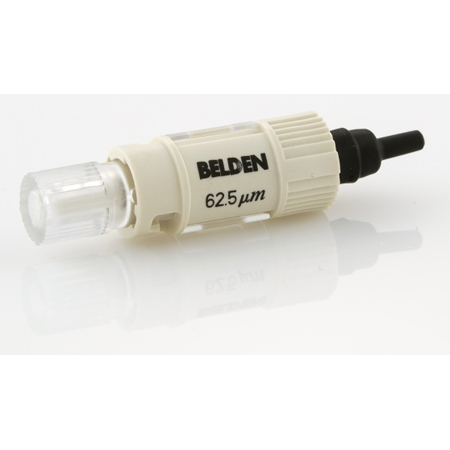

Belden AX105210-S1 Fiber Optic Connectors 62.5um 0M1 Multi-Mode ST(Twist) - 1/pack

Name: Belden AX105210-S1 Fiber Optic Connectors 62.5um 0M1 Multi-Mode ST(Twist) - 1/pack
Brand: Belden
SKU: BL-AX105210-S1
Price: 22.46 USD
Availability: PreSale

ITEM #: BL-AX105210-S1 MFG #: AX105210-S1

Belden

List Price:

$24.46

Our Price:

$22.46

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AX105210-S1 - Overview

Belden AX105210-S1 FX Brilliance Universal ST Field Installable Connector, Multimode, OM1, with support for 250 µm (using Breakout kit), 900 µm, 2 mm and 3 mm fiber (using jacketed boots). Includes 900 µm boot, other accessories (Breakout Kit & jacketed boots) sold separately. Suitable for Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units) applications.

Specifications:
- Weight: 0.004 kg
- Included Parts: 900 µm boot, protective ferrule cap, spring cap
- Packaging: Single (1) connector sample in a sealed plastic bag
- Interconnection Compatibility: Compliant with TIA/EIA-604-2 (FOCIS 2)
- Field Assembly Time: 40 seconds including fiber preparation
- Durability (Multimode): 500 cycles, less than 0.2 dB change, FOTP-21
- Durability (Single-mode): 500 cycles, less than 0.3 dB change, FOTP-21
- Nominal Fiber: OD 125 µm
- Storage Temperature: -40°F to +140°F (-40°C to +60°C)
- Operating Temperature: -40°F to +167°F (-40°C to +75°C)
- Tensile Strength on 900 µm Tight Buffered Fiber: 1.12 lb (0.5 Kg), less than 0.2 dB change, FOTP-6
- Tensile Strength on 2 mm Jacketed Fiber: 11.24 lb (5.1 Kg), less than 0.2 dB change, FOTP-6
- Ferrule: Ceramic
- Tensile strength on 250 um fiber: 0.5 lb (0.45Kg), less than 0.2 dB change, FOTP-6
GTIN:
0611589105330
