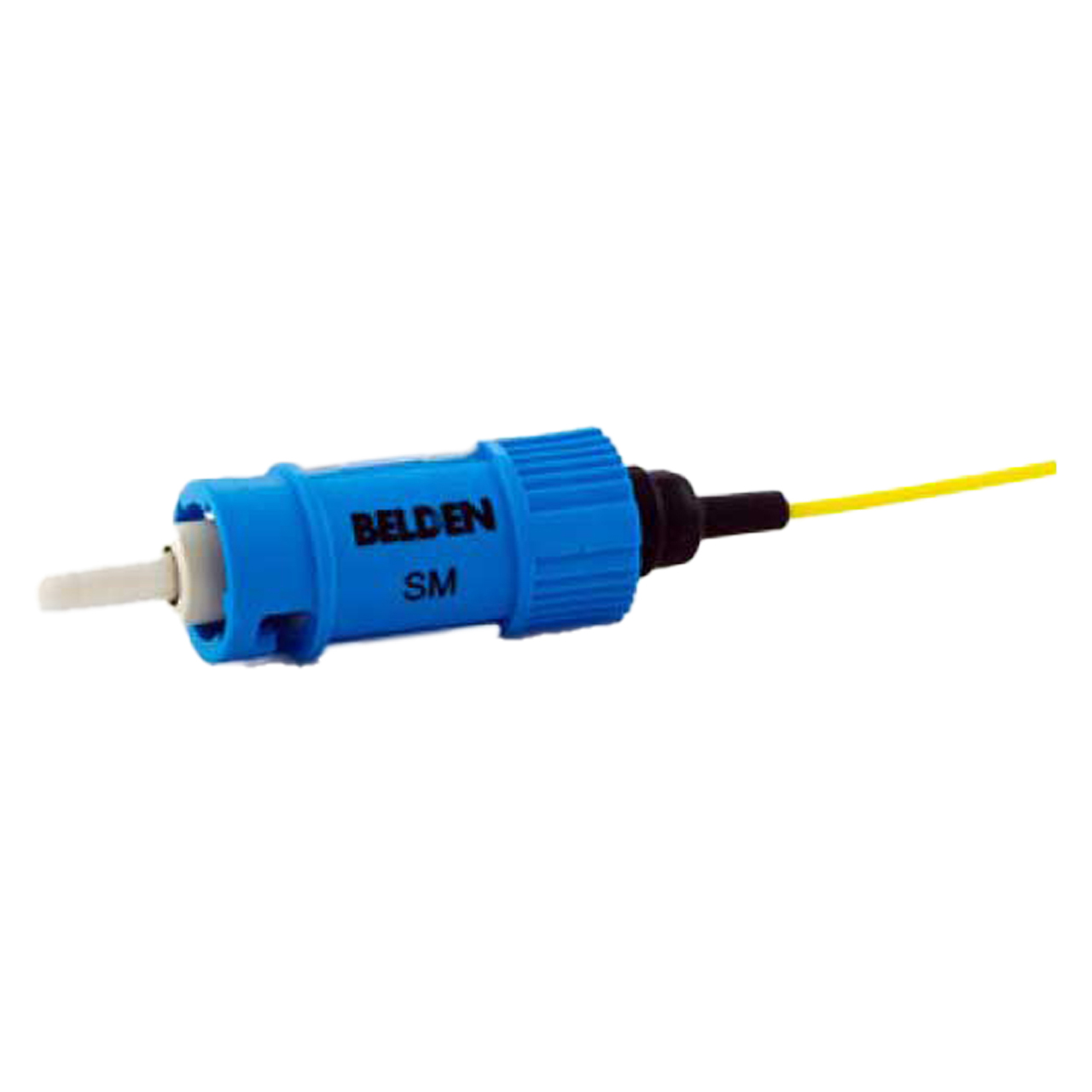

Belden AX105213-B25 FX BR Universal ST Singlemode Fiber Field-Term Connector 25/Pack

ITEM #: BL-AX105213-B25 MFG #: AX105213-B25

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$673.30

Our Price:

$620.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

AX105213-B25 - Overview

FX Brilliance Universal ST Field Installable Connector, Singlemode, OS2, Blue Housing, 25/Pack, with support for 250 μm (using Breakout kit), 900 μm, 2 mm and 3 mm fiber (using jacketed boots). Includes 900 μm boot, other accessories (Breakout Kit & jacketed boots) sold separately.

  • Specifications:

    • Interconnection Compatibility TIA/EIA-604-10A (FOCIS 10)
    • Field Assembly Time 40 seconds including fiber preparation
    • Durability (Multimode) 500 cycles, less than 0.2 dB change, FOTP-21
    • Durability (Single-mode) 500 cycles, less than 0.3 dB change, FOTP-21
    • Nominal Fiber OD 125 m
    • Storage Temperature -40°F to +140°F (-40°C to +60°C)
    • Operating Temperature -40°F to +167°F (-40°C to +75°C)
    • Tensile strength on 2 mm Jacketed fiber 11.24 lb (5.1 Kg), less than 0.2 dB change, FOTP-6
    • Tensile strength on 900 m tight buffered fiber 1.12 lb (0.5 Kg), less than 0.2 dB change, FOTP-6
    • Tensile strength on 250um fiber 0.5lb (0.45Kg), less than 0.2 dB change, FOTP-6
    • Ferrule Ceramic


  • Item Includes:

    • 900 µm boot, protective ferrule cap, spring cap


  • GTIN:

    0611589105385
