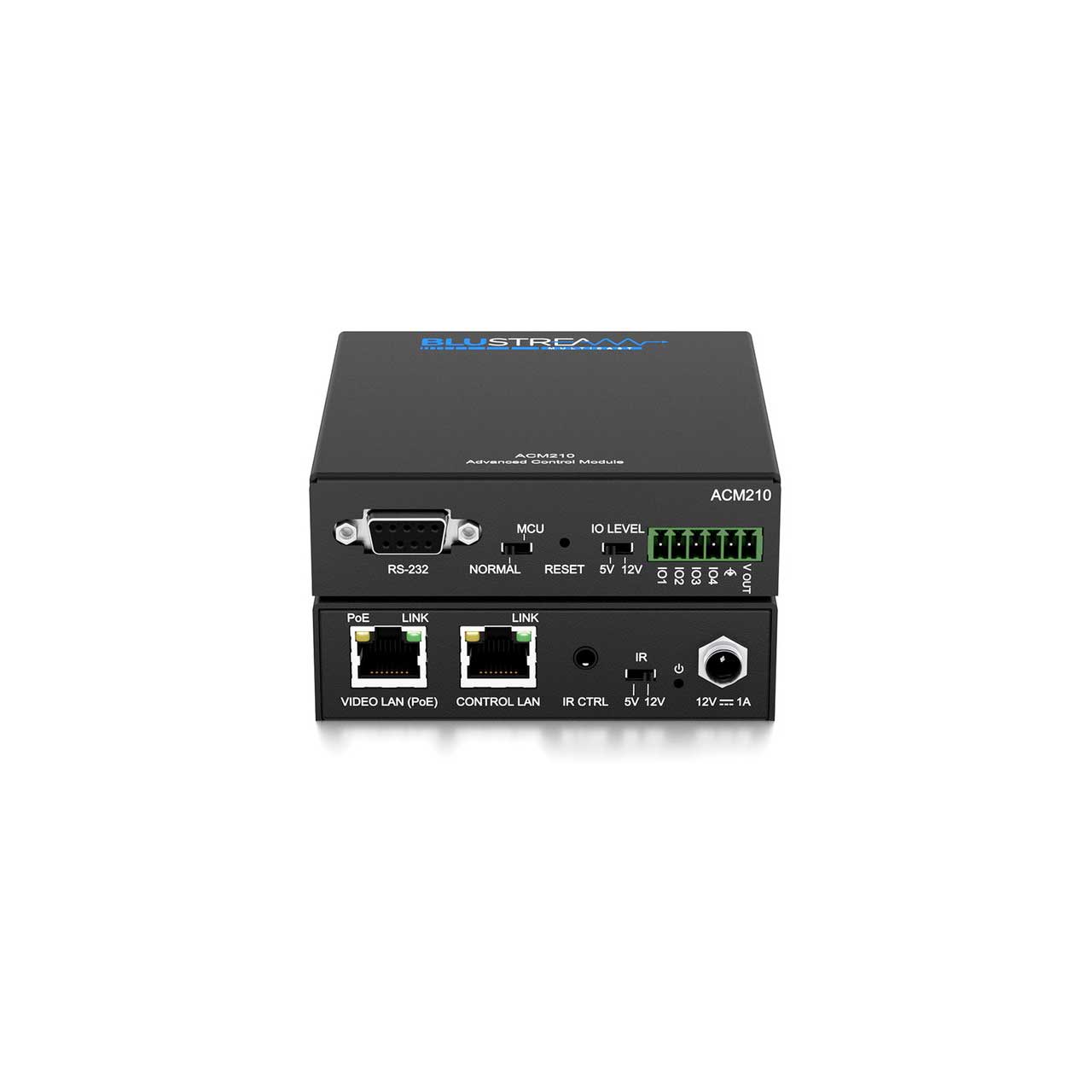

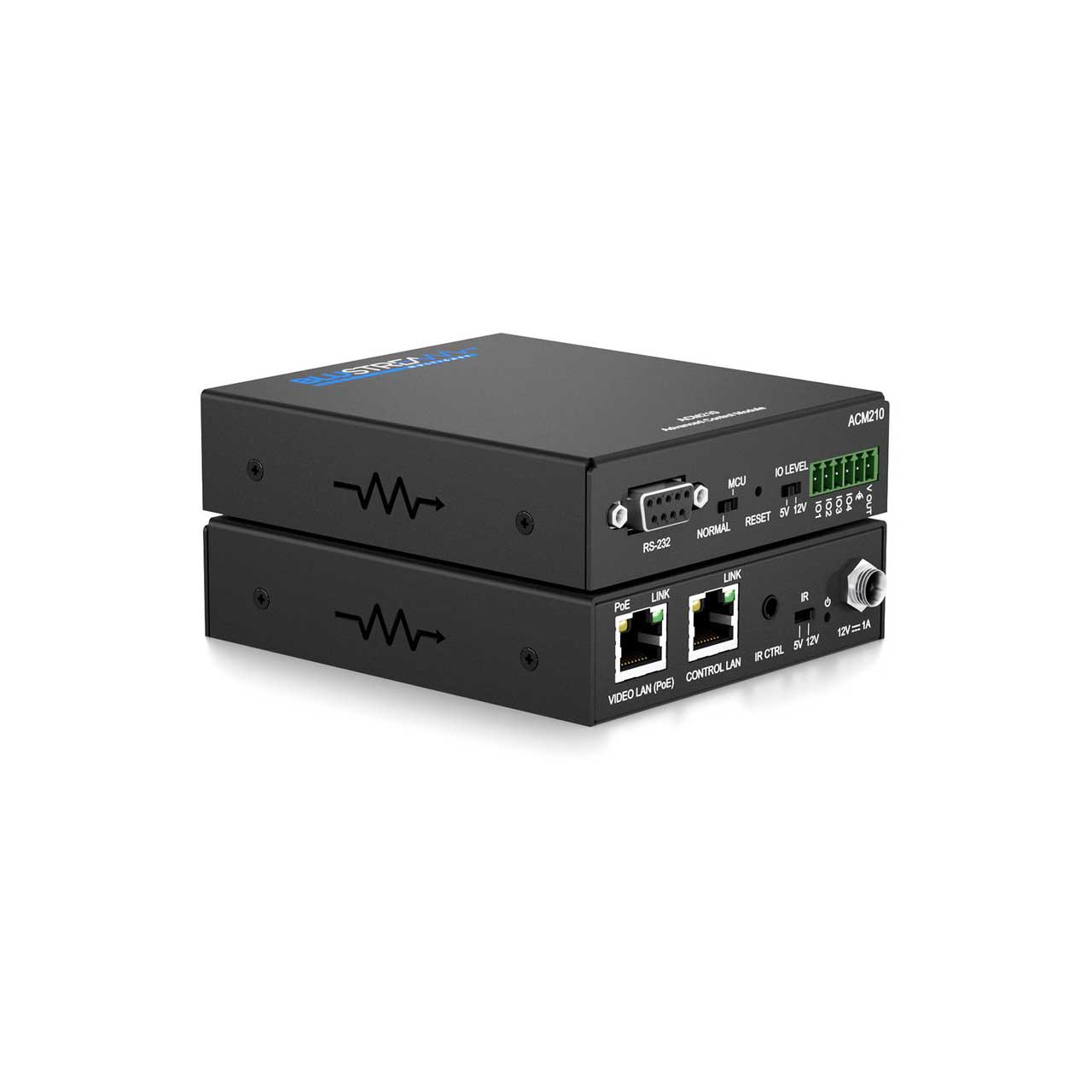

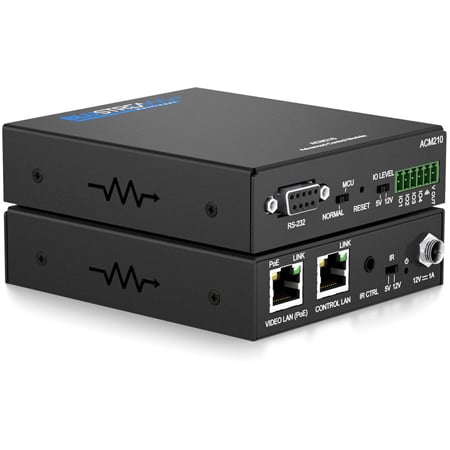

Blustream ACM210 Advanced Control Module Gen 2 for IP50/200/250/300/350 TX and RX Multicast System

ACM210 - Overview

• Features:

  • Web interface module for configuration and control of the Blustream Multicast system
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in: Better system performance as network traffic is separated, No advanced network setup required, Independent IP address per LAN connection, Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for major control brands


• Specifications:

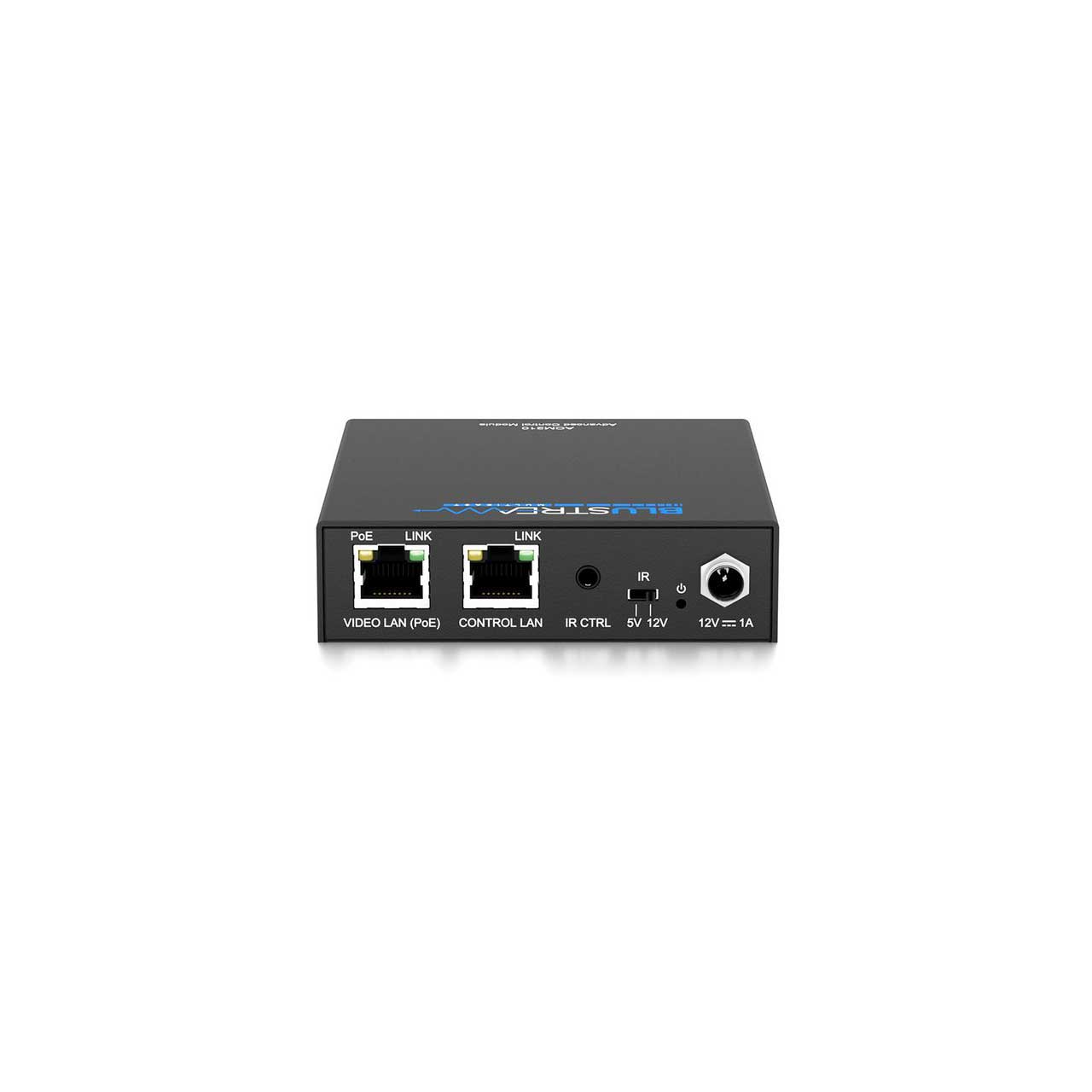

  • Ethernet Port:2 x LAN RJ45 connector (1x PoE support)

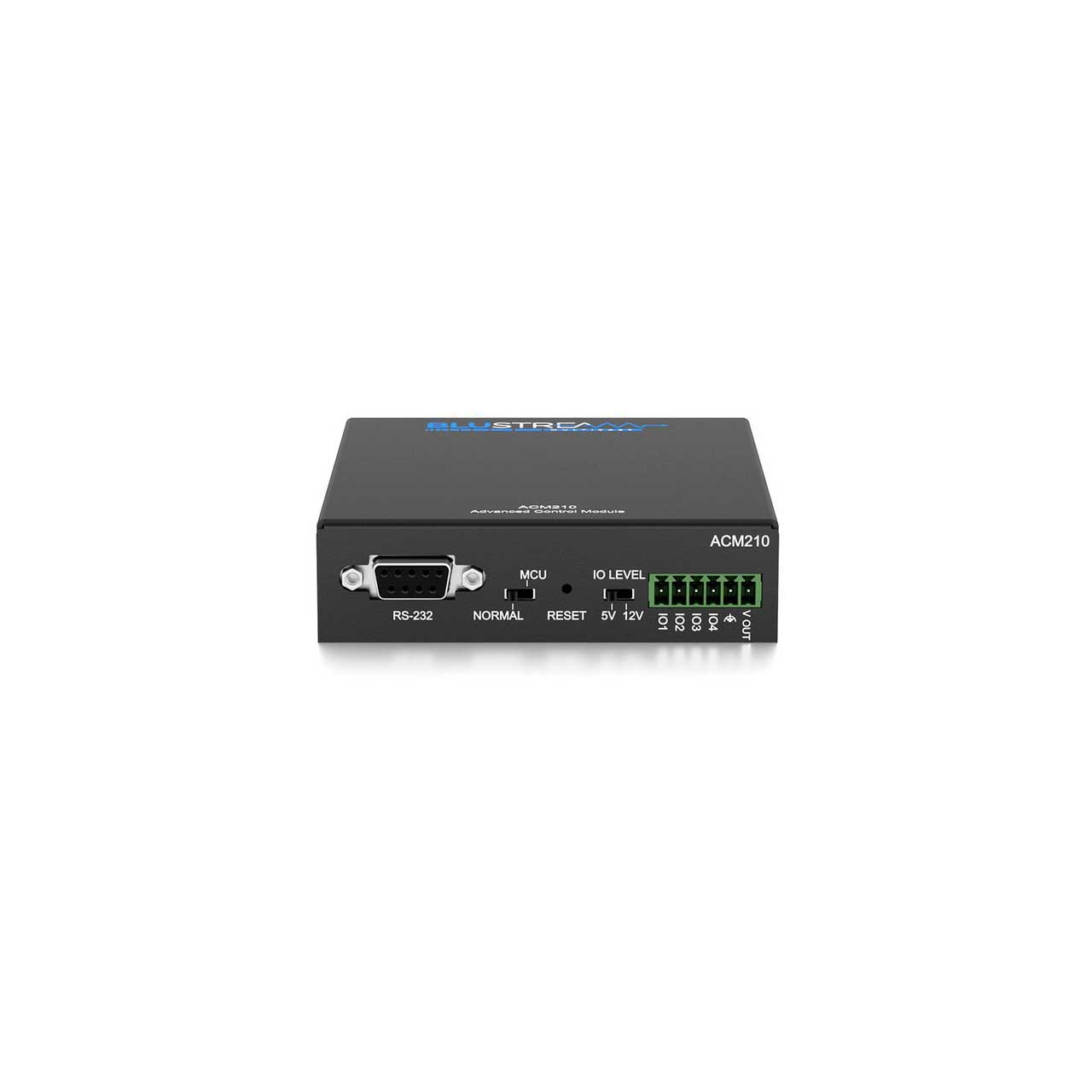

  • RS-232 Serial Port:1x DB-9 female
  • GPIO Port:1x 6-Pin Phoenix connector
  • IR Input Port:1x 3.5mm stereo jack
  • PoE consumption:4.0W (typical), 4.5W (max load)
  • Dimensions (W x D x H ):96mm x 110mm x 26mm
  • Shipping Weight:0.6kg
  • Operating Temperature:32°F to 104°F
  • Storage Temperature:-4°F to 140°F


• Item Includes:

  • 1x ACM210
  • 1x IR Control Cable - 3.5mm to 3.5mm Cable
  • 1x 6-pin Phoenix Connector
  • 1x Mounting Kit
