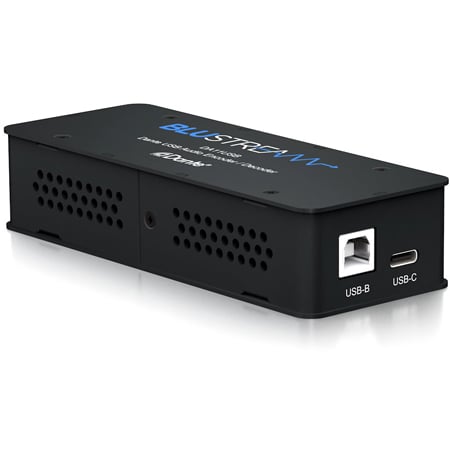

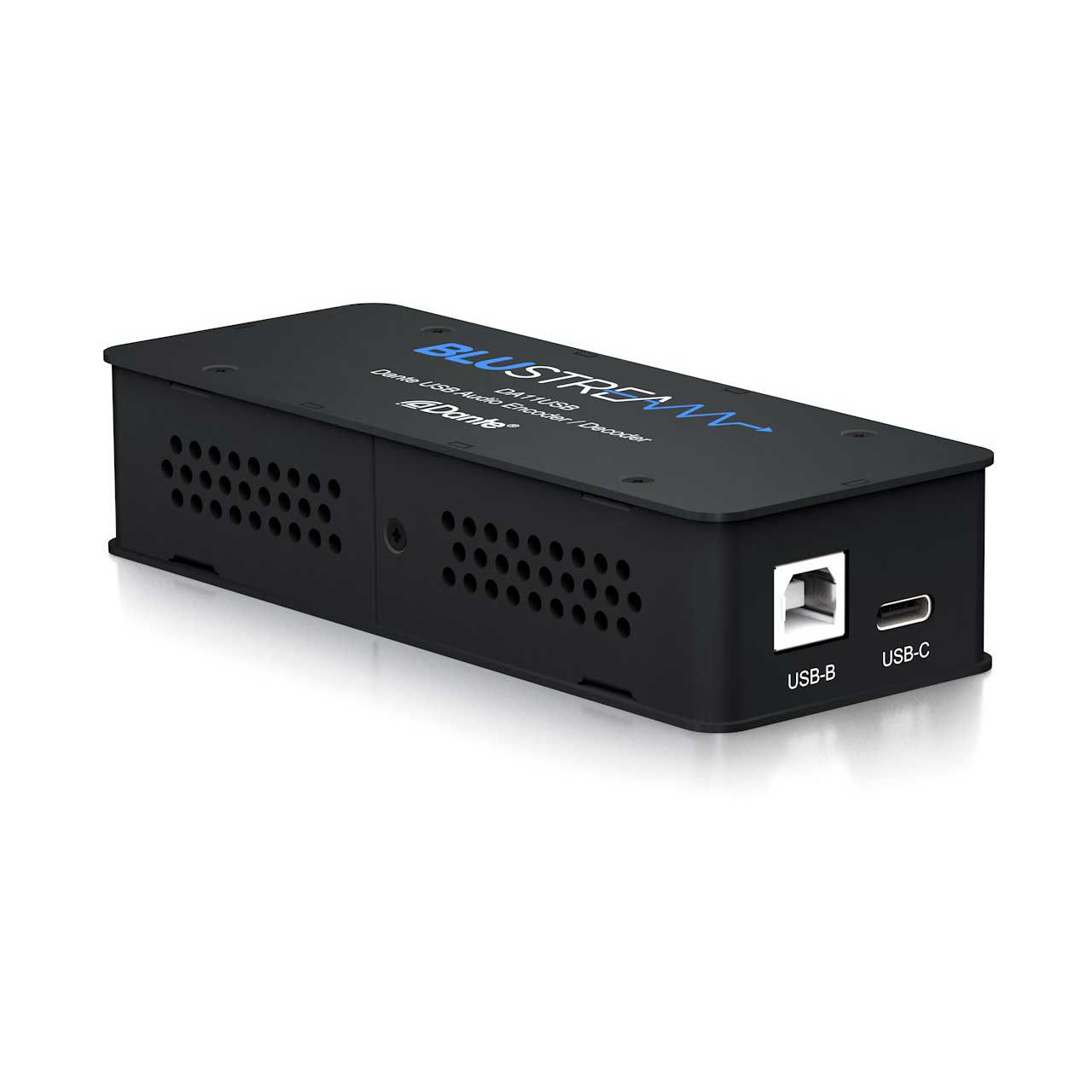

Blustream DA11USB Dante USB Audio Encoder / Decoder

9340242004178 - Overview

• Features:

  • Encodes 1ch USB audio to Dante digital signal
  • Decodes a Dante digital signal to USB audio

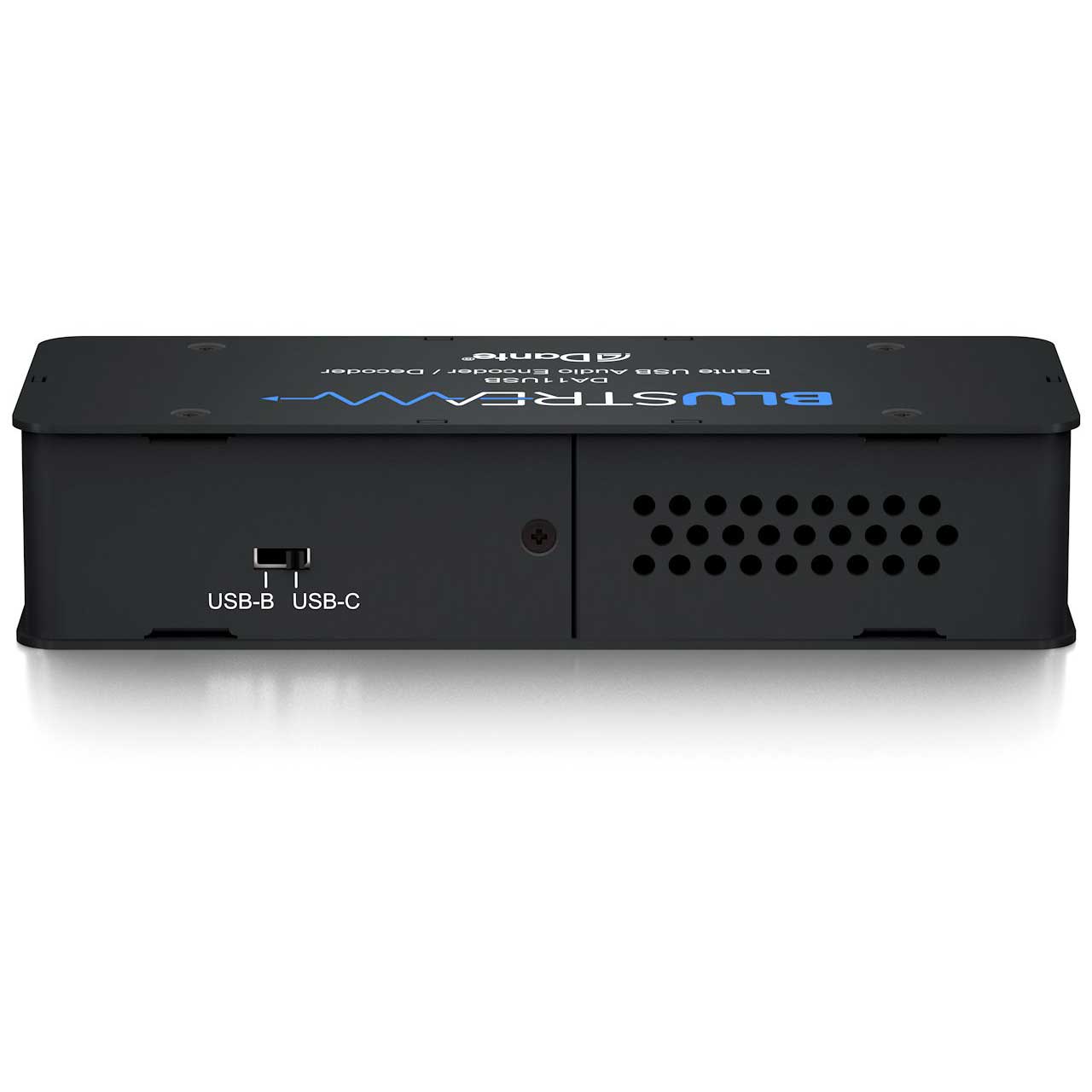

  • Selectable USB audio between USB Type-B and USB-C inputs
  • Compliant with USB Audio Device Class Specification V1.0
  • Supports 44.1 & 48 KHz sample rates @ 16 Bit
  • Configurable Dante device latency (supports 1, 2 or 5ms configurable using Danter Controller)
  • Supports AES67 RTP audio transport
  • Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 5V USB for when network switch does not support PoE
    *Dante is a registered trademark of Audinate Pty Ltd


• Specifications:

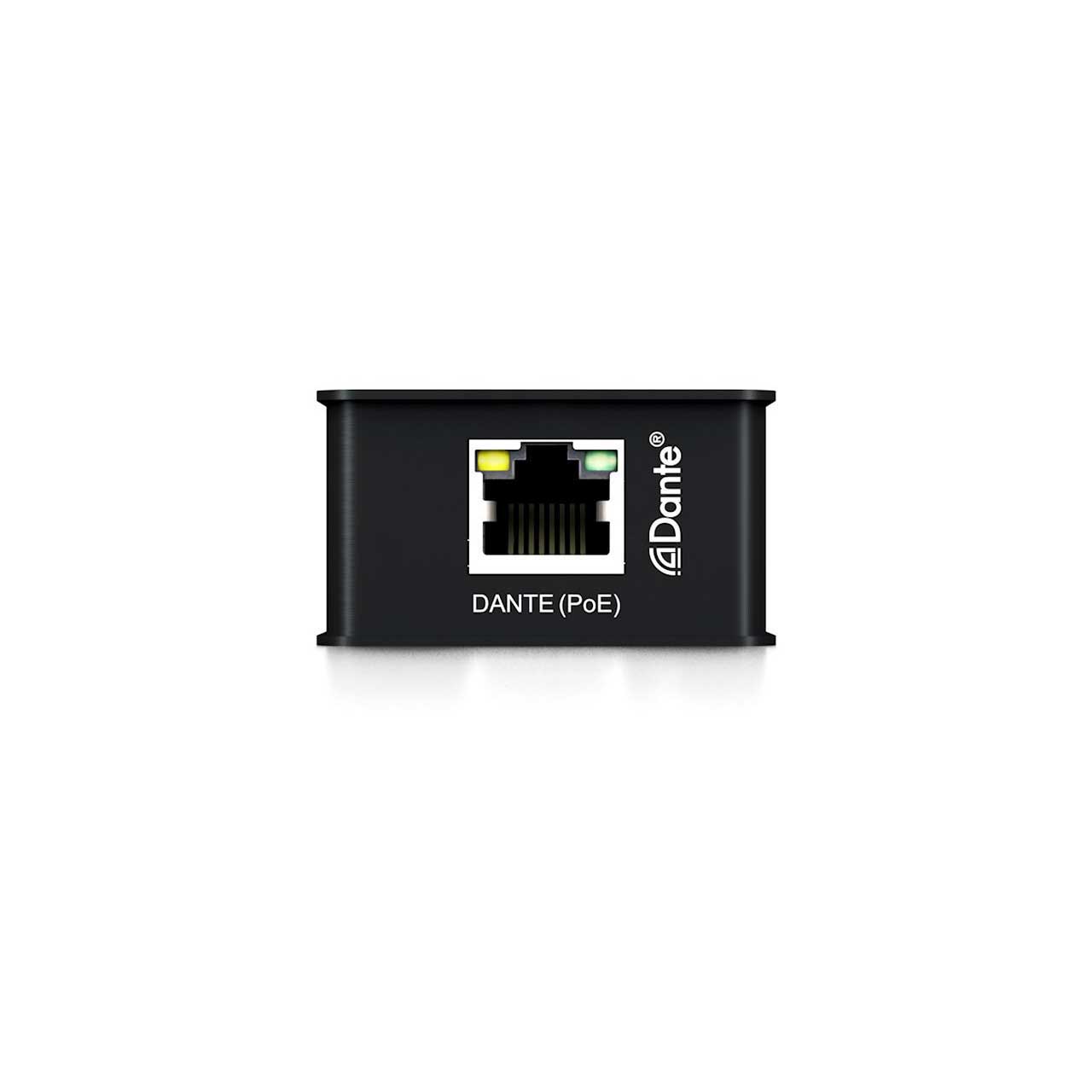

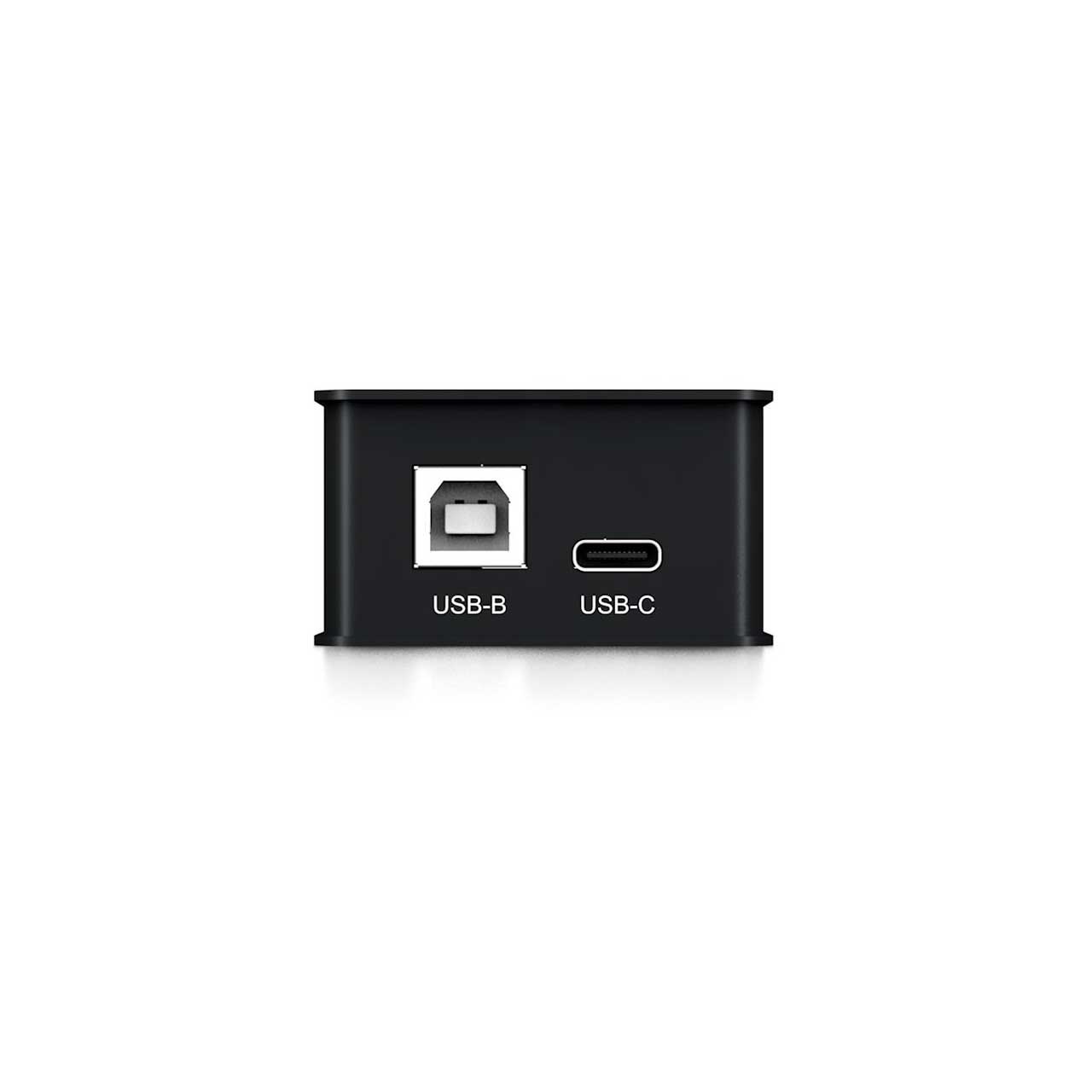

  • Audio Input Connectors: 1x RJ45, female (100Mbps Danter network), 1x USB Type B female, 1x USB Type C female
  • Audio Output Connectors: 1x RJ45, female (100Mbps Danter network), 1x USB Type B female, 1x USB Type C female
  • Casing Dimensions (W x H x D): 120mm x 26mm x 47mm
  • Shipping Weight: .66 lb (0.3kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Class 3 IEEE 802.3af PoE, or 5V USB


• Item Includes:

  • 1x DA11USB
  • 1x USB-A to USB-B cable - 1m
  • 1x USB-C to USB-C cable - 1m
  • 1x Quick Reference Guide


• Warranty:

  • 1-Year Limited Warranty
