Blustream DAC12AU Digital to Analog Converter (DAC) with A/D Outputs

DAC12AU - Overview

• Features:

  • Features 4 x analog audio inputs that are converted to a Dante® compatible signal
  • Features conversion of 4x Dante® signals to analog audio outputs
  • Analog audio inputs support both balanced and unbalanced audio + MIC line level signals
  • MIC line level supports 48V phantom power
  • Supports 44.1, 48 & 96kHz sample rates @ 24-bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Independent input gain / output volume settings per channel
  • Supports AES67 RTP audio transport


• Specifications:

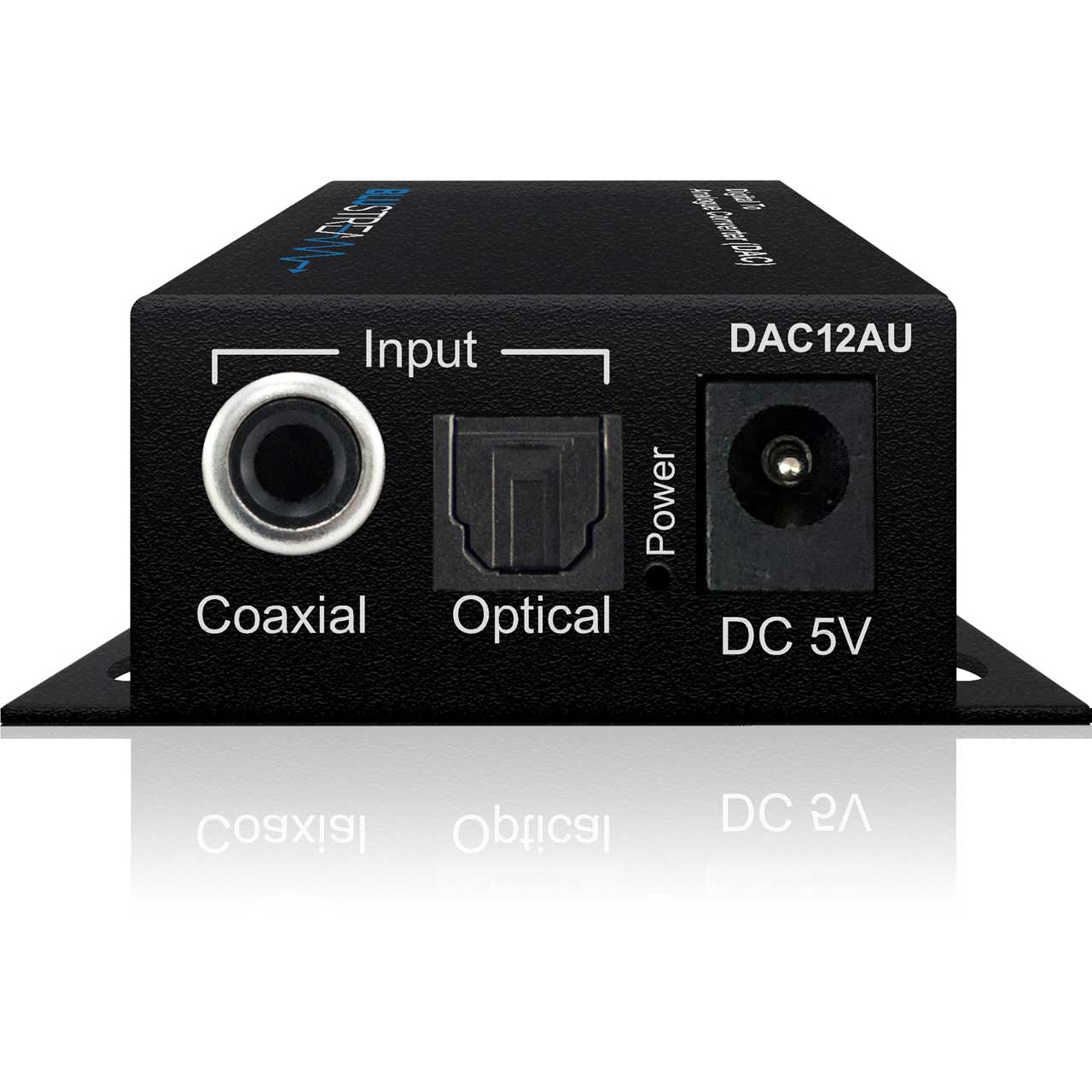

  • Audio Input Connectors: 1 x Optical digital & 1 x Coaxial RCA (S/PDIF)

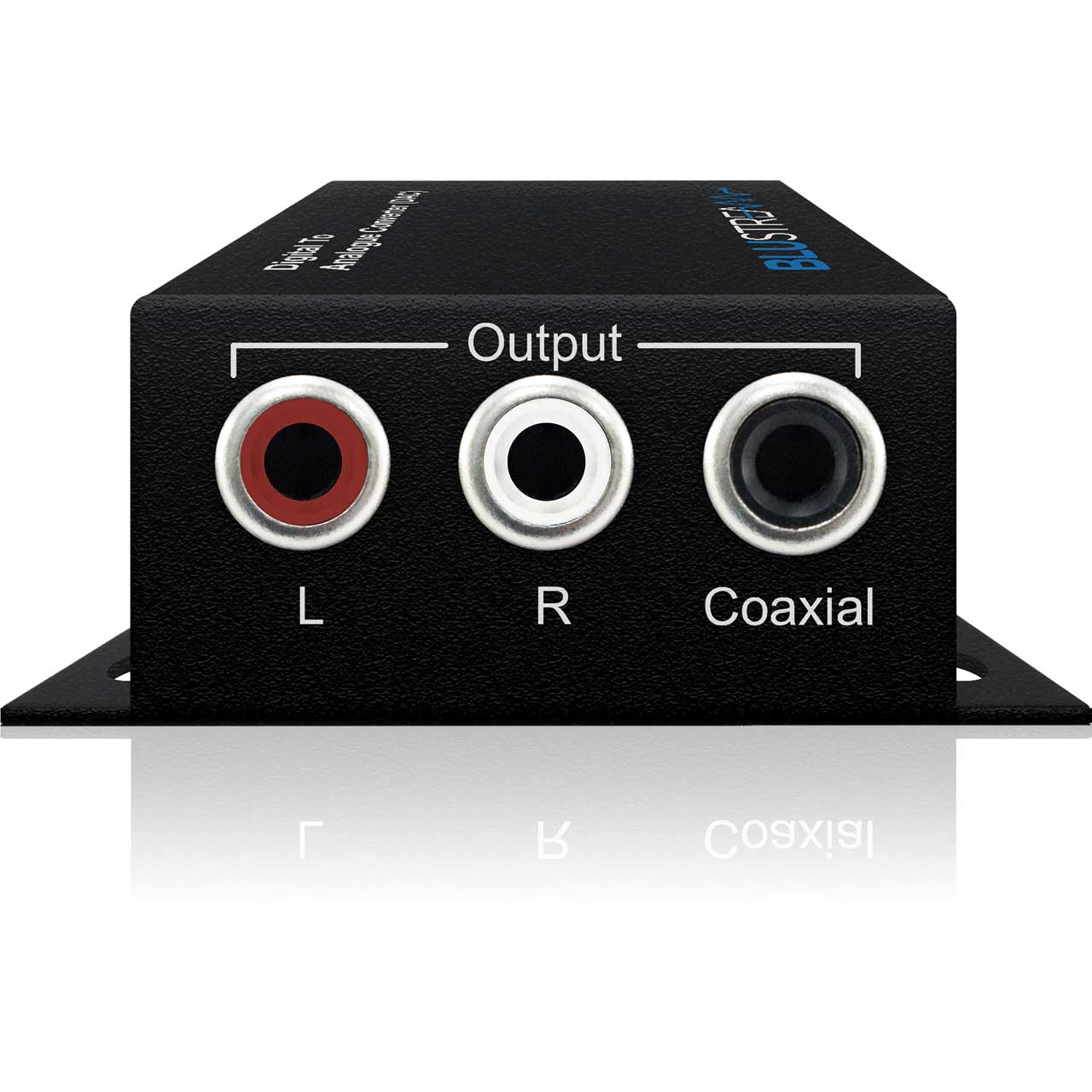

  • Audio Output Connectors: 2 x Analog stereo left / right & 1 x Coaxial RCA (S/PDIF)
  • Dimensions (W x H x D): 50mm x 26mm x 42mm
  • Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC


• Item Includes:

  • 1x DAC12AU
  • 1x 5V/1A DC power supply
  • 1x Mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001535
