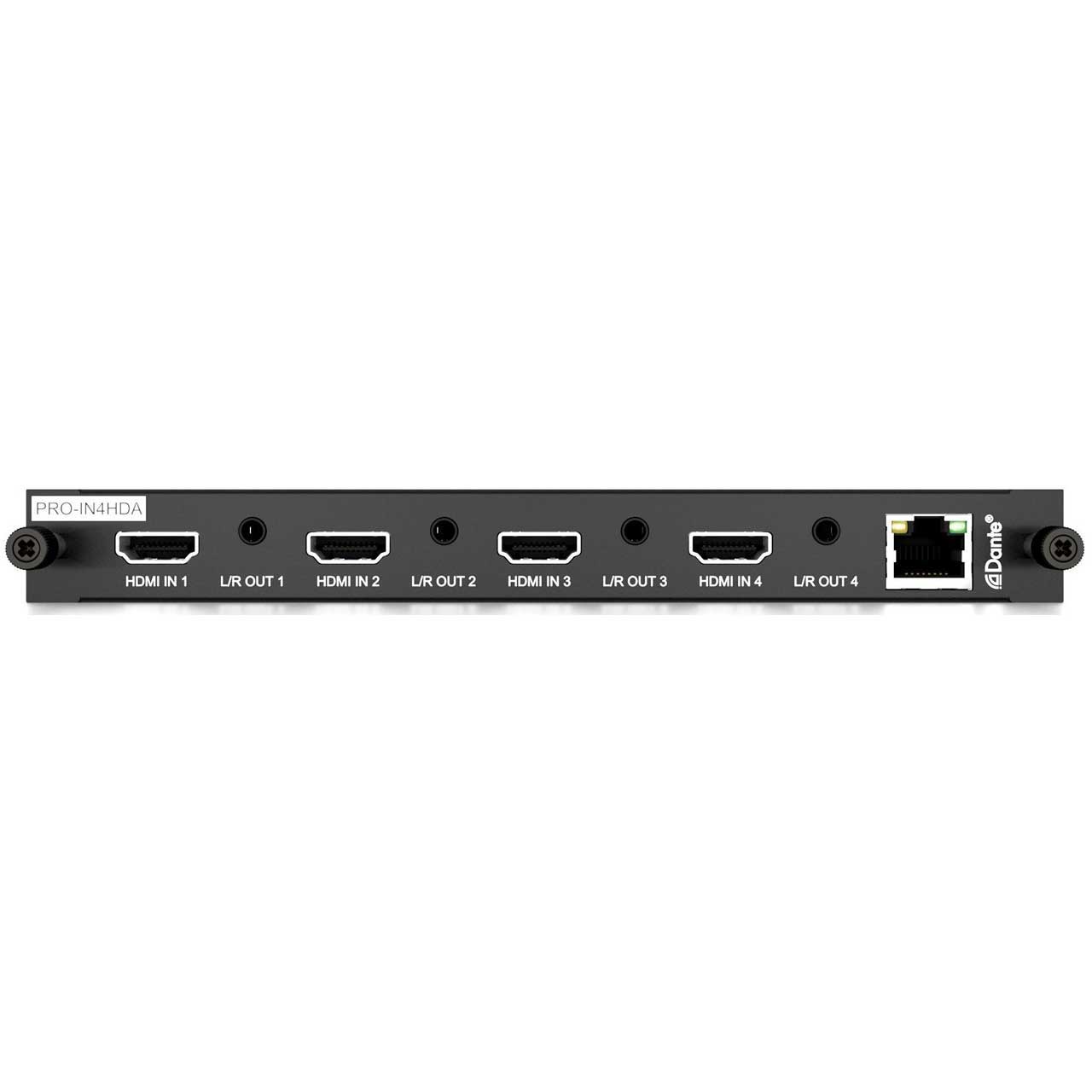

Blustream PRO-IN4HDA 4-way HDMI 2.0 4K 60Hz 4:4:4 Input Board with Dante

PRO-IN4HDA - Overview

• Features:

  • Features 4x HDMI 2.0 inputs which can be independently routed to video output cards
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
  • Each HDMI input includes independent 2ch Dante audio breakout allowing connection to a Dante audio solution (supports 2ch PCM)
  • Supports 4x 2ch Dante audio inputs allowing audio embedding onto the HDMI inputs
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
    *For HDMI 2.0 18Gbps video distribution the PRO-IN4HDA must be used with a HDMI 2.0 18Gbps Custom Pro output board


• Specifications:

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 4x Analogue Left/Right audio (3.5mm stereo jack)
  • Ethernet port: 1x LAN RJ45 connector (Dante Audio)
  • Card Dimensions (W x H x D): 6.69" x .86" x 6.9" (170mm x 22mm x 177mm)
  • Dimensions Including Connections (W x H x D): 7.48" x .86" x 7.4" (190mm x 22mm x 188mm)
  • Shipping Weight: 1.1lbs (0.5kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x PRO-IN4HDA


• Warranty:

  • 3-Year Warranty


• GTIN:

  9340242004918
