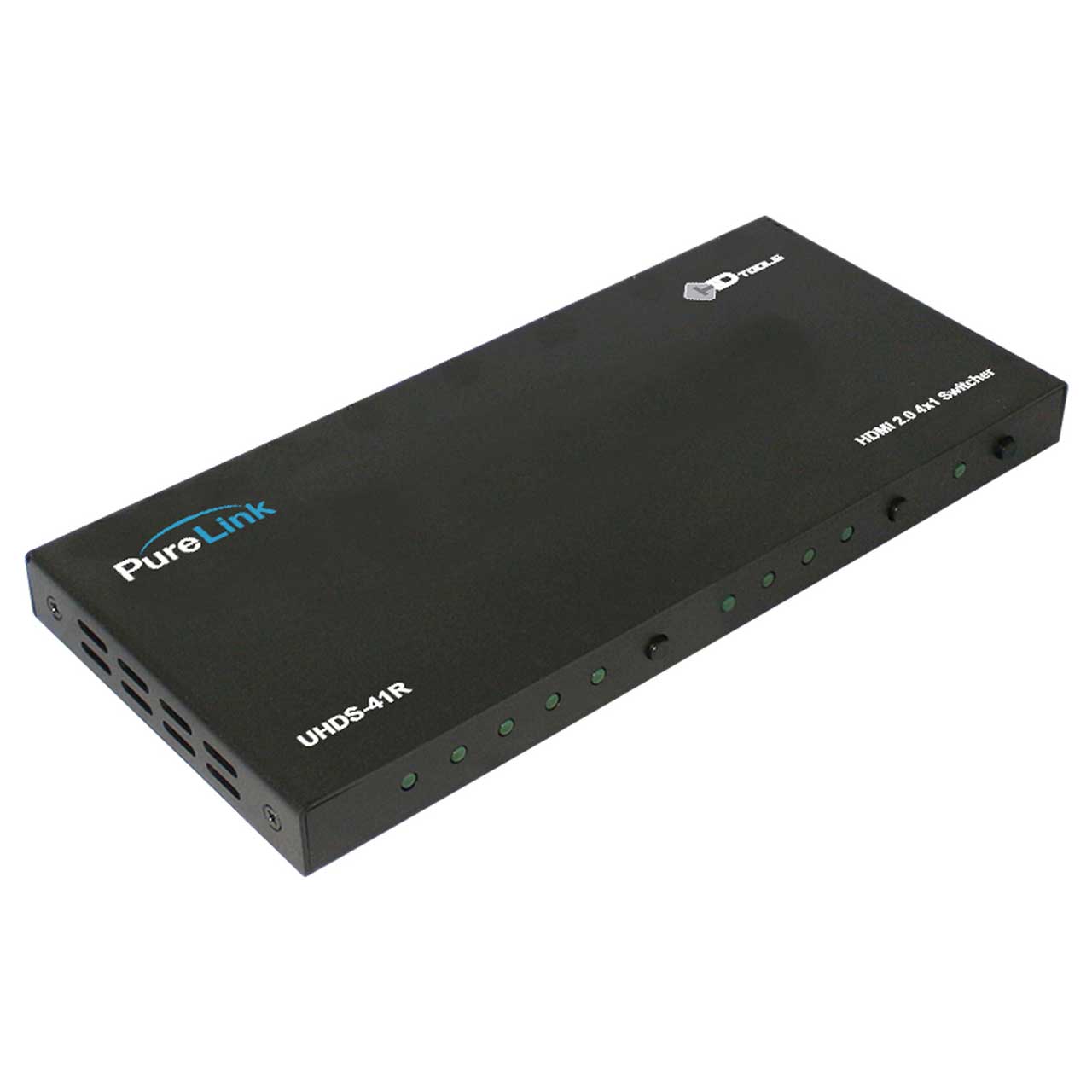

PureLink UHDS-41R 4x1 HDMI 2.0 Switcher

UHDS-41R - Overview

• Features:

  • 4x1 Ultra HD (4K @50/60Hz) digital A/V switcher
  • HDMI 2.0 and HDCP 2.2 compliance
  • Auto-switching - Automatic input switching by signal detection
  • ARC [ Audio Return Channel ] - Allows ARC-enabled TVs to transmit audio back to an AV receiver
  • Easy operation via manual toggle buttons, IR remote, and RS-232C
  • Full 3D compatibility
  • Auto-EDID management
  • Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio, LPCM
  • DVI and Displayport compatible (with adapters)


• Specifications:

  • Model: UHDS-41R
  • Input Signal: HDMI single link, 4 ports
  • Output Signal: HDMI single link
  • Bandwidth: 18 Gbps
  • Supporting Display Resolutions-
  • PC: VGA ~ WUXGA
  • (up to 1920 x 1200 @60Hz)
  • HDTV: 480i ~ 1080p,
  • Up to Ultra HD 4K
  • 4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0)
  • Connector Type-
  • 4 x HDMI inputs
  • 1 x HDMI output
  • 1 x IR
  • 1 x RS232
  • 1 x Analog audio out
  • 1 x DC power jack
  • HDCP SUPPORT: HDCP 2.2
  • ESD Protection Human Body Model: ± 8kV (air-gap discharge) / ± 4kV (contact discharge)
  • Conformations: HDMI version 2.0 / DVI version: 1.0
  • Power Rating: DC +5V , 1A
  • Power Consumption: Max 2.5W
  • Dimensions (WxDxH): 7.1" x 3.3" x 0.5"
  • Weight: 0.6 Lbs


• Item Includes:

  • 1x - UHDS-41R
  • 1x - 5V/1A Power Adapter
  • 1x - 38KHz IR Rx cable
  • 1x - Optical Converter Header (for SPDIF audio output)
  • 1x - IR remote
  • 1x - Owner’s manual
