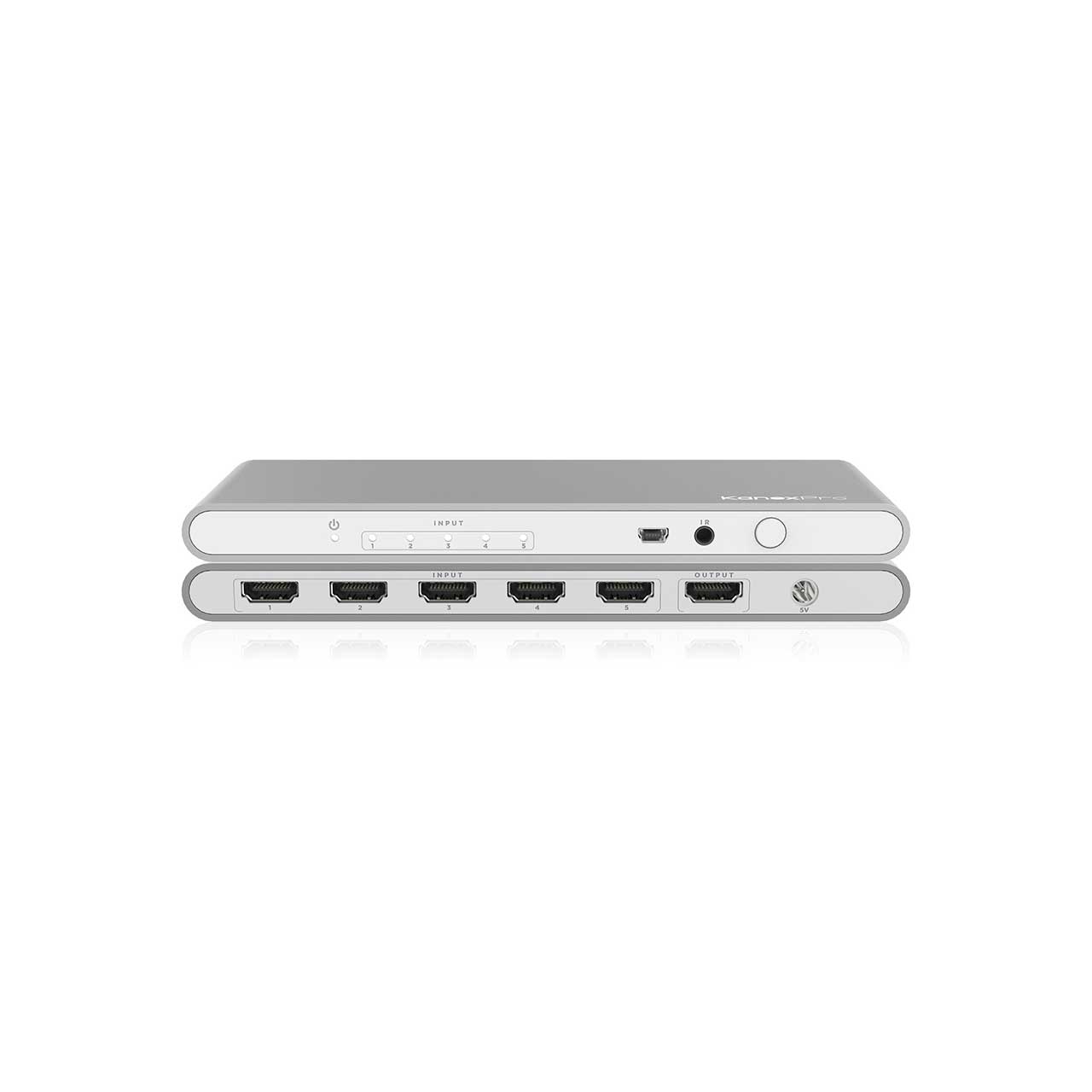

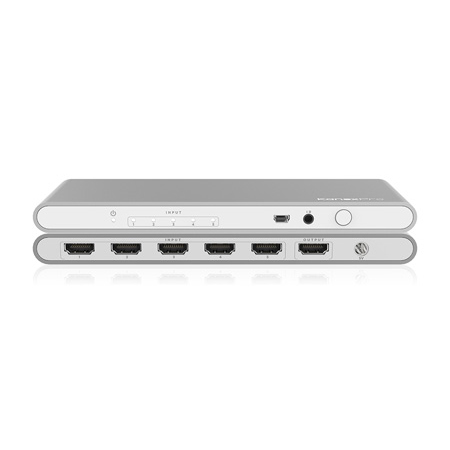

KanexPro SW-HD20-5X14K 4K HDMI 5X1 Switcher

SW-HD20-5X14K - Overview

• Features:

  • Auto switch five HDMI sources to one 4K display
  • 4K@60Hz UHD, 1080p & 3D resolutions
  • 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.
  • 4Kx2K @60Hz with 12bit YCBCR 4:2:0
  • Computer resolutions up to QSXGA@60Hz
  • Supports 3D frame sequential video formats to 1080p @60Hz
  • HDCP 2.2 compliant
  • Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • High bandwidth for ultimate video experience
  • Front-panel LED's for input/ output signal presence
  • Ultra compact design
  • 5V DC external power supply included
  • Includes IR remote


• Specifications:

  • Signal Input/Outputs:
  • Input DDC Signal: 5 Volts p-p (TTL)
  • Input & Output Signal: High Speed HDMI Spec 2.0a


  • Input Ports: 5 x HDMI (Female)
  • Output Port: 1 x HDMI (Female)
  • Operating Frequency: Vertical Frequency Range: 50/60Hz


  • Supported Resolutions:
  • (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@30 & 60Hz
  • 480i ~1080p50/60, 4Kx2K@24/30
  • 4Kx2K@60Hz with 12bit YCBCR 4:2:0
  • VGA~UXGA


  • IR specs: Input Port: 1x IR Receive port


  • Power Requirements:
  • Power Consumption: 2W
  • External Power Supply: 5V DC @ 1A


  • Regulatory Approvals:
  • Converter Unit: FCC, Ce, UL
  • Power Supply: UL, Ce, FCC


  • Environment Operating Temperature:
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F


  • Dimensions: W 2.51" x D 6.1" x H 0.67"
  • Weight: 6.35 oz. (180g)


• Item Includes:

  • HDMI 5x1 Switcher
  • 5V, 1A Power Supply
  • Remote control IR Receiver Extend cable
  • Operation Manual


• Warranty:

  • 3 Years


• GTIN:

  0813982020429
