DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.

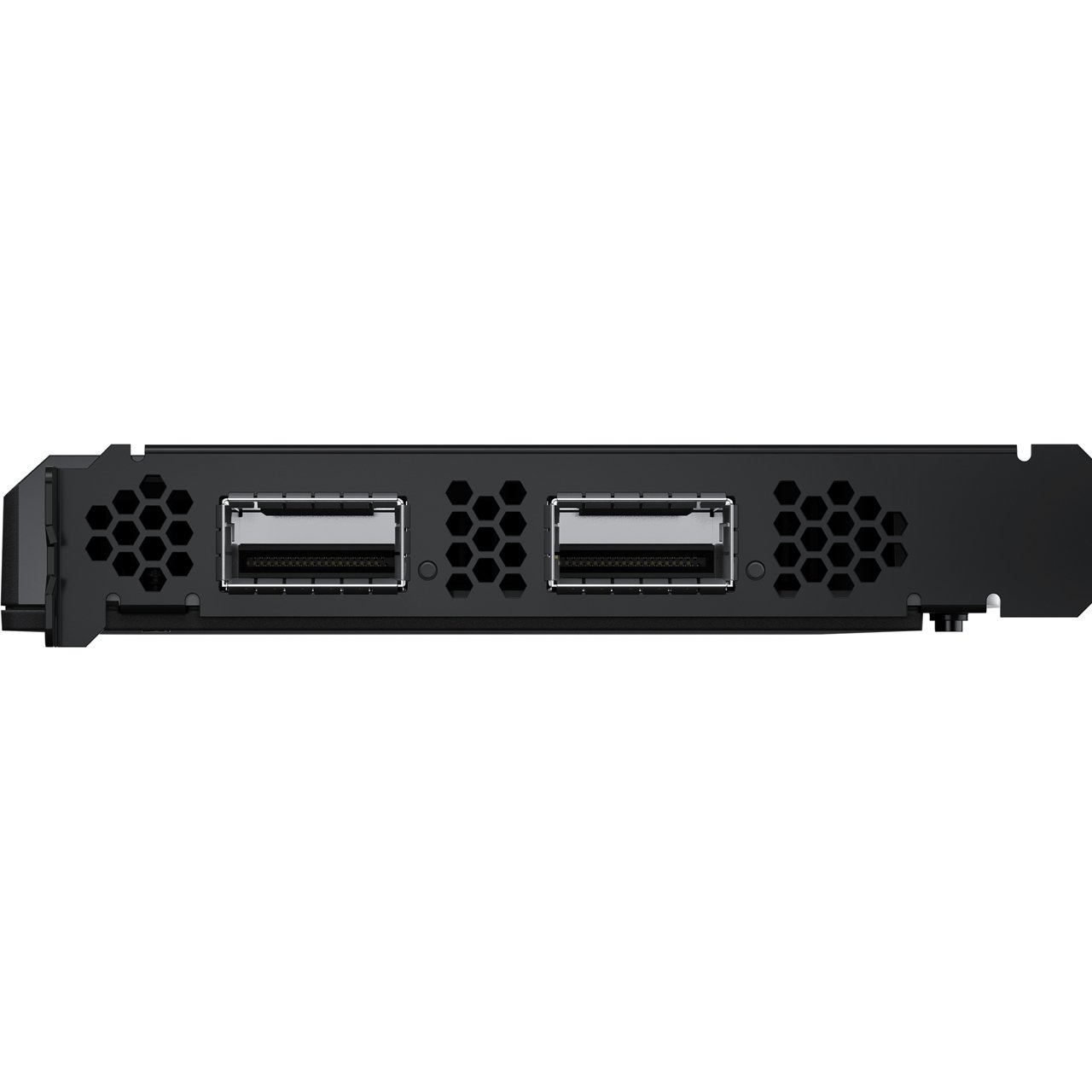

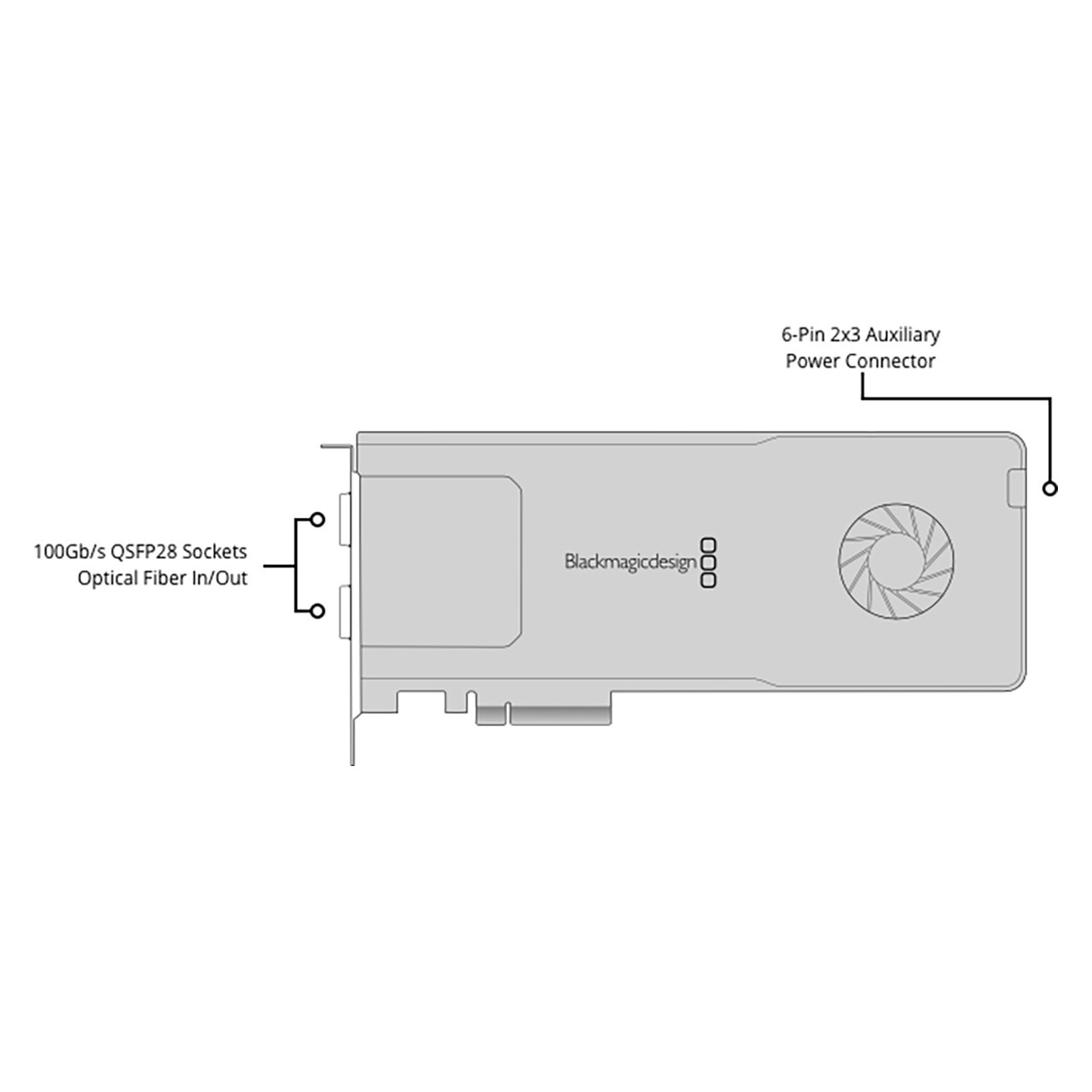

The Blackmagic Design DeckLink IP 100G features 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi rate so they support all SD, HD and Ultra HD standards up to 2160p120.
10G Ethernet for Multiple SMPTE 2110 IP Channels
DeckLink IP cards conform to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast. It also keeps video sources in sync using a common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. The big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network. Plus DeckLink IP supports multicast, which is an extremely efficient way of distributing video, audio and data from a single source to multiple destinations.
