MA12EX BLACK - Overview

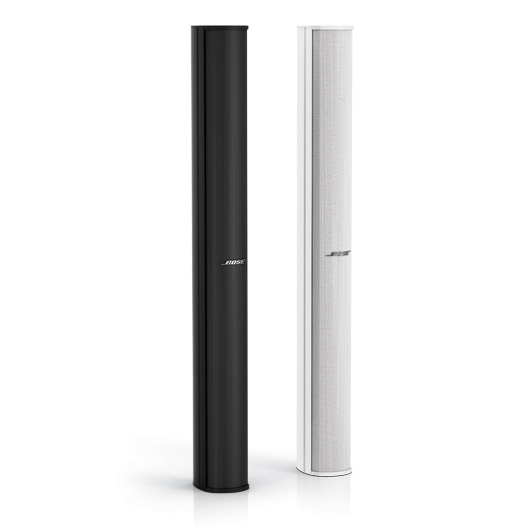

The newest addition to the Panaray MA12 loudspeaker family, the Panaray MA12EX modular line array loudspeaker is designed to deliver high speech intelligibility and full-range music from 75 Hz to 13 kHz (-3 dB), without additional bass augmentation, in both indoor and outdoor acoustically demanding spaces. Twelve 2.25" (57mm) high-excursion, weather-resistant drivers mounted in an Articulated Arrayr loudspeaker design1 deliver 160 degrees of horizontal dispersion and narrow vertical pattern control. The Panaray MA12EX loudspeaker delivers full-range performance at 150 watts, and speech-only performance at 300 watts. The loudspeaker can be mounted in single or multiple loudspeaker configurations. It is well-suited for indoor and outdoor applications such as houses of worship, multipurpose spaces, recreation, retail, restaurants and bars, auditoriums, transportation hubs, gymnasiums, atriums and malls.

Applications:
Houses of worship
Multi-purpose spaces
Recreation
Restaurants and bars
Auditoriums
Transportation facilities
Gymnasiums
Atriums and malls

  • Features:

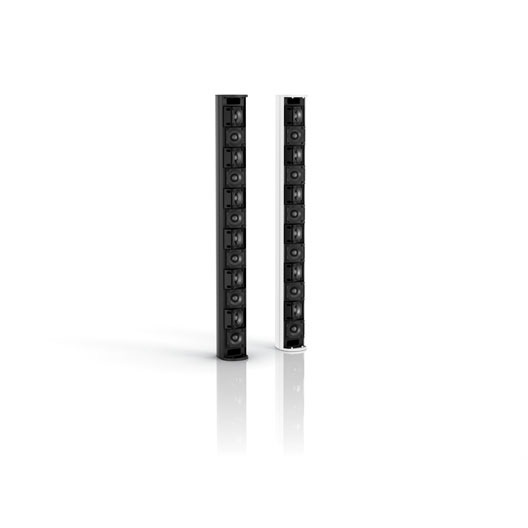

    • Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
    • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections
      Articulated Array design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
    • Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
      Optional brackets allow easy installation of single-, double- or triple-stack line array modules


  • Specifications:

    • Frequency Response (+/-3 dB): 75 Hz - 13 kHz
    • Frequency Range (-10 dB): 58 Hz - 16 kHz
    • Nominal Dispersion: 160° H x 20° V
    • Long-Term Power Handling: 150 W (600 W peak)
    • Sensitivity (SPL / 1 W @ 1 m): 87 dB SPL
    • Maximum SPL @ 1 m: 109 dB SPL (115 dB SPL peak)
    • Nominal Impedance: 8 Ohm
    • Enclosure: Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated
    • Environmental: Outdoor per IEC 529 IPX5
    • Connectors: - Two (2) parallel-wired NL4 Neutrikr Speakonr connectors, - Two (2) two-conductor barrier strips
    • Suspension / Mounting: Six (6) x M6 threaded inserts (back)

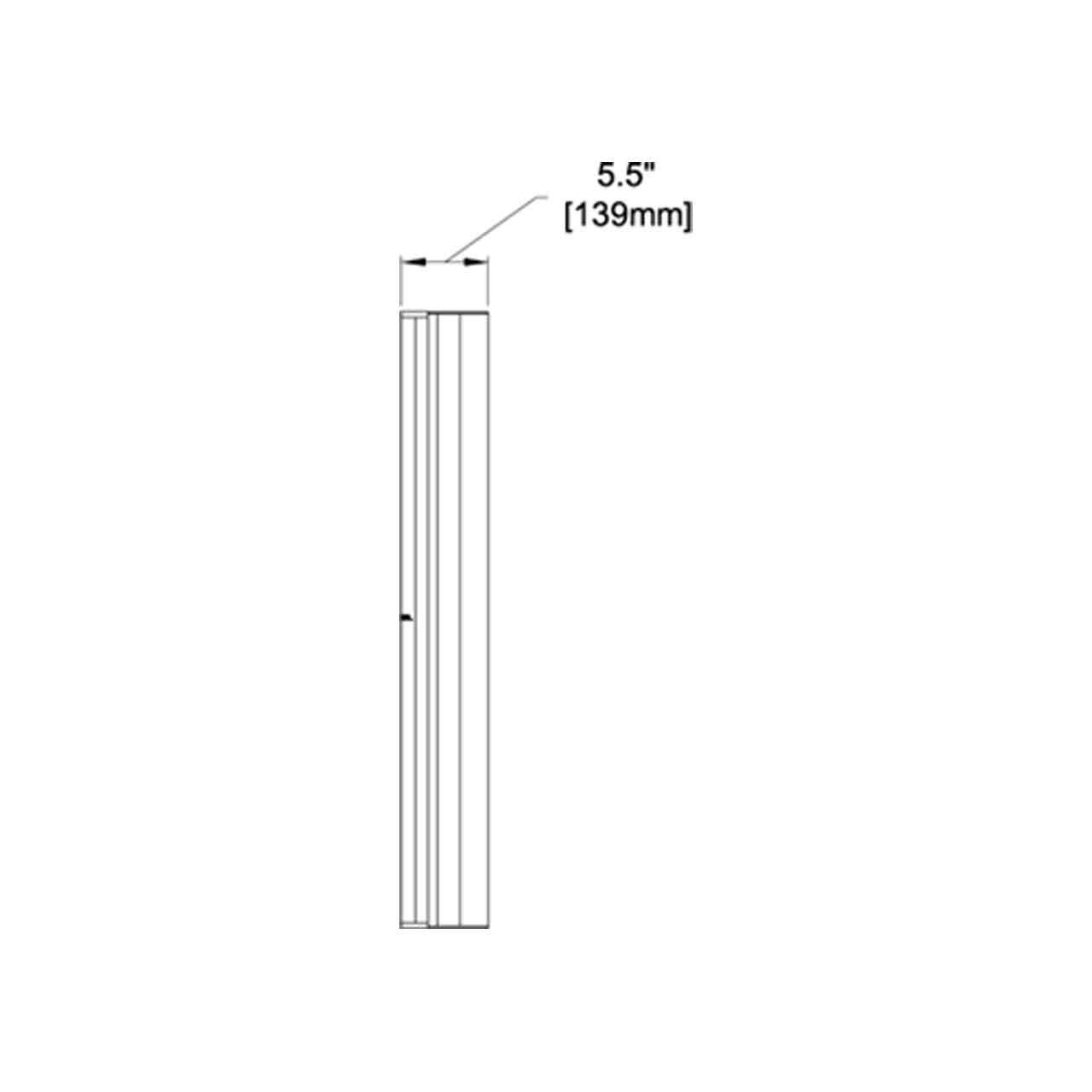

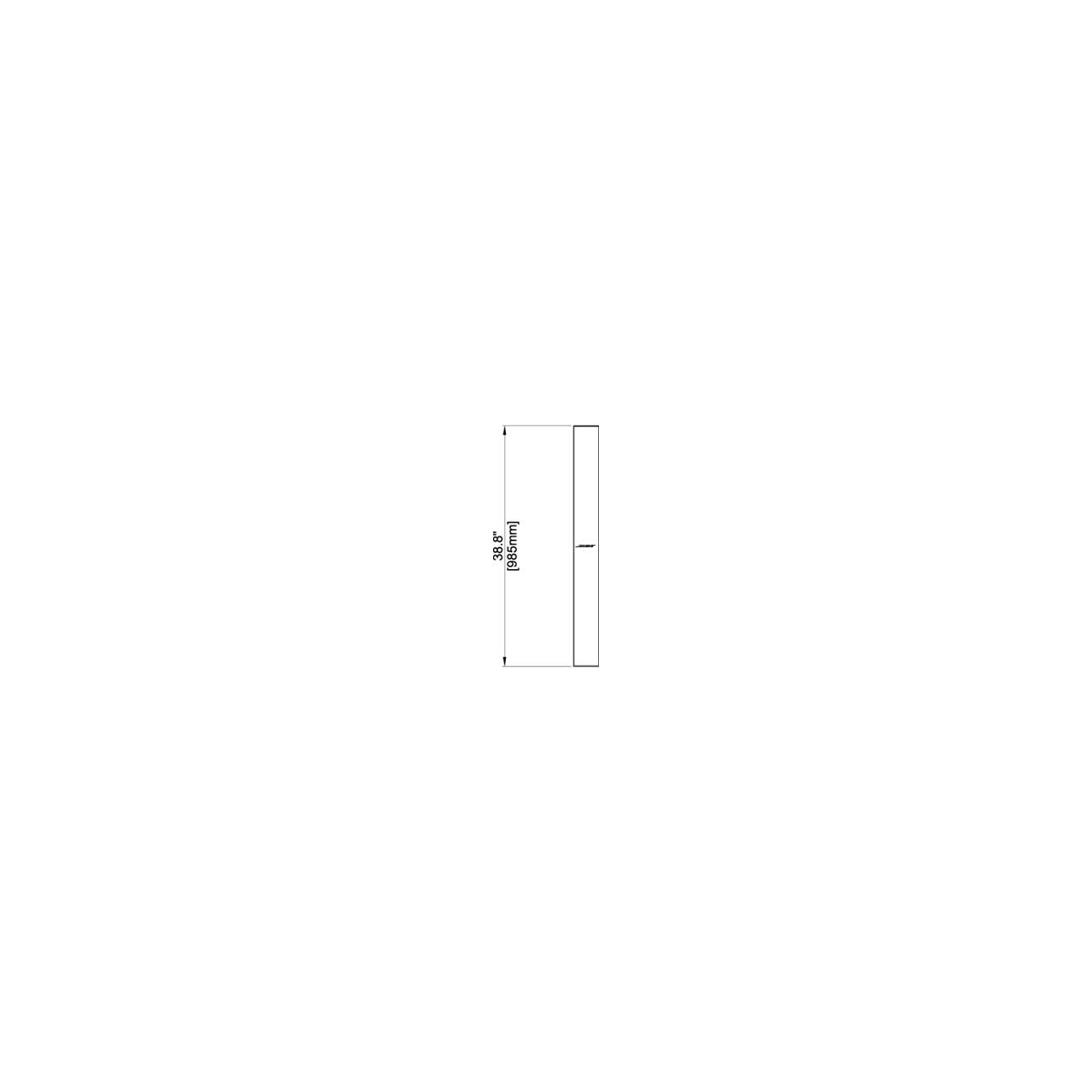

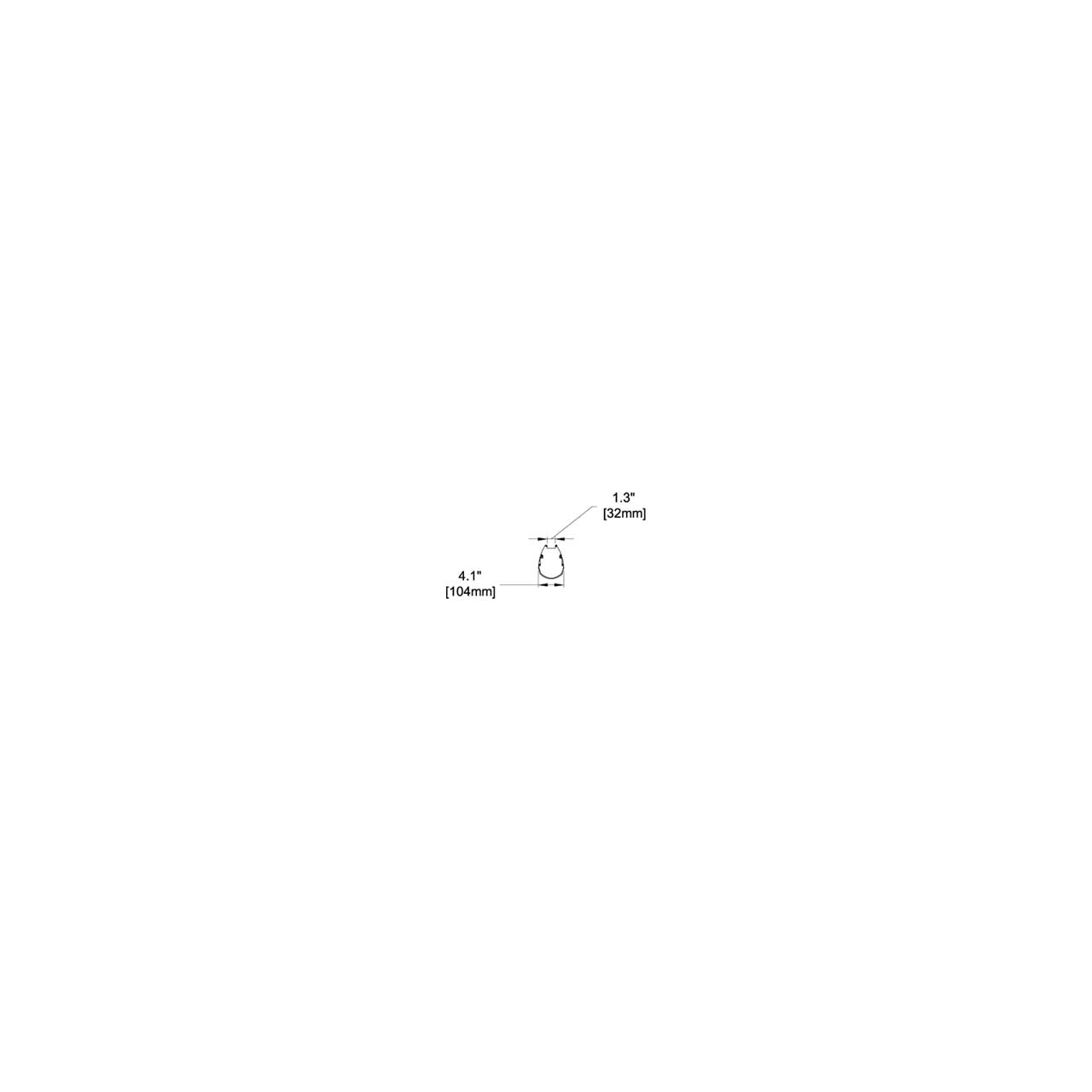

    • Dimensions: 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mm x 139 mm)
    • Net Weight: 21 lb (9.4 kg)
    • Colors: Black


  • GTIN:

    0017817500623
