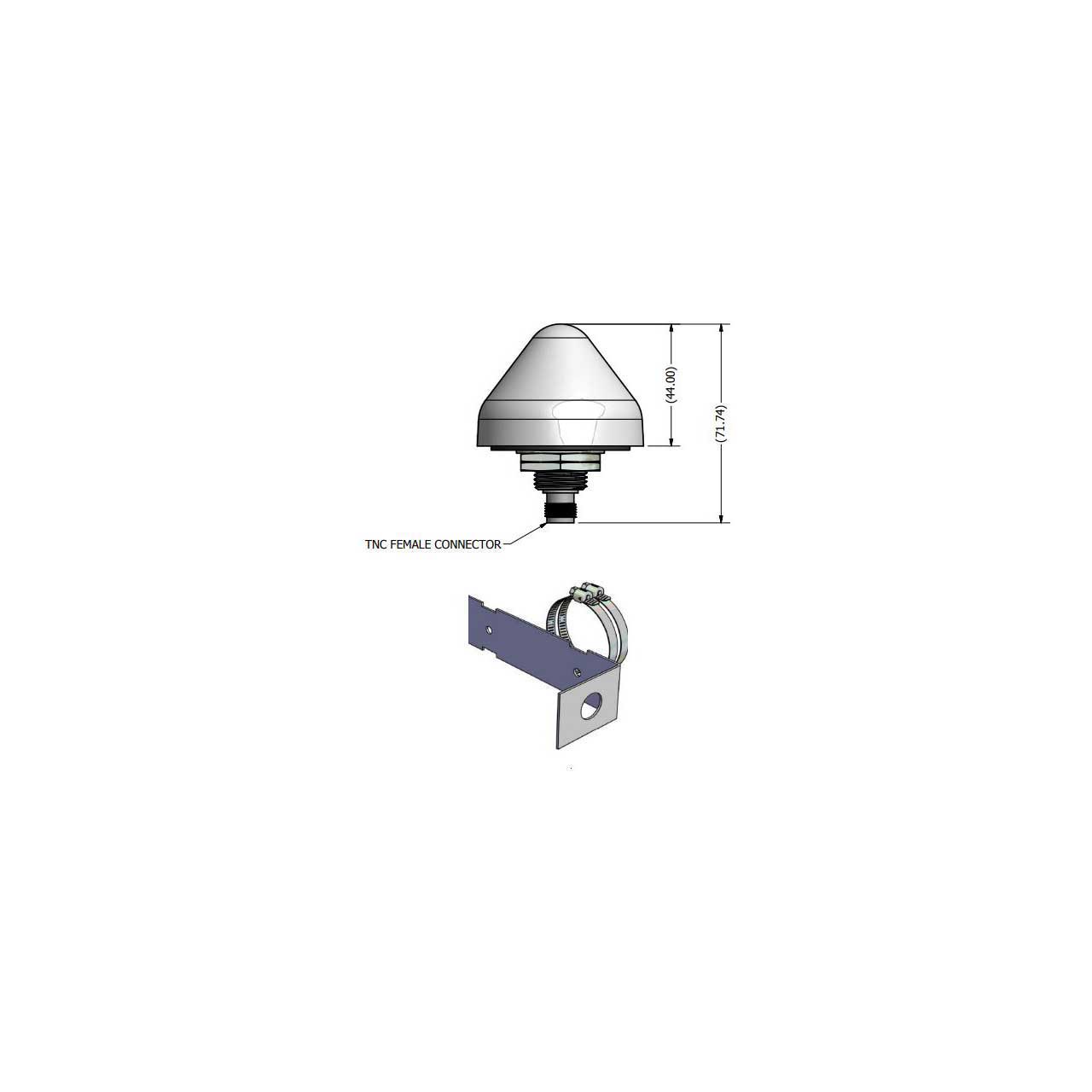

The Brainstorm Electronics ANT GNSS 1 is a High Rejection, High Gain Time Sync Antenna for DXD/GPS receivers. This full GNSS band antenna covers GPS L1, GLONASS L1, Galileo E1 and Beidou B1 satellite frequency bands. It is is ideal for Brainstorm DXD/GPS receivers as its filtering design allows wideband coverage while achieving superior out-of- band rejection and high gain 40 dB performance. Ready for outdoor installs the IP673 rated antenna comes in a small, conical form factor to minimize bird perching and provide ice/rain runoff. It is equipped with a TNC female connector.

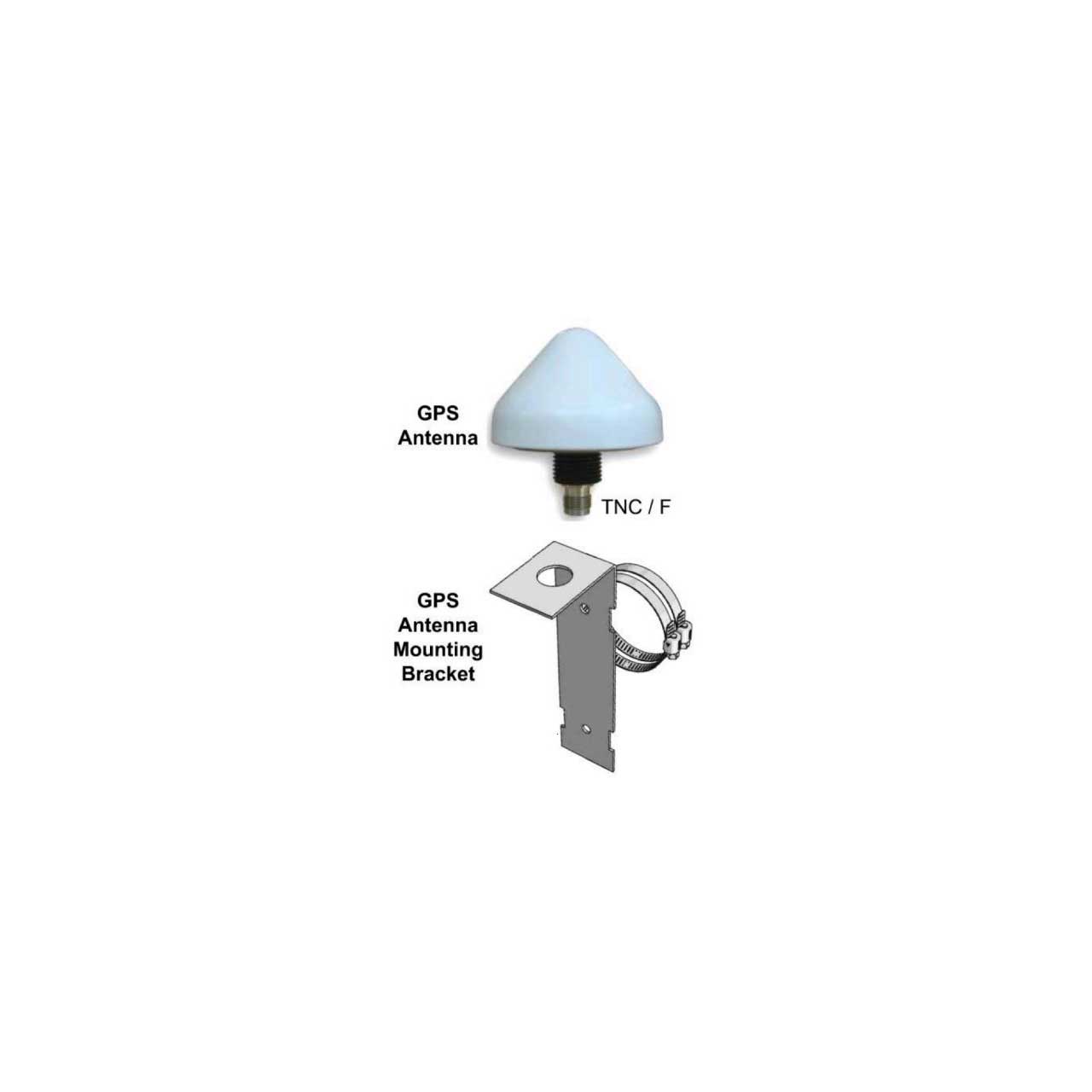

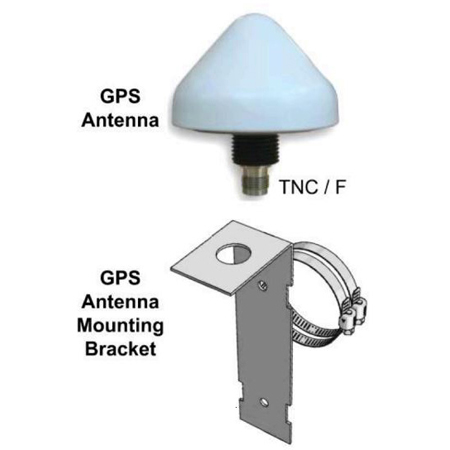

The included stainless steel "L" bracket mount was designed for wall or pipe mount installations. It comes with two hose clamps and can be used on a 2" maximum diameter mast. It is 6" long with a 3/4" diameter hole for mounting the antenna.

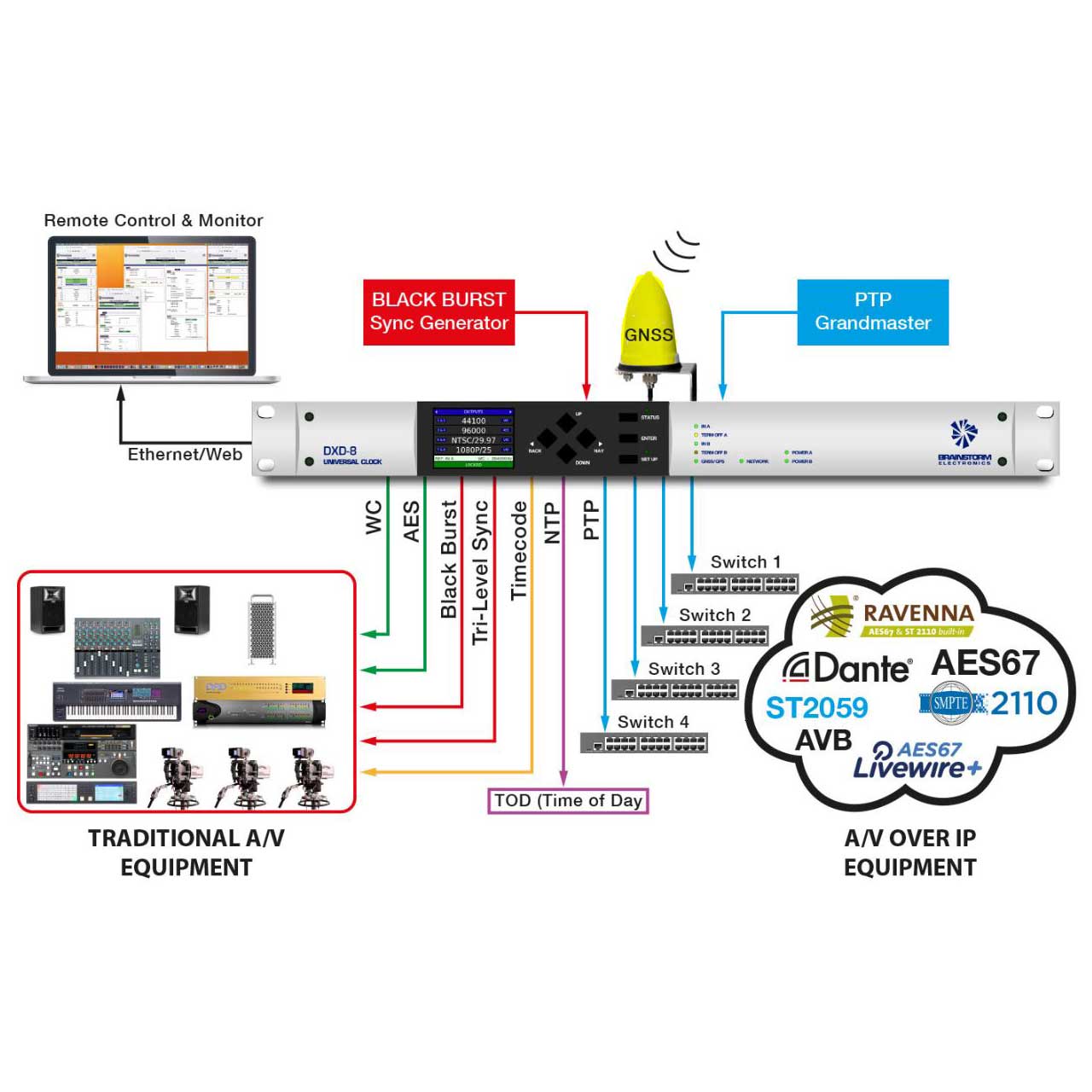

Please Note: GPS provides a highly accurate and stable clock plus Time of Day. Brainstorm Electronics DXD GPS receivers, with the GPS option installed, allow multiple DXD's in remote locations to lock and be in phase. Once the GPS Option is installed in the DXD-8 or DXD-16 a GPS antenna like the ANT GNSS 1 is required (all items sold separately, antenna is NOT included with DXD units).
