Barnfind BarnMini-22 12G SFP to SFP Converter with 2 x SFP+ Port for Transceiver - Ethernet Port for Monitoring/Control

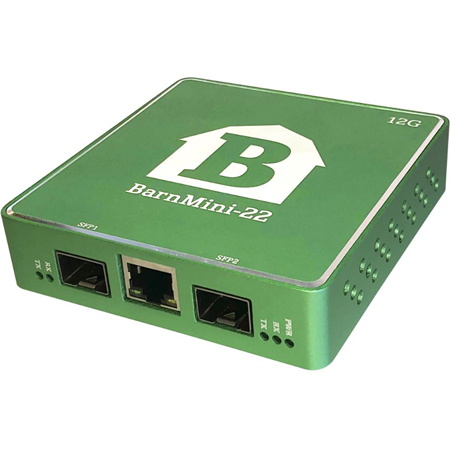

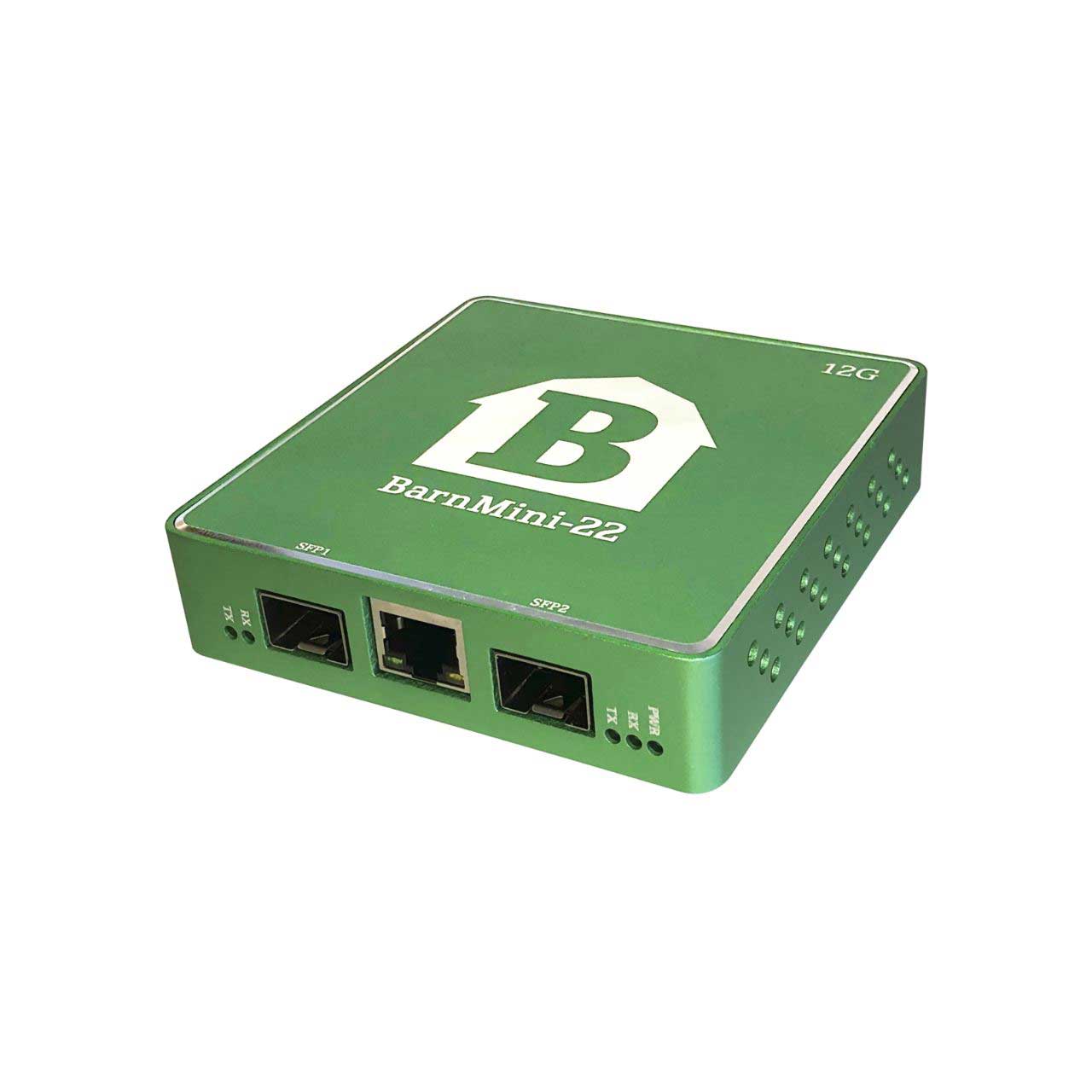

Name: Barnfind BarnMini-22 12G SFP to SFP Converter with 2 x SFP+ Port for Transceiver - Ethernet Port for Monitoring/Control
Brand: Barnfind
SKU: BRN-BARNMINI-22
Price: 712.50 USD
Availability: PreSale

ITEM #: BRN-BARNMINI-22 MFG #: BARNMINI-22

Barnfind

List Price:

$750.00

Our Price:

$712.50

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BARNMINI-22 - Overview

The BarnMini series are made of robust materials in an elegant design. BarnMini-22 is the heir of BarnMini-02, increasing the maximum bandwidth up to 12G and adding remote monitoring via TCP/IP.

BarnMini-22 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections (SFP sold separately). BarnMini-22 is a "Norwegian army knife" - application can be changed on the fly by replacing the SFPs.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Specifications:

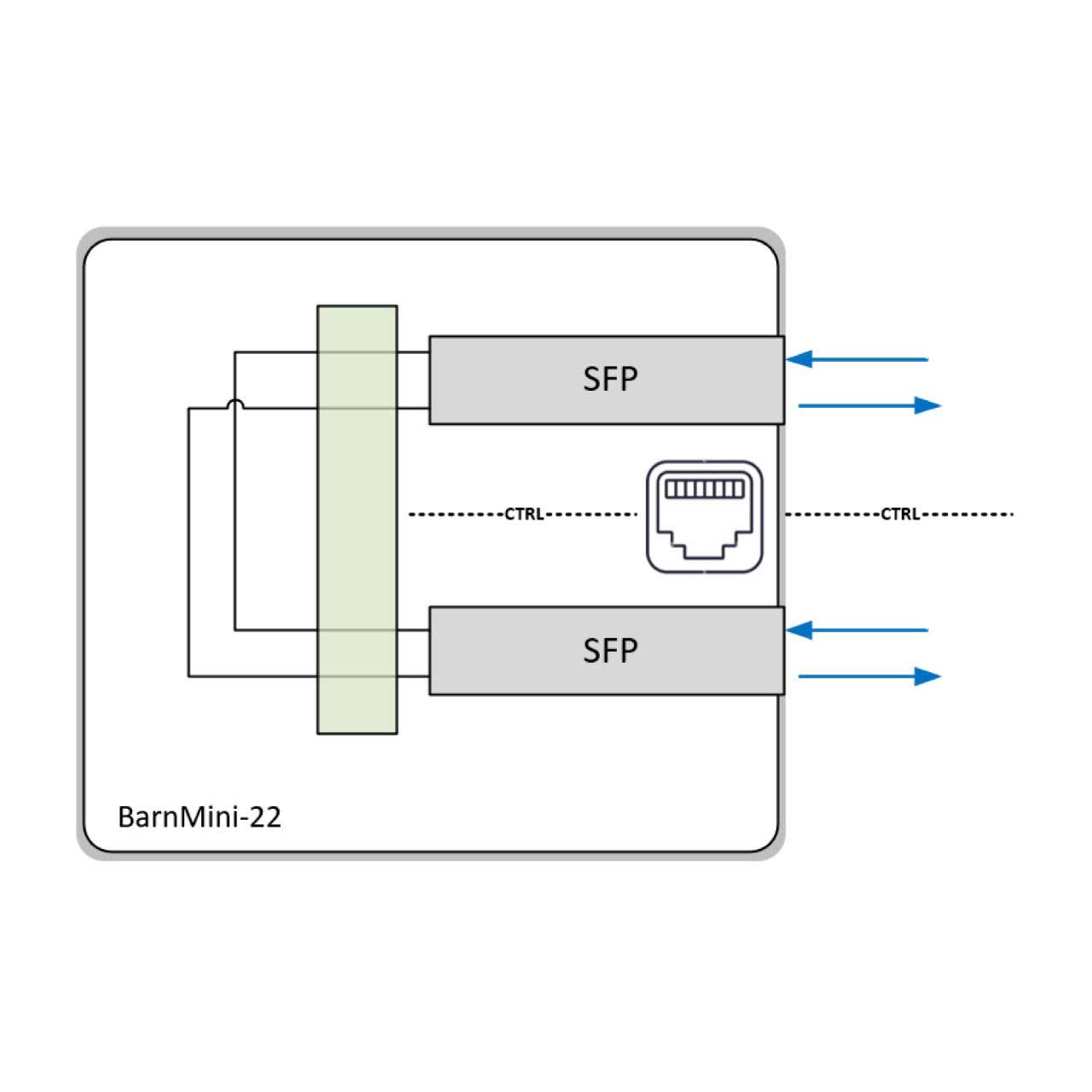

- Electrical ports: 2x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant and non-MSA compliant, up to 12Gbps, SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae, Multirate reclocking of outputs 100Mbps - 12Gbps, SFP modules are hot pluggable/swappable, Single-mode, multi-mode or media-converter SFP modules.
- Control port: 1x RJ45 connector, 10/100 Mbps Ethernet.
- Power supply: 12-24V DC, power supply included, Redundant power supply available with BTF-Mini-16.
- Physical size: 3.85 in x 3.62 in x .86 in ( 92mm x 98mm x 22mm) .44 lbs (200g)
