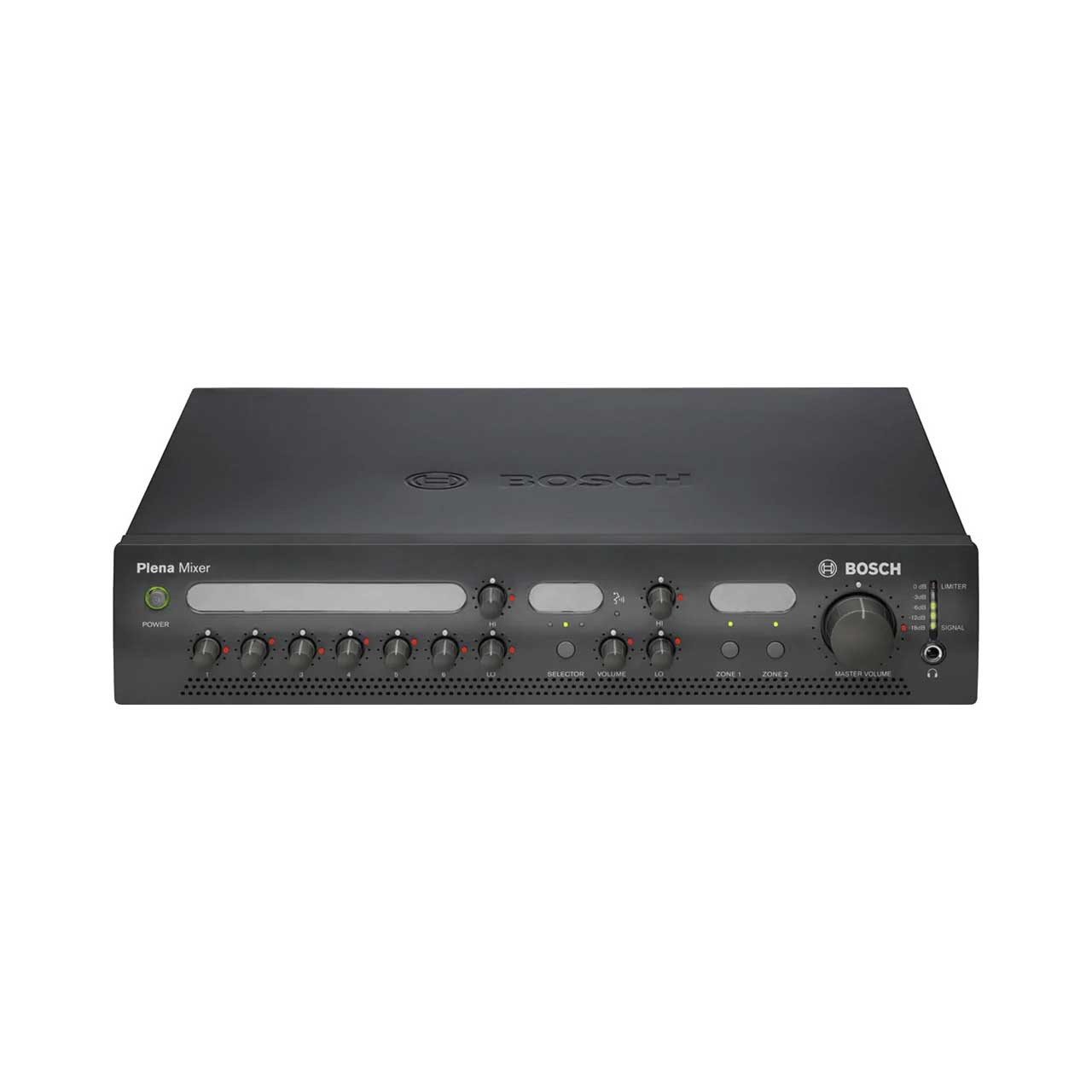

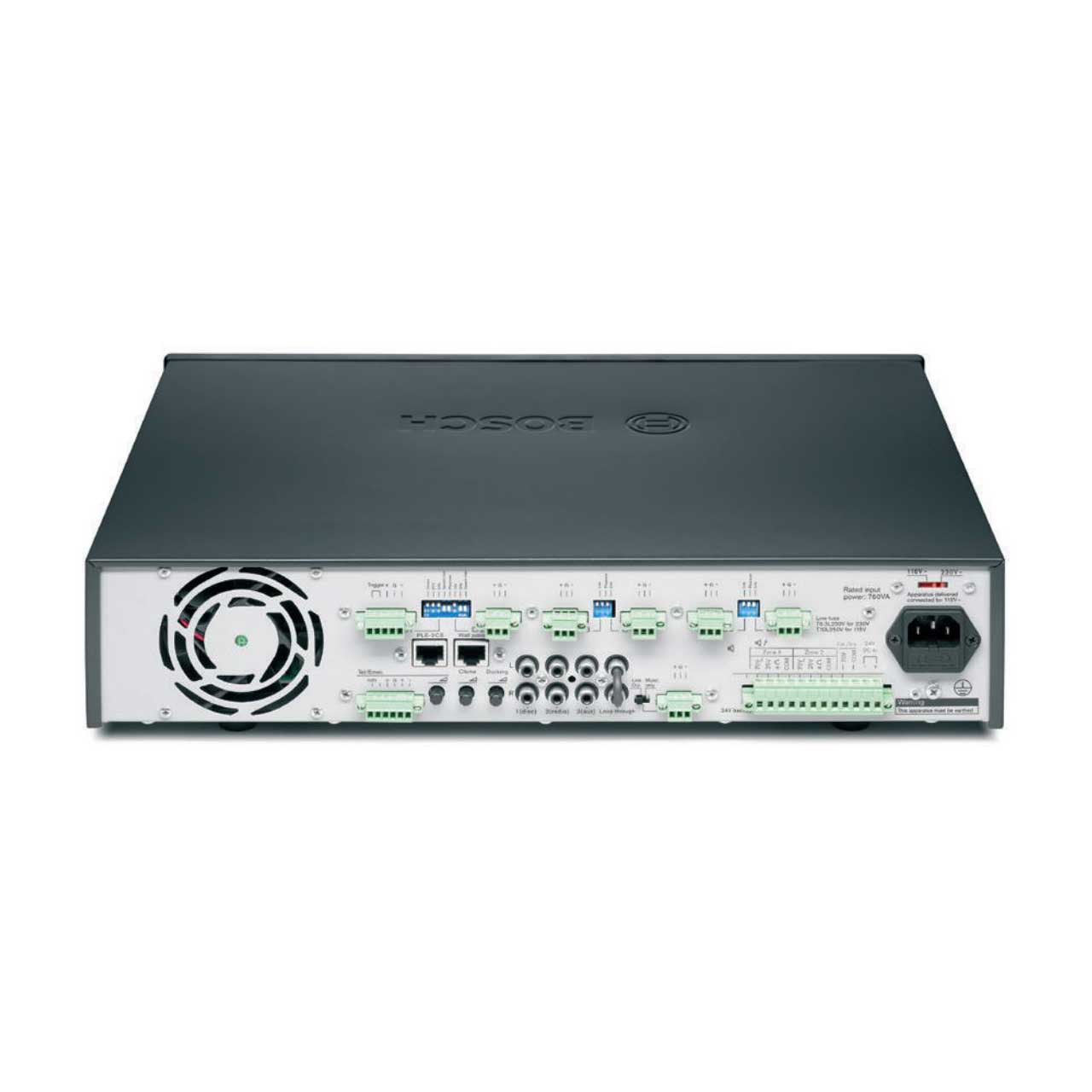

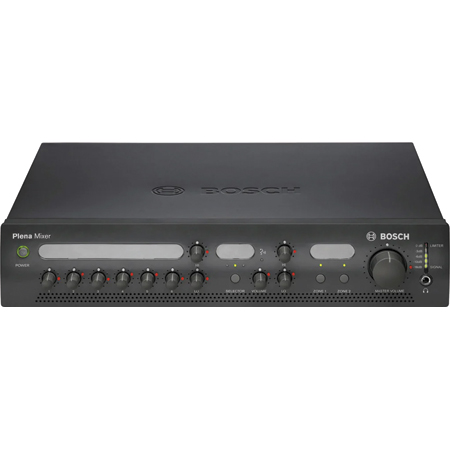

BOSCH PLE-2MA120-US 2-Channel 120 Watt Plena 2-Zone Mixer Amplifier

PLE-2MA120-US - Overview

• Features:

  • 6 microphone/line inputs plus 3 music source inputs
  • 70 V, telephone and a call station input with priority & VOX
  • 2 zones and announcement only output
  • Voice-activated emergency override
  • High output power 120 and 240 Watts
  • 2-tone chime built in (7 more chimes optional with call station)
  • Outputs for line out, music only out and insert point
  • 24 V backup power with built-in 24 V charger
  • Separate tone controls for microphones and music sources


• Specifications:

  • Color: Gray
  • Dimension (H x W x D) (mm): 100 x 430 x 270 mm
  • Frequency response (Hz): 50 - 20000 Hz
  • Headroom (dB): 17 dB
  • Input voltage (VAC): 115 - 230 VAC
  • Maximum output power (W): 120 W
  • Maximum output voltage (V): 31 V
  • Minimum dynamic range (dB): 93 dB
  • Minimum signal-to-noise ratio (dB): 63 dB
  • Nominal impedance (Ω): 100 Ω
  • Operating relative humidity, non-condensing (%): 0 - 95 %
  • Operating temperature (°C): -10 - 45 °C
  • Power consumption (VA): 400 VA
  • Power frequency: 50 Hz
  • Storage temperature (°C): -40 - 70 °C
  • Weight (kg): 10.50 kg


• Item Includes:

  • 1x PLE-2MA120-US Plena Mixer Amplifier
  • 1x Power cord
  • 1x Manual
  • 1x Set of 19"mounting brackets


• GTIN:

  0880959864829
