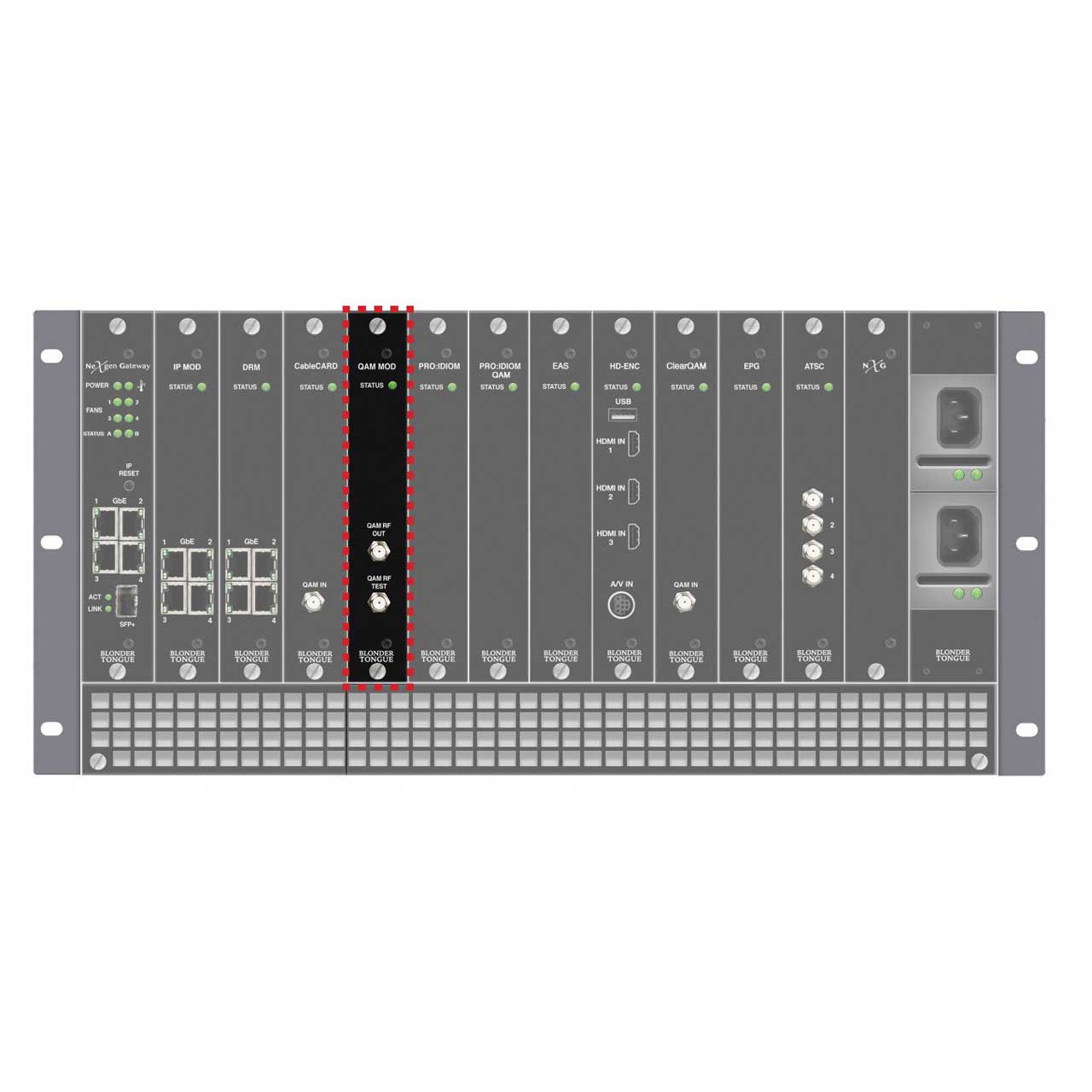

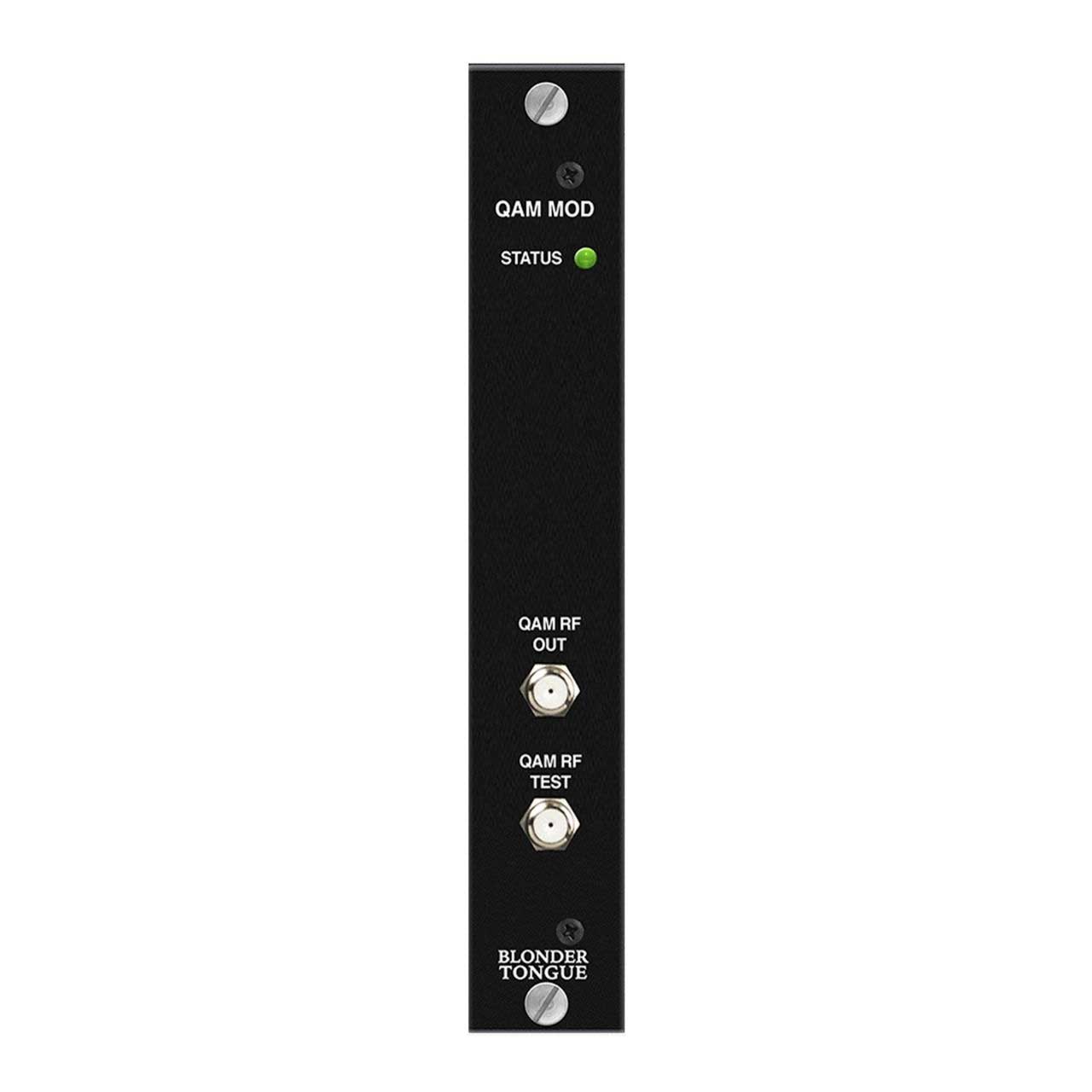

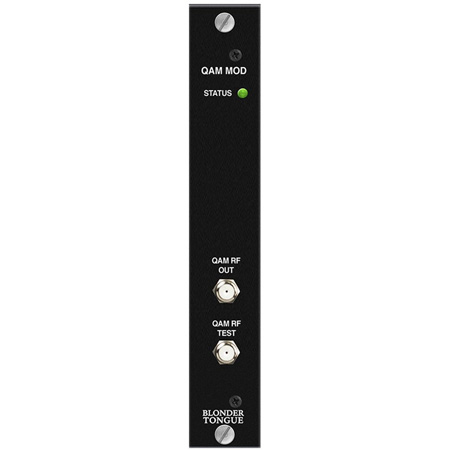

Blonder Tongue NXG-32CH-QM NeXgen Gateway QAM Output Module 32 Agile QAM Carriers (Supports 64 or 256 QAM) 45 dBmV

NXG-32CH-QM - Overview

• Features:

  • Provides reliable and secure HD programming in hospitality environments
  • Can contain up to 3 audio streams and up to 11 additional PIDs for each video program
  • Can be configured with both HD and SD programming in the same QAM channel
  • Ability to change the PID, Program #, Short Name, Major and Minor channel (PSIP) information
  • Provides fully independent QAM channels (no QAM channel blocks)
  • Supports MPEG-2 and H.264 video

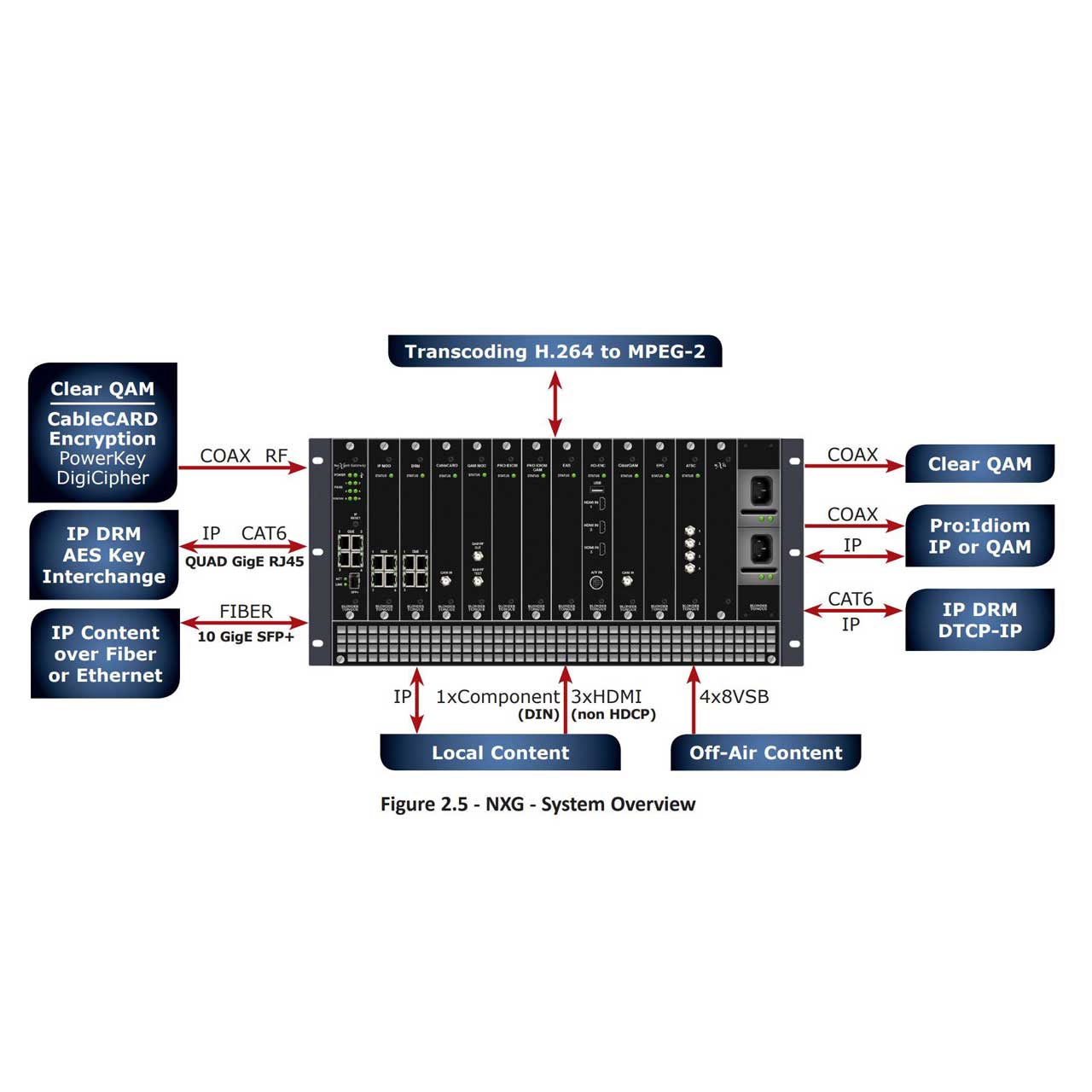

  • Multiplexes SPTS programs to MPTS for QAM distribution
  • Continuous Wave (CW) mode easily aligns headend level
  • -20 dB RF test point


• Specifications:

  • Dimensions (W x D x H): 1.15 x 15.5 x 7.0 inches (29 x 394 x 178 mm)

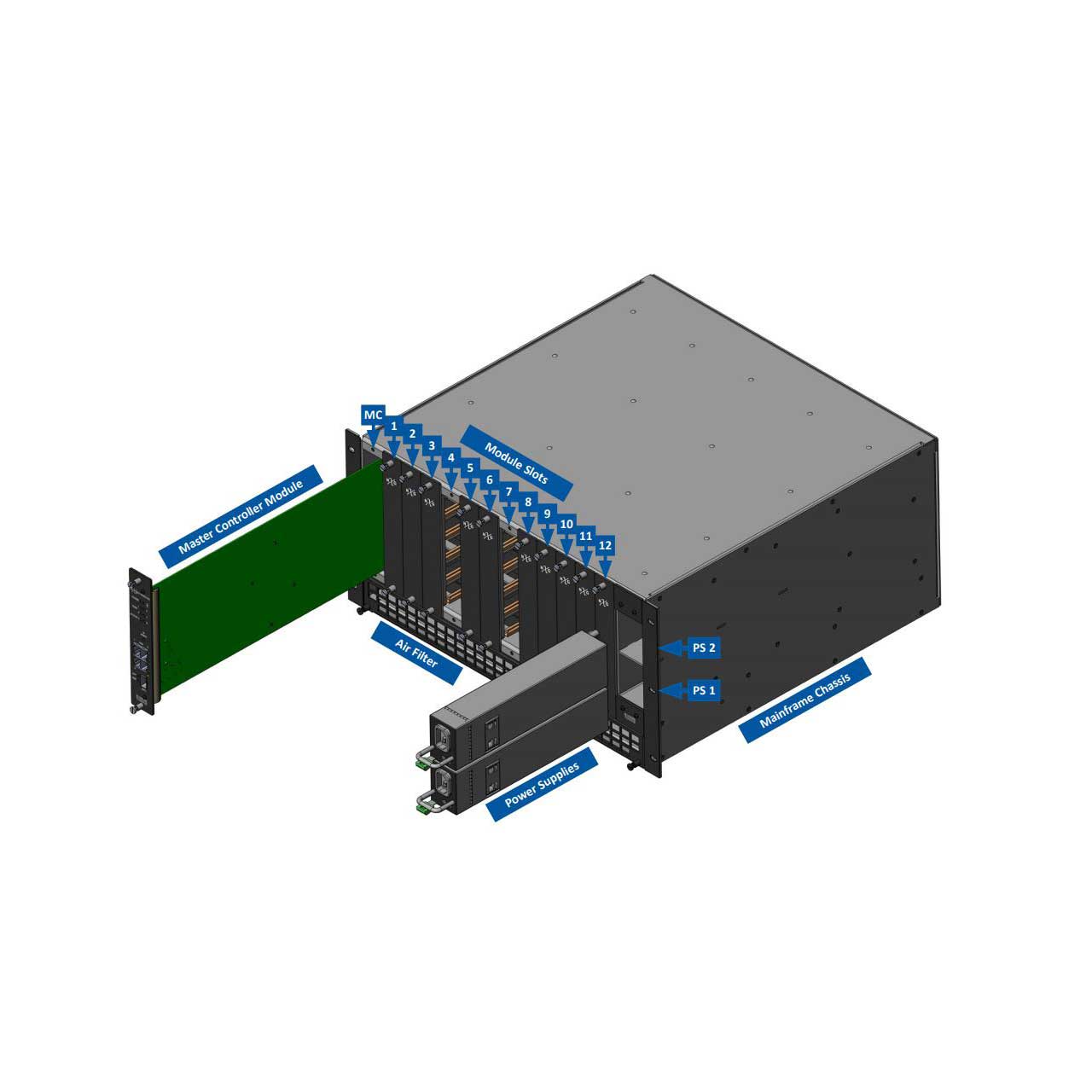

  • Power: Via NXG Mainframe back plane
  • Power Consumption: 32 W
  • Weight: 2.0 lbs (0.9 kg)
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensation
  • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensation
