Furman M-8S Power Conditioner with Power Sequencing

M-8S - Overview

Furman Power Conditioner with Power Sequencing. Welcome to a New Power Revolution!

• Features:

  • Standard level AC protection and filtering.
  • Six sequenced rear panel outlets (in 3 groups), two unswitched rear panel outlets, and one front panel unswitched outlet.
  • Momentary and Maintained sequencing via rear panel terminal block or front panel switch (momentary only).
  • Merit Class Surge Protection Provides basic Line to Neutral Surge protection with zero ground leakage.
  • RFI/EMI filtration - Pi type LCR filter gives greater than 26dB of attenuation from 100 KHz to 1 MHz.
  • Remote Interface Legacy style interface with Phoenix style connector allows remote operation and compatibility with Furman legacy equipment.
  • Thermal Circuit Breaker - Rated 15Amps at 120VAC.
  • Green LED - Indicators for status.
  • 9 Outlets - NEMA 5-15R.
  • 10 ft. Power Cord - NEMA 5-15P.
  • All settings and configurations available on rear panel.
  • 15 amp rating.
  • Three year limited warranty.


• Specifications:

  • Maximum Output Current: 15 amps, 120 VAC (Thermal breaker)
  • Line Cord: 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
  • AC Receptacles:
  • Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R

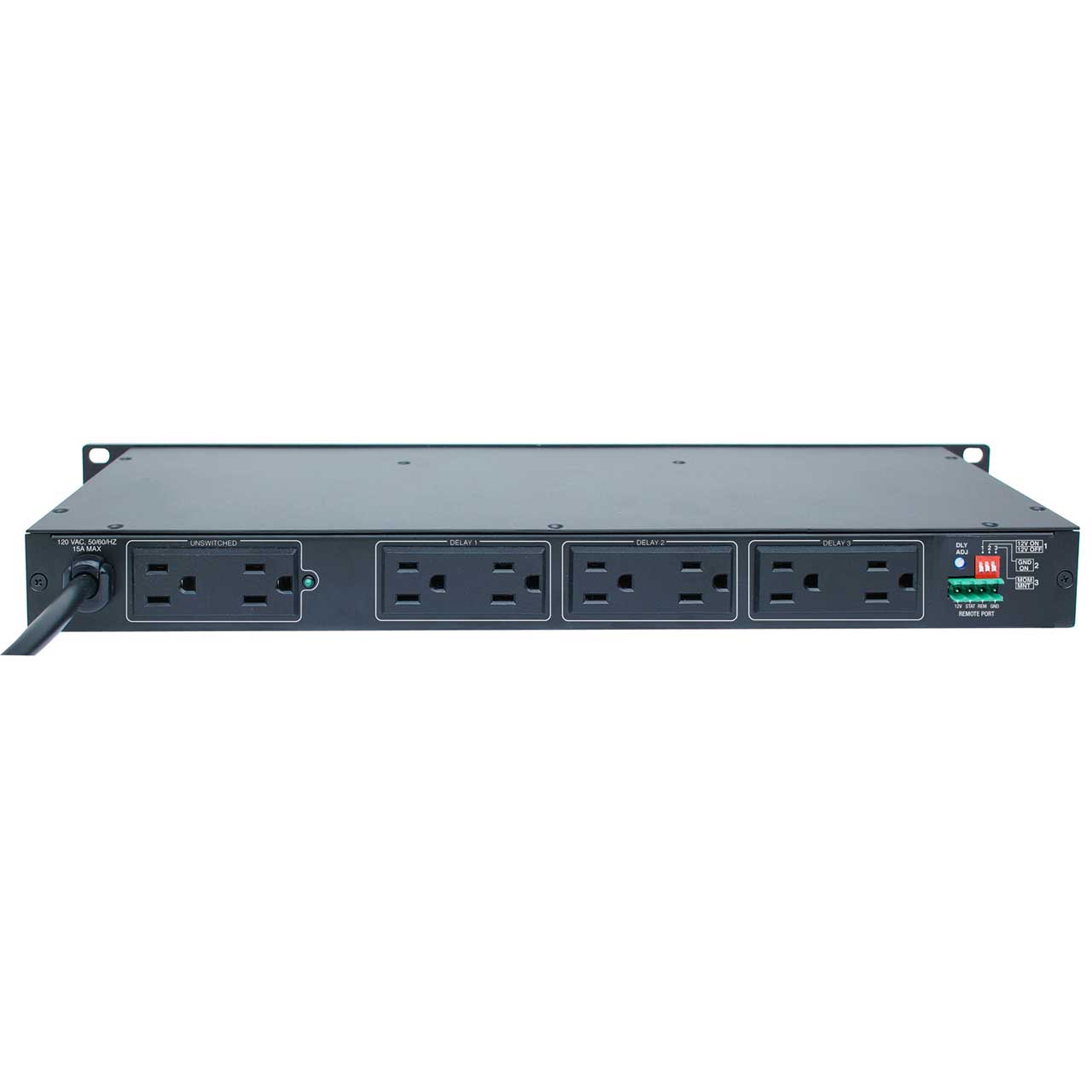

  • Rear Panel Outlets: 2 Un-switched NEMA 5-15R (1 duplex),
  • 6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
  • Standard level AC Surge Protection : Merit Class (sacrificial)
  • Spike Protection Mode : Line to neutral, zero ground leakage
  • Max Continuous Operating Voltage : 130V RMS
  • Max Clamp Voltage : 500 Volts Peak
  • Peak Impulse Current : 12,000 Amps
  • Energy Rating (2 X 820I¬S) : 225 Joules
  • AC Filtering : Standard level Pi LCR Filter
  • Noise Attenuation : >26dB, 100 Khz to 1 MHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Rocker Switch : Front panel, Sequence (ON, OFF)
  • Thermal Circuit Breaker : Front panel, push to reset

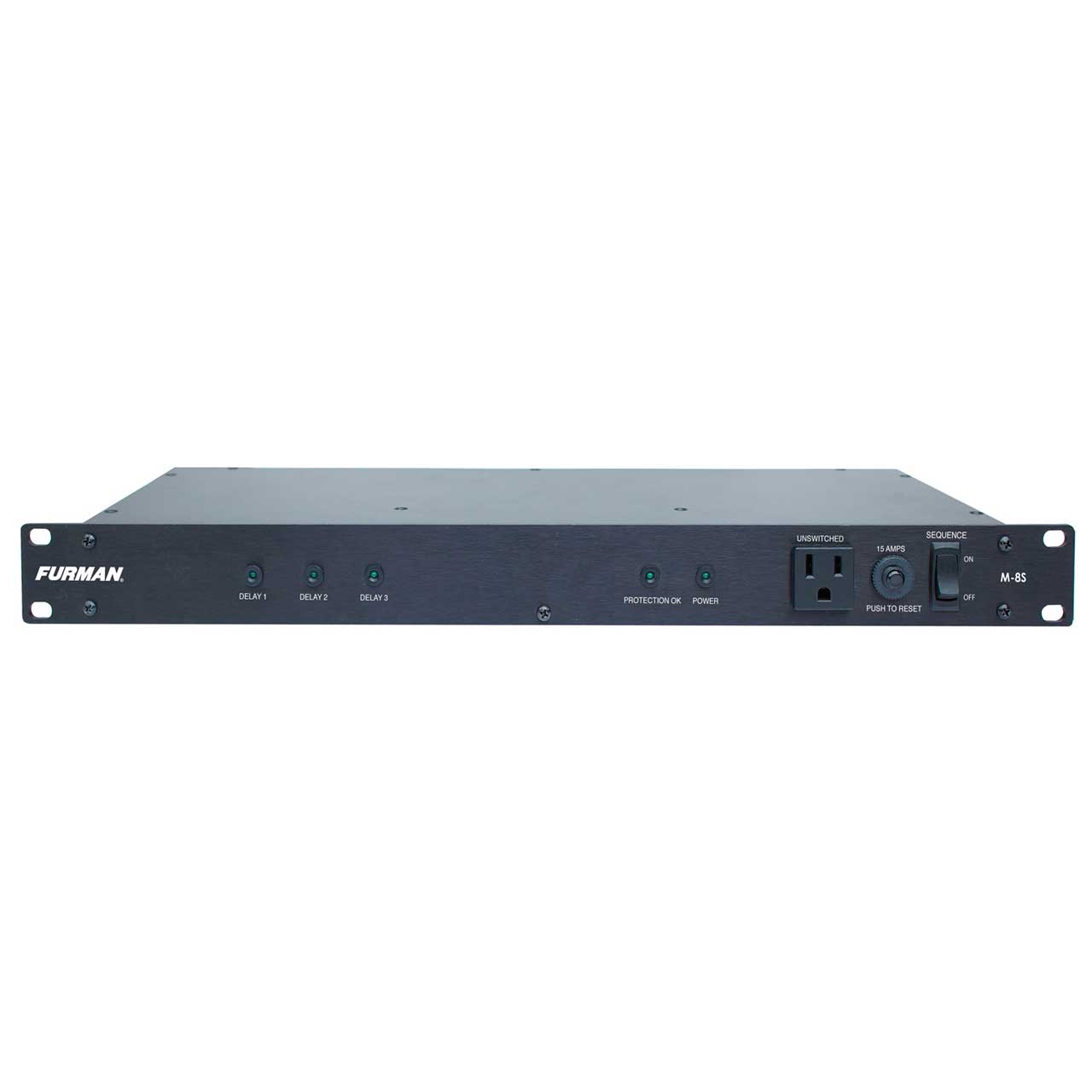

  • Front Panel Indicators : Delay 1, Delay 2, Delay 3, Power, Protection OK
  • Rear Panel DIP Switches : 12V Mode On/Off, GND Mode On, Momentary/Maintained
  • Potentiometer : Rear panel, time calibration fine tune delay adjust
  • Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
  • Remote Terminal : Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Dimensions : 19"L x 8.75"D x 1.75"H ANSI 1RU
  • Weight : 7 lbs.
  • Power Consumption : 5 Watts
  • Safety Agency : C/CSA/US


• GTIN:

  0654061041078
