Blonder Tongue NXG-CNTRL NeXgen Gateway Master Controller Module Required for NXG System - Controls Entire Platform 2

Name: Blonder Tongue NXG-CNTRL NeXgen Gateway Master Controller Module Required for NXG System - Controls Entire Platform 2
Brand: Blonder Tongue
SKU: BT-NXG-CNTRL
Price: 3361.00 USD
Availability: PreSale

ITEM #: BT-NXG-CNTRL MFG #: NXG-CNTRL

Blonder Tongue

List Price:

$4,425.00

Our Price:

$3,361.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NXG-CNTRL - Overview

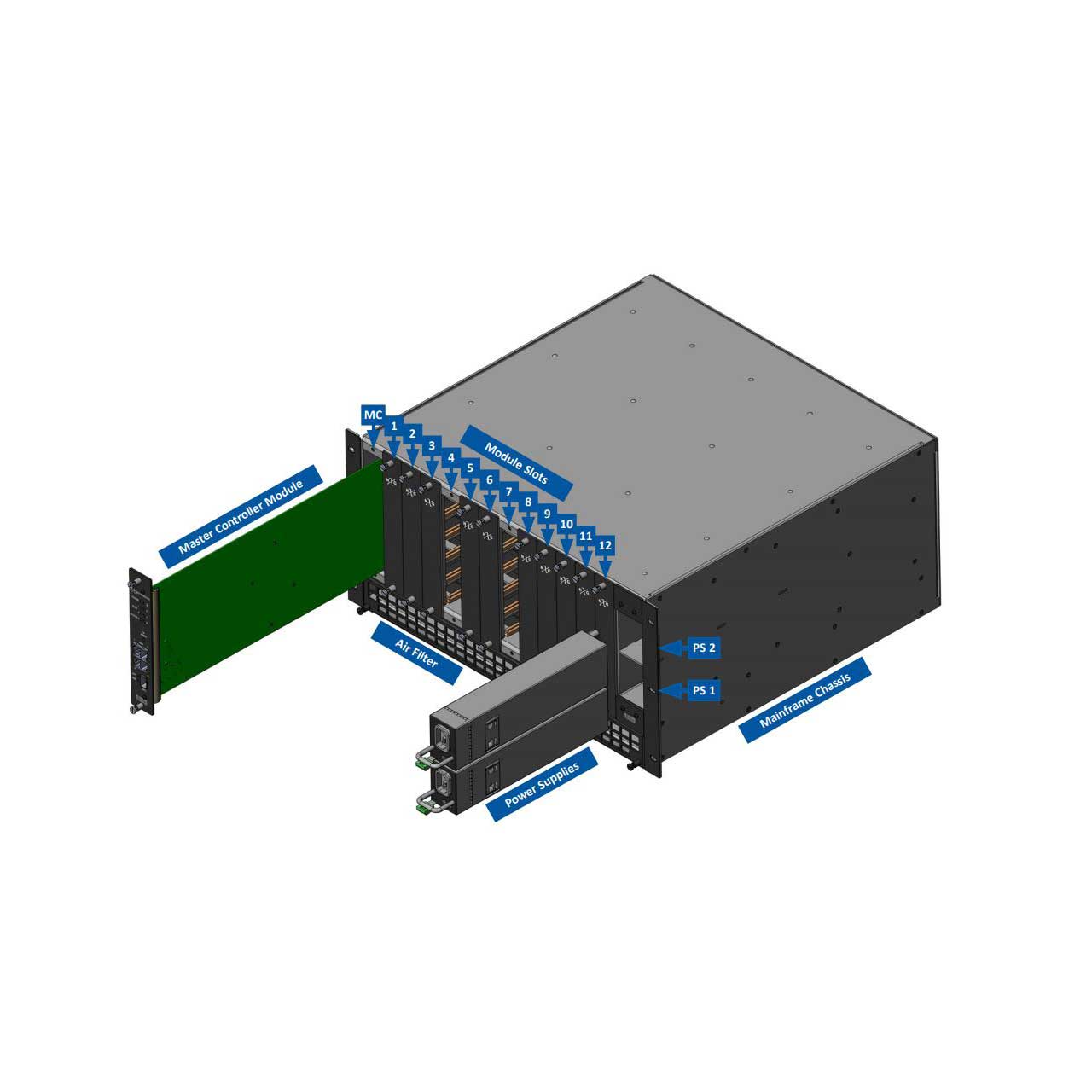

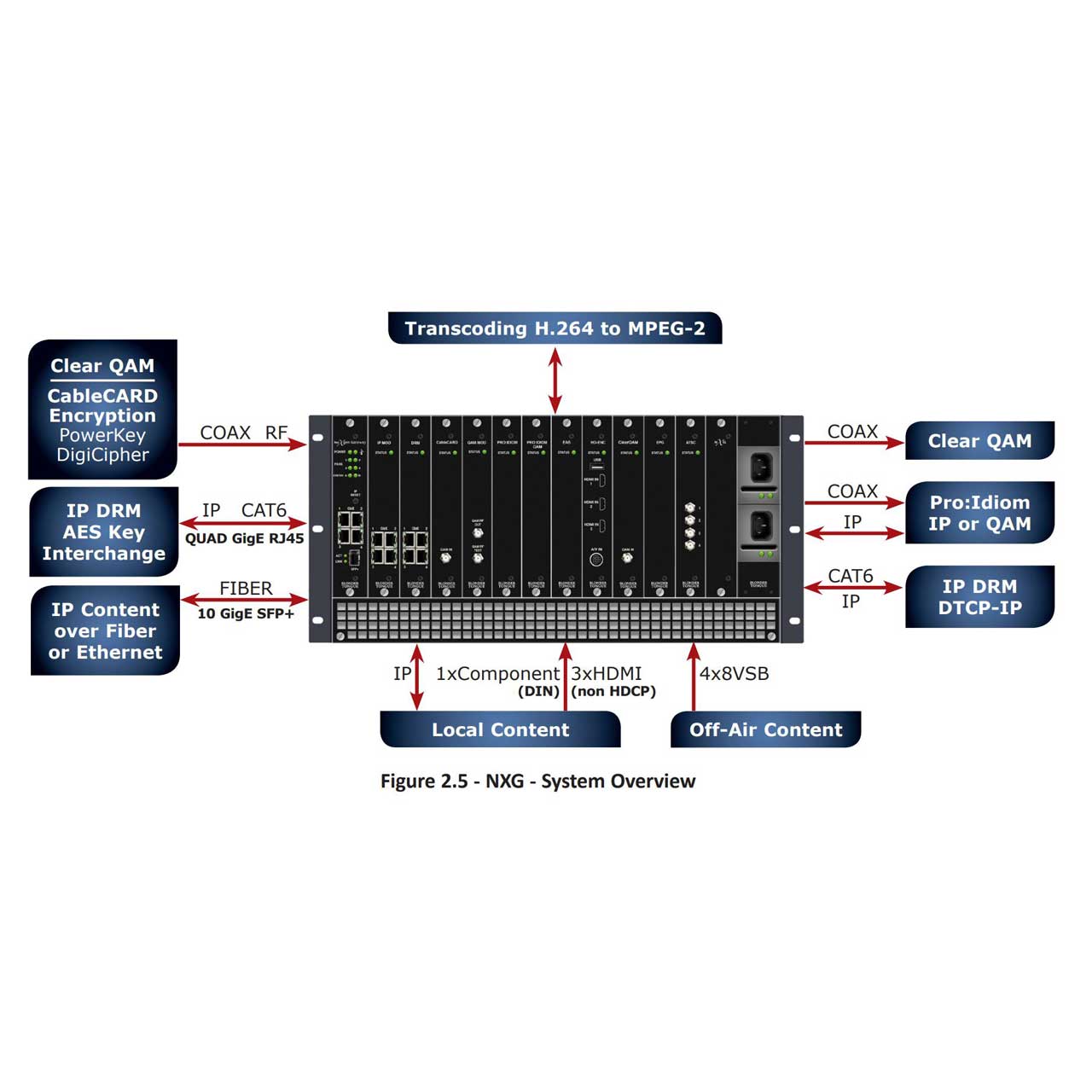

The Blonder Tongue NXG-CNTRL is a gateway master controller module for the NXG system. The NXG Master Controller Module controls the entire platform. The NeXgen Gateway (NXG) is a powerful, two-way, future-proof platform that is ideal for delivering next generation video services to enterprise locations including hospitality, educational, multifamily residential, healthcare, business parks, or institutional "pocket community" settings. The NXG addresses the challenges of migrating to future IP-DRM content protection practices while supporting today’s CableCARD® ingest encryption.

Features:
- IP routing and traffic management
- System Configuration and management via a powerful Linux-based monitoring and control system
- Module interconnection via a 30 Gb high-speed backplane
- Distributes DC power to the various sections and modules via (2) fully-redundant, hot-swappable power supplies
- One (1) 10 GigE SFP+
- Four (4) 1 GigE Connections via RJ45
- LED Indicators for Power, Temperature, Fans, and
- All Network Connections
- System Configuration and Traffic Management
- Alarm Summary and Event Logs
- System Status of All Modules
- Import, Export, and Edit Configuration Files
- Firmware Updates to Modules
- Authentication Management via TACACS+ (future)
- Supports Fully-redundant Deployments in IP-based Installations
Specifications:
- Dimensions (W x D x H): 19.0 x 18.6 x 8.72 inches (483 x 472 x 221 mm)
- Power: 100-240 VAC
- Power Consumption: 16 W (Master Controller Only)
- Weight: 17 lbs (7.7 kg)
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensation
- Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensation
