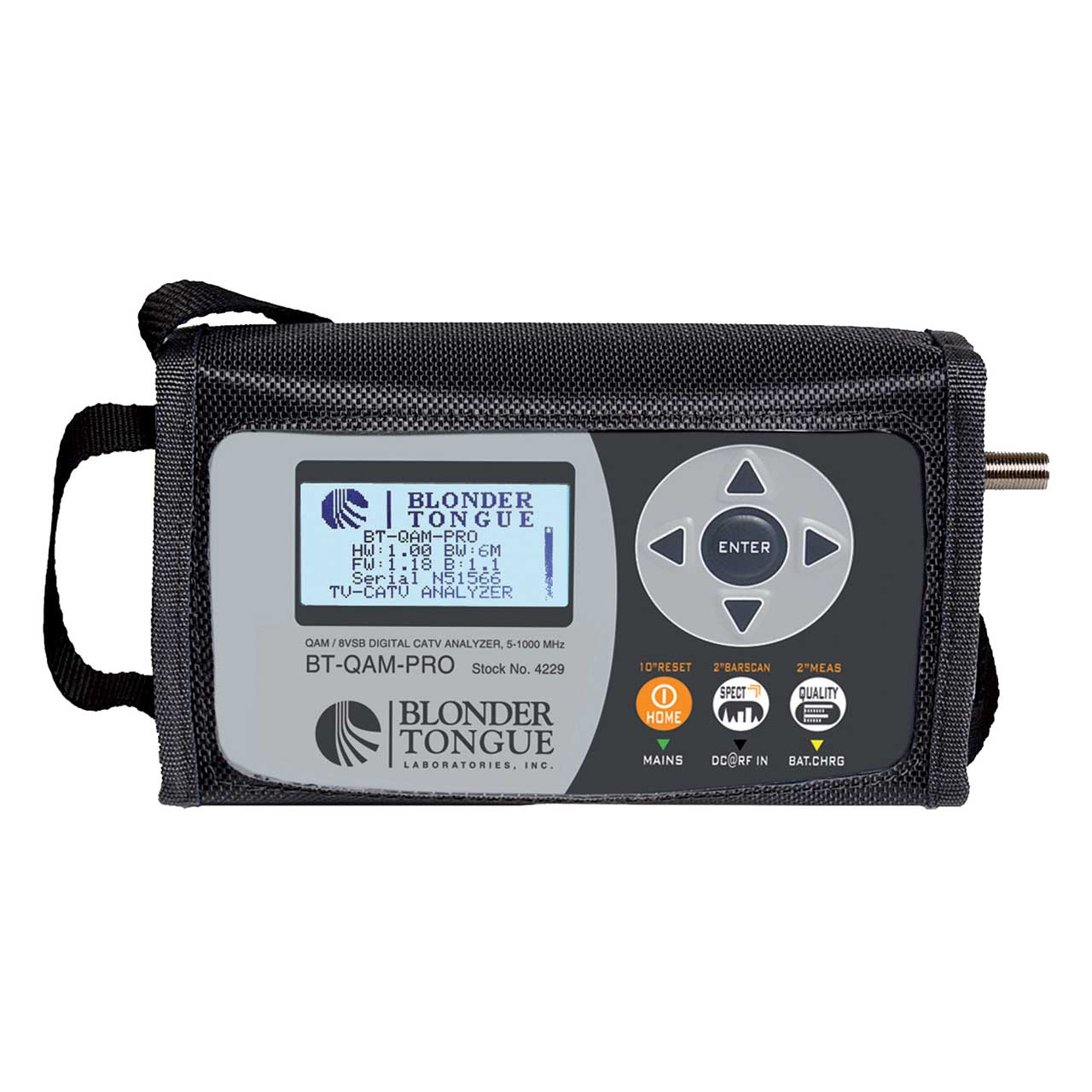

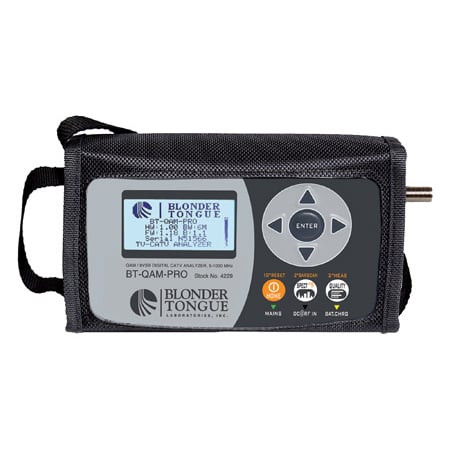

Blonder Tongue BT-QAM-PRO 8VSB Digital / QAM / CATV Analog TV Analyzer

BT-QAM-PRO - Overview

Solutions for All Your Appplications

• Features:

  • MER, aBER, bBer, Noise Margin & Level/Power measurements plus Spectrum Analysis

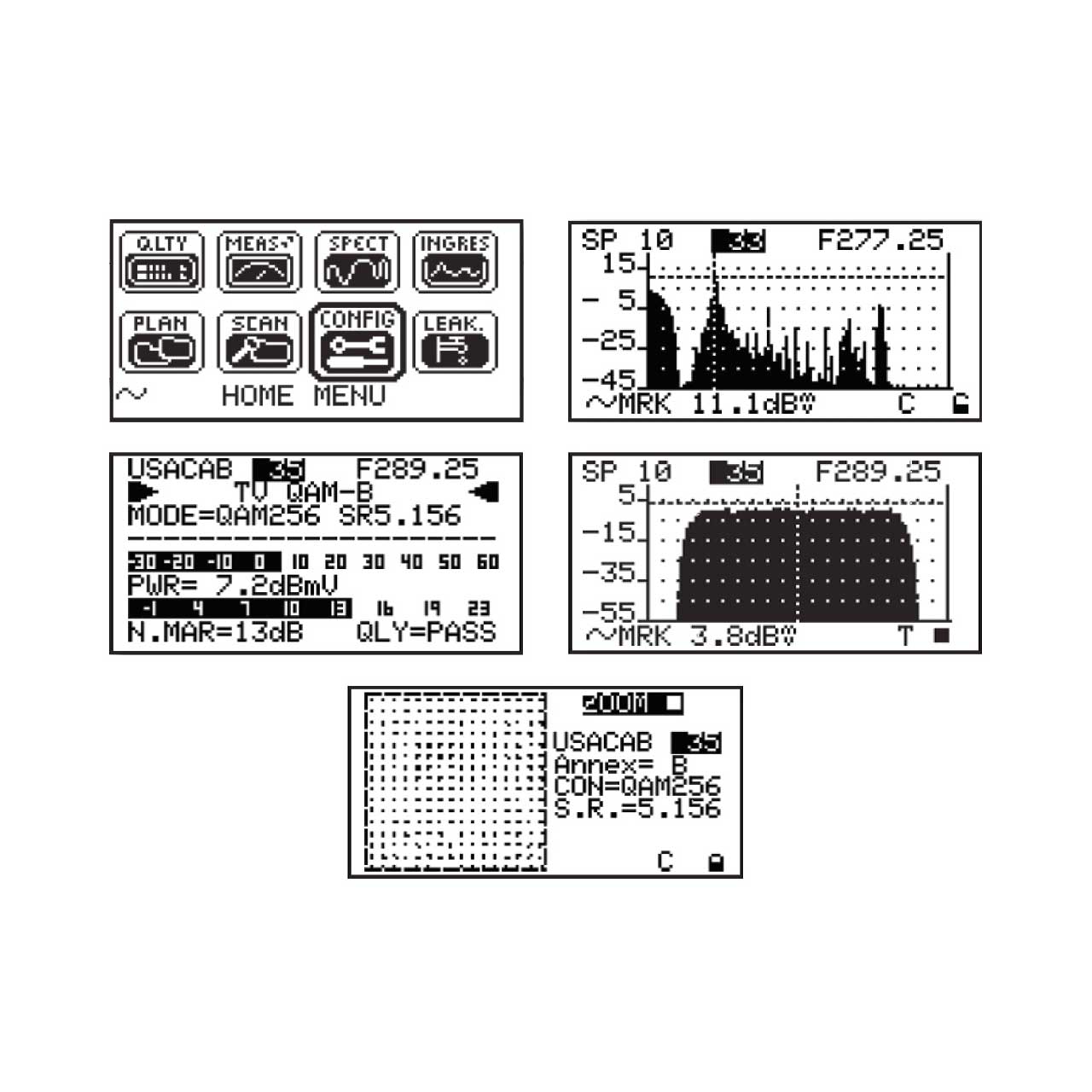

  • Spectrum Display
  • Constellation Display
  • Barscan Display
  • Data Logger
  • Custom Memory Plans
  • Leakage/Ingress Measurements
  • Frequency Range: 5 KHz to 1,000 MHz (Channels T7 to 158)
  • 75 ohm (interchangeable "F" connector)
  • Power range: -50 dBmV to 40 dBmV
  • Spectrum Display with variable span, automatic reference level, peak and hold modes
  • Quality FAIL - MARGINAL - PASS: Measuring the quality and the power up to 140 CHs in blocks of 8 Digital or Analog channels simultaneously
  • Barscan: TV analog and digital bars scan from 10 to 100 channels
  • Fully Automatic Operation


• Specifications:

  • Freuency Range: 5 MHz to 1,000 MHz
  • RF Input Imedance: 75 ohms (interchangeable F connector)
  • Power Range MEAS: -50 dBmV to 40 dBmV (10 to 100 dBV); 60 dBmv (120 dBV) with ext. attenuator
  • Dimensions (W x D x H): 6.3" x 1.4" x 3.75" (160mm x 34mm x 95mm) - Meter Only
  • Weight: 1.1 lbs
  • USB Micro: For battery charge and PC interface for SW up-grade and memory plan management
  • Battery: Rechargeable Li-Po battery pack, 3 hour duration
  • Supplies: Padded transport bag and Micro/USB cable


• Item Includes:

  • Padded transport bag and Micro/USB cable
