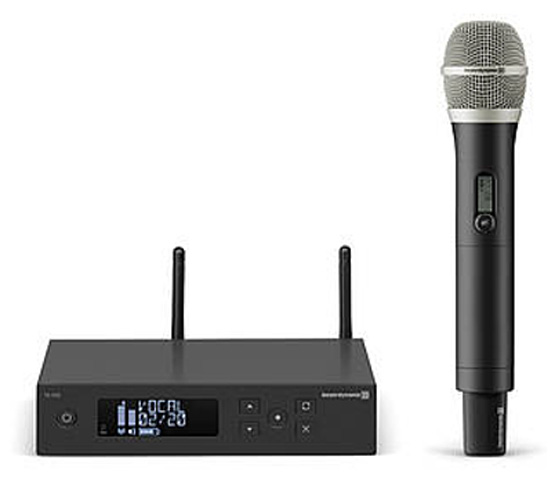

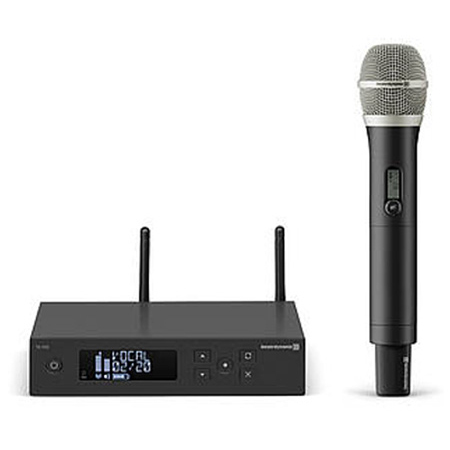

Beyerdynamic TG 550 Wireless System Package - Handheld Mic with TG V50d - Single Receiver - 518-548 MHz

TG 550 VOCAL SET - Overview

• Features:

  • Up to 40 MHz Switching Bandwidth - Due to the enormous bandwidth of up to 40 MHz and a wide range of frequency bands, the wireless system is usable everywhere on the world.
  • Suitable for larger installations - Four available band variants enable the use of up to 72 channels simultaneously.
  • Robust Housing - The robust metal housing of the receiver protects against damage during use.
  • Great Design - Particularly pleasant to use is the high-quality haptics of the transmitters and the receiver. Likewise, the system shines in a simple, appealing design.
  • Intuitive Operating Elements - Intuitive operating elements provide a user-friendly menu navigation.
  • Antenna Diversity - Even in a complex environment, the antenna diversity ensures best signal reception and avoids unpredictable interruptions.
  • Pilot Tone Function - The pilot tone prevents noise and assures user-friendly handling. The TG 500 wireless system uses the pilot tone to identify a correct signal for improved interference-free transmission and to transmit a low battery warning as well as the audio mute information to the receiver.
  • Infrared Synchronization - The settings of the transmitter can easily be done at the receiver and are quickly transferred by infrared synchronization to the transmitter.
  • 120 m Range - With a range of up to 120 meters, TG 500 offers much more freedom than similar systems.
  • 10 h Battery Operation - With a battery operation of 10 hours there is no need for concern regarding extensive encores or longer events.
  • No battery change required - The handheld and beltpack transmitters can be operated with standard NiMH batteries and charged with the optionally available charger (WA-CD).


• Specifications:

  • System
  • Frequency range: 518 - 548 MHz
  • Transmission range: up to 120 m (line of sight)
  • Number of the simultaneously active channels: 18 per frequency band
  • Audio frequency response: 45 - 15 kHz
  • Audio dynamic range: 106 dB (A-weighted)
  • Operating principle: Analogue wireless microphone system with diversity receiver

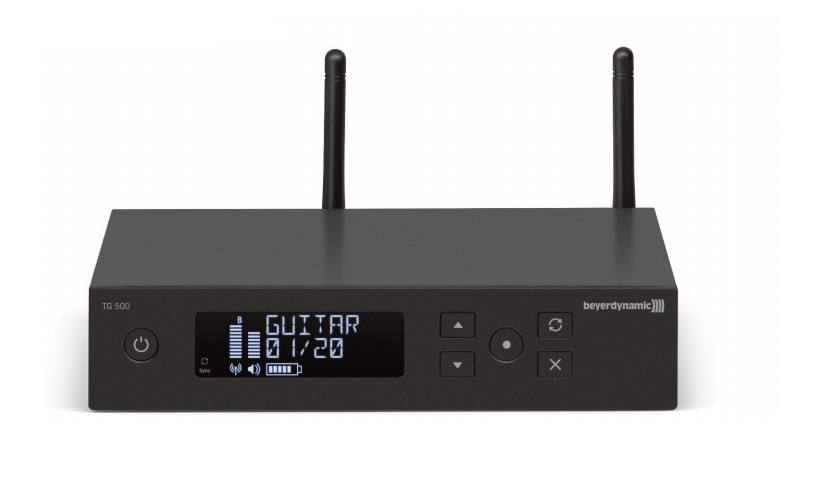

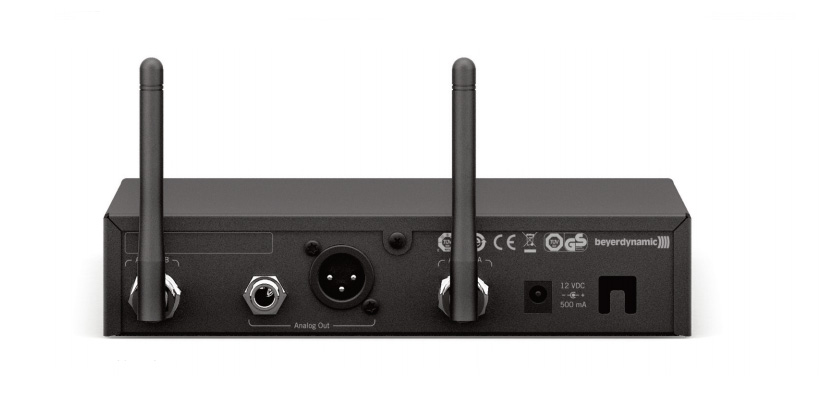

    Single receiver
  • Output level: max. +3 dBV / +5 dBu
  • Display: 2 x LCD, white backlit
  • Mains connection: 100 - 240 V AC with power adapter
  • Power consumption: 3 W (typ.)
  • Ambient temperature: 0 to +55 °C
  • Weight: 2.11 lbs
  • Dimensions: 7.87 x 6.88 x 1.65 Inch

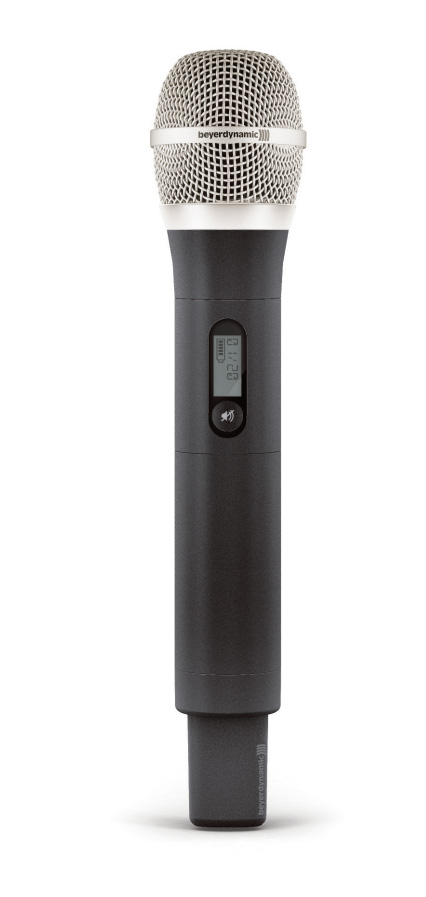

    UHF handheld transmitter
  • Display: LCD
  • Power supply: 2 x AA NiMH or alkaline batteries
  • Operating time: approx. 10 hrs.
  • Ambient temperature: 0 to +55 °C
  • Transmitting power: 10 mW / 50 mW
  • Weight (without batteries): 0.5 lbs
  • Dimensions: Length with microphone capsule: 10.35 Inch; Shaft diameter: 1.41 Inch; Capsule diameter: 2.08 Inch


• Item Includes:

  • TG 500SR (Single Receiver)
  • TG 500H-D (Handheld Transmitter with dynamic TG V50 capsule)
  • Microphone Clamp
  • Antennas
  • Batteries
  • Power Supply
  • Rack Mount Kit


• GTIN:

  4010118712517
