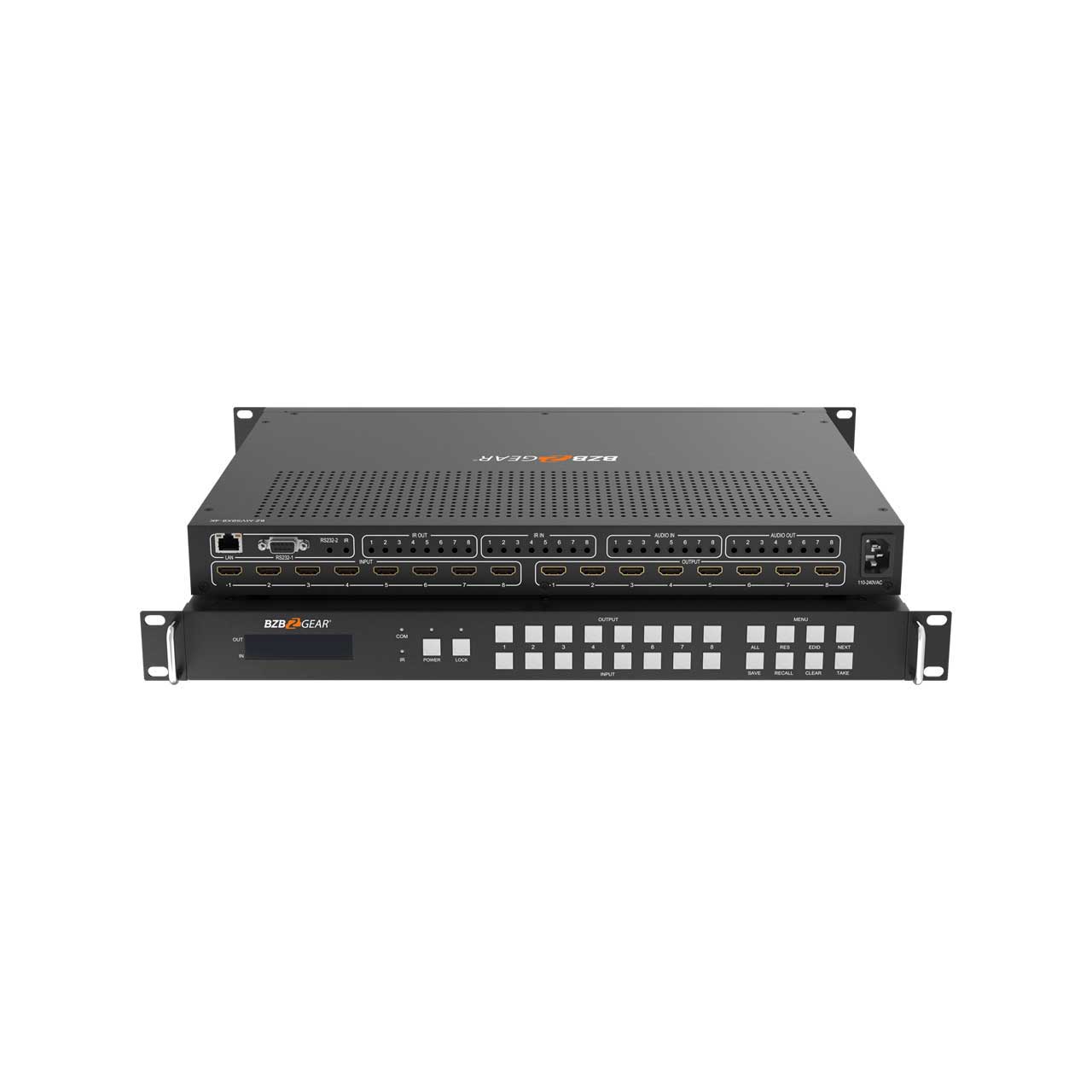

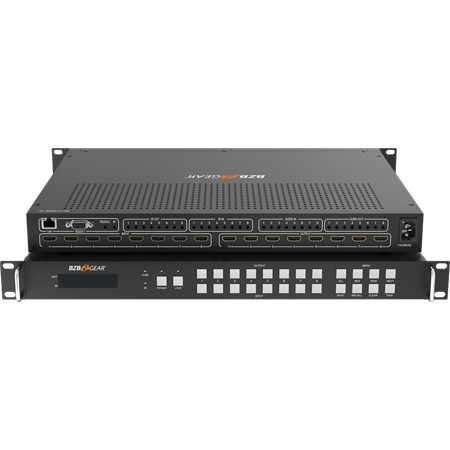

The BZBGEAR BZ-MVS8x8-4K is an 8x8 HDMI video wall processor that is an incredible tool for anyone seeking a matrix switcher that can support eight inputs and eight outputs. The device can also support a single video wall using up to six 1080p@60Hz displays over HDMI. This enables commercial-grade video walls with 4K HDR quality.
Connectivity

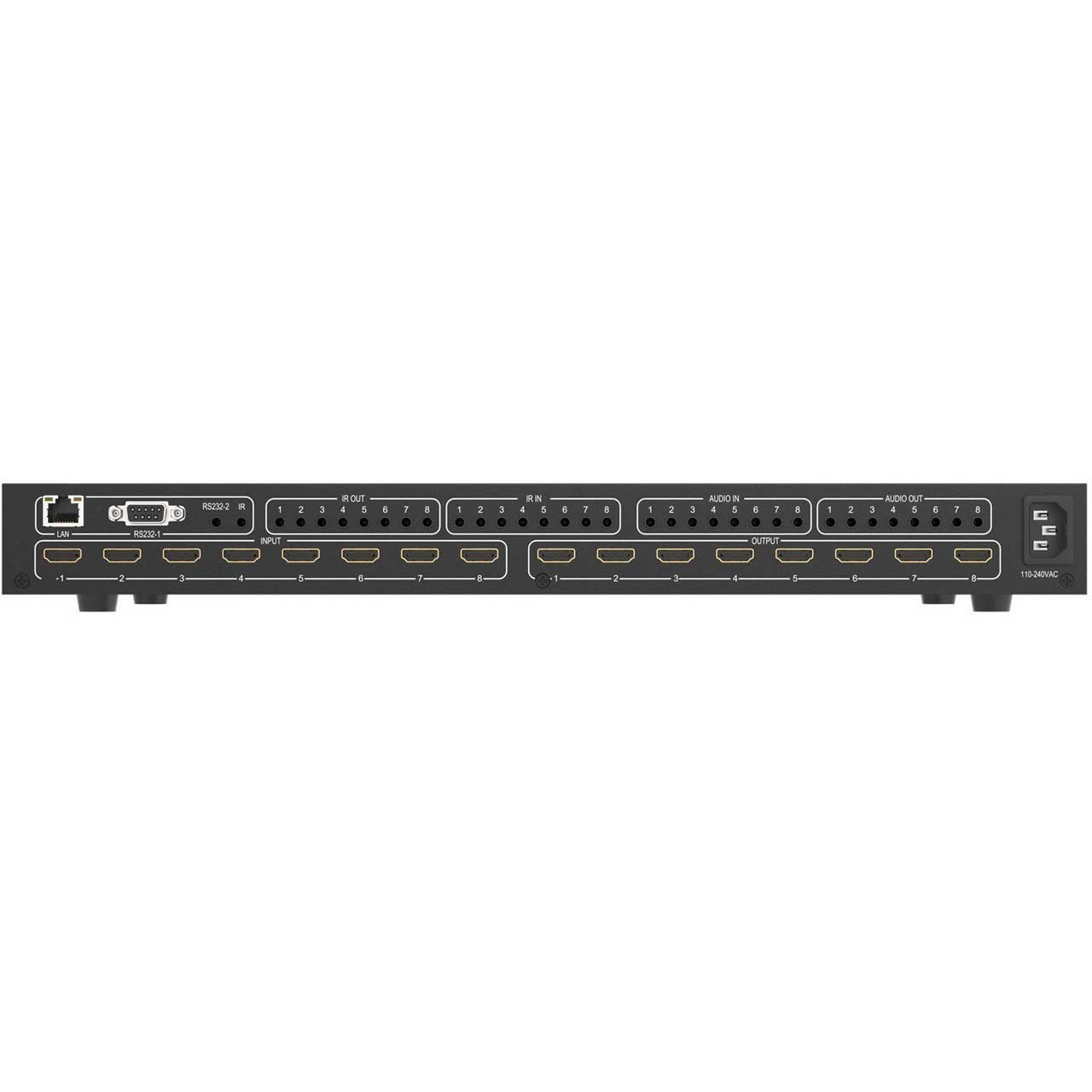

The BZ-MVS8x8-4K can support eight HDMI inputs with resolutions up to 4K@60Hz. These can be output via the eight HDMI outputs at resolutions up to 3840x2160@60Hz. This switcher is HDMI 2.0 and HDCP 2.2 compliant with bandwidth speeds up to 18Gbps. This switcher enables operators to create video walls in 2x2, 3x2, and 2x3 layouts.
IR matrix routing is available on this unit via IR extenders with 8 IR in and 8 IR out connections. The superior connectivity features and image quality of the BZ-MVS8x8-4K make it an incredible choice for those looking to create beautiful video walls for advertising, events, and more.
Control

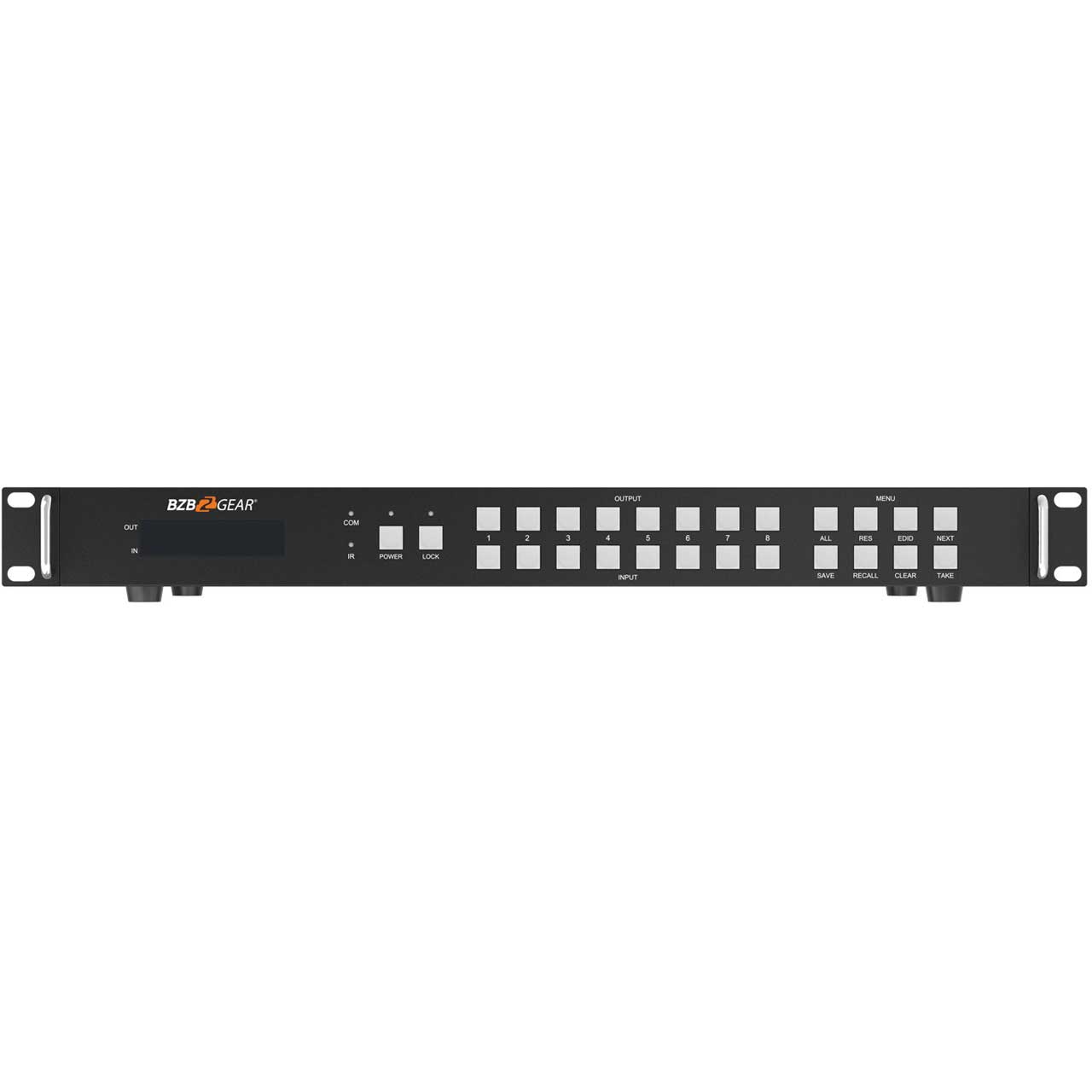

This matrix switcher offers a variety of control methods, including buttons on the front panel, IR remote control, PC Utility, RS-232, or a web interface. To connect to the PC Utility control software, operators can use USB or Ethernet connections. The PC Utility software can also offer auto or manual EDID management. Matrix scenes can also be saved and recalled for future use, making this device flexible for different operations that your business may need.
Operators can also extract or de-embed two channel HDMI audio on each HDMI output, as well as embed audio onto each HDMI input. The superior control that the BZ-MVS8x8-4K provides is a valuable tool for any business who needs full control over their video walls for events, operations, and more.
