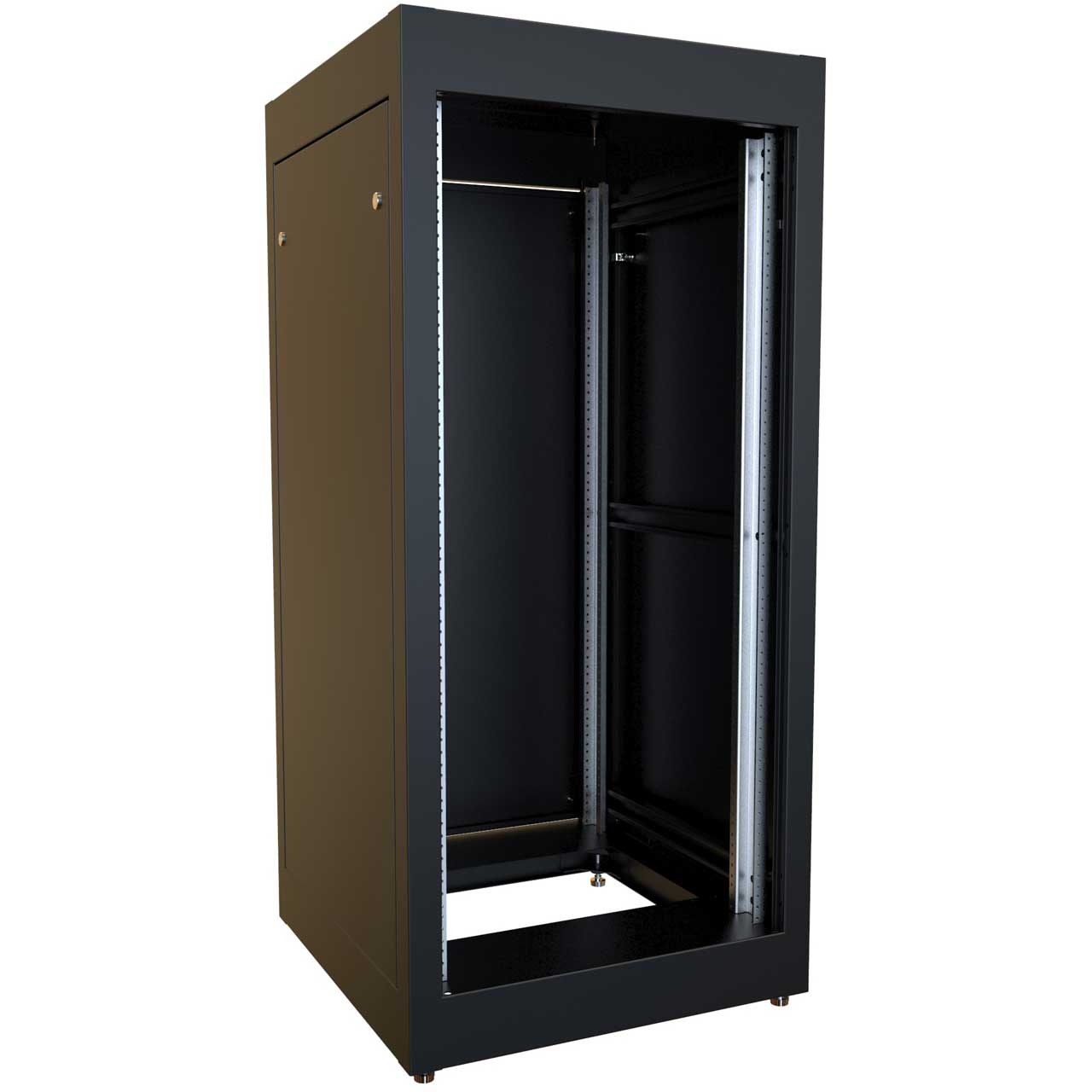

Hammond C2RR194223BK1 24U C2 Rapid Rack Equipment Storage Cabinet - 19x42x23 - Black

ITEM #: C2RR194223BK1 MFG #: C2RR194223BK1

Primary Image
Hammond Manufacturing
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,900.00

Our Price:

$1,628.58

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

C2RR194223BK1 - Overview

The Hammond C2RR194223BK1 Rapid Racks are designed to get you up and running fast! They come complete with a welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters. You also get Two (2) pairs of adjustable depth EIA compliant 10-32 tapped flange mounting rails, a starter pack of SCREW1032-25 rack screws and Two (2) removable side panels (with 1/4 turn latches).

Manufactured in North America.

  • Features:

    • Available in 24U, 36U, 40U and 45U mounting heights.
    • Available in 23" overall width (19" mounting width).
    • Available in 23.62" and 31.5" overall depths.
    • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
    • Flush mounted doors with quarter-turn lock.
    • Solid side panels.
    • One (1) interchangeable top panels.
    • Cabinet frame constructed in 14-gauge steel cabinet with 12-gauge steel re-enforced corner brackets.
    • Cabinet doors and side panels constructed in 16-gauge steel.
    • Drilled and 10-32 tapped flange 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
    • Load rated for up to 1,500 lbs (680 kg).
    • Grounding studs provided on frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
    • Finished in textured black or RAL 7035 light gray powder paint.
    • TAA compliant for GSA Schedule purchases.
    • RoHS Compliant.
    • Manufactured in North America.


  • Specifications:

    • Size (H x W x D): 49.31 in x 23 in x 23.63 in (1,252 mm x 584 mm x 600 mm)
    • Shipping Weight: 170 lbs (77.11 kg)
    • UNSPSC: 43223306
    • REACH Compliant: Yes
    • RoHS Compliant: Yes
    • Rack Units: 24
    • Rack Type: Cabinet
    • Paint Color: Black
    • Rail Type: Tapped 10-32


  • Item Includes:

    • 1x Hammond C2RR194223BK1 24U C2 Rapid Rack Equipment Storage Cabinet - 19x42x23 - Black


  • GTIN:

    0623980439037
