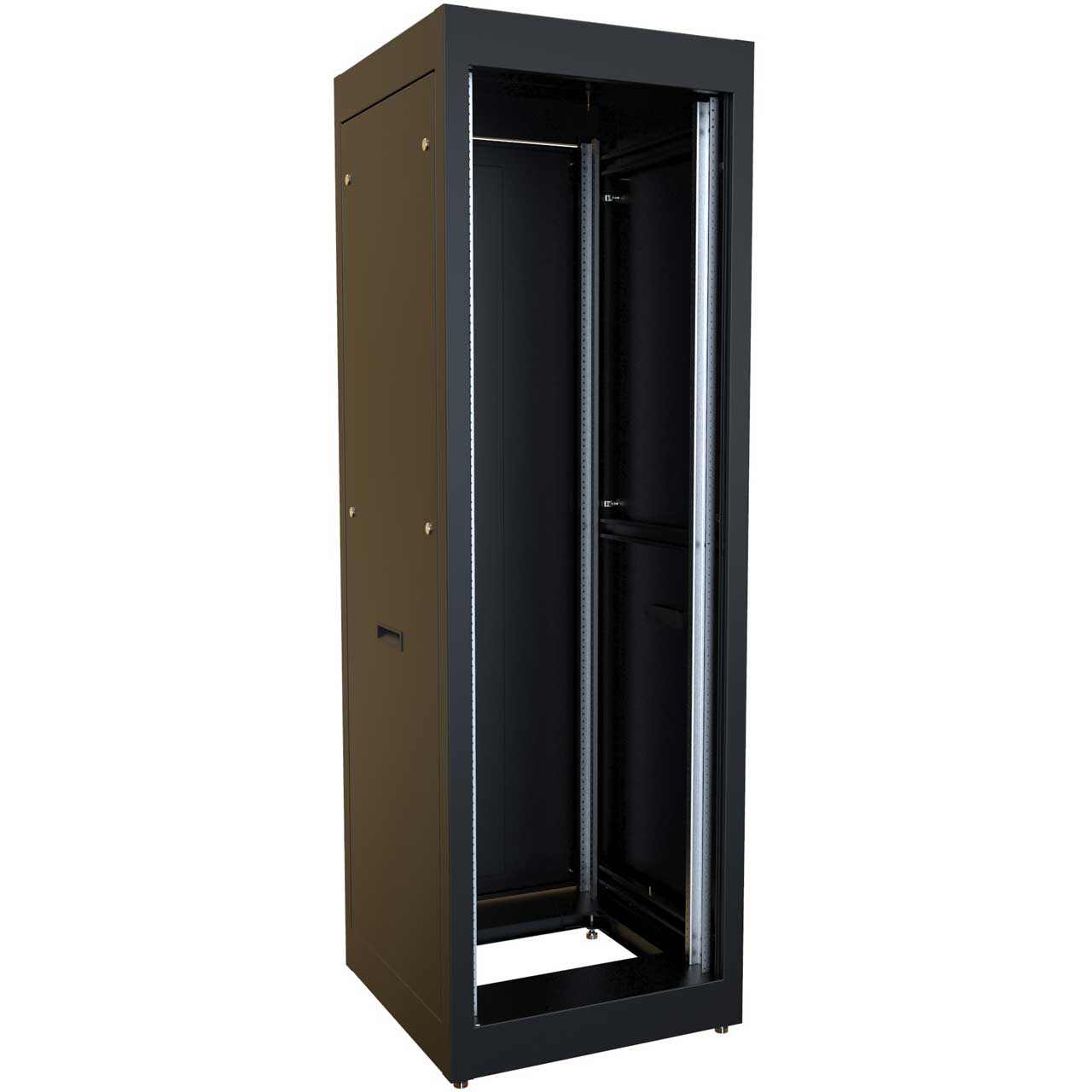

Hammond C2RR196323BK1 36U C2 Rapid Rack Equipment Storage Cabinet - 19x63x23 - Black

C2RR196323BK1 - Overview

• Features:

  • Available in 24U, 36U, 40U and 45U mounting heights.
  • Available in 23" overall width (19" mounting width).
  • Available in 23.62" and 31.5" overall depths.
  • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
  • Flush mounted doors with quarter-turn lock.
  • Solid side panels.
  • One (1) interchangeable top panels.
  • Cabinet frame constructed in 14-gauge steel cabinet with 12-gauge steel re-enforced corner brackets.
  • Cabinet doors and side panels constructed in 16-gauge steel.
  • Drilled and 10-32 tapped flange 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
  • Load rated for up to 1,500 lbs (680 kg).
  • Grounding studs provided on frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
  • Finished in textured black or RAL 7035 light gray powder paint.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.


• Specifications:

  • Size (H x W x D): 70.31 in x 23 in x 23.63 in (1,786 mm x 584 mm x 600 mm)
  • Shipping Weight: 218 lbs (98.88 kg)
  • UNSPSC: 43223306
  • REACH Compliant: Yes
  • RoHS Compliant: Yes
  • Rack Units: 36
  • Rack Type: Cabinet
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond C2RR196323BK1 36U C2 Rapid Rack Equipment Storage Cabinet - 19x63x23 - Black


• GTIN:

  0623980439341
