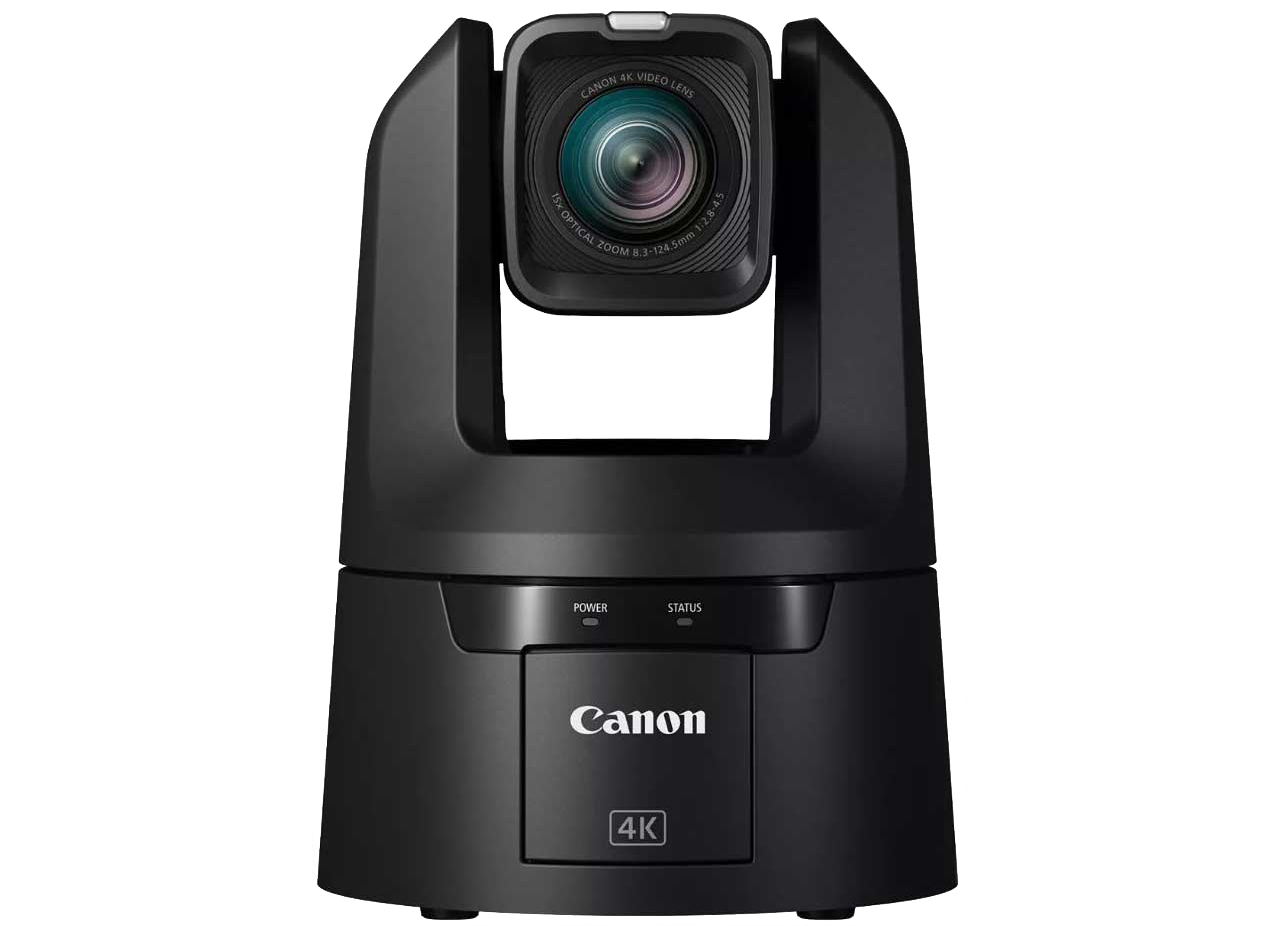

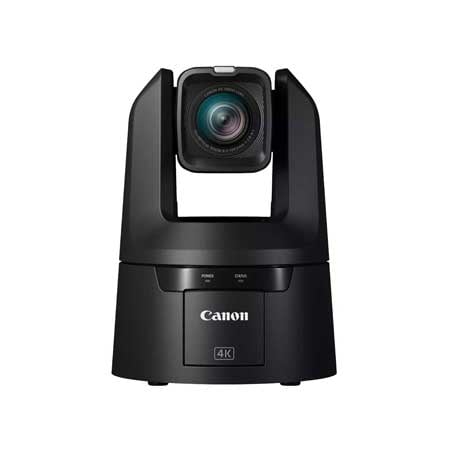

Canon CR-N700 4K PTZ Camera with 15x Zoom - Black

CR-N700BK - Overview

• Features:

  • 1" 4K UHD CMOS Sensor with Dual Pixel Autofocus with EOS iTR AF X
  • High Quality 4K 60p Video Output
  • 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization
  • Built-in ND Filter
  • Renowned Canon Color Science with Support for Wide DR, Canon Log 3, HDR(HLG/PQ), EOS Standard/Neutral Image Modes
  • 12G-SDI, 3G-SDI, HDMI, and IP Video Out
  • Genlock, Dual XLR and 3.5mm Audio input
  • Built-in NDI|HX and SRT support
  • FreeD support for AR/VR system
  • Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment


• Specifications:

  • Image Sensor: Type 1.0 (1.0 in.) single-plate CMOS sensor, Total pixels: approx. 13.40 megapixels, Effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • Lens: f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm 35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)
  • Zoom: Optical: 15x, Digital: 20x, Advanced Zoom (FHD): 30x
  • Lens Configuration: 14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses)
  • Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
  • Angle of View Horizontal: 73.0 (W) - 5.7° (T), Vertical: 45.2° (W) - 3.2° (T)
  • Minimum Subject Illumination: 59.94Hz : Approx. 3lux(with 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain) - 50.00Hz: Approx. 2.5lux(with 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
  • Shutter Speed: 1/3 - 1/2000 sec. (specific values depend on the frame frequency)
  • Iris: Manual/Automatic aperture
  • ND Filter: 3 levels: ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64)
  • Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven
  • White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K - 15,000 K), Manual
  • Focus: Focus modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection, AF type: Dual Pixel CMOS AF, Contrast AF
  • Gamma: BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG)
  • Image Stabilizer: Optical
  • Pan and Tilt: Pan operation range: Horizontal ±170°, Pan operation speed: 0.1° - 100°/sec, Tilt operation range: Vertical -30° - +90°, Tilt operation speed: 0.1° - 100°/sec

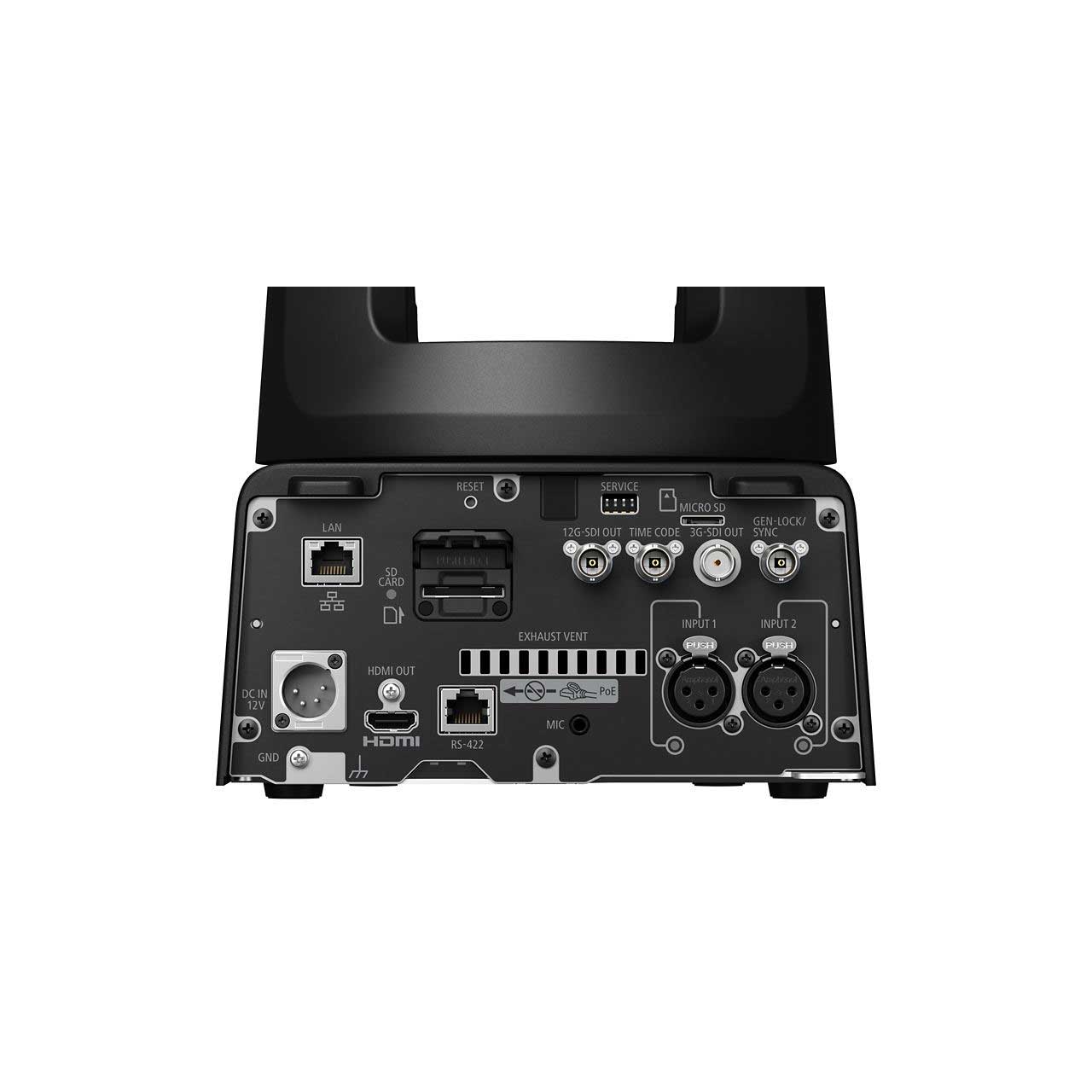

  • Communication Control: LAN, Wi-Fi, Serial, IR
  • Network Terminal: LAN x1, RJ45, 1000Base-T
  • 12G/3G-SDI OUT Terminal: BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ω SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Time code (VITC/LTC)
  • GEN-LOCK Terminal: BNC jack x1, 1.0 Vp-p/75 Ω
  • Time Code Terminal: BNC jack x1, 1.3 Vp-p/50 Ω or less
  • RS-422: Terminal RJ45 connector x1
  • Audio: Input 1 / Input 2
  • Terminals: INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 48 V DC (Bias resistance: 6.8 KΩ)
  • Mic Terminal: 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 KΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 KΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 KΩ)
  • Media Slot: SD Card x1, microSD card slot x1, future expansion, recording unavailable
