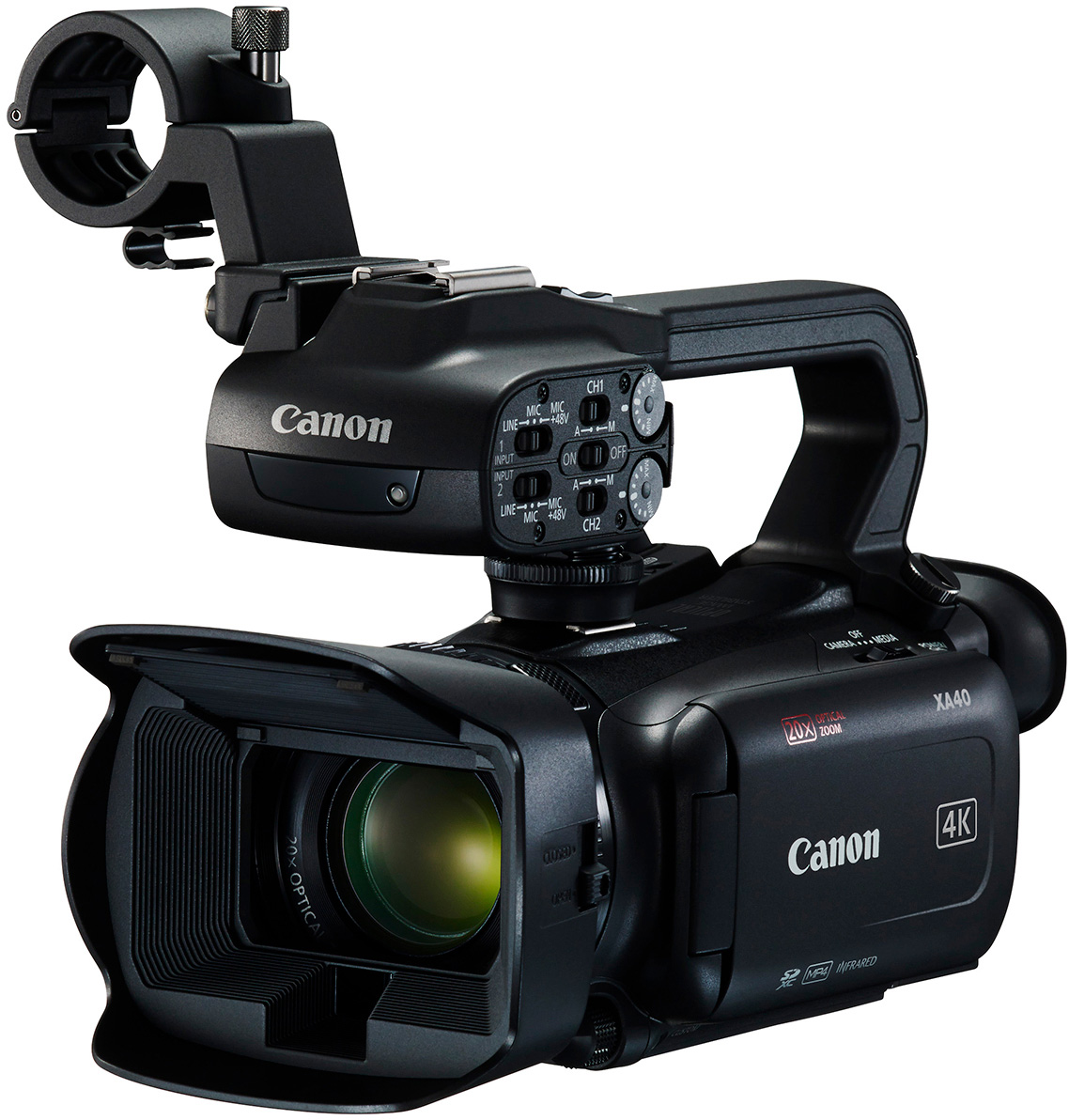

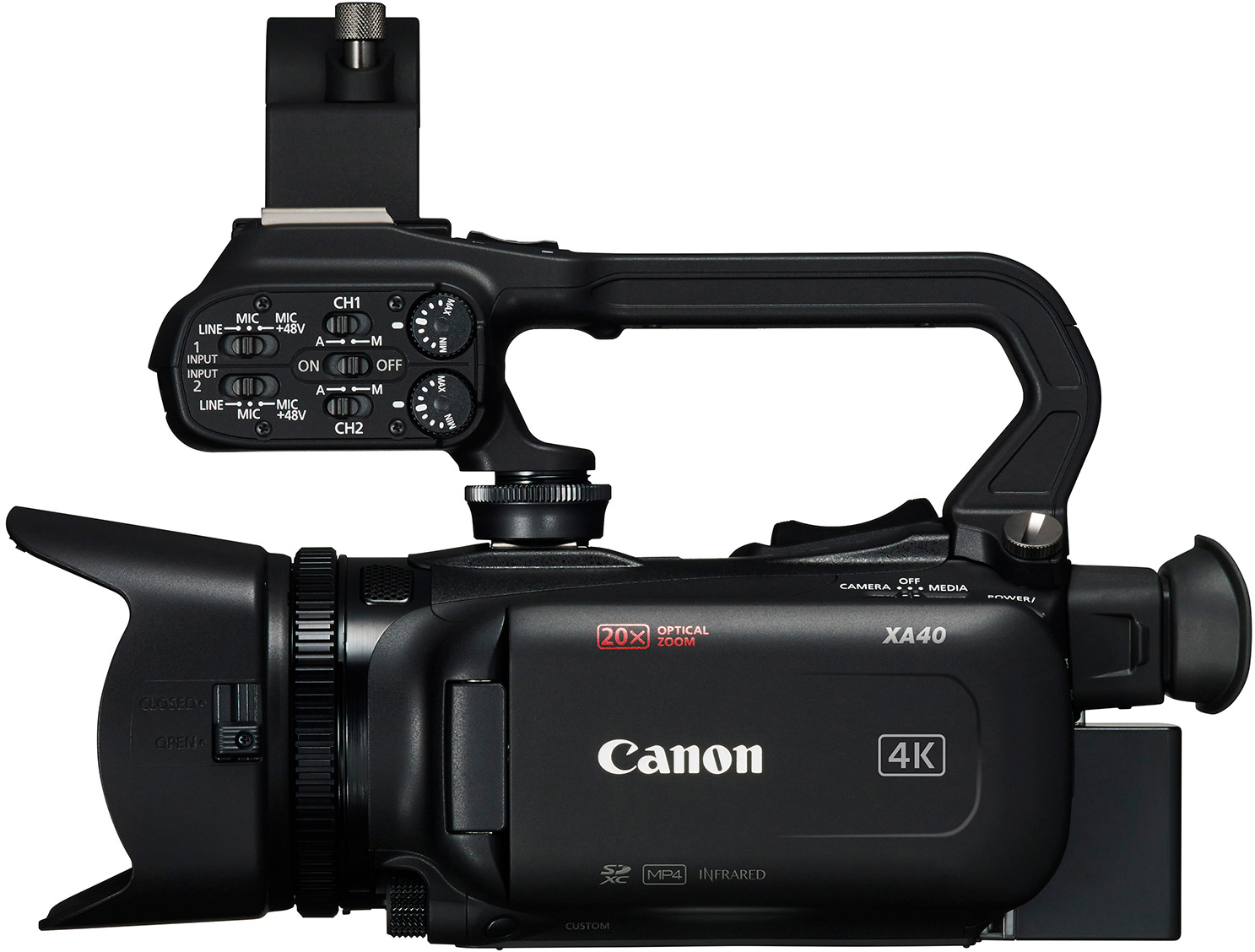

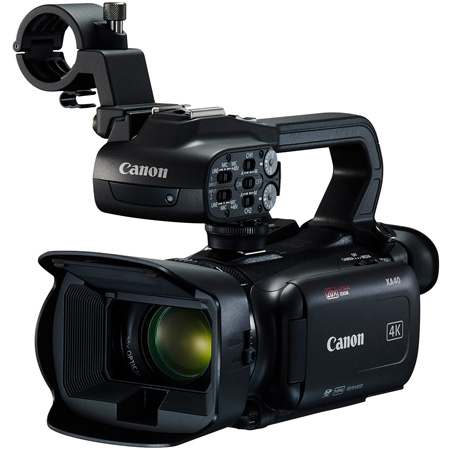

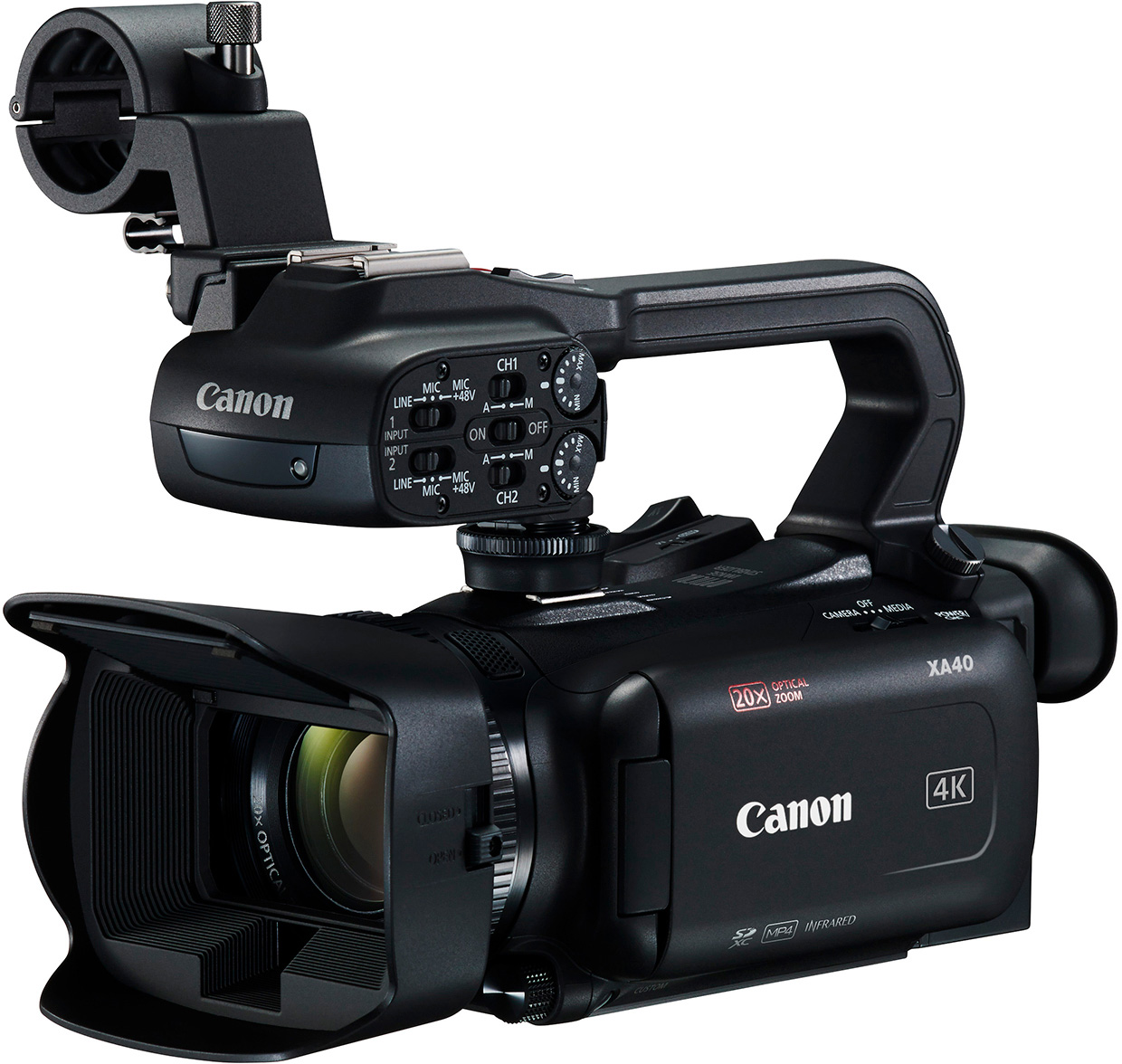

Canon XA40 Pro Camcorder with Lens Hood/BP-820 Battery Pack/Mic Holder Unit/Handle Unit/CA-570 Compact Power Adapter

ITEM #: CAN-XA40 MFG #: XA40

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CAN-XA40

XA40 - Overview

For fast performance in both capture and transmission, excellent for the dynamic world of Electronic News Gathering (ENG) as well as journalistic, documentary, corporate and higher education video production, look no further than the Canon XA40 Professional Camcorder.

Featuring an advanced 4K UHD CMOS Pro Image Sensor, a powerful DIG!C DV 6 Image Processor and a phenomenal 20x High Definition optical zoom lens, the XA40 camcorder captures expansive, high-quality 4K UHD video. Dual SD card slots that are compatible with universal SD, SDHC and SDXC memory cards provide super-high capacity and ultra-fast data transfer.

The compact XA40 includes a detachable handle for low-angle shooting and portability. Functionality is further enhanced with the addition of XLR inputs and an external microphone holder when the handle is attached. Combining a lightweight design, a 1.56 million dot electronic viewfinder and a 3.0" capacitive touch panel LCD, the XA40is comfortable to operate for extended periods of time and in numerous environments.

When there's no telling what or where the next story will be, the XA40is ready to go. A remarkably versatile, powerful and compact camcorder, it delivers the quality, speed and connectivity to drive a 24-hour news workflow.

  • Features:

    • Genuine Canon 20x High Definition Optical Zoom Lens
    • Advanced 4K UHD CMOSPro Image Sensor with Impressive Low-light Performance
    • 4K UHD and Advanced Full HD Recording Capabilities
    • Dual SD Card Slots
    • Simultaneous Dual Recording
    • Slow and Fast Motion Recording
    • Advanced Full HD Image Quality
    • Outstanding Image Reproduction
    • 3.0" LCD Capacitive Touchscreen with Tiltable Electronic Viewfinder
    • Intelligent Optical Image Stabilization System
    • Full Manual Control
    • Ergonomic, Portable Design
    • Two Phantom-powered XLR Audio Inputs
    • Linear PCM 4-channel Support
    • Ultra-compact with Detachable Handle
    • High Definition Peaking for Focus Assist
    • Assignable Buttons for Custom Shooting
    • Infrared Shooting Mode for Extreme Low-light Conditions
    • Connectivity to Various Inputs and Outputs
    • Advanced Display Features: Zebra, Color Bars and Test Tone

  • Specifications:

    • Standard Definition or High Definition: 4K Ultra High Definition
    • Power Supply (Rated): 7.4V DC (Battery Pack), 8.4V DC (DC IN)
    • Television System: NTSC
    • Video Recording System:
      Compression: MPEG-4
      File Format: MP4
    • Audio Recording System: MP4: MPEG-2 AAC-LC (2ch), LPCM (4ch), not available during 1280 x 720 recording)
    • Image Sensor: 1/3" CMOS, RGB Primary Color Filter
    • Total Pixels: Approx. 21.14 megapixels
    • Effective Pixels: Approx. 8.29 megapixels (3840 x 2160)
    • Zoom Ratio: 20x Optical/ 400x Digital
    • Focal Length: 3.67mm - 73.4mm (35mm equivalent: 29.3mm - 601mm with Standard IS/IS Off, 30.6mm - 612mm with Dynamic IS)
    • Zoom Speed: Variable speed/Constant speed (16 levels); Fast, Normal or SlowMax. F/Stop: f/1.8 - 2.8
    • Exposure Control: Auto Mode: SmartAuto; Manual Mode: P, Tv, Av, M (Manual Exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)
    • Maximum Shutter Speed: 1/2000 sec.
    • Minimum Focusing Distance: 10mm (at wide end), 60cm (from lens front) across zooming range
    • White Balance: Auto, Preset (Daylight, Shade, Cloudy, Tungsten, Fluorescent H, Fluorescent), Color Temperature Settings (2,000K - 15,000K), Set (1/2)
    • Frame Rate:
      4K UHD: 30p, 24p
      FHD: 60p, 30p, 24p
    • Minimum Illumination: P Mode: Approx. 1.2 lux (shutter speed 1/30 sec., with auto slow shutter on); Low Light Mode: Approx. 0.1 lux (shutter speed 1/2 sec.)
    • Filter Diameter: 58mm
    • Viewfinder: 0.24" TFT wide color LCD screen, approx. 1.56 million dots, 100% field of view
    • LCD Touch Panel: 3.0" LCD panel with AR surface treatment, approx. 460,000 dots, 100% field of view
    • Microphone: Stereo (using electret condenser microphone)
    • Recording Media: 2x SD/SDHC/SDXC memory card slots
    • USB Terminal: Mini-B receptacle and Hi-Speed USB supported (output only)
    • Accessory Shoe: Cold shoe
    • Video Terminal: 3.5mm diameter 4-pole mini-jack (video/audio output only)
    • HDMI Terminal: HDMI mini connector
    • Microphone Terminal: 3.5mm diameter stereo mini-jack, MIC/LINE switching possible
    • AV Mini Terminal/Headphone Terminal: 3.5mm stereo mini-jack
    • Remote Control Terminal: 2.5mm stereo mini jack (input only)
    • Handle Unit Terminals:
      Input Terminal: XLR 3 pin-jacks (2 systems), MIC/LINE switch possible (input only)
      Shoe Terminal: Cold shoe
    • Operating Temperature:
      For Performance: Approx. 32°F - 104°F (0°C - 40°C), 85% (relative humidity)
      For Operation: Approx. 23°F - 113°F (-5°C - 45°C), 60% (relative humidity)
    • Dimensions: Approx. 4.3" x 3.3" x 7.2" (109mm x 84mm x 182mm) (excluding Lens Hood, Mic Holder unit and Handle unit)
    • Weight: Approx. 1.6lbs (730g) (body only)

  • Item Includes:

    • XA40 Camcorder
    • Lens Hood (with Lens Barrier)
    • Battery Pack BP-820
    • Compact Power Adapter CA-570
    • Handle Unit
    • Mic Holder

  • GTIN:

    0013803317084


XA40 - Required Accessories
