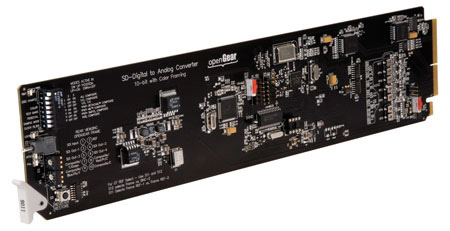

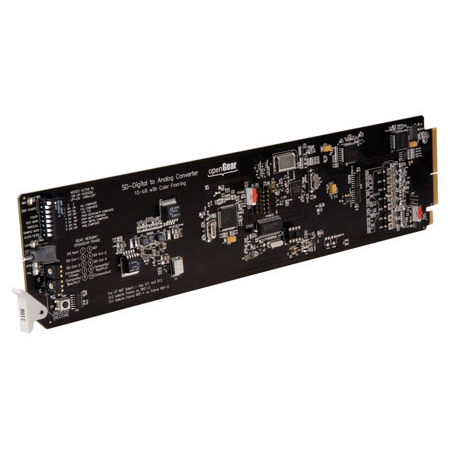

The 9011 is a 10-bit SDI SMPTE 259M-C to analog composite, Y/C, component YPbPr, and RGB converter. The 10-bit encoding engine oversamples 4:2:2 to 4:4:4 for internal processing, and then 4x oversamples the outputs to 16:16:16 for improved signal performance.
An internal VCXO with de-jitter loop filter to 2Hz reduces digital jitter prior to encoding, improving burst stability on composite and Y/C signals. A reference circuit color frames the 9011 for timed environments with full user digital proc. control.
Rear modules are sold separately as RM-9011-X for the 10-slot 8310 openGear frame, and RM20-9011-X for the 20-slot 8321 openGear frame. Also available is the RM20-9011-A/S high density split rear module (5 BNCs per module) for the 20-slot frame.
