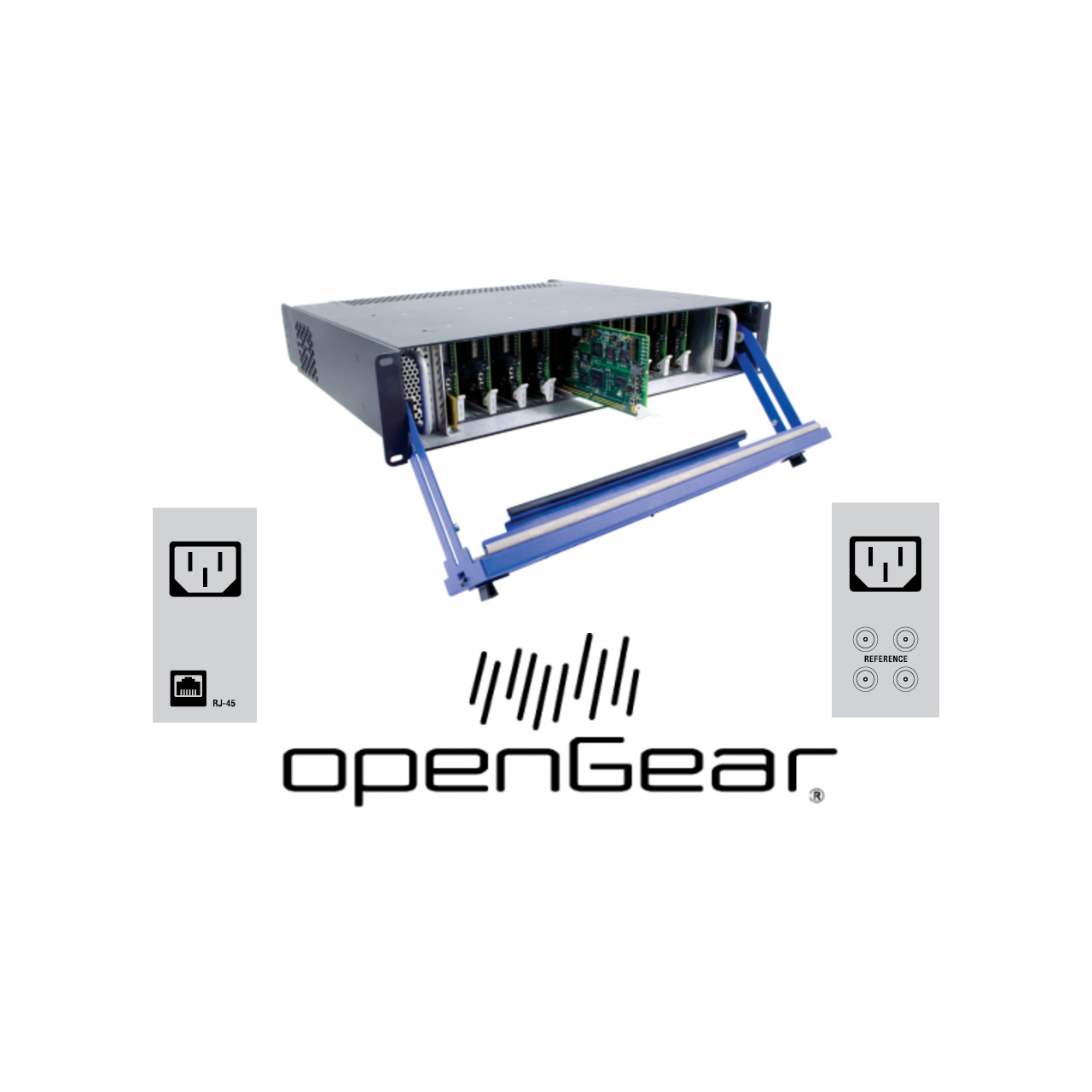

Cobalt HPF-9500-NS is a High-Powered 20-Slot openGear Frame - 2RU with fans, cover plates for unused slots. Includes one PS-9000 Power Supply Module and HPF-9500-FC Network Controller Card with SNMP. (Network Controller Card allows multiple connection network control through DashBoard software or Cobalt OGCP-9000 Remote Control Panel.)
The HPF-9500 is a 2RU high-density openGear modular frame offering 360 Watts of net (user) available power in a high-capacity 20-slot format. It uses the same form factor and DashBoard remote control as our other 20-slot frames and supports all openGear compatible cards and rear I/O modules. The HPF-9500 is perfectly suited for high-density utilization. High power-density power supplies (single standard, redundant second - optional) and engineered cooling/ventilation design allow 10 high-power cards in a frame (10 x 36 W = 360 W), or 20 medium-power cards in a frame (20 x 18 W = 360W). Separate forced-air cooling pathsare provided for the card area and the power supply areas. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature.
The HPF-9500 uses the same rear I/O modules as our current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the HPF-9500. This frame offers Gigabit Ethernet connection to all card slots with the optional HPF-GE-FC. The rear modules offer a broad selection for a flexible and wide array of interfaces such as BNC, HD-BNC, twisted-pair audio,and fiber optic. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt cards. The HPF-9500 can accommodate two front-loaded PS-9000 power supply modules. Adding a second (optional) supply gives the frame full power redundancy. The PS-9000 power supply unit is interchangeable as a primary or redundant power supply module, with supplies in either position being hot-swappable. Each power supply contains an independent cooling fan, status LED, and a front-mounted power switch.The HPF-9500-FC Network Controller Card is furnished as standard equipment on the HPF-9500 frame.An optional advanced network card, the HPF-GE-FC provides Gigabit Ethernet switching backplane to all slots of the HPF-9500 frame. Both types of network cards allow connectivity to any number of connections for full multi-point control and monitoring via free DashBoardT software. Optional SNMP support, for large scale monitoring implementation, is also available
The included Network Controller Card allows multiple connection network control through DashBoard™ software or Cobalt OGCP-9000 Remote Control Panel.
