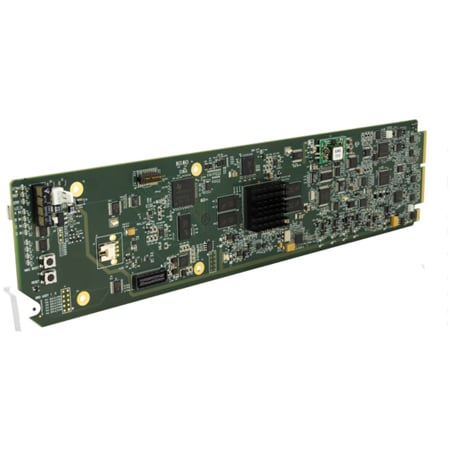

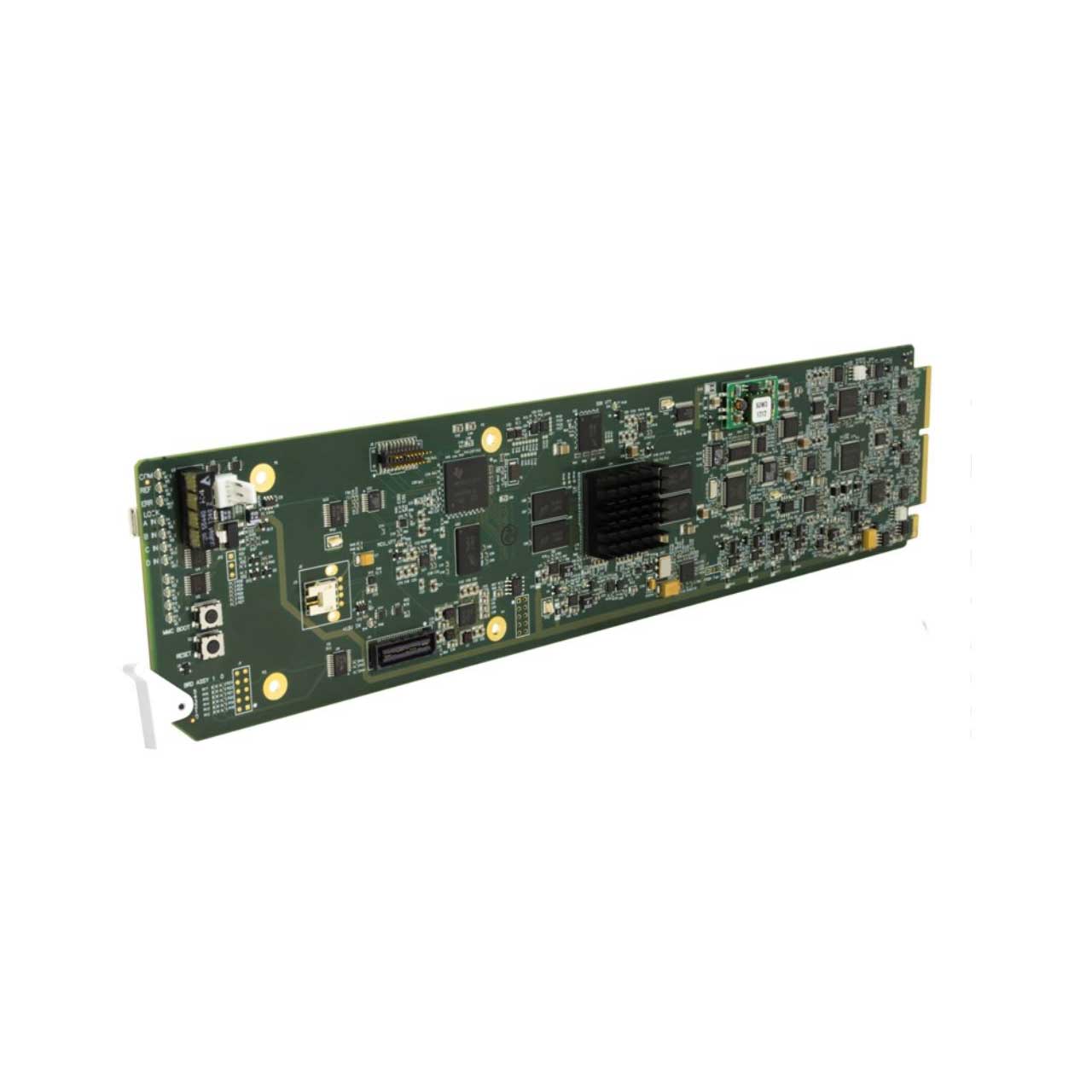

The Cobalt 9902-UDX 3G/HD/SD Up-Down-Cross Converter/Frame Sync/Audio Embed-De-Embed with Multi-Input Auto-Changeover provides a high-density card-based solution that offers unprecedented multi-input support and flexibility.
With option +ANC, the 9902-UDX offers full VANC/HANC ancillary data packet de-embedding and embedding for 3G/HD/SD-SDI streams. The easy to use interface allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed-captioning read/insert, GPI/GPO via ANC, or other specialized user payloads. Data can be extracted and inserted within the card, bypassing the scaler (Bridge mode), or inserted and/or extracted to and from external interface via serial or IP interfaces.
Option +TTS provides high-quality Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. It interfaces with industry standard Windows Share folder systems to receive non-proprietary text, XML, or similar plain text files, and converts and inserts realistic human-voice audio into user-configured audio channels. Option +EAS provides the ideal solution for keying Emergency Alert System (EAS) text crawls in the active video. Option +EAS directly converts serial crawl text data from EAS generators (such as SageT or DasdecT) to a keyed scrolling text insertion. User-configurable fill background color and text size can be correlated to event severity.
The up/down/cross convert scaler is specifically designed for broadcast video progressive and interlaced formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. 3:2 pulldown optimization allows A-frame to use alignment correlated to received timecode or 6 Hz external input over GPI. AFD processing can detect an incoming AFD code and correspondingly set scaling to track with AFD. Linear Frame Rate Conversion option +FRC allows conversion between virtually any SD/HD/3G format - from 525/625i to 1080p and anything in-between - with conversion to and from NTSC and PAL available for all input and output formats.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoardT or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
