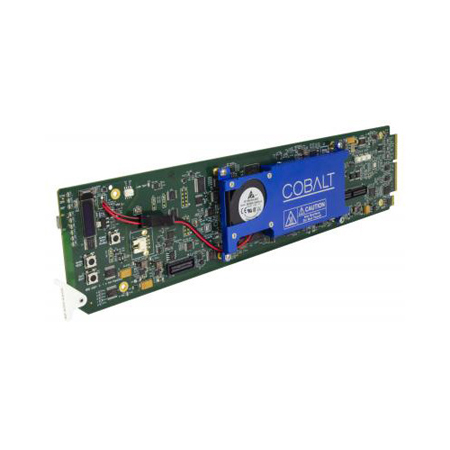

Cobalt Digital 9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync openGear Card

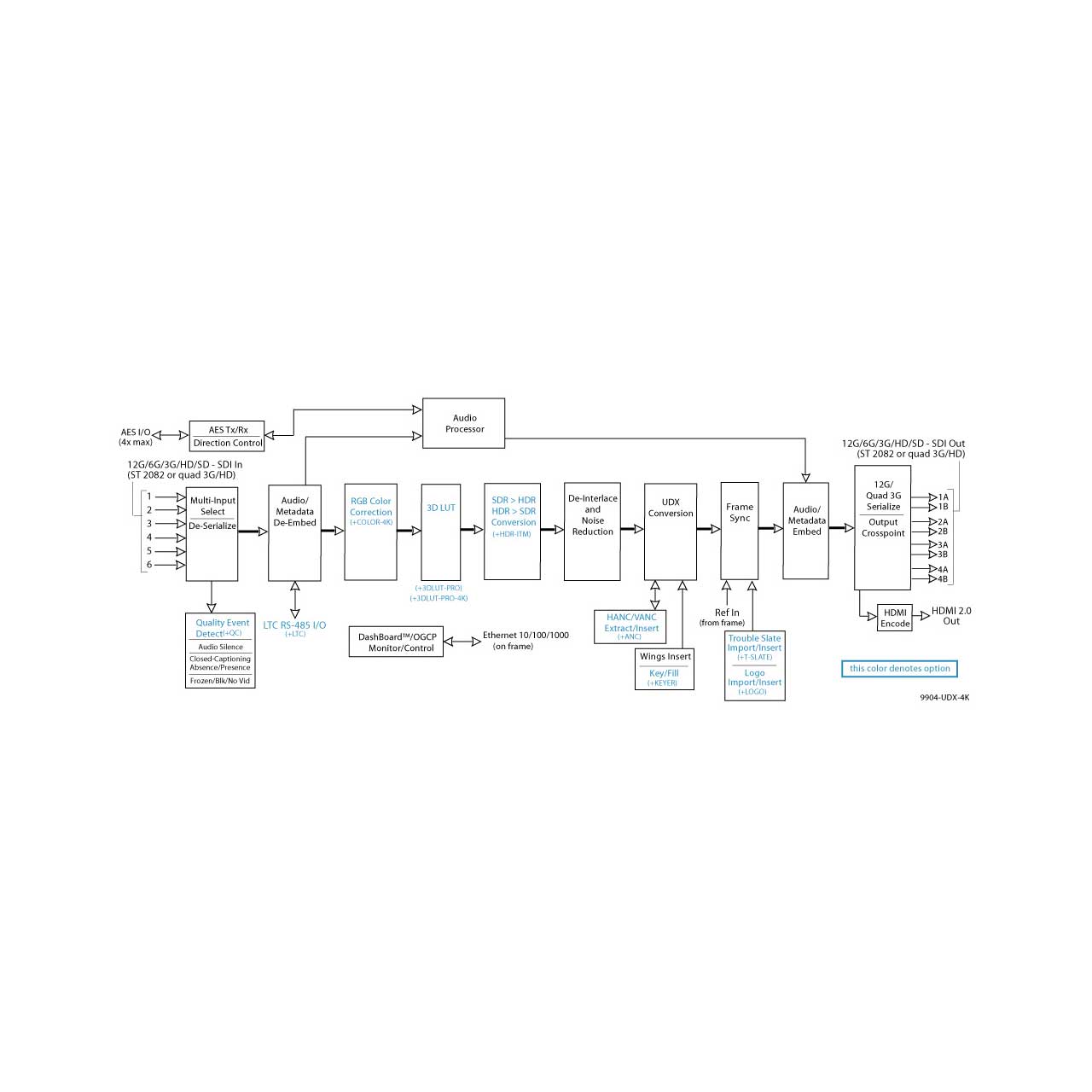

9904-UDX-4K - Overview

• Features:

  • High-density openGear comprehensive UHD UDX solution
  • Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDM/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
  • Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats
  • 12G-SDI and quad 3G frame sync and user delay
  • Supports SNMP and Cobalt's Reflex (JSON) Protocols
  • Full embedded audio processing with user delay offset and AES I/O
  • Noise Reduction and Detail Enhancement provide image quality optimization
  • Remote control/monitoring via Dashboard software, OGCP-9000 remote control panels, integrated HTML5 web interface, SNMP, or Cobalt's RESTful-based Reflex protocol
  • Five year warranty

    Available Options
  • SDR/HDR Conversion Options (+HDR-ITM-4K, +HDR-ITM): Provides sophisticated and comprehensive (yet easy to use) Technicolorr Intelligent Tone ManagementT SDR-to-HDR conversion. Provides basic one-button Basic modes, as well as full-parameter expert modes.
    SL-HDR Options (+SL-HDR-4K, +SL-HDR): Provides SL-HDR functionality that allows HDR metadata encoding, accommodating SDR and HDR devices/decoders on a single stream, as well as specific SL-HDRv1 and/or SL-HDRv2 functionality. Contact Cobalt Sales for more information, or to arrange a hardware demo/evaluation.
    3D LUT Options (+3DLUT-PRO-4K, +3DLUT-PRO): 3D LUT (Lookup Table) options provide 33 cube LUT mapping between 10-bit RGB and HDR color spaces.
    Color Correction Options (+COLOR-4K, +COLOR): Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip.
    Audio LTC I/O Option (+LTC)


• Specifications:

  • 12G/6G/3G/HD/SD-SDI Input/Outputs
  • (6) 75O inputs (max)
  • (8) 75O outputs (max)
  • SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
  • Return Loss:
    > 15 dB up to 1.485 GHz
    > 10 dB up to 3 GHz
    > 7 dB up to 6 GHz
    > 5 dB up to 12 GHz
  • Input Cable Length:
  • 60m Belden 1694A cable at 11.88 Gbps
  • 120m Belden 1694A cable at 2.97 Gbps
  • 240m Belden 1694A cable at 1.485 Gbps
  • 400m Belden 1694A cable at 270 Mbps
  • Output Signal Level: 800 mV ±10%
  • DC Offset: 0 V ± 50 mV
  • Rise and Fall Time @ 11.88 Gbps: < 45 ps
  • Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

    Frame Sync Audio/VIdeo Delay
  • Max offset: 20 frames
  • Latency (min): 1 frame

    User Audio Delay Offset from Video
  • Bulk delay control: -33 msec to +3000 msec.
  • Per-channel delay controls: -800 msec to +800 msec

    HDMI Output
  • HDMI 2.0 Output; type A standard connector

    Frame Reference Input
  • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

    Frame Loading (Max. recommended number of 9904 cards supported (by Frame Model)
  • OG3 Frame: (5) cards
  • HPF-9000 Frame: (5) cards
  • oGx Frame: (7) cards
    Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.
