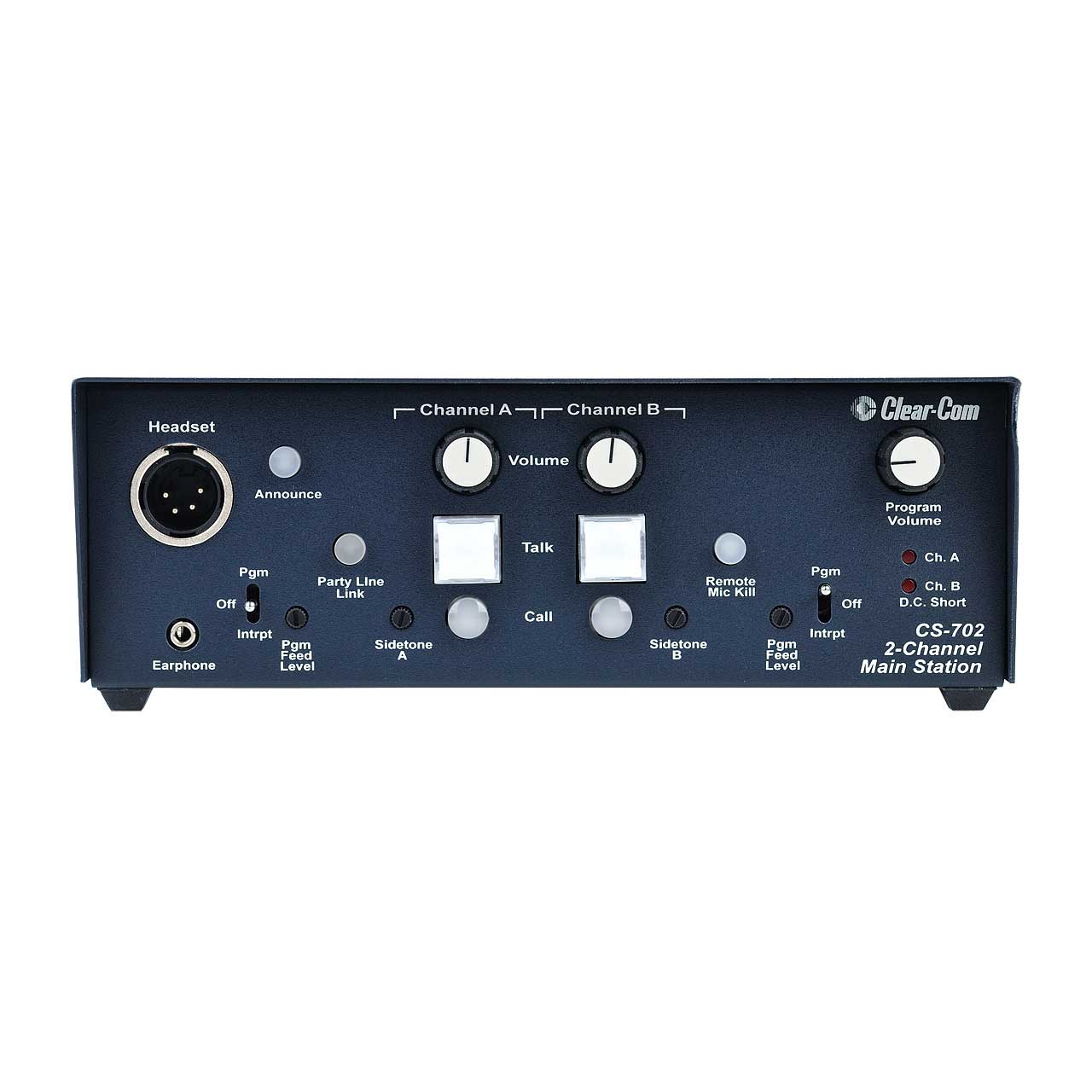

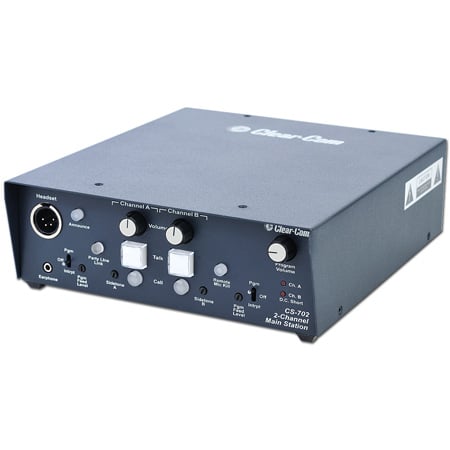

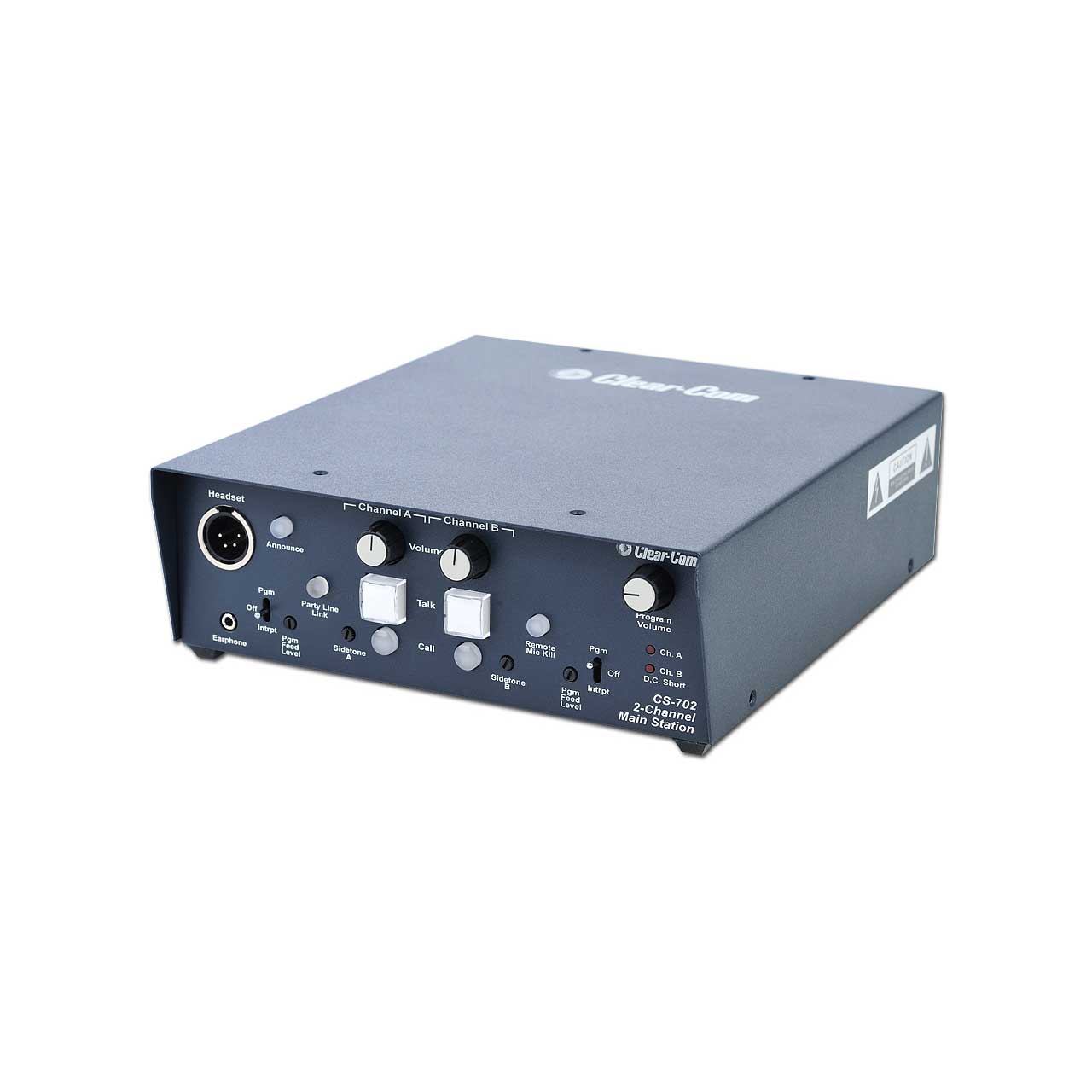

The ClearCom CS-702 is a 2-channel compact main station for the Encore Analog Partyline Intercom System that can monitor intercom activity on one or both channels with individual Listen Level controls. Encore ™ is a 2-wire analog partyline system with intuitive plug-and-play design and superior "Clear-Com Sound" audio clarity. Monitoring intercom activity is possible through a headset, or external earphone or speaker. The CS-702 supports up to 55 beltpacks or 7 speaker stations.
The CS-702 contains a mic preamp with limiter and proprietary speech-shaping circuits. An individual electronic momentary/latching Talk button is provided for each channel and light dimly when latched. The CS-702 also provides individual Call buttons for each channel to signal all stations on the channel(s). When a remote station operator sends a Call signal, the CS-702's associated Talk button lights brightly, attracting the attention of an operator who have removed their headsets or turned off their speakers. Individual sidetone can be adjusted for each channel.

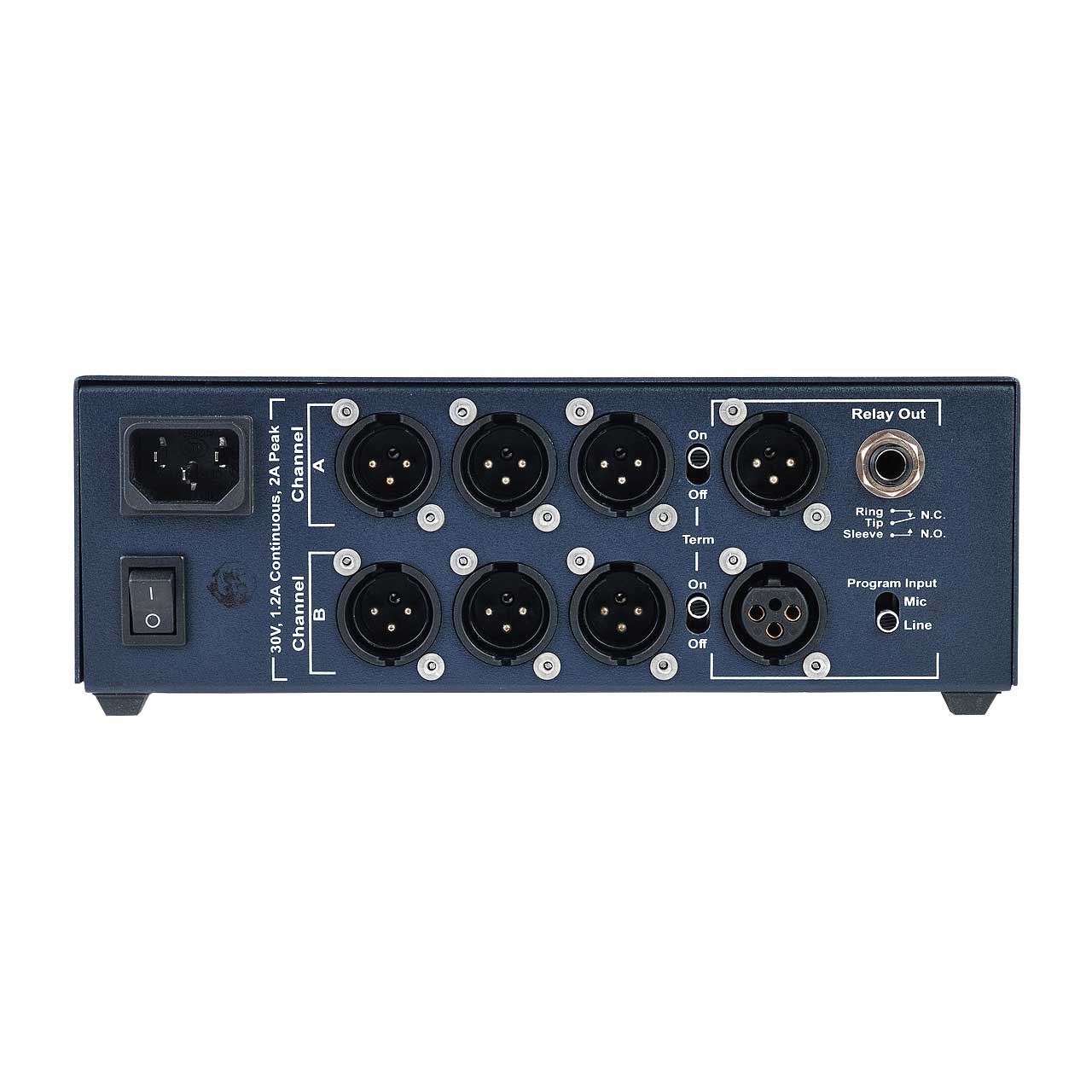

Pressing the Remote Mic Kill button will turn off the microphone talk circuits of all beltpacks, eliminating noise from the open headset microphones. The CS-702 has a balanced, mic- or line-level program signal for monitoring in the headset and/or mixing the intercom audio on one or both channels. The front panel provides a local Program Monitor volume control and individual Program Send level controls. It also provides a Program Send on/off/interrupt switch for each channel. When interrupt is selected, program is interrupted when the Talk button is pressed.
The CS-702 provides visual indication of power supply conditions. In the event of a short circuit or current overload, the CS-702's electronic overload protection circuit will shut down the output to avoid damage. As soon as the fault condition is removed, the auto-reset circuitry will automatically restore system power, even under full-load conditions. There is no need to disconnect stations to allow the power supply to reset.

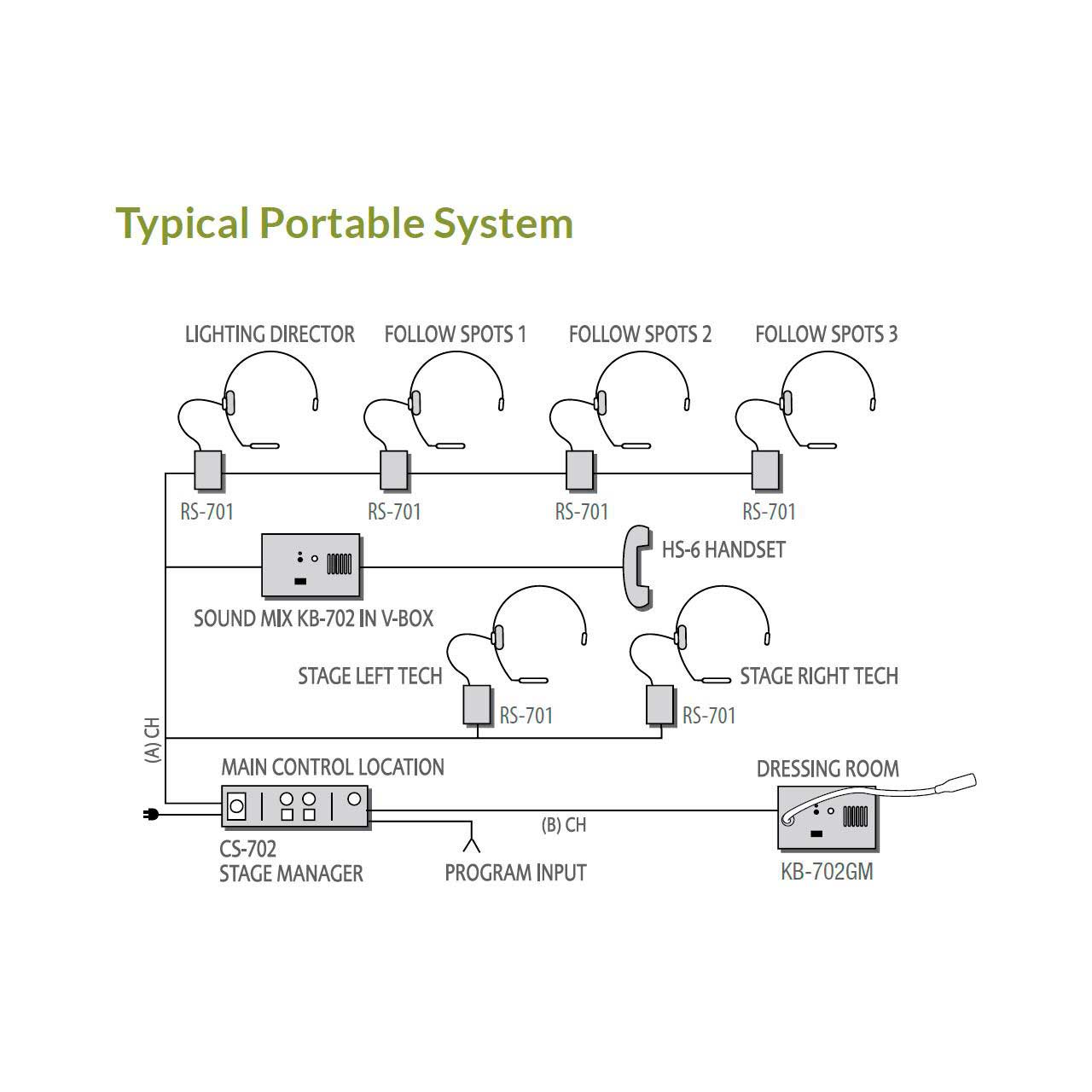

PLEASE NOTE: This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.
