Chief AS3LD Tempo Configurable Flat Panel Wall Mount System - 49-86 Inch Screens - 200 Pound Capacity

AS3LD - Overview

• Features:

  • One part number, one box, one order!

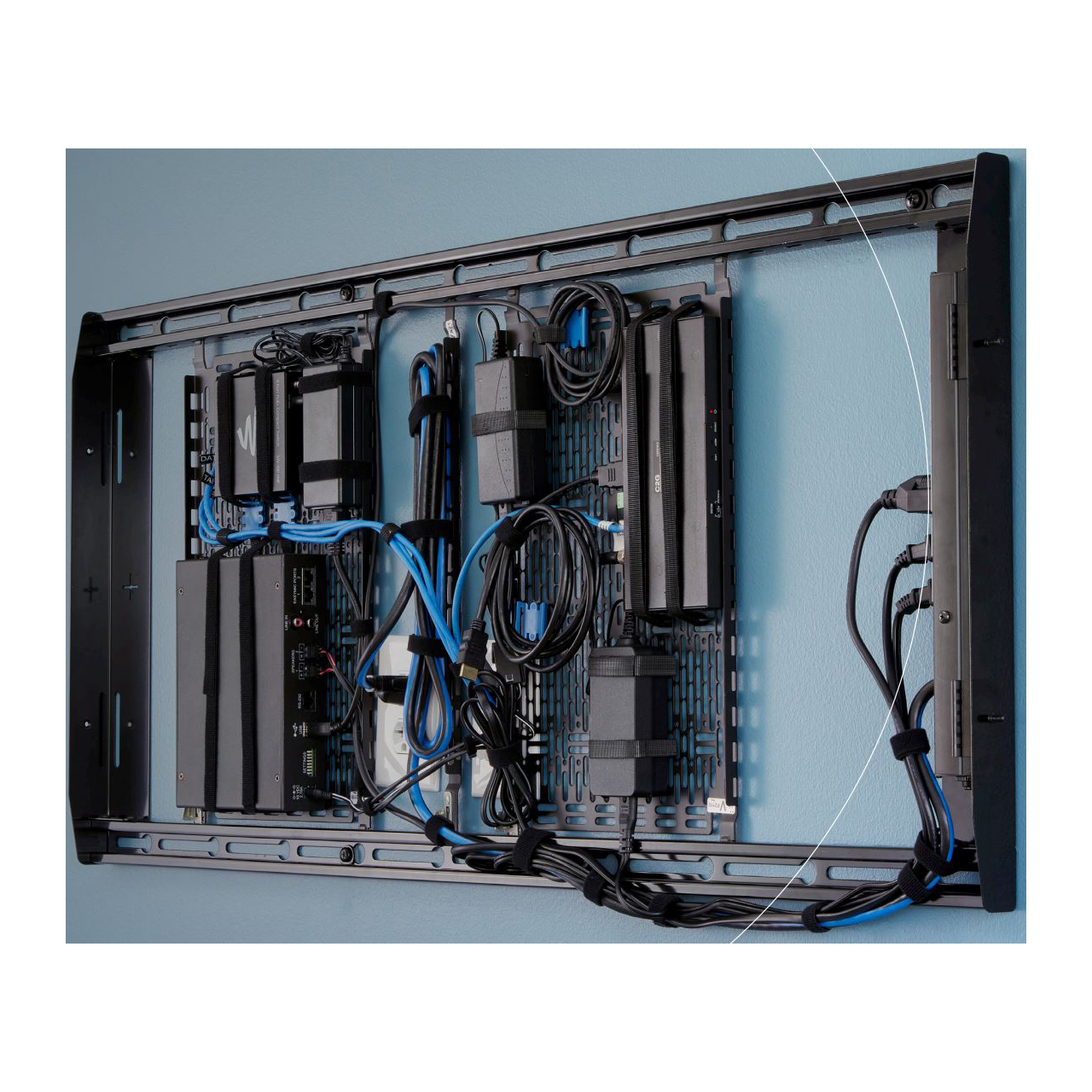

  • Ship to site pre-loaded with small devices and cabling.
  • Reduce onsite installation personnel and time.
  • Minimize last-minute shipping costs of missing parts.
  • Wall plate and extending interface design facilitates centering display in the right position.

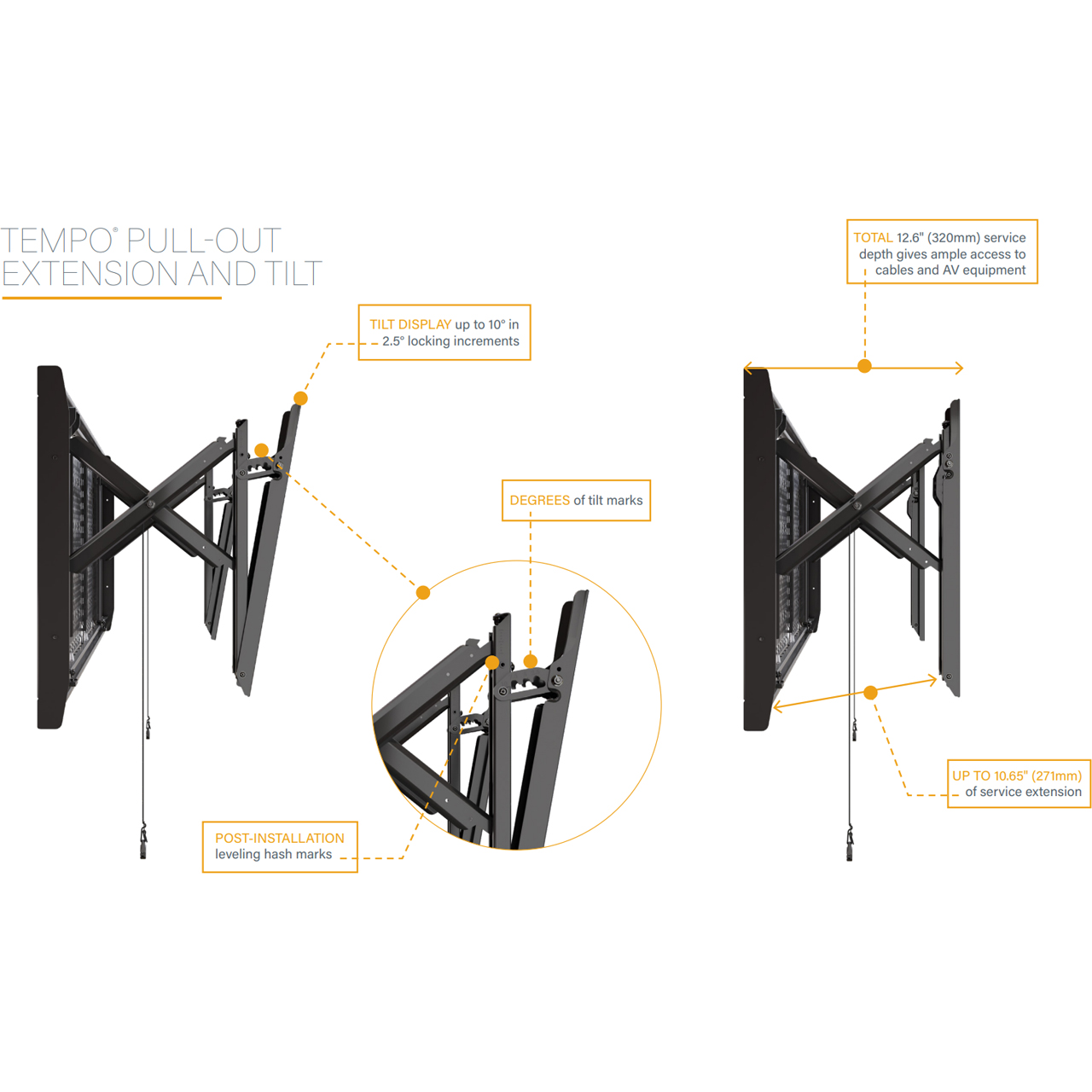

  • 10° of adjustable display tilt in 2.5° increments.
  • Total installation depth facilitates ADA compliance*. *When display depth is less than 2" (51 mm).
  • Up to 1" (25 mm) post-install leveling adjustment.
  • Ships with two 15"x10" Lever LockT plates with space to add more.
  • Storage plates can be moved along the mounting rail for best placement of components.
  • 12.6" (320 mm) of service access.

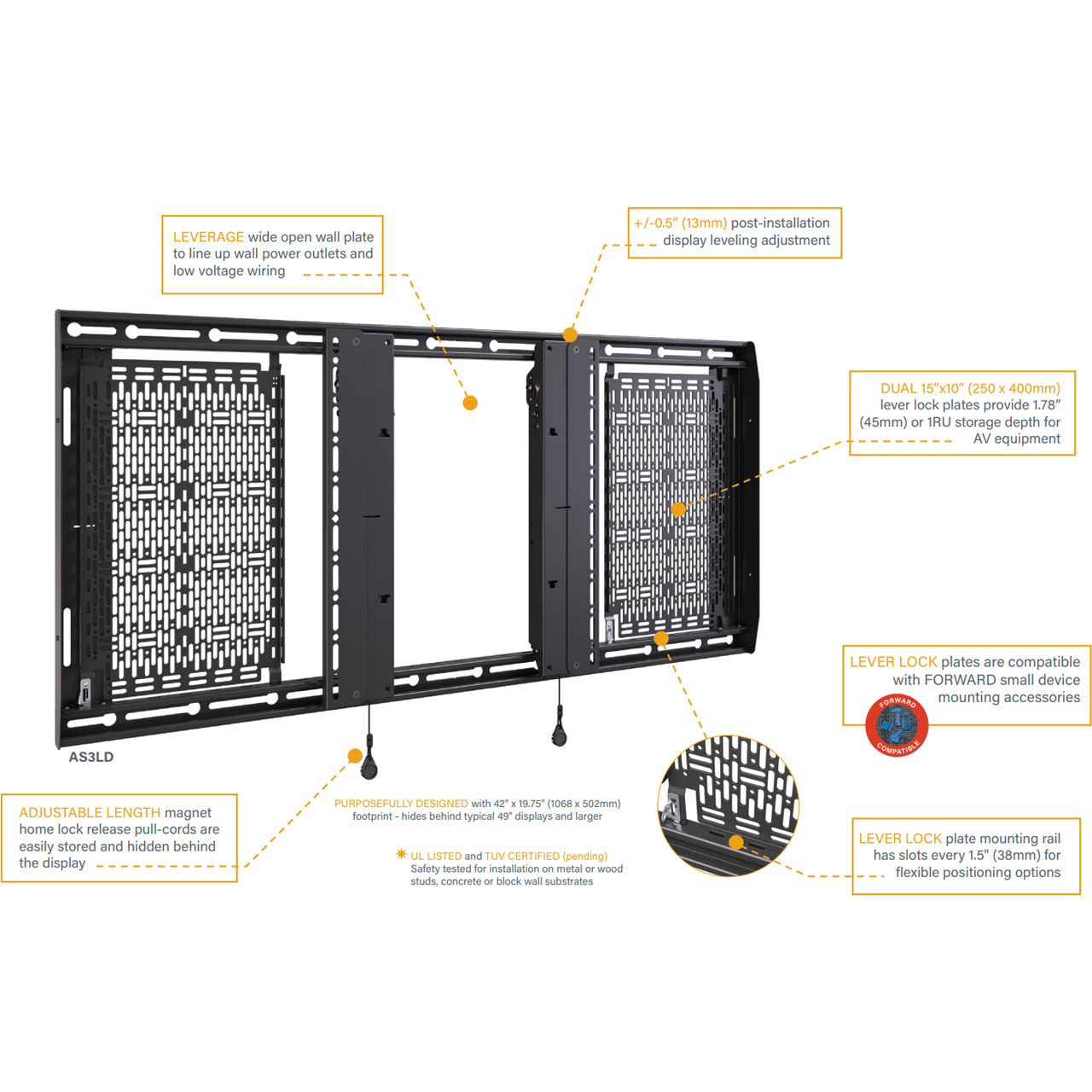

  • Open wall plate for easy positioning of power and data sources and in-wall storage.


• Specifications:

  • Lateral Shift: Yes
  • Minimum Depth: 1.96" (50 mm)

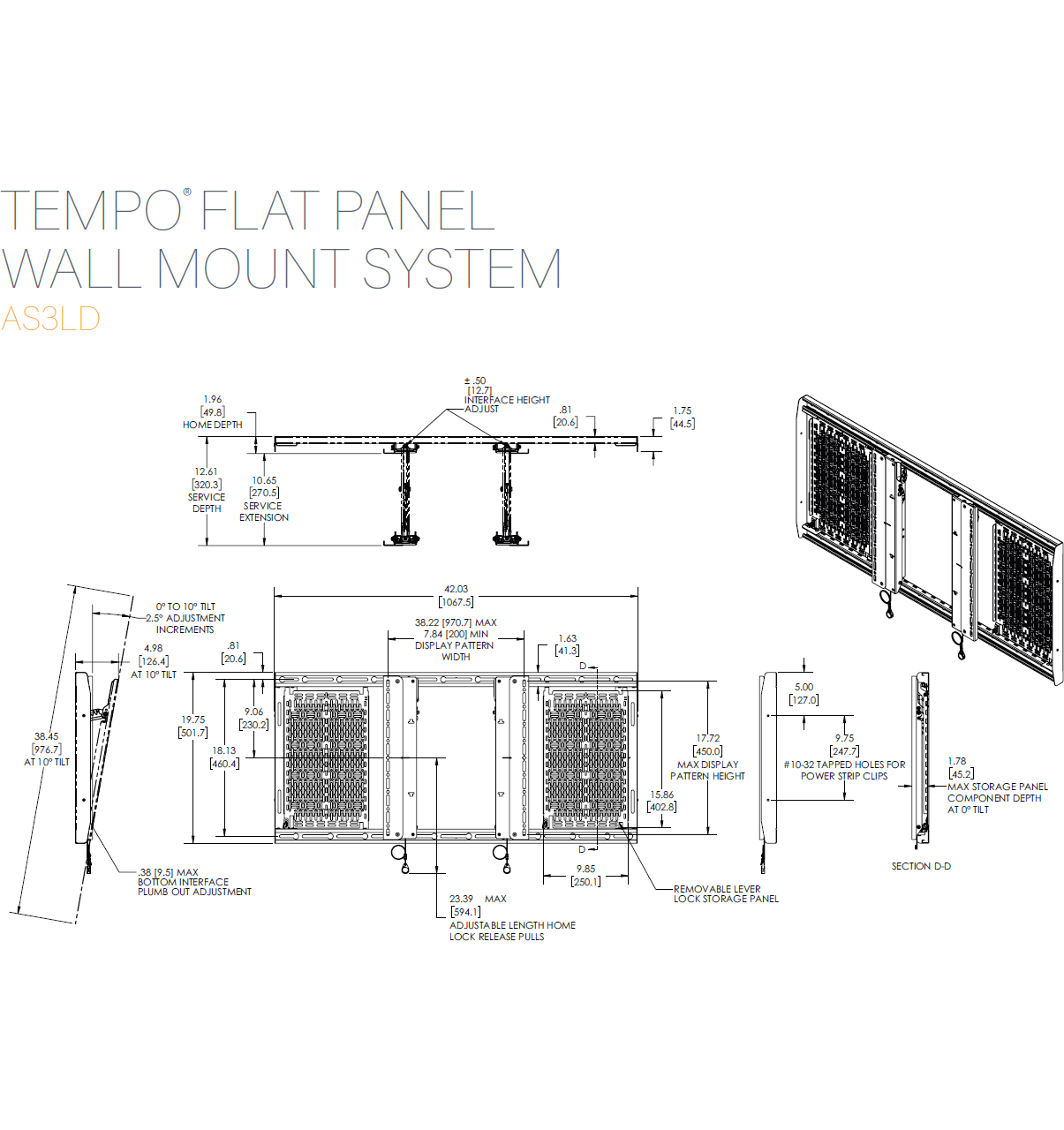

  • Overall Dimensions: 42.03" x 19.75" x 1.96" (1068 x 502 x 50 mm)
  • Service Depth: 12.6 in (320 mm)
  • Shipping Dimensions: 47.64" x 22" x 2.76" (1210 x 559 x 70 mm)
  • Shipping Weight: 36.05 lbs (16.4 kg)
  • Typical Screen Size: 49" - 86"
  • Wall Stud Compatibility In: 16" OC, 24" OC
  • Weight Capacity: 200 lbs (90.7 kg)
  • Adjustability: Extension, Lateral Shift, Micro-Adjustable, Tilt
  • Application: Wall
  • Color: Black
  • Includes PDU: No
  • Orientation: Landscape
  • Post-Installation Leveling Roll: 1" (25 mm)
  • Service Extension: 10.65 (271 mm)
  • Solution Type: Universal
  • Tilt: -10°/+0°, 2.5° increments
  • VESA Mounting Pattern: up to 970 x 450 mm
  • Certifications: cULus, UL


• Item Includes:

  • 1x Chief AS3LD Tempo Configurable Flat Panel Wall Mount System - 49-86 Inch Screens - 200lb Capacity
