Chief AS3LDP7 Tempo Configurable Flat Panel Wall Mount System with PDU - 49-86 Inch Screens - 200 Pound Capacity

AS3LDP7 - Overview

• Features:

  • Wall plate and extending interface design facilitates centering display in the right position.

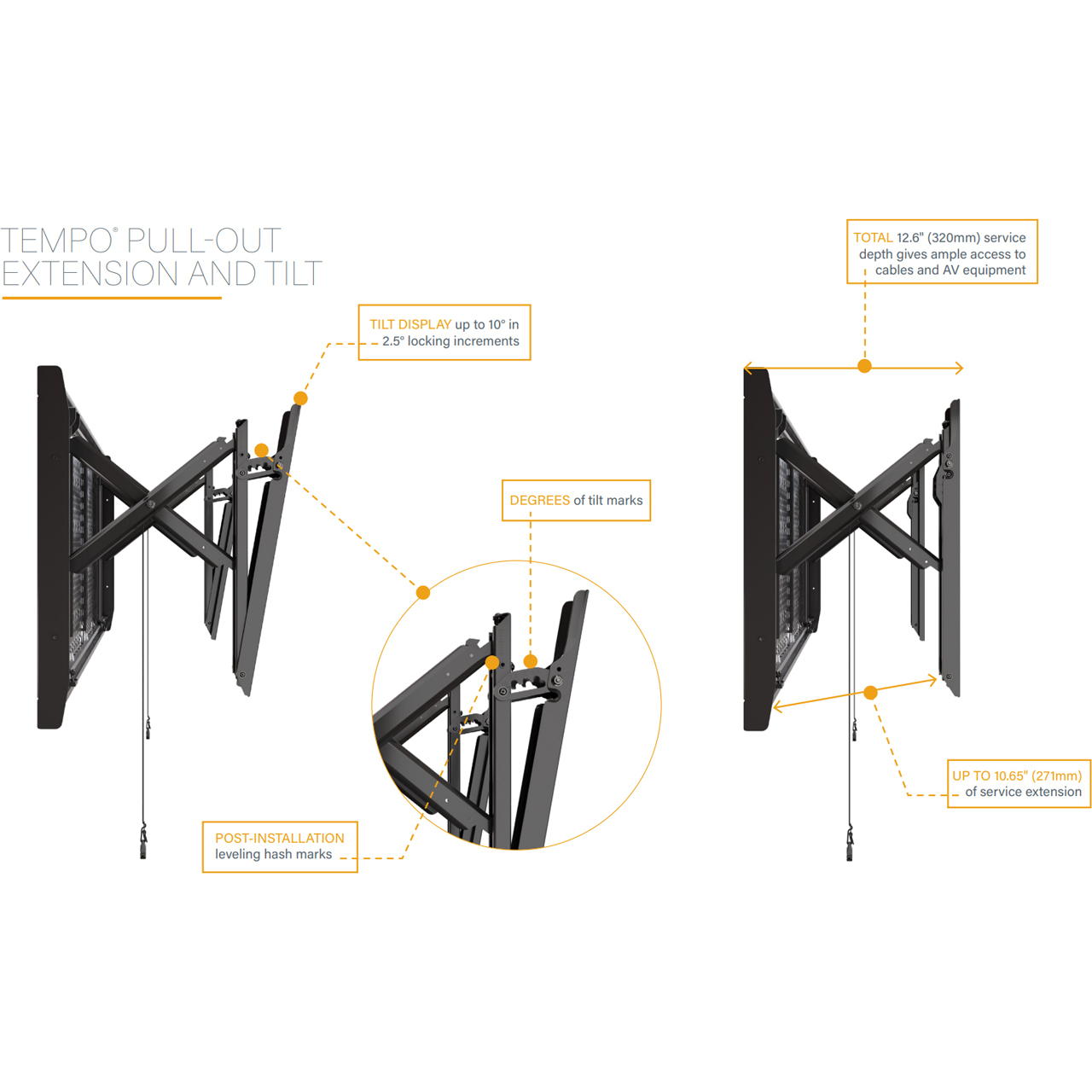

  • 10° of adjustable display tilt in 2.5° increments.
  • Total installation depth facilitates ADA compliance. *When display depth is less than 2" (51 mm).
  • Up to 1" (25 mm) post-install leveling adjustment.

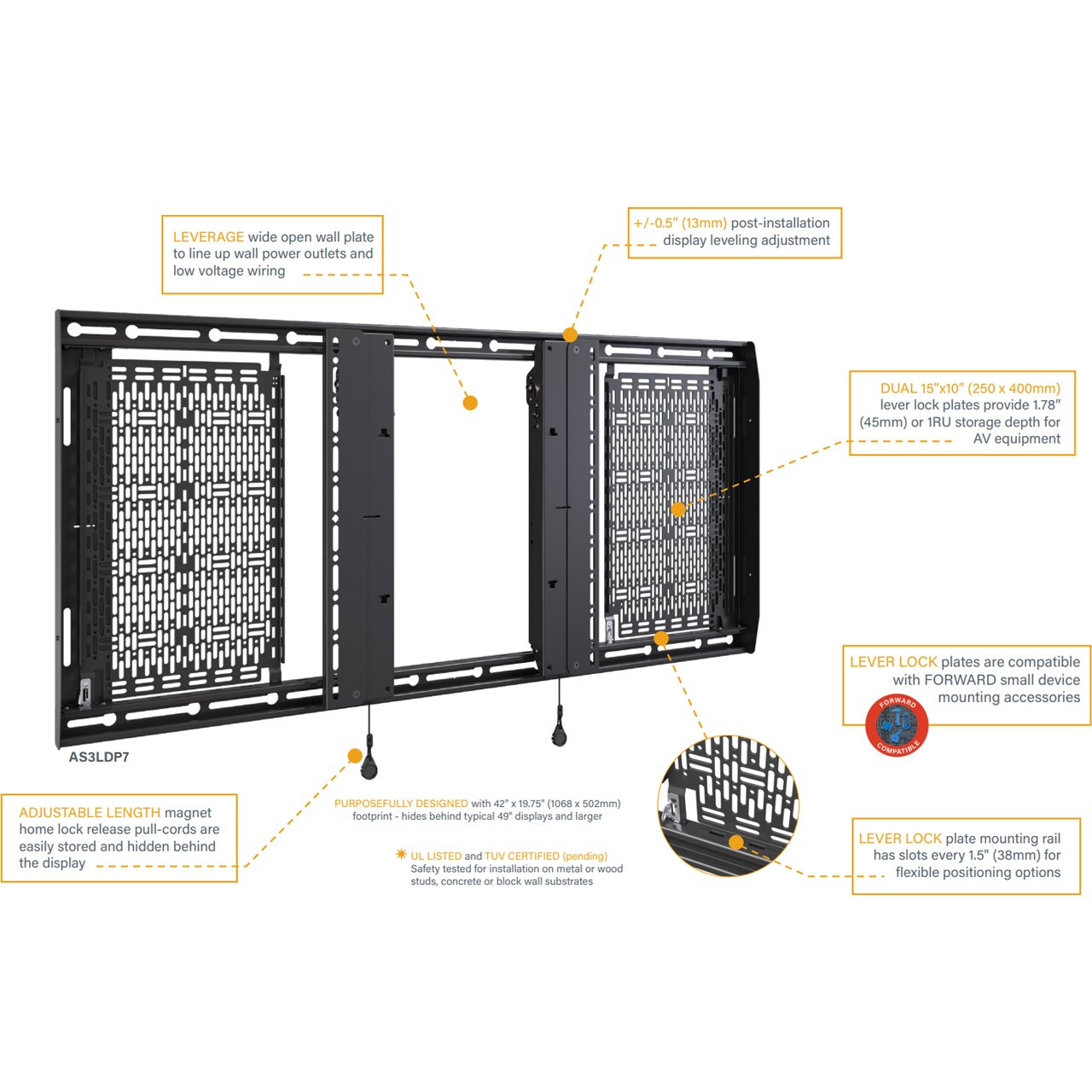

  • Ships with two 15"x10" Lever LockT plates with space to add more.

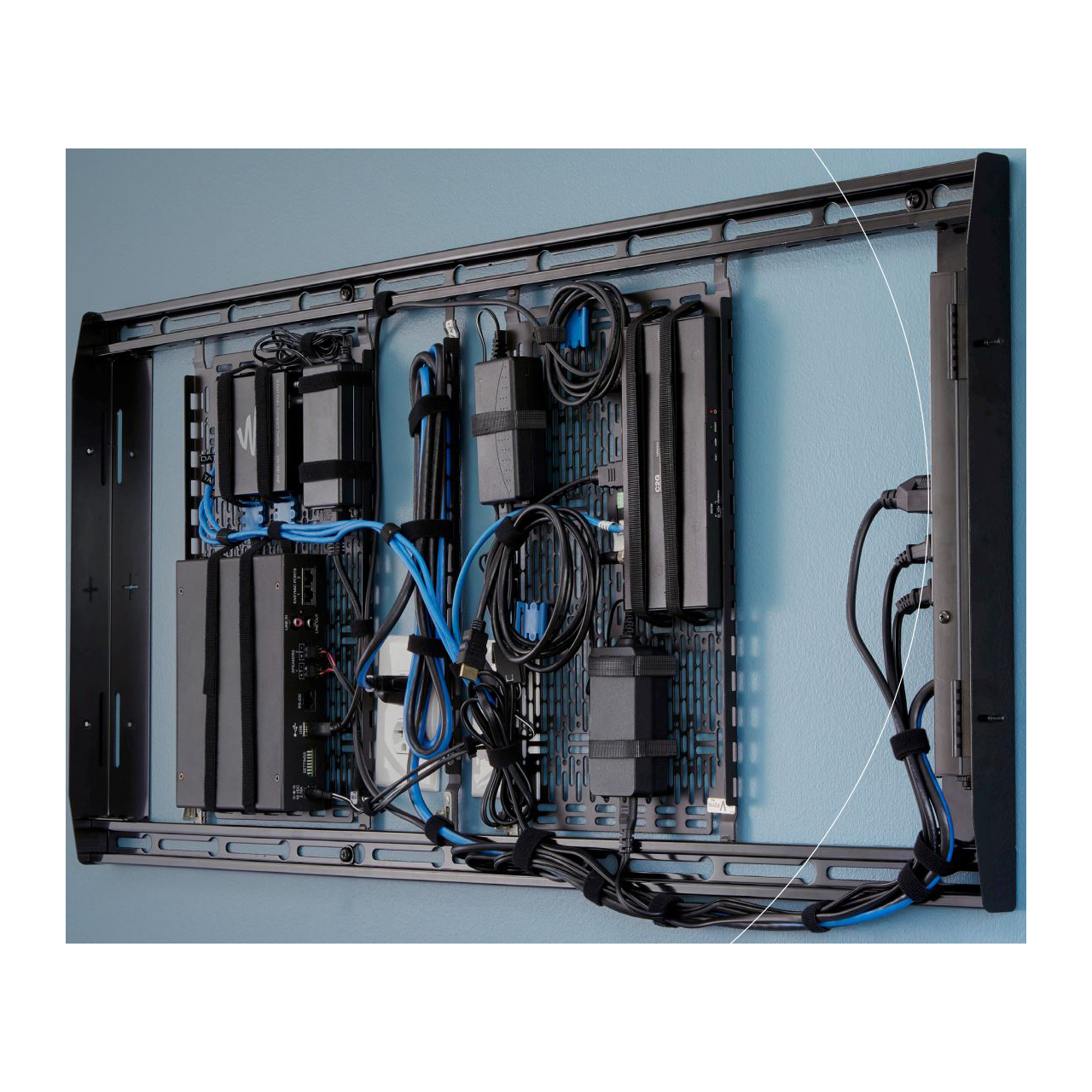

  • Storage plates can be moved along the mounting rail for best placement of components.
  • 12.6" (320 mm) of service access.
  • Open wall plate for easy positioning of power and data sources and in-wall storage.

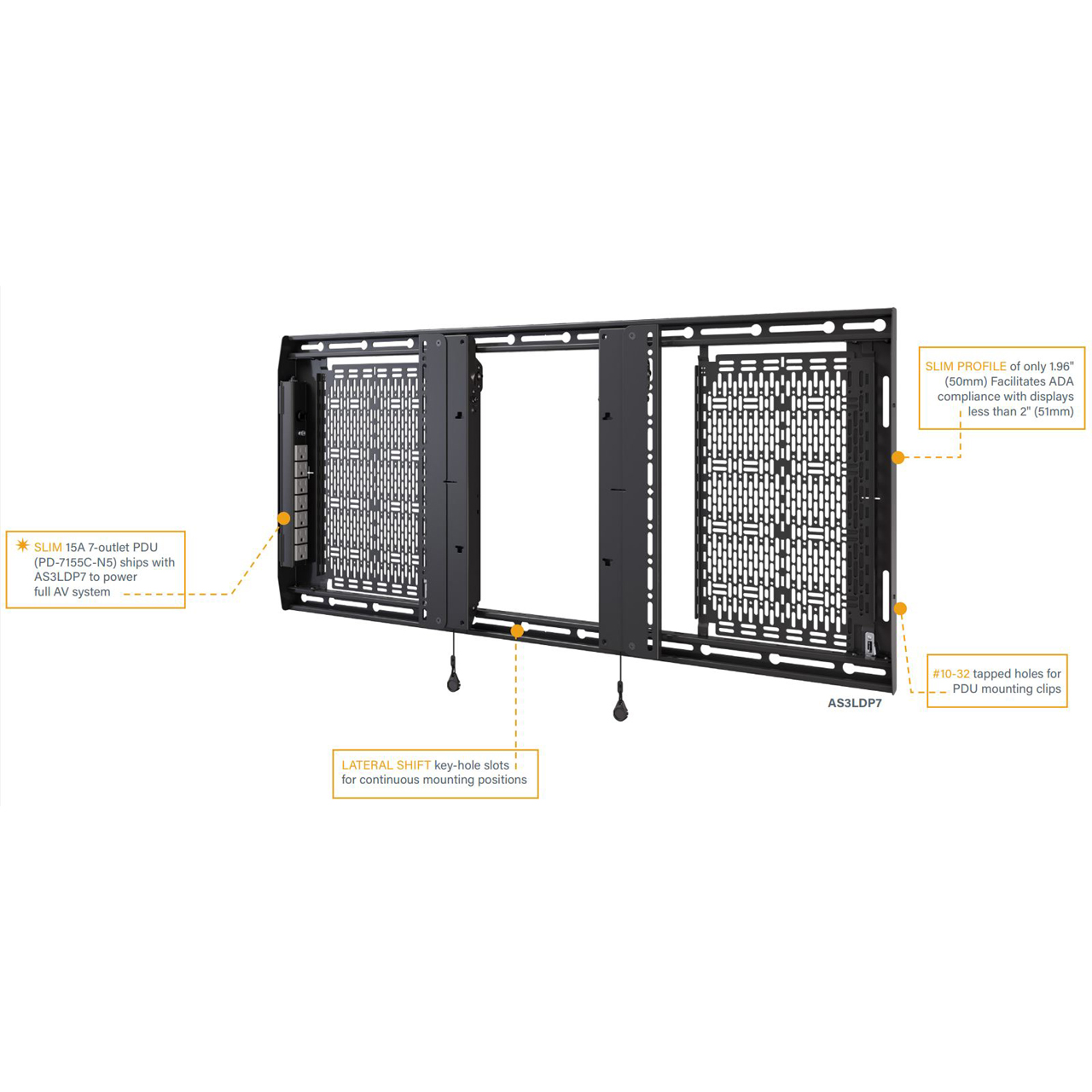

  • Ships with a PD-715SC-NS Middle Atlantic slim profile, 7 outlet, 15A power strip


• Specifications:

  • Amps: 15 Amp
  • Cord Length: 10 ft (3.1 m)
  • Lateral Shift: Yes
  • Minimum Depth: 1.96" (50 mm)
  • Overall Dimensions: 42.03" x 19.75" x 1.96" (1068 x 502 x 50 mm)
  • Service Depth: 12.6 in (320 mm)
  • Shipping Dimensions: 47.64" x 22" x 2.76" (1210 x 559 x 70 mm)
  • Shipping Weight: 37.27 lbs (16.9 kg)
  • Typical Screen Size: 49" - 86"
  • Volts AC: 120 VAC
  • Wall Stud Compatibility In: 16" OC, 24" OC
  • Weight Capacity: 200 lbs (90.7 kg)
  • Accessory Type: Power
  • Adjustability: Extension, Lateral Shift, Micro-Adjustable, Tilt
  • Application: Wall
  • Cable Type: Corded
  • Color: Black
  • Includes PDU: Yes
  • Number of Circuits: 1
  • Orientation: Landscape
  • Outlet Count: 7
  • Plug Type: 5-15P
  • Post-Installation Leveling Roll: 1" (25 mm)
  • Service Extension: 10.65 (271 mm)
  • Solution Type: Universal
  • Surge Protection Type: None
  • Tilt: -10°/+0°. 2.5° increments
  • VESA Mounting Pattern: up to 970 x 450 mm


• Item Includes:

  • 1x Chief AS3LDP7 Tempo Configurable Flat Panel Wall Mount System
  • 1x PDU
