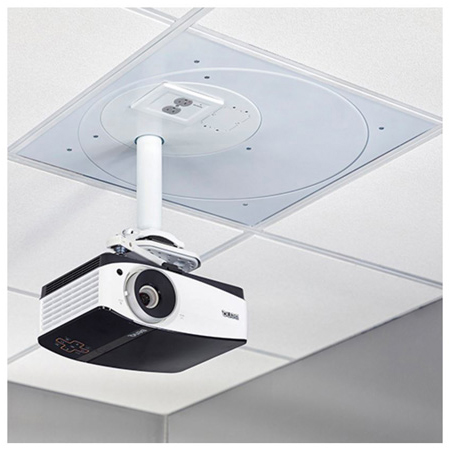

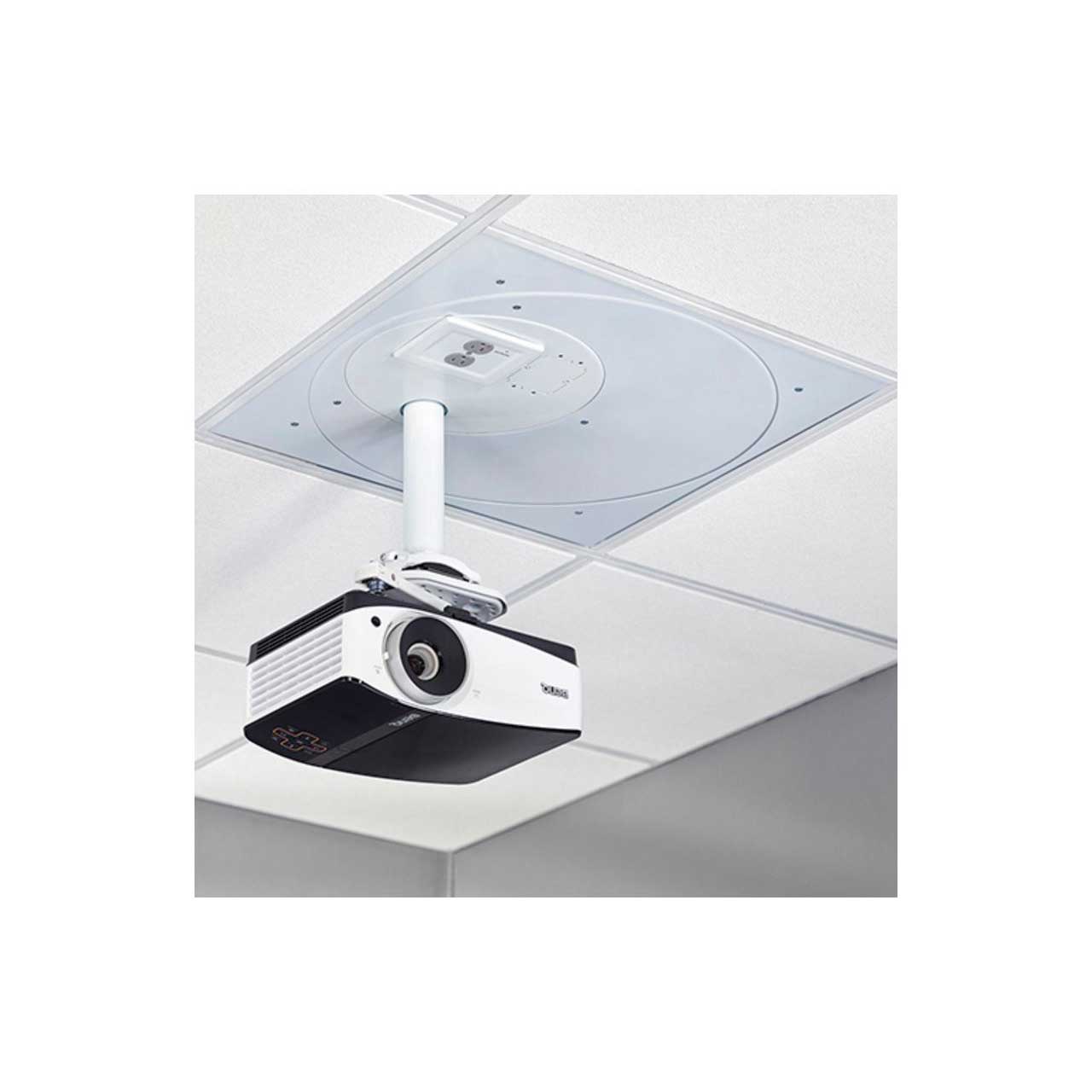

Chief CMS445P2 Speed-Connect Suspended Ceiling Tile Replacement Kit with 2-Gang Filter & Surge

CMS445P2 - Overview

• Features:

  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter easily pierces a circular hole in your tile for extension column
  • Future-proofs installations by providing post-installation adjustments
  • Provides infinite column placement within a 2' x 2' ceiling tile
  • Single and dual electrical outlet cutouts
  • All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • Fits 24" (600 mm) wide ceiling tile grids
  • 1.5" NPT compatible
  • Non-volatile spike protection with LED power indicator
  • Non-sacrificial multi-stage technology
  • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
  • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
  • Line filter reduces common and differential mode noise by up to 40 dB
  • Rated for 125V~, 60Hz, 15 A
  • 1875 watt maximum
  • Ferrite toroid based EMI Filter
  • Withstand rating of 240 VAC continuous without damage or loss of protection


• Specifications:

  • Certifications: UL Listed
  • Color: White
  • NotesOutput: 15A, 1875 W continuous
  • Overall Dimensions (HxWxD): 1.1" x 23.6" x 23.6"
  • Power Consumption: <0.5 watt
  • Type 3 Surge Protective Device (SPD)
  • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
  • Maximum Continuous Operating Voltage (MCOV): 240V
  • Nominal Discharge Current (In): 3kA
  • Short Circuit Current Rating (SCCR): 5kA
  • Ambient Temperature Max: 40 degrees C
  • Shipping Weight: 22 lbs
  • Weight Capacity: 50 lbs


• Item Includes:

  • (4) 25' flexible cables
  • (4) wood eyebolts
  • (4) concrete anchors
  • Chrome trim ring


• GTIN:

  0841872166773
