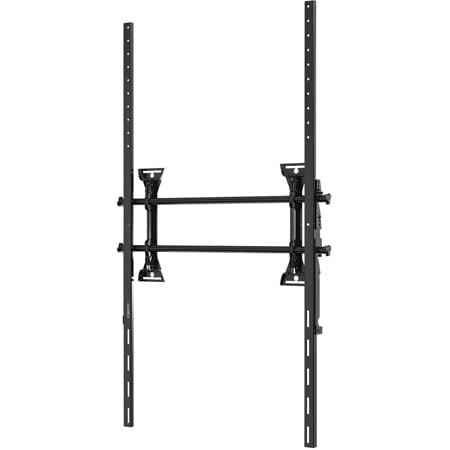

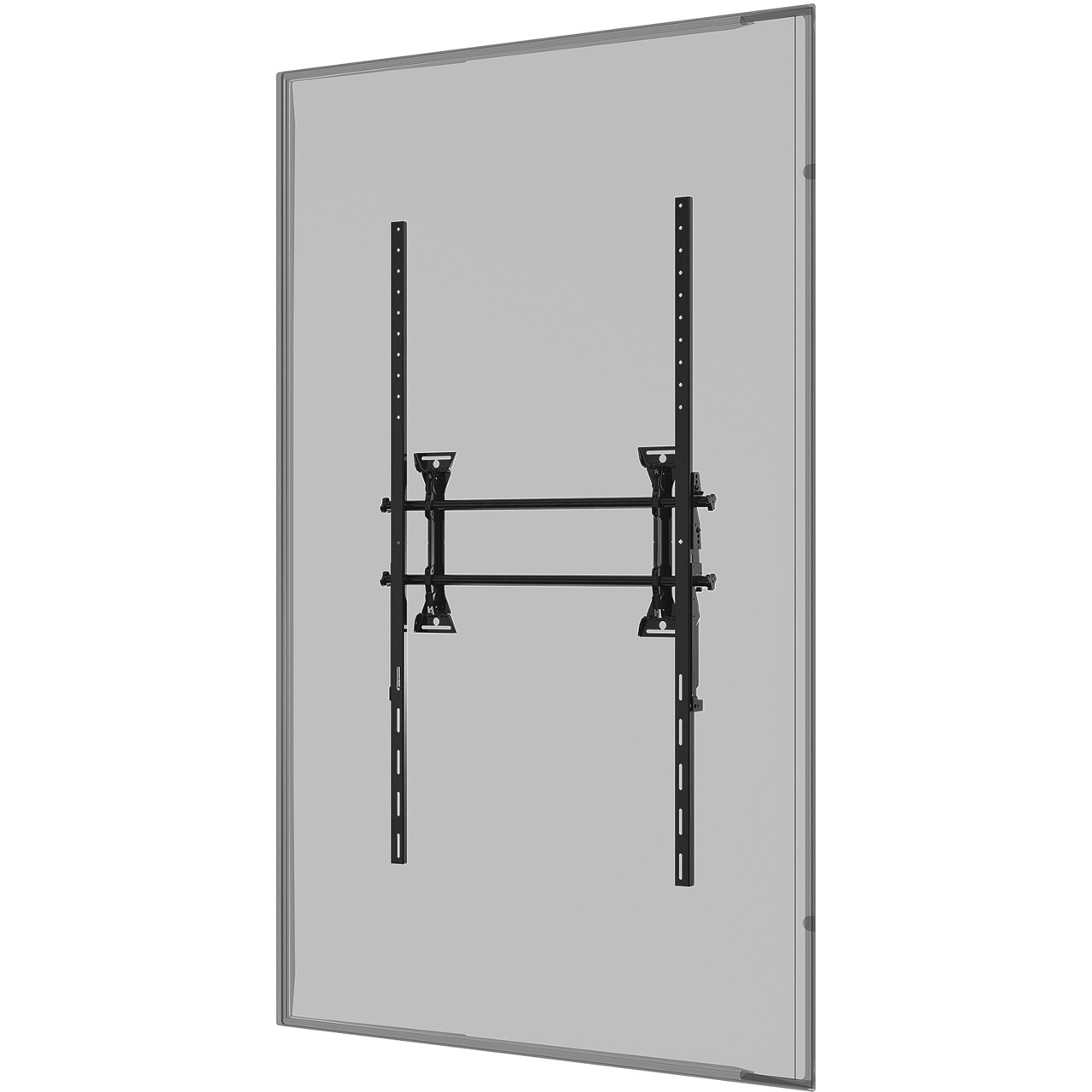

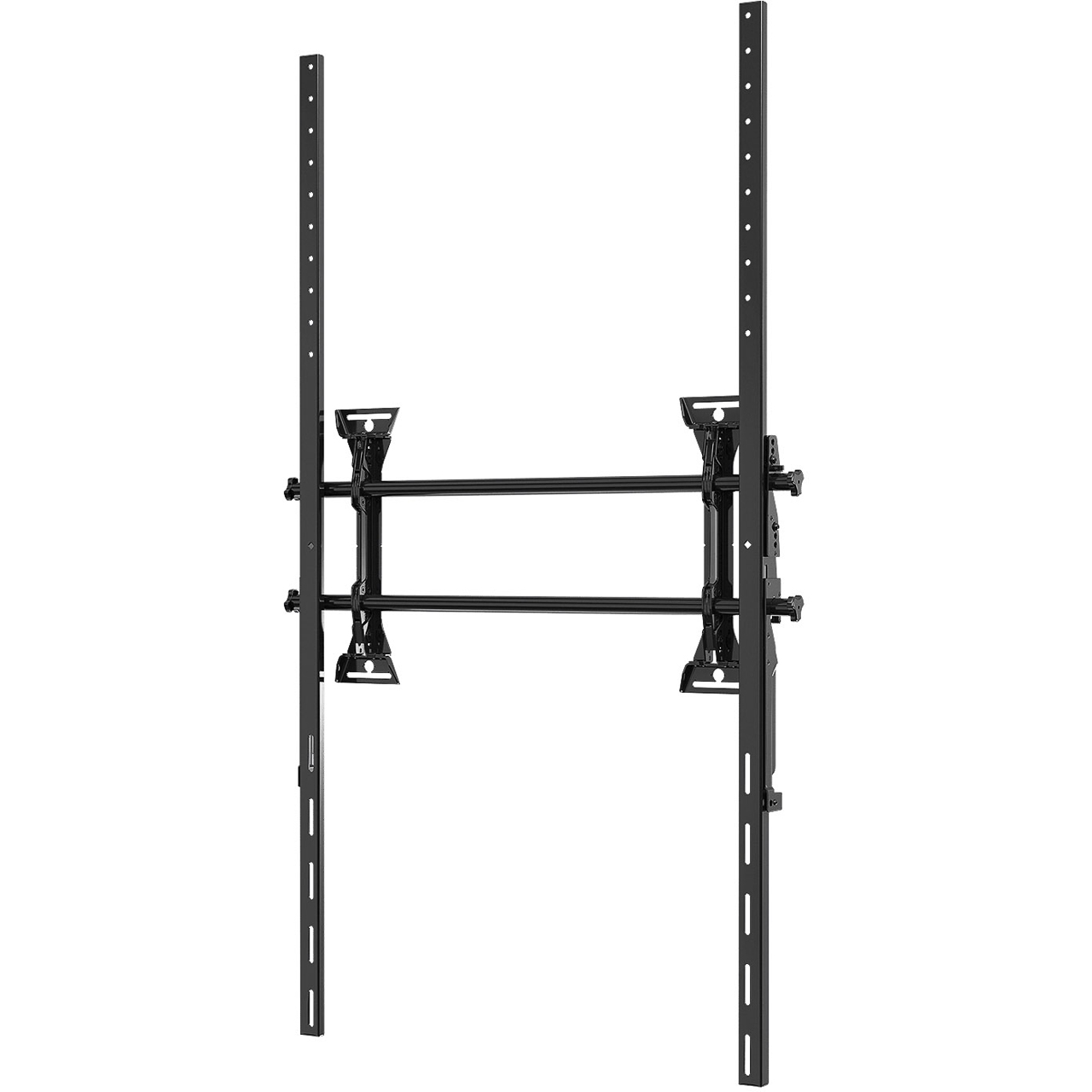

Chief KITXWXSM1UP Ultrawide Micro-Adjust Portrait Static Wall Mount - Extra Large Kit - 250 Pound Weight Capacity

KITXWXSM1UP - Overview

• Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 22.6" (575mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away


• Specifications:

  • Depth: 2.25" (5.7cm)
  • Height: 60.5" (153.7cm)
  • Minimum Depth: 2.25" (5.7cm)
  • Overall Dimensions: 60.5" x 34.75" x 2.25" (1537mm x 883mm x 57mm)
  • Shipping Weight: 16.15lbs (7.3kg)
  • Typical Screen Size: 80" - 120" (2032mm - 3048mm)
  • Weight Capacity: 250lbs
  • Width: 34.75" (88.3cm)
  • Adjustability: Fixed, Lateral Shift, Micro-Adjustable
  • Application: Wall
  • Color: Black
  • Orientation: Portrait
  • Solution Type: Universal
  • Special Features: Kits
  • VESA Mounting Pattern: 100mm x 600mm - 891mm x 1500mm


• Item Includes:

  • 1x Left Interface Bracket
  • 1x Right Interface Bracket
  • 4x Wall Covers
  • 1x Wall Mount
  • 1x Hardware Box


• Warranty:

  • 10 Year Warranty


• GTIN:

  0841872177267
