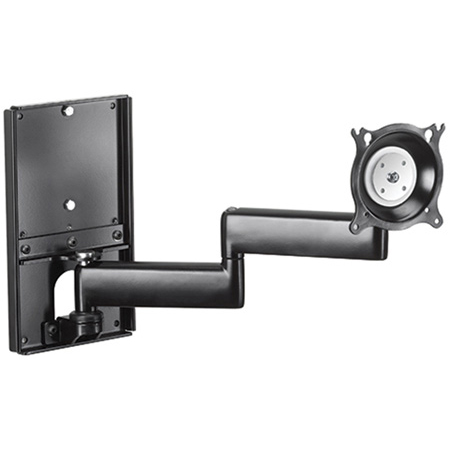

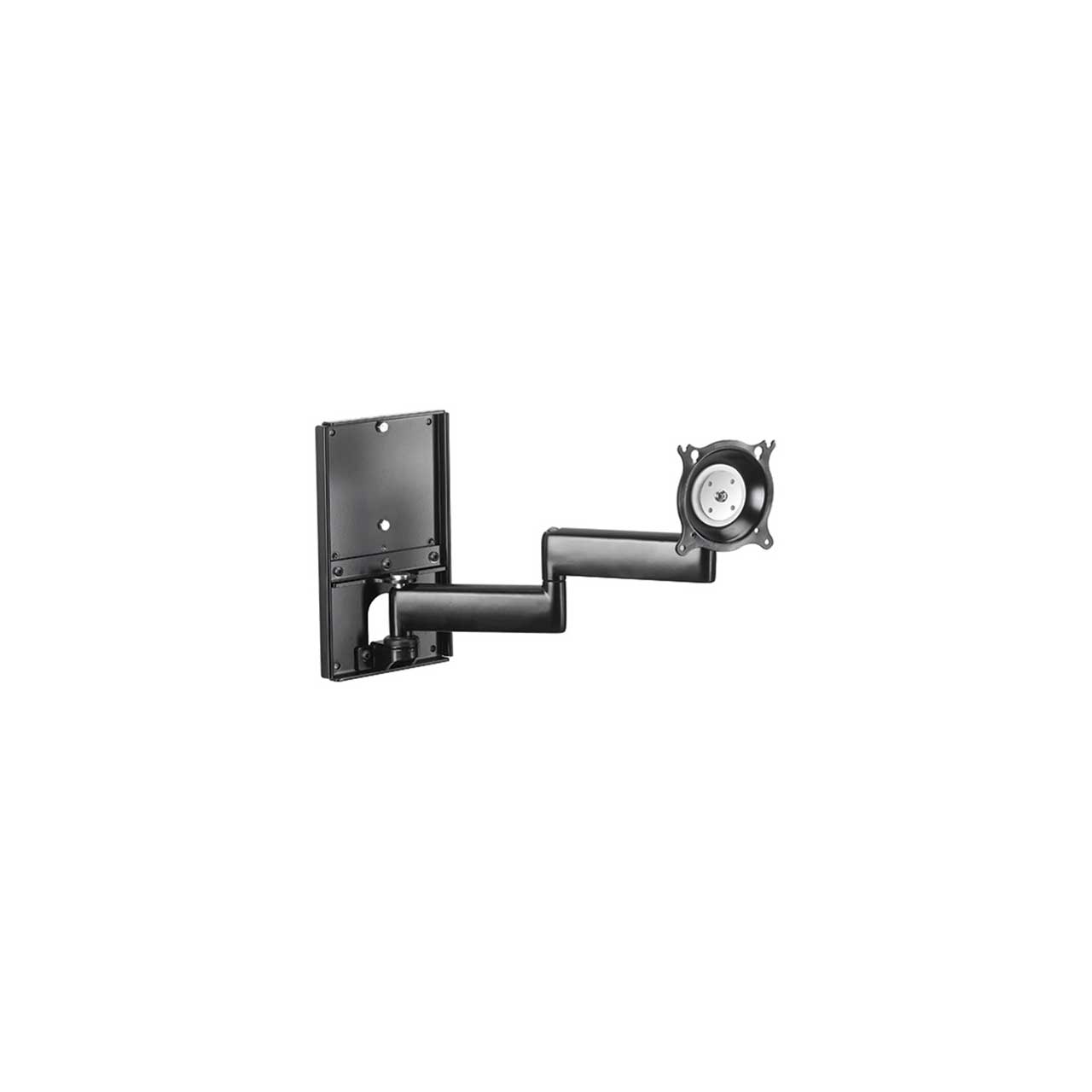

Chief Dual Arm Stud Wall Mount - Black

KWDSK110B - Overview

• Features:

  • Mounts a dual swing arm to single steel stud
  • Centris Technology provides smooth, fingertip tilt
  • Independently adjustable tension at pivot points for customized control
  • Extends over 15" (381mm) to achieve the ideal viewing angle
  • Quick, easy cable management
  • VESA® 2.95 x 2.95" (75 x 75mm) and 3.93 x 3.93" (100 x 100mm) compatible

  • (interface brackets available for non-VESA compliant monitors)


• Specifications:

  • Color: Black
  • Maximum Extension: 15.8" (401.3mm)
  • Minimum Depth: 2.85" (72.4mm)
  • Mounting Pattern Compatibility (Universal Versions): 2.95 x 2.95" (75 x 75mm), 3.93 x 3.93" (100 x 100mm)
  • Number of Monitors: 1
  • Orientation: Landscape and Portrait
  • Overall Dimensions (H x W x D): 10.8" x 10.3" x 2.9" (274 x 262 x 72mm)
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 8.90lbs
  • Solution Type: Universal
  • Tilt: +15°, -15°
  • Typical Screen Sizes: 10 - 30"
  • Wall Stud Compatibility (inches): Single Stud
  • Weight Capacity: 40lbs (18.1kg)


• GTIN:

  0841872106519
