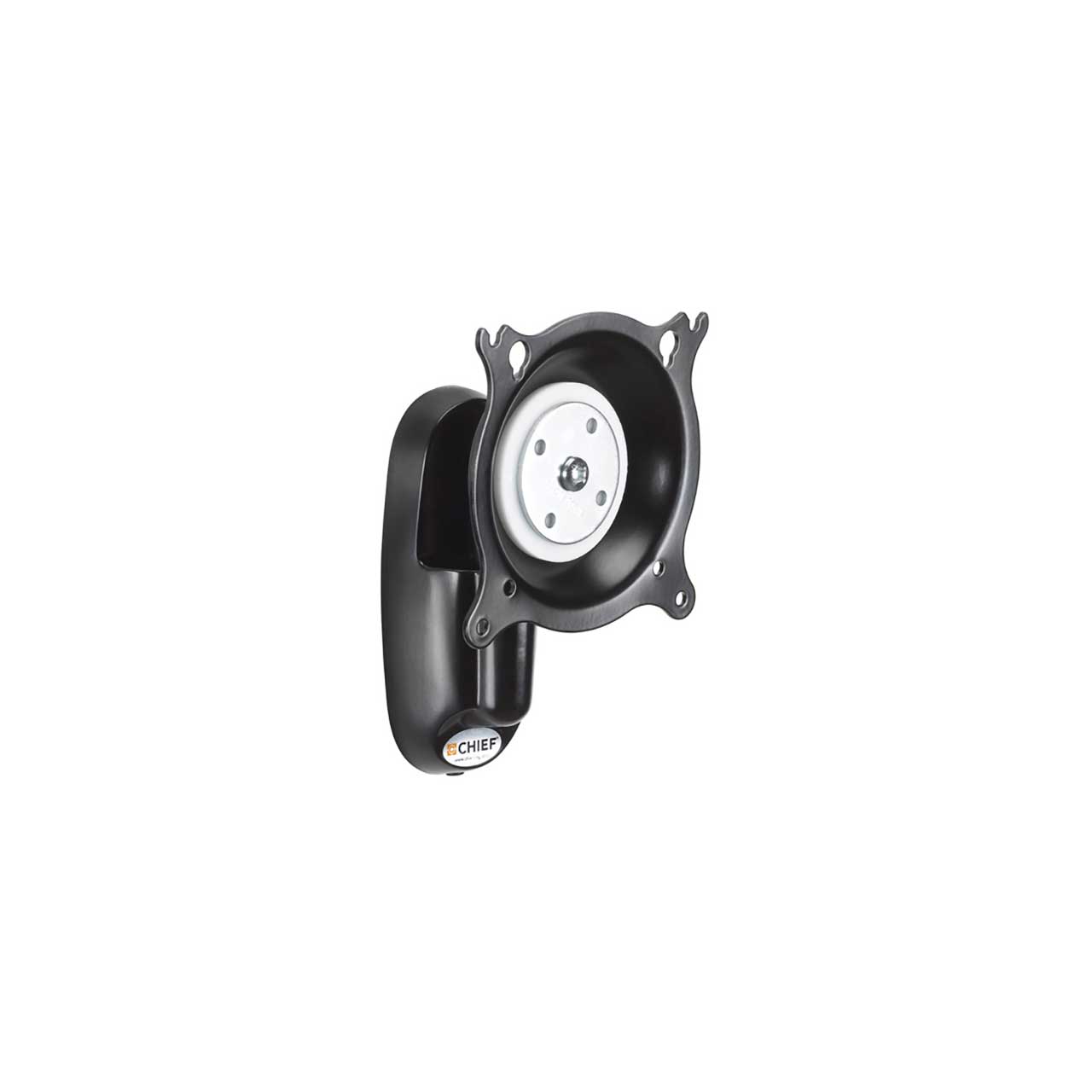

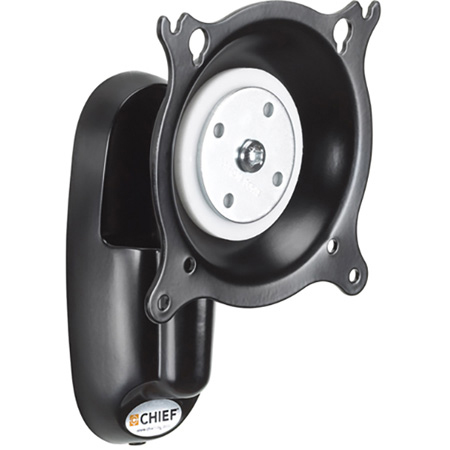

Chief KWP110B Pivot/Tilt Wall Mount - Single Monitor - Black

KWP110B - Overview

• Features:

  • Centris Technology provides smooth, fingertip tilt in all directions using the screen's center of gravity
  • Portrait/Landscape rotation 360°
  • Side-to-side pivot adjustment (range dependent on width of displays)
  • Independently adjustable tension at pivot points for customized control
  • Tension can be optimized for touchscreen use
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Custom OFB office furniture interface brackets available for most office systems
  • Built-in cable management
  • VESA® 2.95 x 2.95" (75 x 75mm) and 3.93 x 3.93" (100 x 100mm) compatible

  • (interface brackets available for non-VESA compliant monitors)


• Specifications:

  • Color: Black
  • Compatible with OFB Furniture Brackets: Yes
  • Minimum Depth: 2.94" (74.7mm)
  • Mounting Pattern Compatibility (Universal Versions): 2.95 x 2.95" (75 x 75mm), 3.93 x 3.93" (100 x 100mm)
  • Number of Monitors: 1
  • Orientation: Landscape and Portrait
  • Overall Dimensions (H x W x D): 7.2" x 4.7" x 2.9" (184 x 119 x 74mm)
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 4.00lbs
  • Solution Type: Universal
  • Tilt: +15°, -15°
  • Typical Screen Sizes: 10 - 30"
  • Wall Stud Compatibility (inches): Single Stud
  • Weight Capacity: 40lbs (18.1kg)


• GTIN:

  0841872043944
