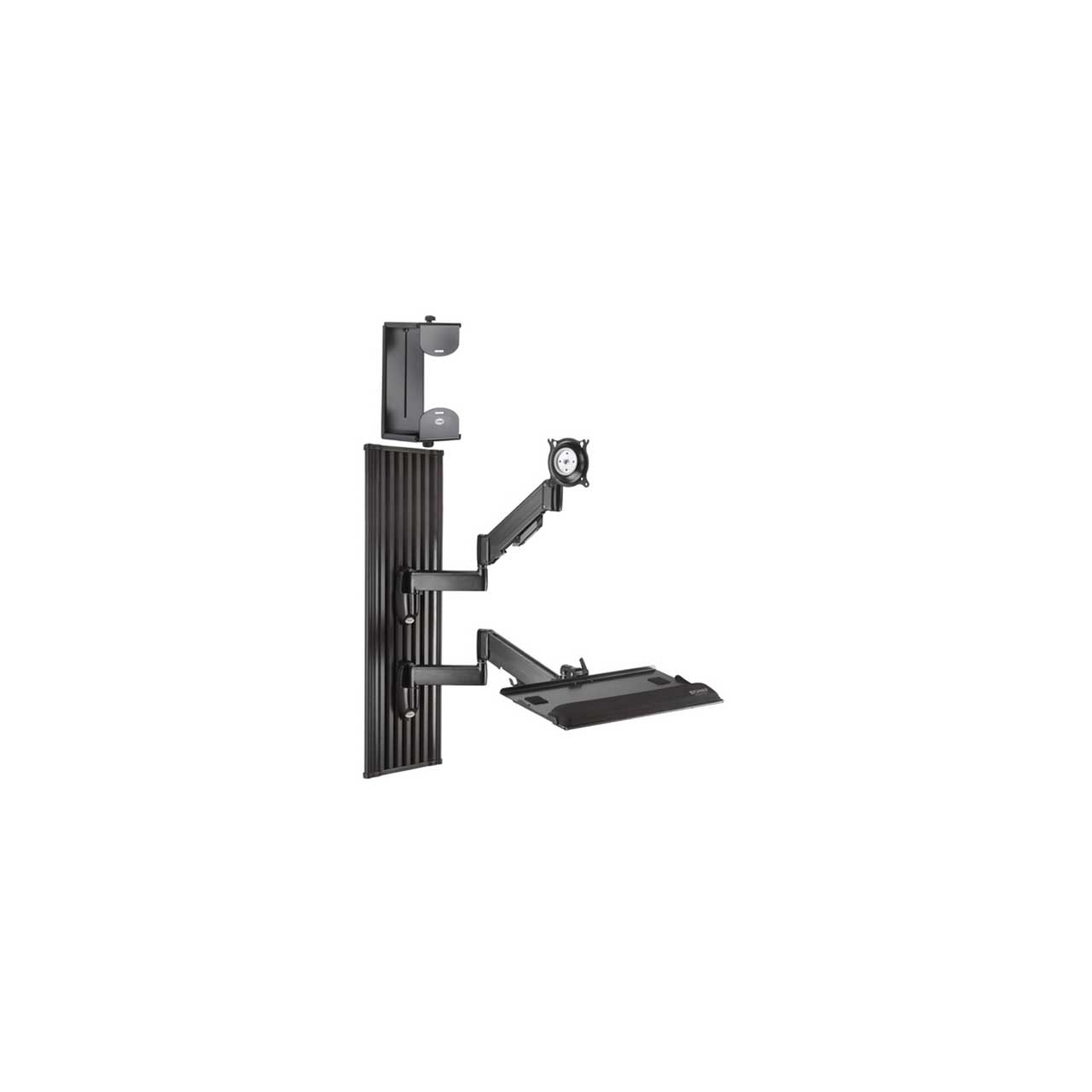

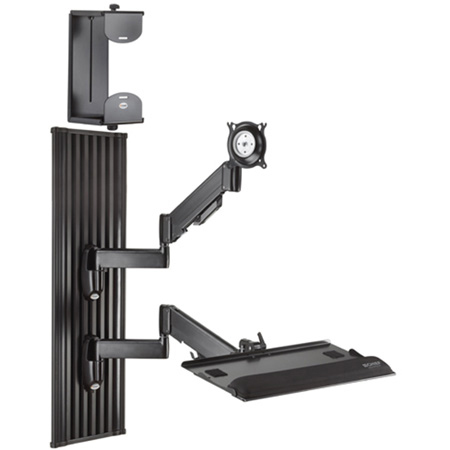

Chief All-in-One Workstation Wall Mount - Black

KWT110B - Overview

• Features:

  • Centris Technology provides smooth, fingertip tilt in all directions
  • Monitor swing arm, keyboard swing arm, CPU adapter and wall extrusion move independently to preferred position
  • Swing arms can be installed anywhere along the extrusion
  • Keyboard can flip up for low-profile storage
  • Install vertically on drywall, wood or metal studs; or install horizontally across multiple wood or metal studs
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Includes all required hardware
  • VESA® 2.95 x 2.95" (75 x 75mm) and 3.93 x 3.93" (100 x 100mm)


• Specifications:

  • Color: Black
  • Dynamic Height Adjustment: 13.25
  • Equipment Depth Range: 0 - 7.5" (0 - 191mm)
  • Equipment Height Range: 9.75 - 18" (248 - 457mm)
  • Maximum Extension: 20" (508.mm)
  • Minimum Depth: 3" (76.2mm)
  • Mounting Pattern Compatibility (Universal Versions): 2.95 x 2.95" (75 x 75mm), 3.93 x 3.93" (100 x 100mm)
  • Number of Monitors: 1
  • Orientation: Landscape and Portrait
  • Overall Dimensions (H x W x D): 36.2" x 18.8" x 4.0" (918 x 476 x 101mm)
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 58.85lbs
  • Solution Type: Universal
  • Tilt: +15°, -15°
  • Typical Screen Sizes: 10 - 30"
  • Wall Stud Compatibility (inches): Single Stud, 16", 24"
  • Weight Capacity: 5 - 25lbs (2.3 - 11.3kg)


• GTIN:

  0841872115283
