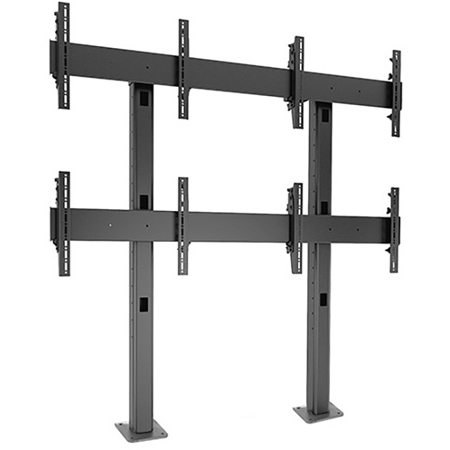

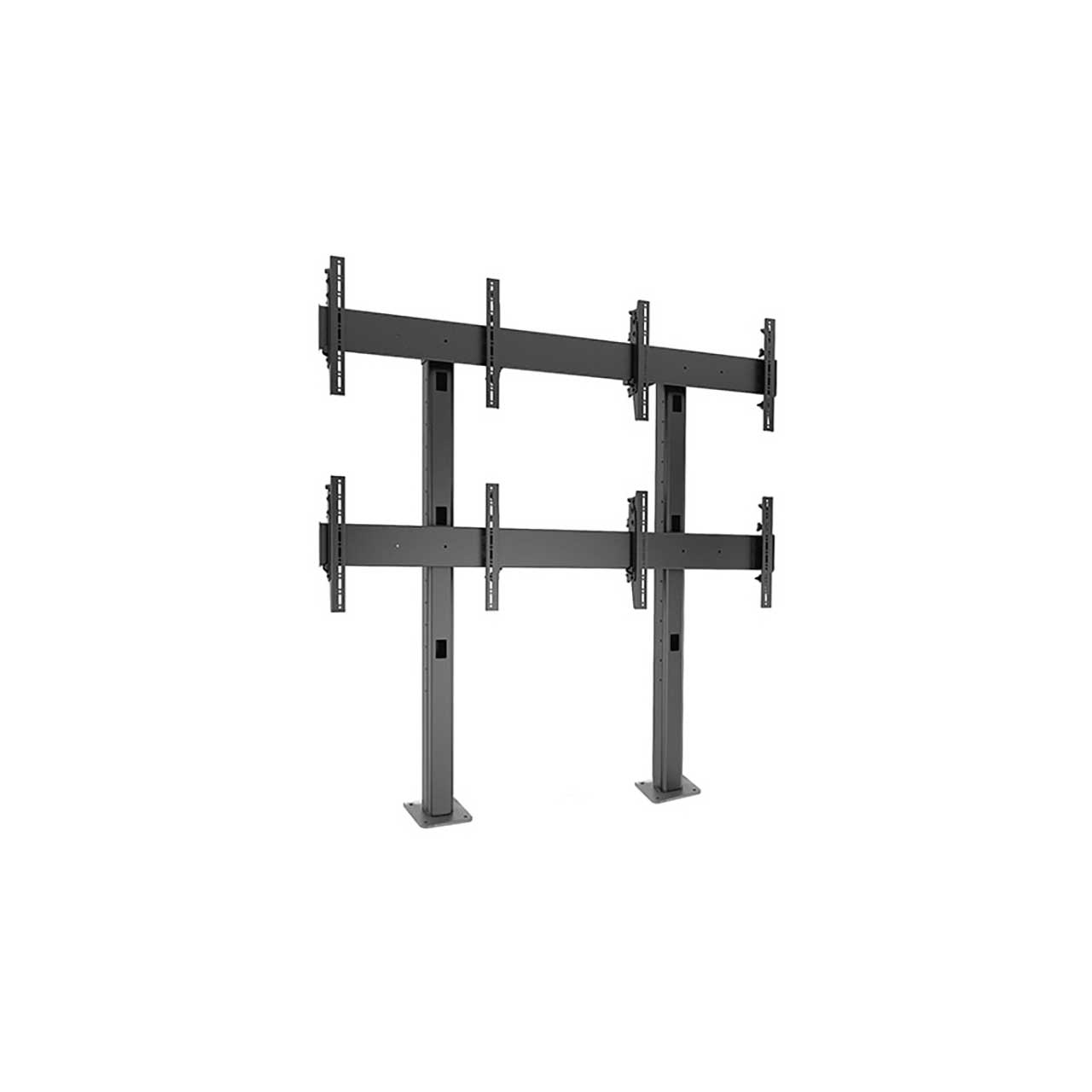

Chief Fusion 2x2 Menu Board Adjustable Display Mount

LBM2X2U - Overview

• Features:

  • 2 x 2 screen arrangement for 42" - 50" screens. Larger displays possible with FCAX brackets.
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Bolt-down solution allows for a permanent solution
  • Integrated cable management for a clean installation
  • TAA Compliant


• Specifications:

  • Center of Display to Floor/Table Range: 16.38" (416mm) (minimum bottom row) - 64.38" (1635mm) (maximum top row)
  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Yes
  • Manual Height Adjustment: Micro-adjustment up to 0.75" (19mm) per screen
  • Mounting Pattern Compatibility (Universal Versions): Any Width x 3.93" - 15.75" (100mm - 400mm)
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 72.9" x 72.9" x 9.43" (1852mm x 1851mm x 239mm)
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
  • Screen Array Configuration: 2 x 2
  • Shipping Weight: 177.00lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 42" - 50" (Larger displays possible with FCAX brackets)
  • Weight Capacity: 125lbs. (56.7kg) per screen


• GTIN:

  0841872157511
