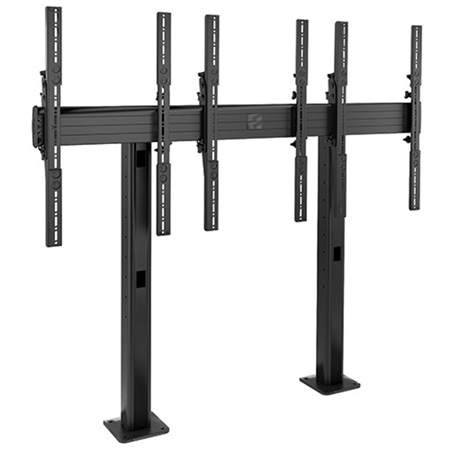

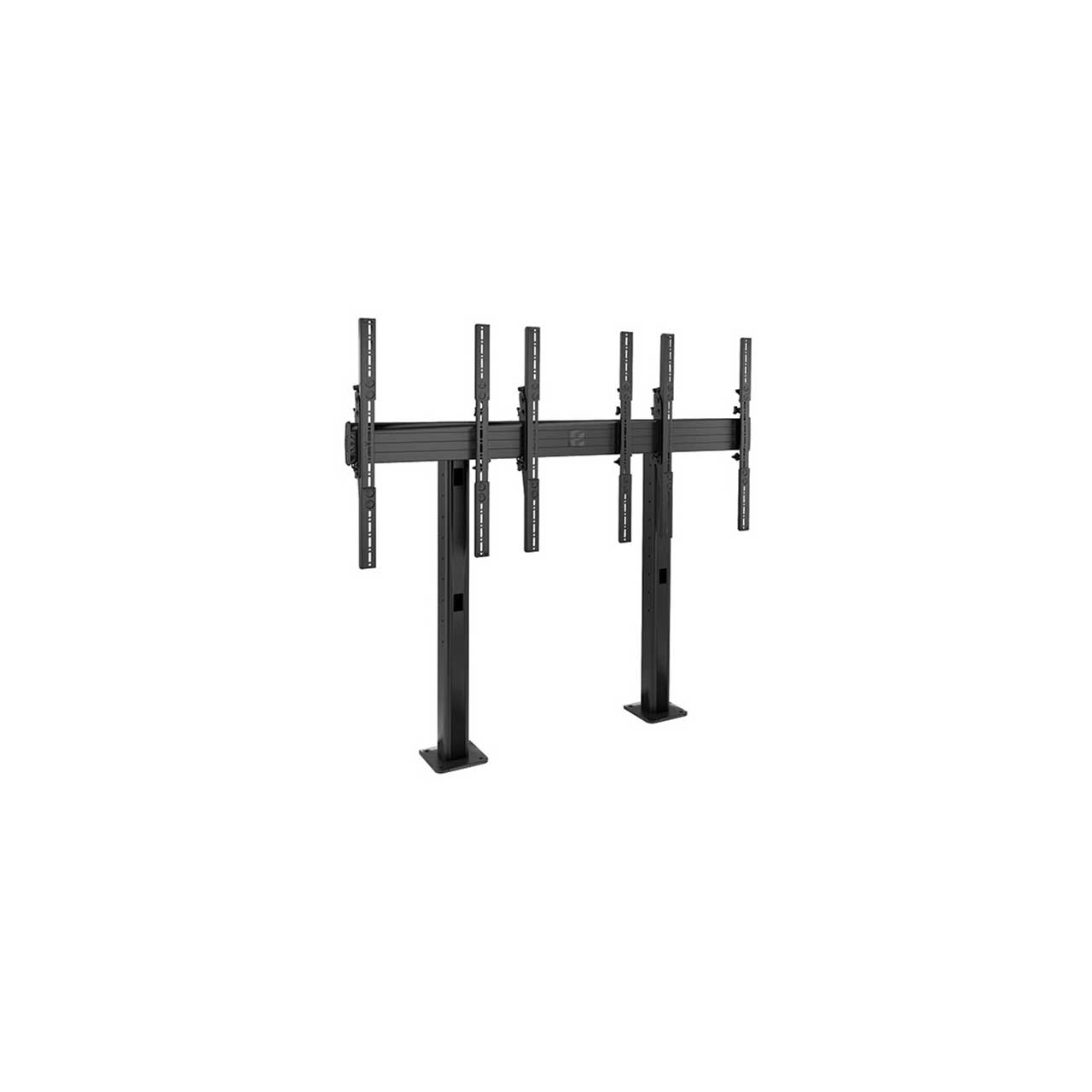

Chief LBM3X1UP FUSION 3 x 1 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Portrait

LBM3X1UP - Overview

• Features:

  • 3 x 1 portrait screen arrangement for 42" - 46" screens. Larger displays possible with FCAX brackets.
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Bolt-down solution allows for a permanent solution
  • Integrated cable management for a clean installation
  • TAA Compliant


• Specifications:

  • Center of Display to Floor/Table Range: 17.38" (441mm) - 64.38" (1635mm)
  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Yes
  • Manual Height Adjustment: Micro-adjustment up to 0.75" (19mm) per screen
  • Mounting Pattern Compatibility (Universal Versions): Any Width x 3.93" - 31.50" (100mm - 800mm)
  • Orientation: Portrait
  • Overall Dimensions (H x W x D): 80.6" x 68.0" x 9.61" (2047mm x 1727mm x 244 mm)
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
  • Screen Array Configuration: 3 x 1
  • Shipping Weight: 165.00lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 42" - 46" (Larger displays possible with FCAX brackets)
  • Weight Capacity: 125lbs (56.7kg) per screen


• GTIN:

  0841872157702
