LBM3X2U - Overview

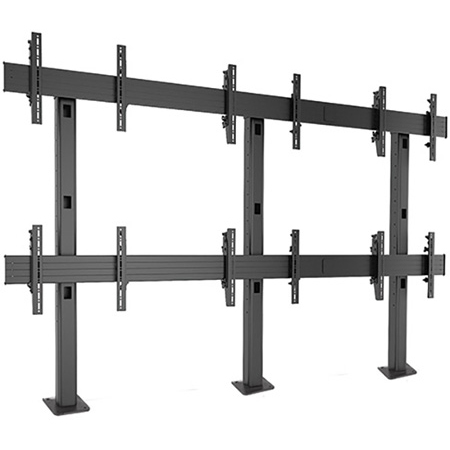

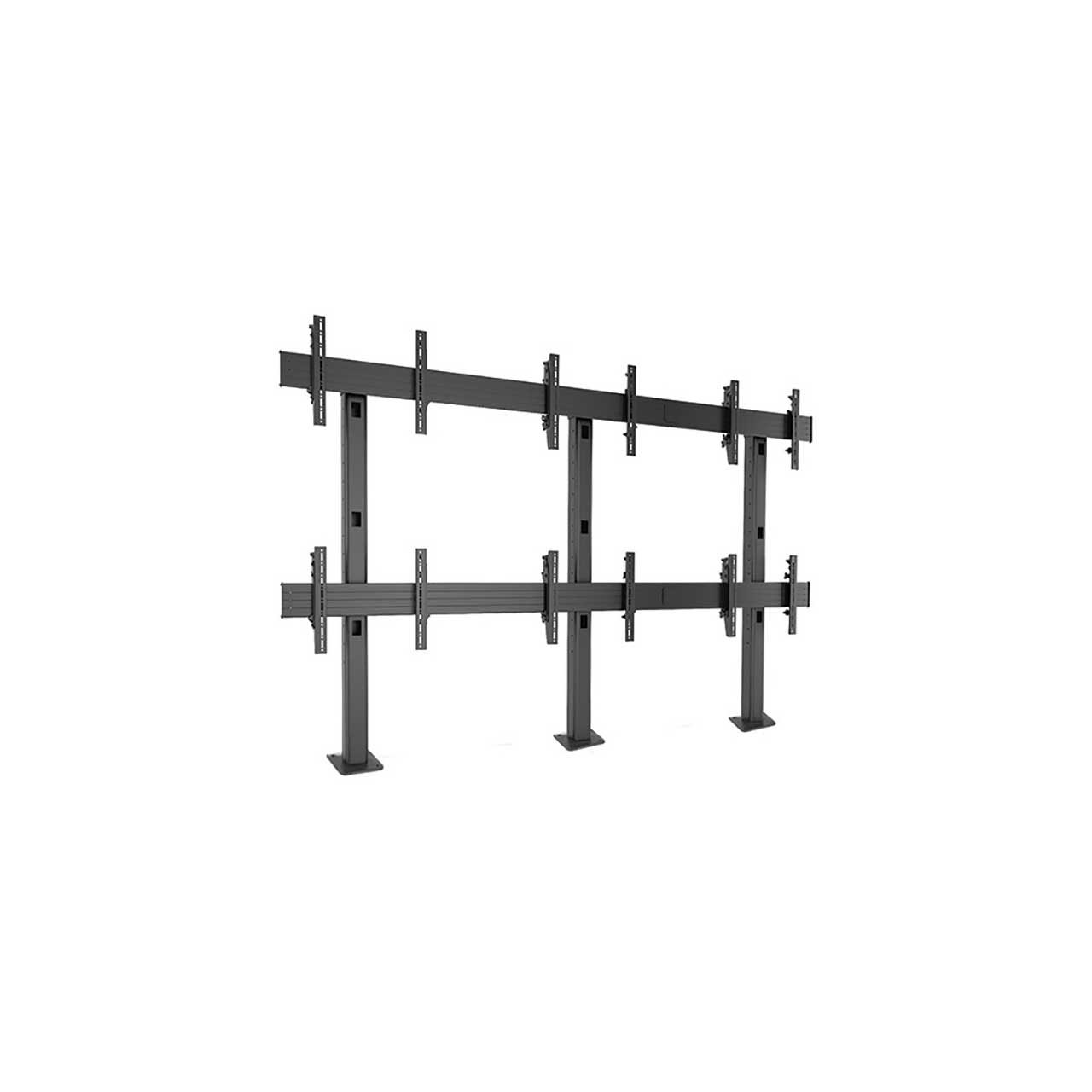

Chief's LBM3X2U FUSION™ Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.

Screen array configuration: 3 screens wide x 2 screens high.

  • Features:

    • 3 x 2 screen arrangement for 42" - 46" screens. Larger displays possible with FCAX brackets.
    • Easily align displays with independent height, plumb and lateral shift adjustment
    • Bolt-down solution allows for a permanent solution
    • Integrated cable management for a clean installation
    • TAA Compliant

  • Specifications:

    • Center of Display to Floor/Table Range: 16.38" (416mm) (minimum bottom row) - 64.38" (1635mm) (maximum top row)
    • Certifications: UL Listed
    • Color: Black
    • Lateral Shift: Yes
    • Manual Height Adjustment: Micro-adjustment up to 0.75" (19mm) per screen
    • Mounting Pattern Compatibility (Universal Versions): Any Width x 3.93" - 15.75" (100 mm - 400 mm)
    • Orientation: Landscape
    • Overall Dimensions (H x W x D): 72.9" x 108.9" x 9.43" (1852mm x 2766mm x 239 mm)
    • Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
    • Screen Array Configuration: 3 x 2
    • Shipping Weight: 232.00lbs
    • Solution Type: Universal
    • Typical Screen Sizes: 42" - 46" (Larger displays possible with FCAX brackets)
    • Weight Capacity: 125lbs (56.7kg)

  • GTIN:

    0841872157528
